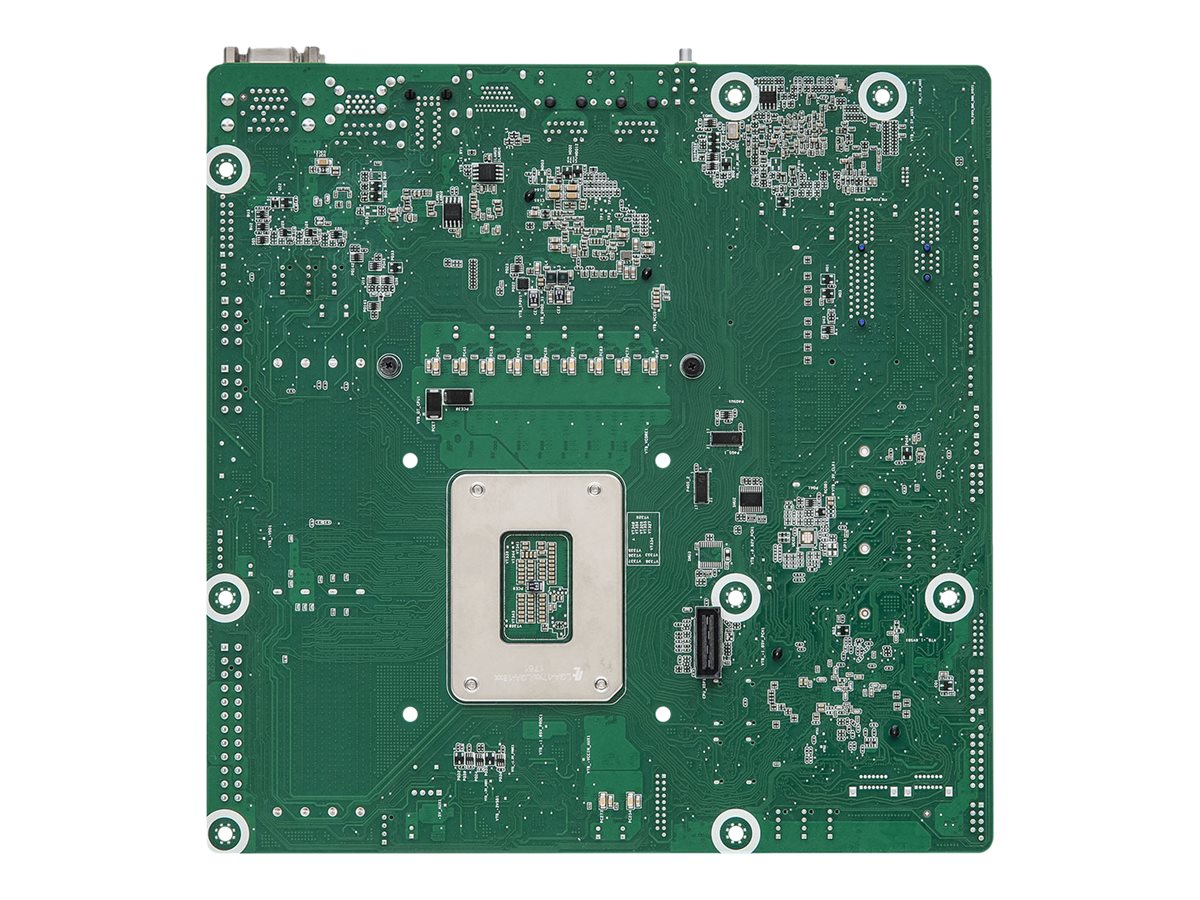

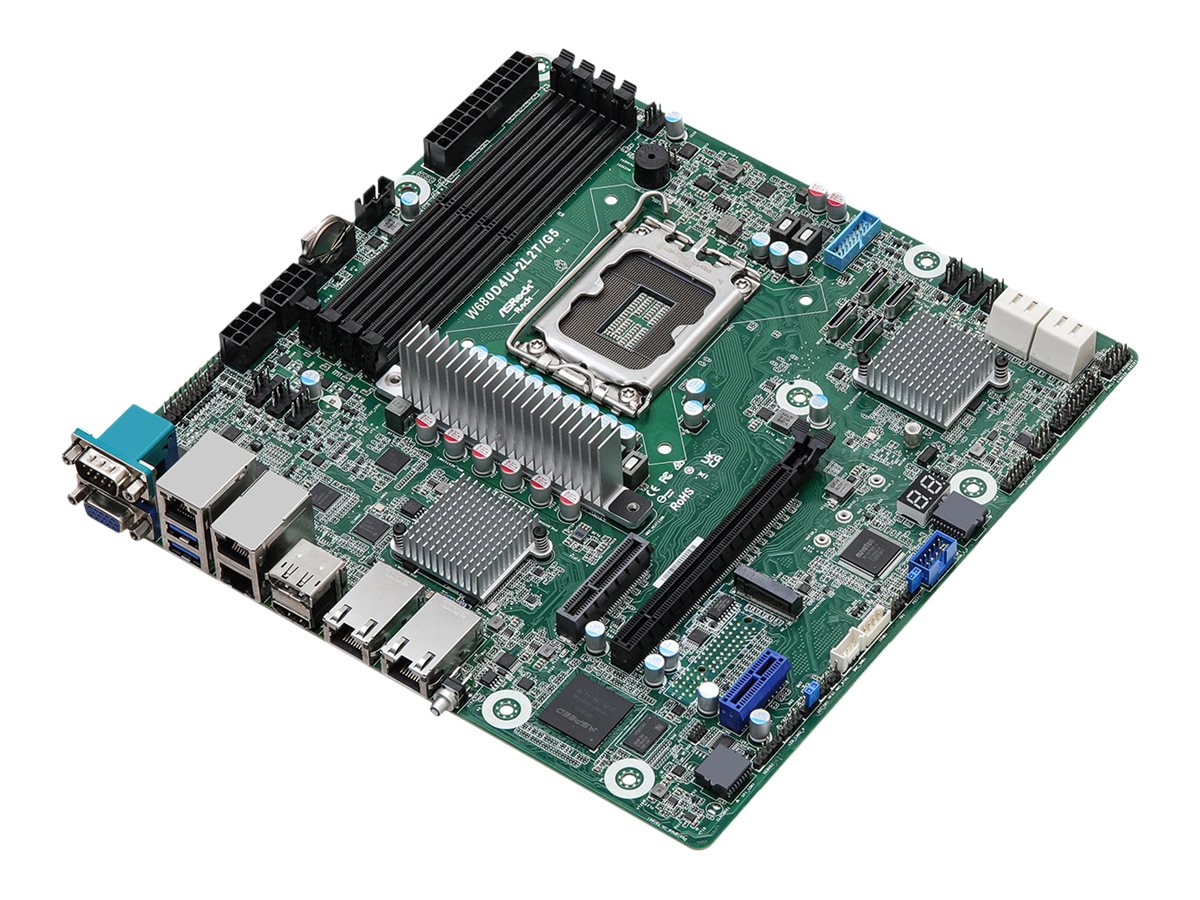

ASRock Rack W680D4U-2L2T/G5
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
ASRock Rack W680D4U-2L2T/G5
- Motherboard
- micro ATX
- LGA1700 Socket
- W680 Chipset
- USB 3.2 Gen 1
- 2 x Gigabit LAN, 2 x 10 Gigabit LAN
- onboard graphics
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | W680D4U-2L2T/G5 |
| SHI Part #: | 45395871 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | ASRock |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | ASRock Rack W680D4U-2L2T/G5 - Motherboard - micro ATX - LGA1700 Socket - W680 Chipset - USB 3.2 Gen 1 - 2 x Gigabit LAN, 2 x 10 Gigabit LAN - onboard graphics |
| Manufacturer | ASRock |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 24.4 cm |
| Dimensions & Weight / Width | 24.4 cm |
| Header / Brand | ASRock Rack |
| Mainboard / Chipset Type | Intel W680 |
| Mainboard / Processor Socket | LGA1700 Socket |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Video Output / Graphics Processor | ASPEED AST2600 |
| Video Output / Type | Graphics adapter |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| RAID Features | Intel Rapid Storage Technology |
| Storage Interfaces |
|
| Features | |
| BIOS Features | iKVM support, IPMI support, SPI BIOS flashing, ACPI 6.4 support, SMBIOS 2.8 support, UEFI BIOS |
| BIOS Type | AMI |
| Hardware Features | vMedia support, ASRock Rack Instant Flash, Windows 11 compatible |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| General | |
| Chipset Type | Intel W680 |
| Compatible Processors | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Max Processors Qty | 1 |
| Processor Socket | LGA1700 Socket |
| Product Type | Motherboard - micro ATX |
| Graphics | |
| Graphics Controller | ASPEED AST2600 |
| LAN | |
| Network Controller | Intel I210 / Intel X710 / Realtek RTL8211F |
| Network Interfaces | 2 x Gigabit Ethernet, 2 x 10 Gigabit Ethernet |
| Miscellaneous | |
| Compliant Standards | Plug and Play |
| Depth | 24.4 cm |
| Width | 24.4 cm |
| Supported RAM | |
| Bus Clock | 4000 MHz, 4400 MHz, 3600 MHz |
| Features | Dual channel memory architecture |
| Max Size | 128 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Technology | DDR5 |
