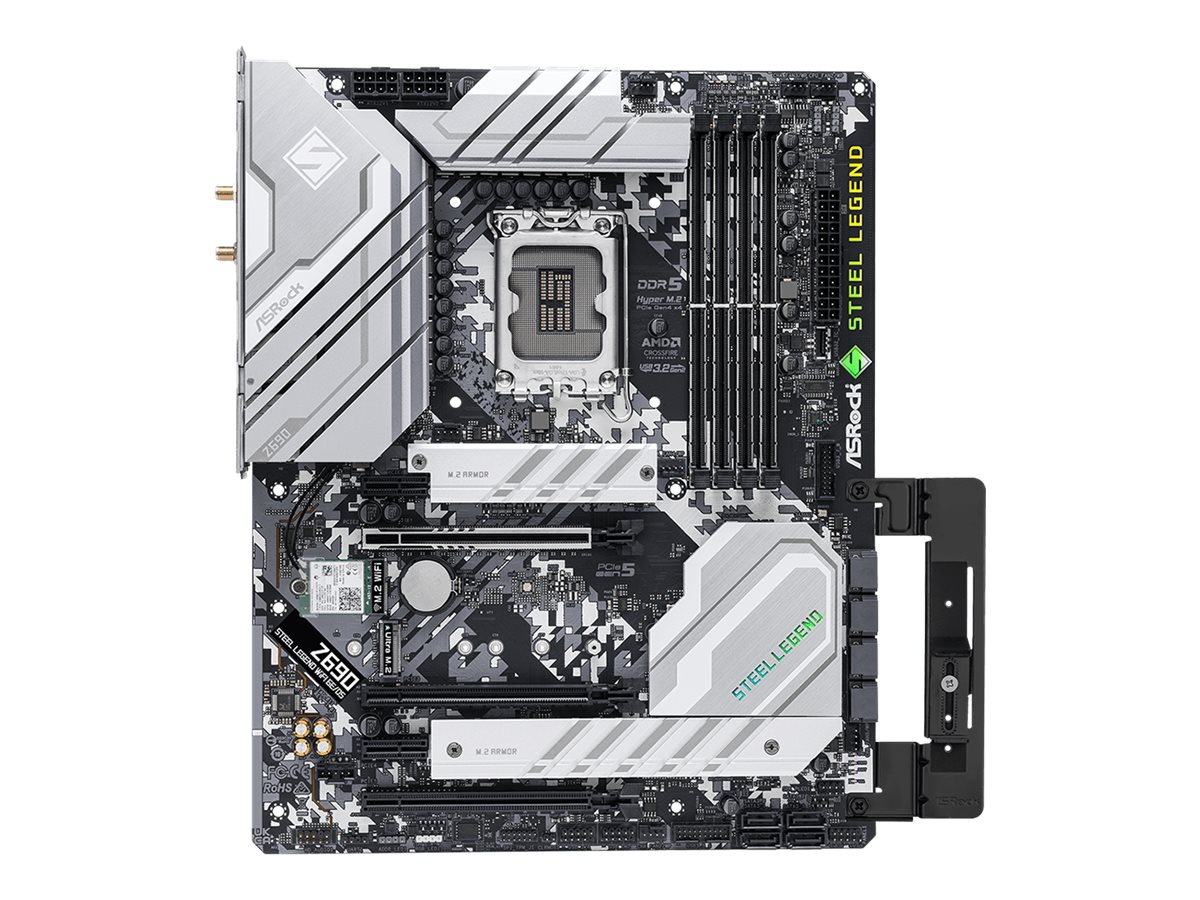

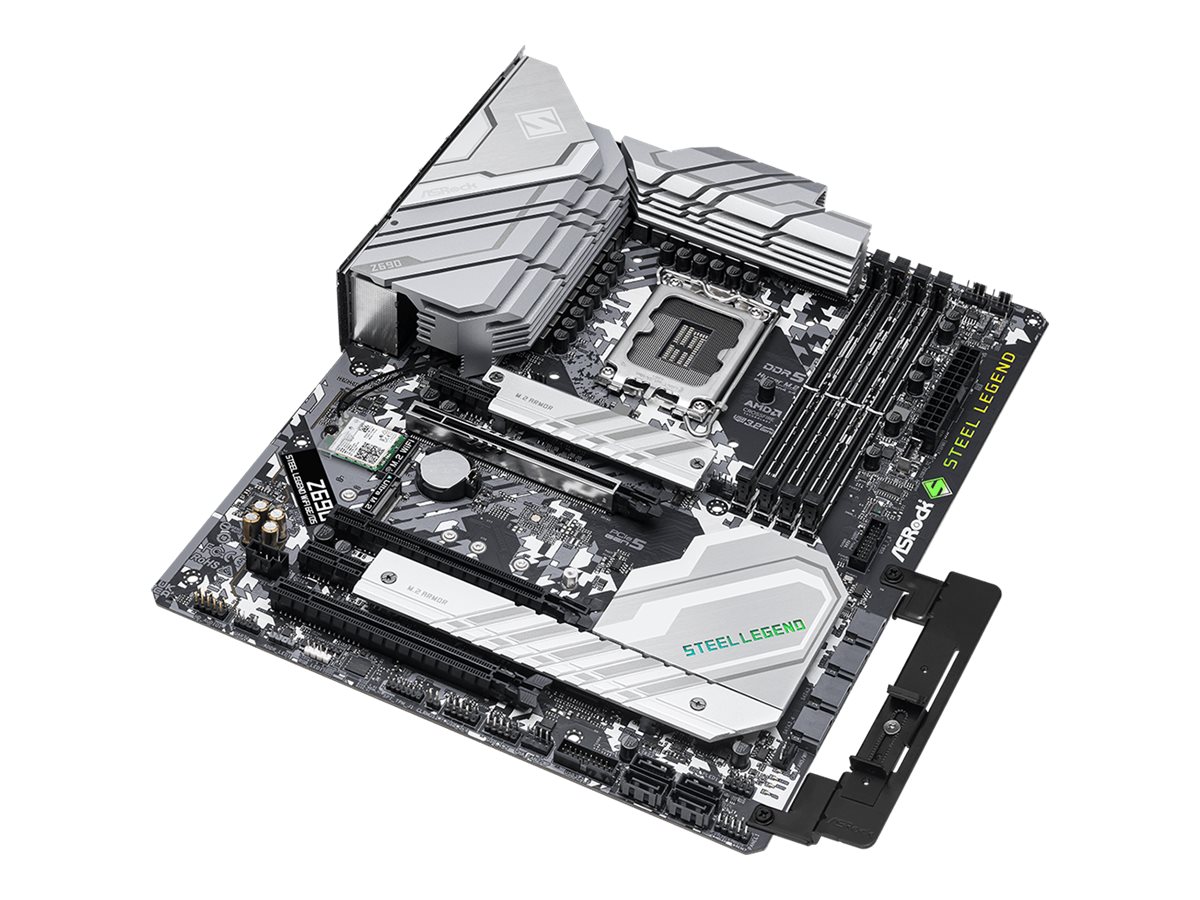

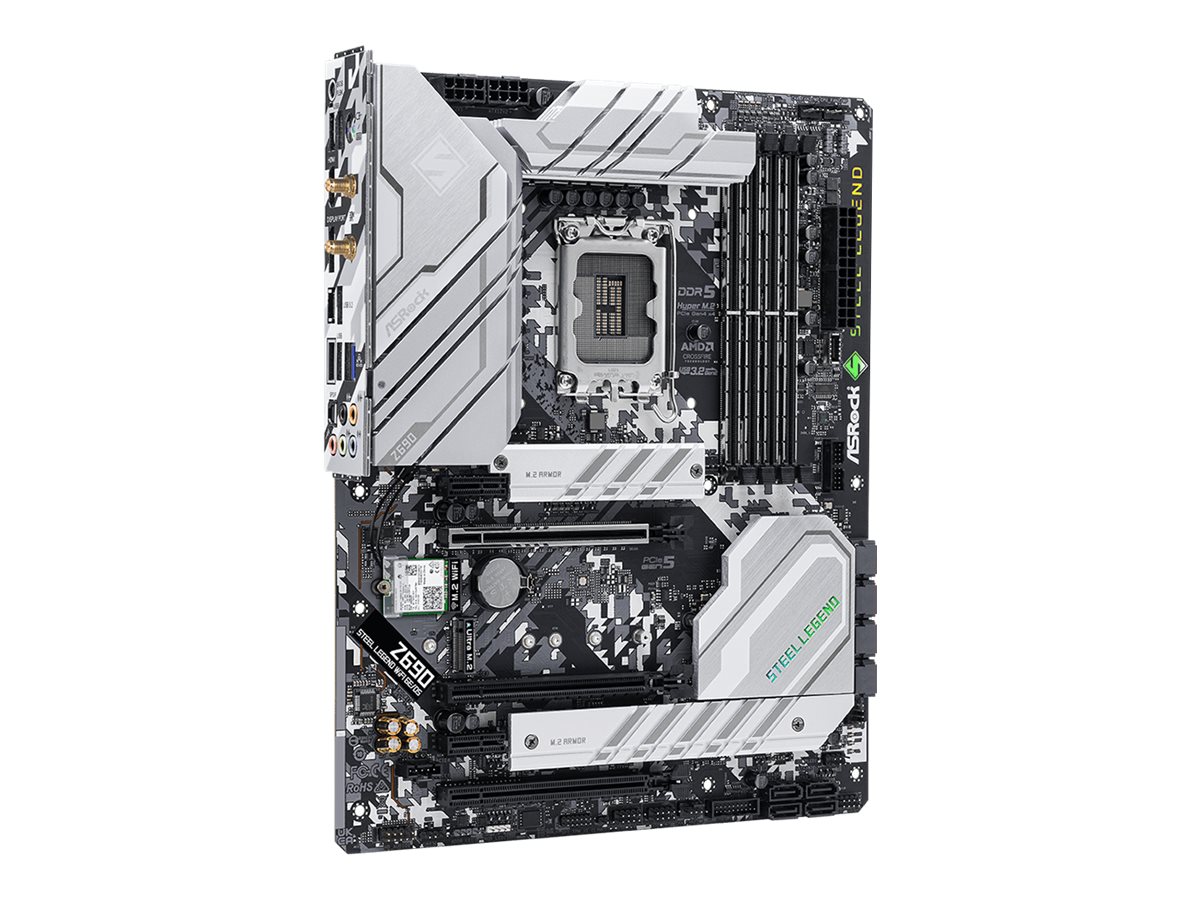

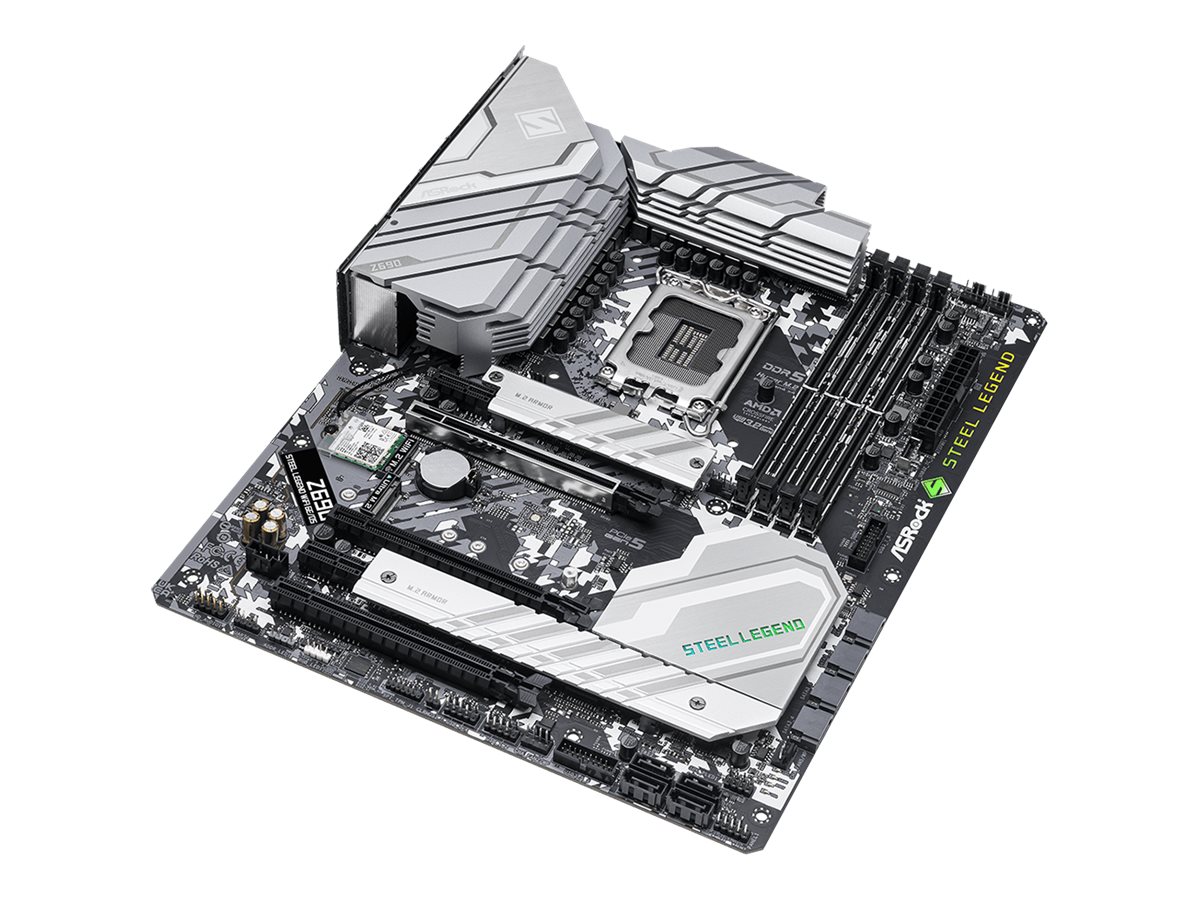

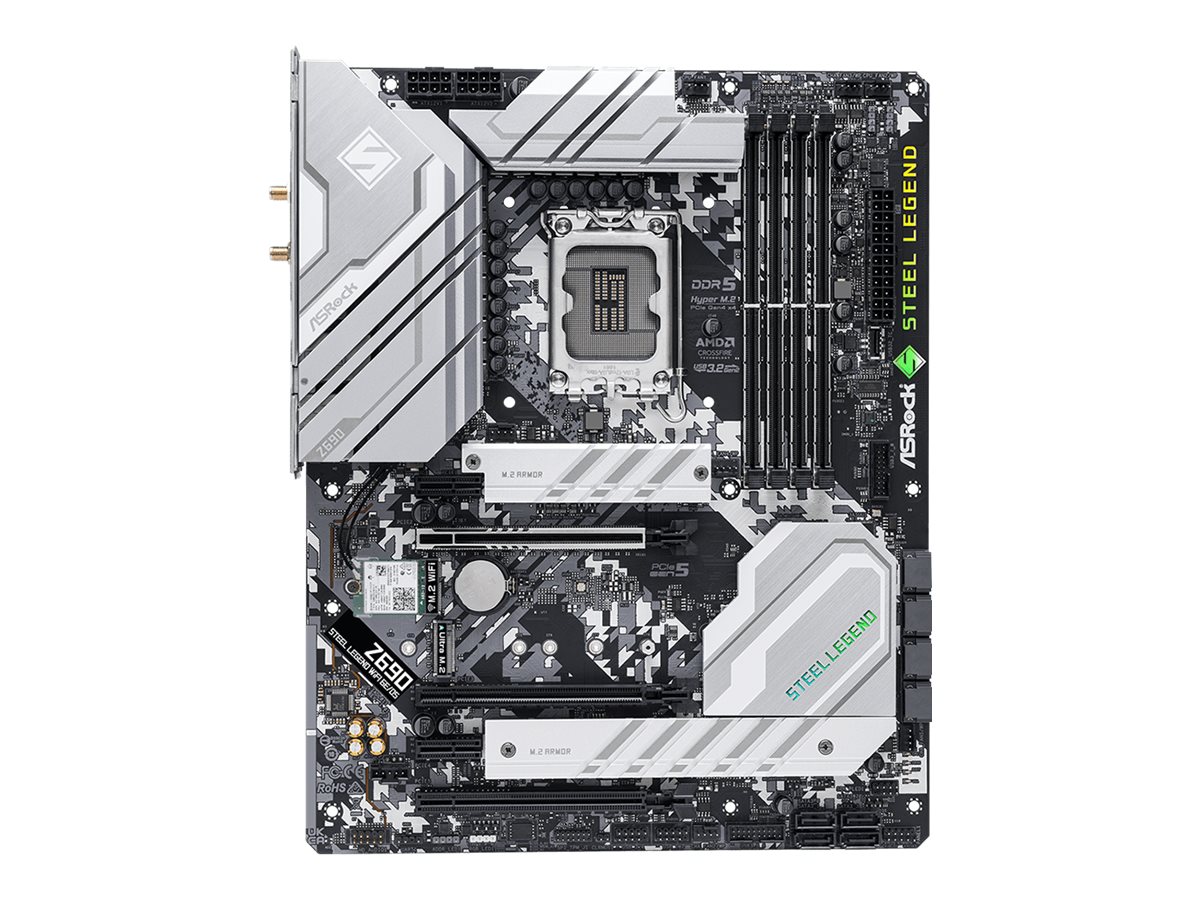

ASRock Z690 Steel Legend WiFi 6E/D5

Login for Price
ASRock Z690 Steel Legend WiFi 6E/D5
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Motherboard
  • ATX
  • LGA1700 Socket
  • Z690 Chipset
  • USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2
Contracts
   DIR-CPO-5094
ASRock Z690 Steel Legend WiFi 6E/D5
  • Motherboard
  • ATX
  • LGA1700 Socket
  • Z690 Chipset
  • USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2
  • 2.5 Gigabit LAN, Wi-Fi 6E
  • onboard graphics (CPU required)
  • HD Audio (8-channel)
  Additional Details
Mfr Part #: Z690 STEELLEGENDWIFI6E/D5
SHI Part #: 45411705
Category: motherboards or daughterboards
UNSPSC: 43201513
Manufacturer: ASRock
Product Type: Hardware
General Information
Categorymotherboards or daughterboards
DescriptionASRock Z690 Steel Legend WiFi 6E/D5 - Motherboard - ATX - LGA1700 Socket - Z690 Chipset - USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 - 2.5 Gigabit LAN, Wi-Fi 6E - onboard graphics (CPU required) - HD Audio (8-channel)
ManufacturerASRock
UNSPSC43201513
Main Specifications
Dimensions & Weight / Depth24.4 cm
Dimensions & Weight / Width30.5 cm
Header / BrandASRock
Mainboard / Chipset TypeIntel Z690
Mainboard / Processor SocketLGA1700 Socket
Networking / Data Link Protocol
  • 2.5 Gigabit Ethernet
  • Bluetooth
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax (Wi-Fi 6E)
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Packaged Quantity1
Video Output / TypeGraphics adapter (CPU required)
Audio
Audio CodecRealtek ALC897
Compliant StandardsHigh Definition Audio
TypeHD Audio (8-channel)
Expansion / Connectivity
Expansion Slots
  • 1 x CPU
  • 4 x DIMM 288-pin
  • 1 x PCIe 5.0 x16
  • 1 x PCIe 4.0 x16 (x4 mode)
  • 1 x PCIe 3.0 x16 (x4 mode)
  • 2 x PCIe 3.0 x1
  • 1 x M.2 socket (2230 M.2 Key E slot)
  • 1 x M.2 socket (2260/2280 M.2 Key M slot)
  • 1 x M.2 socket (2230/2242/2260/2280 M.2 Key M slot)
  • 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot)

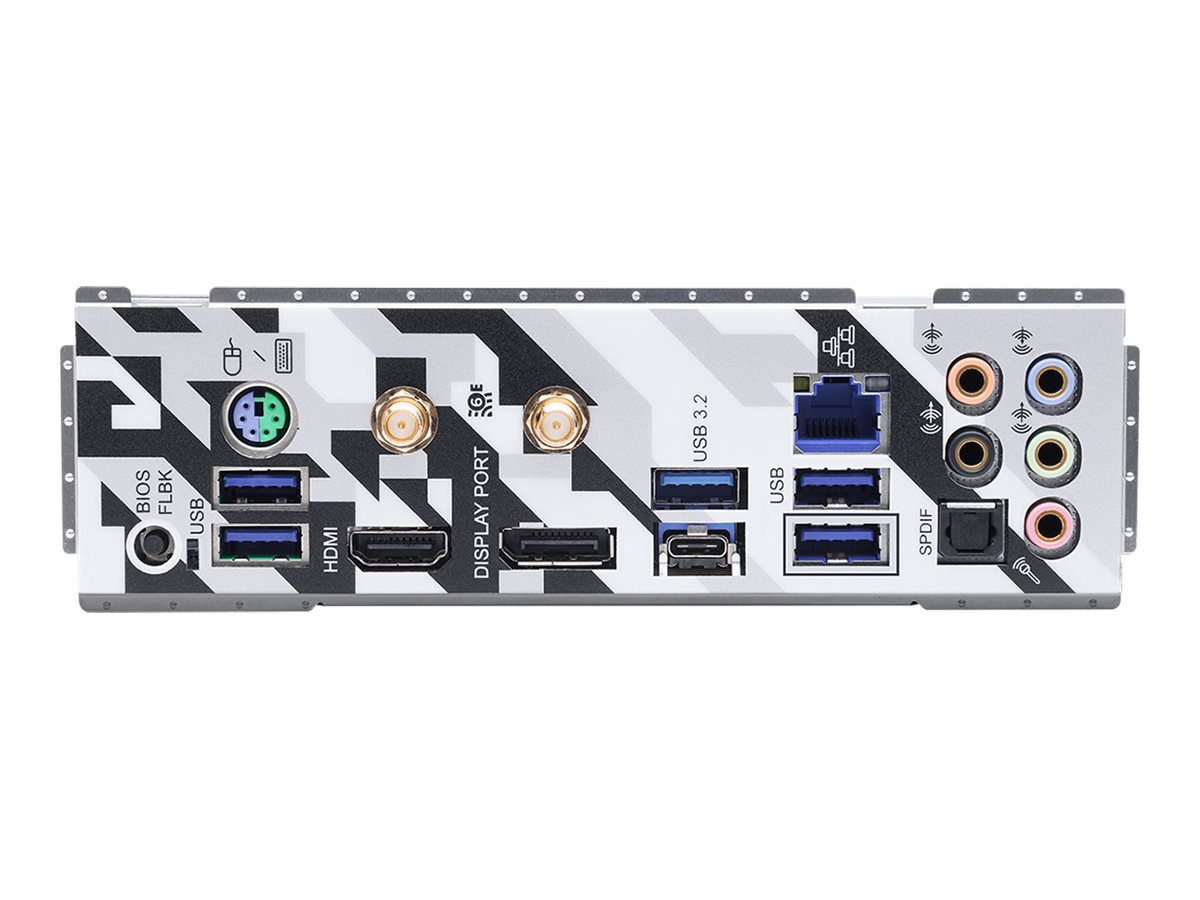

Interfaces
  • 1 x HDMI
  • 1 x DisplayPort
  • 1 x USB 3.2 Gen 2
  • 1 x USB-C 3.2 Gen 2
  • 4 x USB 3.2 Gen 1
  • 1 x SPDIF out
  • 2 x antenna
  • 1 x microphone - mini-jack
  • 1 x audio line-out (center/subwoofer) - mini-jack
  • 1 x LAN (2.5Gigabit Ethernet)
  • 1 x PS/2 keyboard / mouse
  • 1 x audio line-out (rear) - mini-jack
  • 1 x audio line-in - mini-jack
  • 1 x audio line-out (front surround) - mini-jack
Internal Interfaces
  • 1 x USB-C 3.2 Gen 2x2 - header
  • 4 x USB 3.2 Gen 1 - header
  • 4 x USB 2.0 - header
  • 1 x audio - header
  • 1 x Thunderbolt - header
  • 1 x SPI - header
  • 1 x speaker - header
Power Connectors24-pin main power connector, 2 x 8-pin ATX12V connectors
Storage Interfaces
  • SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
  • PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 5
  • SATA-600 / PCIe 3.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5
Features
BIOS FeaturesUEFI BIOS, ACPI 6.0 support, SMBIOS 2.7 support
BIOS TypeAMI
Hardware FeaturesXXL Aluminum Alloy Heatsink, Premium Power Choke, 50A Power Stage, Nichicon 12K Black Caps, I/O Armor, Matte Black PCB, High Density Glass Fabric PCB, 2oz Copper PCB, ASRock Auto Driver Installer, ASRock Full Coverage M.2 Heatsink, ASRock Hyper M.2, ASRock Ultra USB Power, ASRock POST Status Checker (PSC), ASRock Full Spike Protection, ASRock Live Update, ASRock Steel Slots, Digi Power Design, 15 Phase Power Design, Intel Hybrid Technology, Intel Turbo Boost Max Technology 3.0, 15µ Gold Contact, Nahimic Audio Enhacer, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), Windows 11 compatible, AMD CrossFire technology support, USB Redriver, BIOS FlashBack button, 6 Layer PCB, DIY Friendly Design, Surface Mount Technology (SMT)
Sleep / Wake UpWake on LAN (WOL)
General
Chipset TypeIntel Z690
Compatible Processors(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)
Max Processors Qty1
Processor SocketLGA1700 Socket
Product TypeMotherboard - ATX
LAN
Network ControllerDragon RTL8125BG
Network Interfaces2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
Miscellaneous
Cables Included2 x Serial ATA cable
Compliant StandardsHDCP 2.3, DisplayPort 1.4, ErP Ready, EuP Ready, FCC, CEC Tier II
Depth24.4 cm

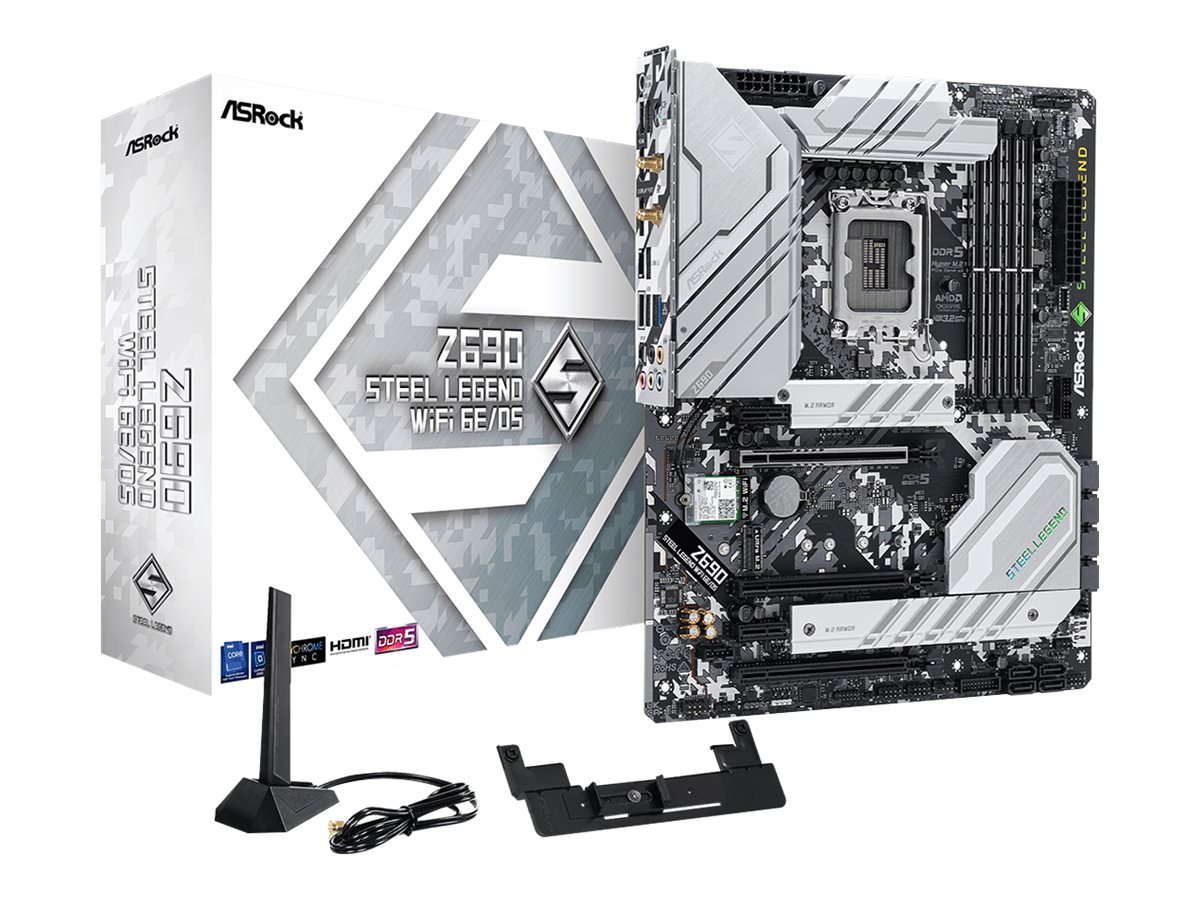

Included AccessoriesWi-Fi antenna, 3 x M.2 screws, 2 x standoff for M.2 socket, graphics card holder
Software IncludedAntivirus (Trial version), drivers & utilities, ASRock Polychrome RGB, ASRock Polychrome SYNC
Width30.5 cm
Supported RAM
Bus Clock6000 MHz (O.C.), 5600 MHz (O.C.), 4800 MHz (O.C.), 4800 MHz, 4400 MHz, 4000 MHz, 3600 MHz
FeaturesDual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0
Max Size192 GB
Registered or BufferedUnbuffered
Supported RAM Integrity CheckNon-ECC
TechnologyDDR5
