Promise Vess R3600xiD
MSRP$43,279.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |

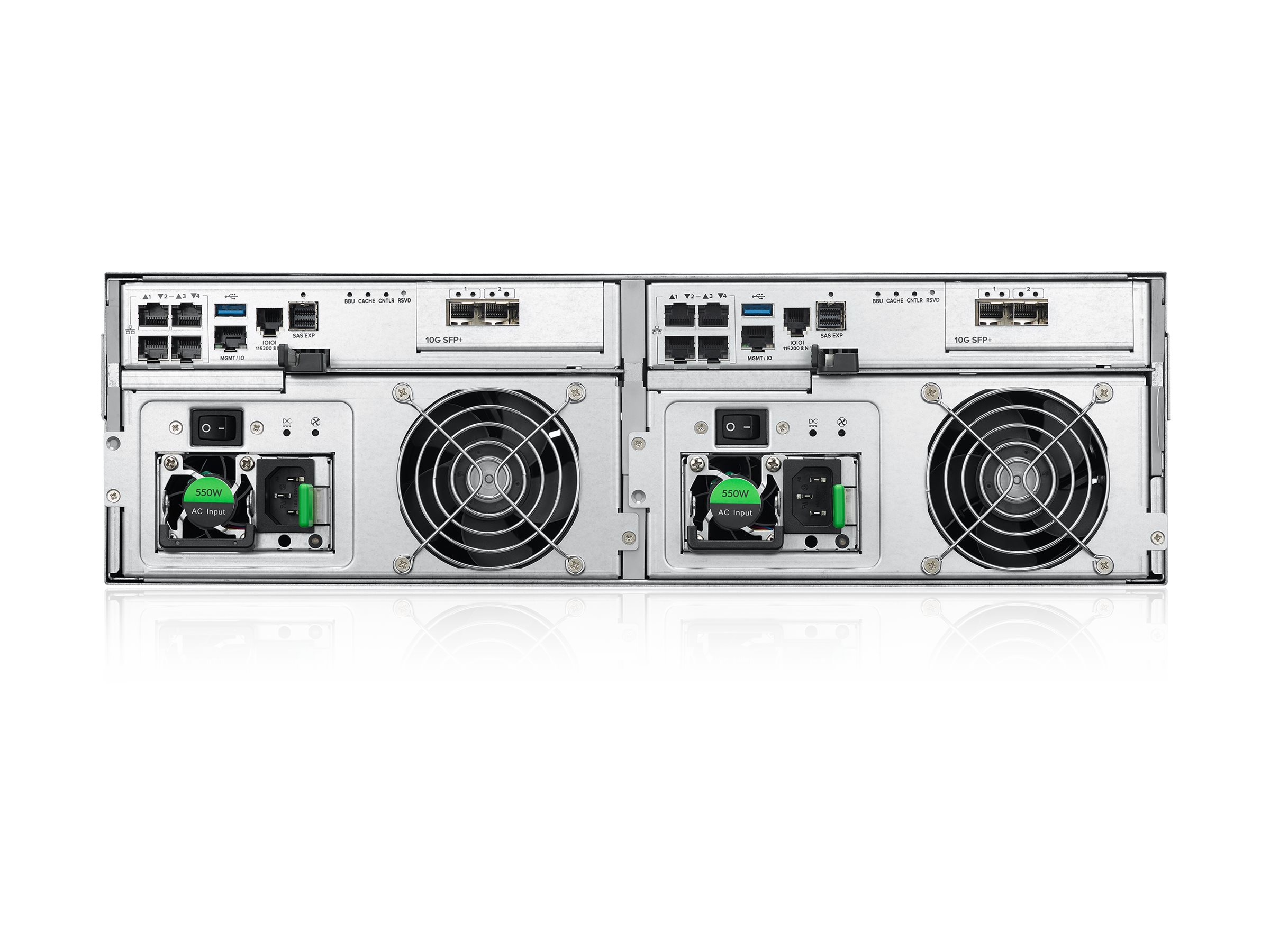

Promise Vess R3600xiD
- Hard drive array
- 288 TB
- 16 bays (SATA-600 / SAS-3)
- HDD 18 TB x 16
- iSCSI (10 GbE) (external)
- rack-mountable
- 3U
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $43,279.00 |
| Mfr Part #: | VR3600XXID18TU |
| SHI Part #: | 45429906 |
| Category: | Disk arrays |
| UNSPSC: | 43201802 |
| Manufacturer: | Promise Technology |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Disk arrays |
| Description | Promise Vess R3600xiD - Hard drive array - 288 TB - 16 bays (SATA-600 / SAS-3) - HDD 18 TB x 16 - iSCSI (10 GbE) (external) - rack-mountable - 3U |
| Manufacturer | Promise Technology |
| MSRP | $43,279.00 |
| UNSPSC | 43201802 |
| Main Specifications | |
| Dimensions & Weight / Depth | 50.7 cm |
| Dimensions & Weight / Height | 13.1 cm |
| Dimensions & Weight / Width | 44.67 cm |
| Hard Drive / Capacity | 18 TB |
| Hard Drive / Interface | Serial Attached SCSI 3 |
| Hard Drive / Interface Type | Serial Attached SCSI 3 |
| Header / Brand | Promise |
| Miscellaneous / Product Color | Silver |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Storage / HDD Array External Interface | iSCSI (10 GbE) |
| Storage / HDD Array External Interface Class | iSCSI |
| Storage / Rack-mountable | Rack-mountable |
| Storage / Total Array Capacity | 288 TB |
| Storage / Type | Hard drive array |
| Chassis | |
| Installed Devices / Modules Qty | 16 |
| Supported Devices / Modules Qty | 16 |
| Supported Drives | SATA-600 / SAS-3 |
| Dimensions & Weight | |
| Depth | 50.7 cm |
| Height | 13.1 cm |
| Width | 44.67 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 5 °C |
| Sound Emission | 60 dB |
| Expansion / Connectivity | |
| Expansion Bays | 16 (total) / 0 (free) x hot-swap - 3.5" |
| Interfaces |
|
| General | |
| Device Type | Hard drive array |
| Enclosure Type | Rack-mountable - 3U |
| Hard Drive | |
| Capacity | 16 x 18 TB |
| Interface Type | SAS 12Gb/s |
| Type | HDD - hot-swap |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | RoHS, WEEE |
| Features | Thin provision, Snapshot function, thin clone, thick clone, SSD cache, Media Patrol, foreground initialization, Redundancy Check, Background Synchronization, rebuild, disk SMART polling, UPS monitoring, task scheduler, Predictive Data Migration (PDM), Intelligent Bad Sector Remapping, SMART error handling, NVRAM error logging, disk slot power control, Open Directory support, LUN masking and mapping, advanced cache mirroring over PCIe Gen3, Asymmetric LUN Unit Access (ALUA), drive power management (MAID) |
| Software Included | Command Line Interface (CLI), Promise WebPAM PROe |
| Power | |
| 80 PLUS Certification | 80 PLUS |
| Power Device | Internal power supply |
| Power Provided | 550 Watt |
| Voltage Required | AC 100-240 / DC 180-320 V |
| RAM | |
| Installed Size | 16 GB |
| Storage | |
| HDD Array External Interface | iSCSI (10 GbE) |
| Host Channels | 4 |
| Total Array Capacity | 288 TB |
| Storage Controller | |
| Installed Qty | 2 |
| Interface Type | SATA 6Gb/s / SAS 12Gb/s |
| Max Storage Devices Qty | 16 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, JBOD |
| Type | RAID (Fibre Channel) |
| Storage Controller (2nd) | |
| Installed Qty | 2 |
| System Requirements | |
| OS Required | Apple macOS Sierra 10.12.6, Apple macOS Ventura 13.1, Citrix Hypervisor 7.0 LTSR, Citrix Hypervisor 7.1 LTSR, Citrix Hypervisor 8.0, Citrix Hypervisor 8.1, Citrix Hypervisor 8.2 LTSR, Microsoft Windows HPC Server 2008 R2 SP1, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Red Hat Enterprise Linux 7.2, SuSE Linux 11 SP4, SuSe Linux 12 SP2, SUSE SLES, VMware ESXi 6.0, VMware ESXi 6.5, VMware ESXi 6.7, VMware ESXi 7.0, VMware ESXi 8.0 |
