Promise Vess R3600fiD
MSRP$41,119.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |

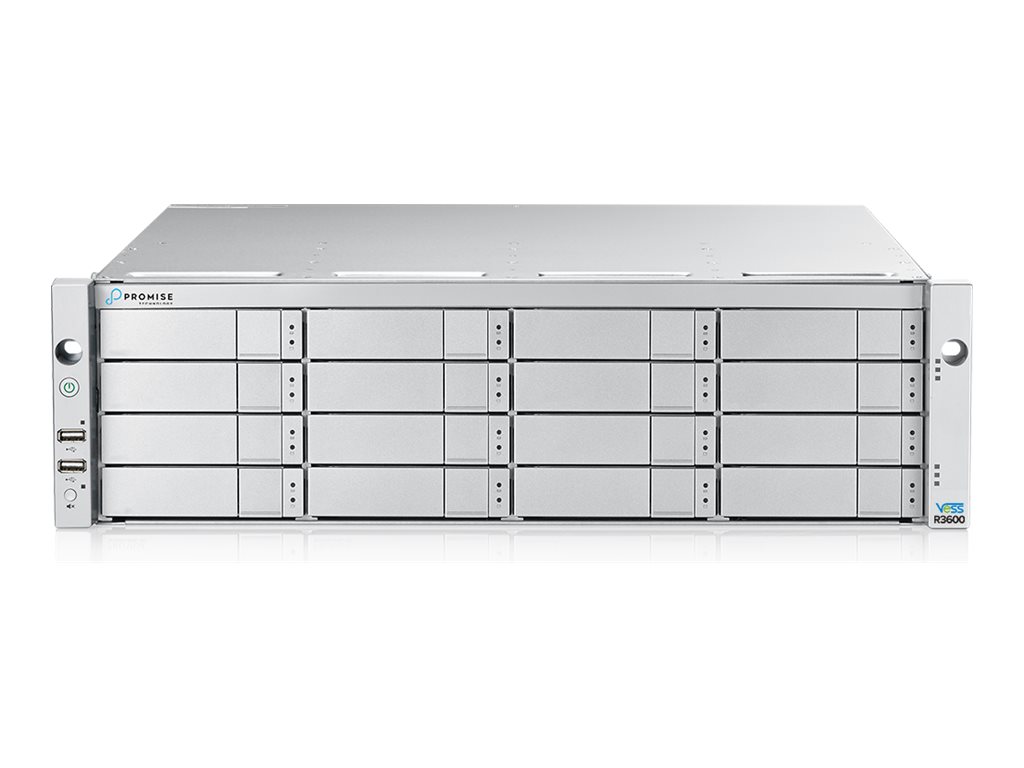

Promise Vess R3600fiD
- Hard drive array
- 256 TB
- 16 bays (SATA-600 / SAS-3)
- HDD 16 TB x 16
- iSCSI (1 GbE), 32Gb Fibre Channel (external)
- rack-mountable
- 3U
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $41,119.00 |
| Mfr Part #: | VR3604XFID16TU |
| SHI Part #: | 45437481 |
| Category: | Disk arrays |
| UNSPSC: | 43201802 |
| Manufacturer: | Promise Technology |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Disk arrays |
| Description | Promise Vess R3600fiD - Hard drive array - 256 TB - 16 bays (SATA-600 / SAS-3) - HDD 16 TB x 16 - iSCSI (1 GbE), 32Gb Fibre Channel (external) - rack-mountable - 3U |
| Manufacturer | Promise Technology |
| MSRP | $41,119.00 |
| UNSPSC | 43201802 |
| Main Specifications | |
| Dimensions & Weight / Depth | 50.7 cm |
| Dimensions & Weight / Height | 13.1 cm |
| Dimensions & Weight / Width | 44.67 cm |
| Hard Drive / Capacity | 16 TB |
| Header / Brand | Promise |
| Miscellaneous / Product Color | Silver |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Storage / HDD Array External Interface |
|
| Storage / HDD Array External Interface Class |
|
| Storage / Rack-mountable | Rack-mountable |
| Storage / Total Array Capacity | 256 TB |
| Storage / Type | Hard drive array |
| Chassis | |
| Installed Devices / Modules Qty | 16 |
| Supported Devices / Modules Qty | 16 |
| Supported Drives | SATA-600 / SAS-3 |
| Dimensions & Weight | |
| Depth | 50.7 cm |
| Height | 13.1 cm |
| Width | 44.67 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 5 °C |
| Sound Emission | 60 dB |
| Expansion / Connectivity | |
| Expansion Bays | 16 (total) / 0 (free) x hot-swap - 3.5" |
| Interfaces |
|
| General | |
| Device Type | Hard drive array |
| Enclosure Type | Rack-mountable - 3U |
| Hard Drive | |
| Capacity | 16 x 16 TB |
| Type | HDD - hot-swap |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | EMC Class A, FCC, VCCI, BSMI, RCM, IEEE CB, NTRL, RoHS, WEEE |
| Features | Thin provision, Snapshot function, thin clone, thick clone, SSD cache, Media Patrol, foreground initialization, Redundancy Check, Background Synchronization, rebuild, disk SMART polling, UPS monitoring, task scheduler, Predictive Data Migration (PDM), Intelligent Bad Sector Remapping, SMART error handling, NVRAM error logging, disk slot power control, Open Directory support, LUN masking and mapping, advanced cache mirroring over PCIe Gen3, Asymmetric LUN Unit Access (ALUA), drive power management (MAID), 100000 domain accounts, LDAP support, SNMP support |
| Software Included | Command Line Interface (CLI), Promise WebPAM PROe |
| Power | |
| 80 PLUS Certification | 80 PLUS |
| Power Device | Internal power supply |
| Power Provided | 550 Watt |
| Power Redundancy | Yes |
| Voltage Required | AC 100-240 / DC 180-320 V |
| RAM | |
| Installed Size | 16 GB |
| Storage | |
| HDD Array External Interface | iSCSI (1 GbE), 32Gb Fibre Channel |
| Host Channels | 12 |
| Total Array Capacity | 256 TB |
| Storage Controller | |
| Installed Qty | 2 |
| Interface Type | SATA 6Gb/s / SAS 12Gb/s |
| Max Storage Devices Qty | 16 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
| Type | RAID |
| Storage Controller (2nd) | |
| Installed Qty | 2 |
| System Requirements | |
| OS Required | Microsoft Windows Server 2008 R2 SP1, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Apple macOS Sierra 10.12.6, Apple macOS Ventura 13.1, Red Hat Enterprise Linux 7.2, SuSE Linux 11 SP4, SUSE Linux 12 SP1, SUSE SLES, VMware ESXi 6.0, VMware ESXi 6.5, VMware ESXi 6.7, VMware ESXi 7.0, VMware ESXi 8.0, Citrix Hypervisor 7.0 LTSR, Citrix Hypervisor 7.1 LTSR, Citrix Hypervisor 8.0, Citrix Hypervisor 8.1, Citrix Hypervisor 8.2 LTSR |
