Hardware Computer Components Motherboards
Add to My Favorites
Motherboards

MSI MEG Z790 GODLIKE

MSRP$1,199.99
$1,160.63
MSI MEG Z790 GODLIKE
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Motherboard
  • extended ATX
  • LGA1700 Socket
  • Z790 Chipset
  • USB4, USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1
Contracts
   DIR-CPO-5094
MSI MEG Z790 GODLIKE
  • Motherboard
  • extended ATX
  • LGA1700 Socket
  • Z790 Chipset
  • USB4, USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1
  • 10 Gigabit LAN, 2.5 Gigabit LAN, Wi-Fi 6E, Bluetooth
  • onboard graphics (CPU required)
  • HD Audio (8-channel)
  Additional Details
Price: $1,160.63
MSRP: $1,199.99
Mfr Part #: Z790GODLIKE
SHI Part #: 45544023
Category: motherboards or daughterboards
UNSPSC: 43201513
Manufacturer: MSI
Product Type: Hardware
General Information
Categorymotherboards or daughterboards
DescriptionMSI MEG Z790 GODLIKE - Motherboard - extended ATX - LGA1700 Socket - Z790 Chipset - USB4, USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1 - 10 Gigabit LAN, 2.5 Gigabit LAN, Wi-Fi 6E, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
ManufacturerMSI
MSRP$1,199.99
UNSPSC43201513
Main Specifications
Dimensions & Weight / Depth31 cm
Dimensions & Weight / Width30.48 cm
Header / BrandMSI
Mainboard / Chipset TypeIntel Z790
Mainboard / Processor SocketLGA1700 Socket
Networking / Data Link Protocol
  • 10 Gigabit Ethernet
  • 2.5 Gigabit Ethernet
  • Bluetooth 5.3
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax (Wi-Fi 6E)
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Packaged Quantity1
Video Output / TypeGraphics adapter (CPU required)
Audio
Audio CodecRealtek ALC4082 / ESS ES9280AQ
Compliant StandardsHigh Definition Audio
TypeHD Audio (8-channel)
Expansion / Connectivity
Expansion Slots
  • 1 x CPU
  • 4 x DIMM 288-pin
  • 1 x PCIe 5.0 x16
  • 1 x PCIe 5.0 x16 (x8 mode)
  • 1 x M.2 socket (2260/2280/22110 M.2 Key M slot)
  • 5 x M.2 socket (2260/2280 M.2 Key M slot)
  • 1 x M.2 socket (2280/22110 M.2 Key M slot)
  • 1 x M.2 socket (Key E)

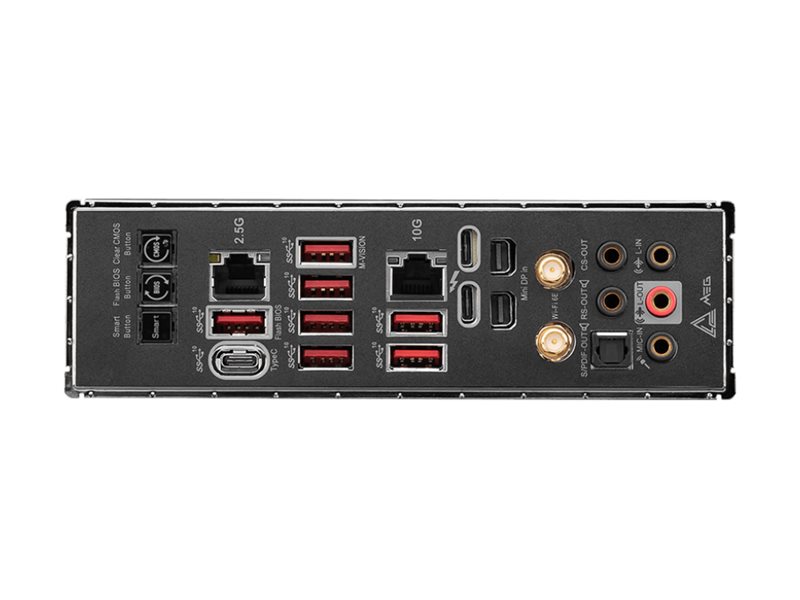

Interfaces
  • 2 x Thunderbolt 4/DisplayPort/USB4
  • 7 x USB 3.2 Gen 2
  • 1 x USB-C 3.2 Gen 2
  • 1 x LAN (10Gigabit Ethernet)
  • 1 x LAN (2.5Gigabit Ethernet)
  • 2 x Mini DisplayPort input
  • 1 x audio line-out - mini-jack
  • 1 x microphone - mini-jack
  • 1 x audio line-out (center/subwoofer) - mini-jack
  • 1 x audio line-out (rear) - mini-jack
  • 1 x audio line-in - mini-jack
  • 1 x SPDIF out
  • 2 x antenna
Internal Interfaces
  • 4 x USB 2.0 - header
  • 4 x USB 3.2 Gen 1 - header
  • 2 x USB-C 3.2 Gen 2x2 - header
  • 1 x audio - header
  • 1 x SPI - header
Power Connectors24-pin main power connector, 2 x 8-pin ATX12V connectors
Storage Interfaces
  • SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
  • PCIe 4.0 -connectors: 4 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
  • SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
  • SATA-600 / PCIe 3.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
  • PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
Features
Hardware FeaturesDebug LED, 2-Digit Debug Code LED, Water Pump Header, Clear CMOS Button, flash BIOS button, Smart Button, 26+2 Phase Power Design, 105A Smart Power Stage, Direct Touch Cross Heat-pipe, aluminum cover, M.2 Shield FROZR, metal backplate, MSI Audio Boost 5 HD, 8 Layer PCB, 2oz Copper PCB, MSI Core Boost, OC Engine, Surface Mount Technology (SMT), pre-mounted I/O shield, DIY Friendly Design
General
Chipset TypeIntel Z790
Compatible Processors(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)
Max Processors Qty1
Processor SocketLGA1700 Socket
Product TypeMotherboard - extended ATX
LAN
Network ControllerMarvell AQC113CS-B1-C
Network Interfaces10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3
Miscellaneous
Cables Included3 x Serial ATA cable
Compliant StandardsFISMA, FIPS
Depth31 cm
Included AccessoriesM-Vision Dashboard, Wi-Fi antenna, M-Vision cable, 2 thermistor cables, 1 to 2 RGB LED extension Y cable, ARGB LED strip extension cable, 1 to 3 ARGB Gen 2 extension cable, 2 x DisplayPort to Mini DisplayPort cables, EZ front panel cable, metal dragon badge, cable stickers, USB drive, m.2 screw / standoff sets, EZ M.2 clips
Software IncludedMSI Center
Width30.48 cm
Supported RAM
Bus Clock4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 7000 MHz (O.C.), 7200 MHz (O.C.), 7400 MHz (O.C.), 7600 MHz (O.C.), 7800 MHz (O.C.)
FeaturesIntel Extreme Memory Profiles (XMP) 3.0, dual channel memory architecture
Max Size128 GB
Registered or BufferedUnbuffered
Supported RAM Integrity CheckNon-ECC
TechnologyDDR5
