ASRock Z790 Pro RS WiFi
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |

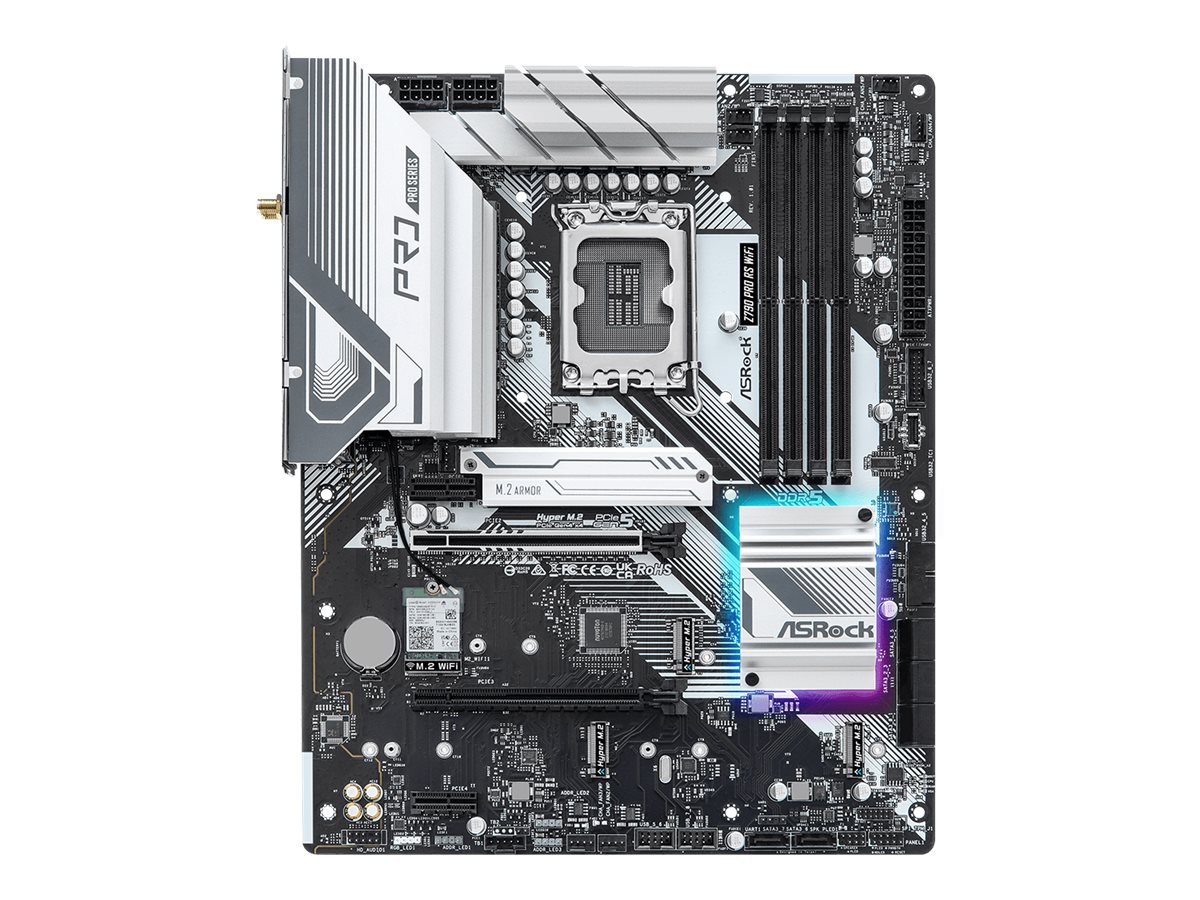

ASRock Z790 Pro RS WiFi
- Motherboard
- ATX
- LGA1700 Socket
- Z790 Chipset
- USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1
- 2.5 Gigabit LAN, Wi-Fi 6E, Bluetooth
- onboard graphics (CPU required)
- HD Audio (8-channel)
| Additional Details | |
|---|---|
| Mfr Part #: | Z790 PRO RS WIFI |
| SHI Part #: | 45563171 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | ASRock |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | ASRock Z790 Pro RS WiFi - Motherboard - ATX - LGA1700 Socket - Z790 Chipset - USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1 - 2.5 Gigabit LAN, Wi-Fi 6E, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel) |
| Manufacturer | ASRock |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 24.4 cm |
| Dimensions & Weight / Width | 30.5 cm |
| Header / Brand | ASRock |
| Mainboard / Chipset Type | Intel Z790 |
| Mainboard / Processor Socket | LGA1700 Socket |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Video Output / Type | Graphics adapter (CPU required) |
| Audio | |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Storage Interfaces |
|
| Features | |
| BIOS Features | UEFI BIOS |
| BIOS Type | AMI |
| Hardware Features | ASRock EZ Mode, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Auto Driver Installer, ASRock Instant Flash, ASRock Easy RAID Installer, 2oz Copper PCB, Water Pump Header, Intel Hybrid Technology, Intel Turbo Boost Max Technology 3.0, Intel Adaptive Boost Technology (ABT), Intel Thermal Velocity Boost (TVB), ATI CrossFire technology support, 14+1+1 Phase Power Design, Hi-Density Power Connectors, Surface Mount Technology (SMT), Nahimic Audio Enhacer, reinforced PCIe slots, 6 Layer PCB, ASRock 13.3" Side Panel Kit support, Enlarged Heatsink Armor, pre-mounted I/O shield, ASRock POST Status Checker (PSC) |
| General | |
| Chipset Type | Intel Z790 |
| Compatible Processors | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Max Processors Qty | 1 |
| Processor Socket | LGA1700 Socket |
| Product Type | Motherboard - ATX |
| LAN | |
| Network Controller | Dragon RTL8125BG |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth |
| Miscellaneous | |
| Cables Included | 2 x Serial ATA cable |
| Compliant Standards | FCC, ErP Ready, EuP Ready, DisplayPort 1.4, HDCP 2.3 |
| Depth | 24.4 cm |
| Included Accessories | ASRock WiFi 2.4/5/6 GHz antenna, standoff for M.2 socket, 4 x M.2 screws |
| Software Included | ASRock Dragon 2.5G LAN Software, ASRock A-Tuning |
| Width | 30.5 cm |
| Supported RAM | |
| Bus Clock | 3600 MHz, 4000 MHz, 4400 MHz, 4800 MHz, 4800 MHz (O.C.), 5600 MHz (O.C.), 6000 MHz (O.C.), 7200 MHz (O.C.) |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0, AMD EXPO technology |
| Max Size | 128 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC |
| Technology | DDR5 |
