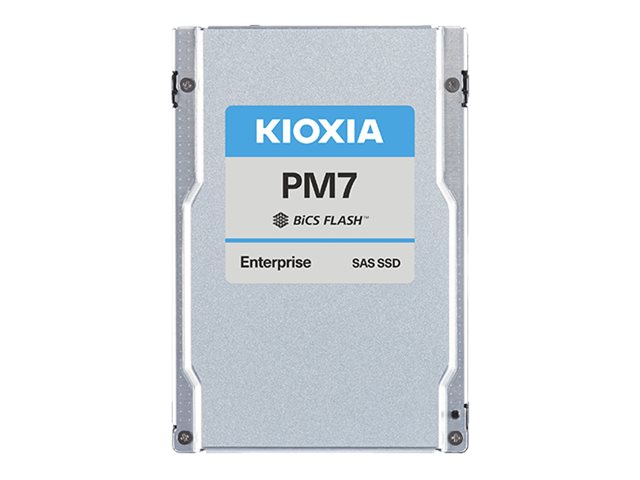

KIOXIA PM7-R Series KPM71RUG3T84
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
KIOXIA PM7-R Series KPM71RUG3T84
- SSD
- 3840 GB
- internal
- 2.5"
- SAS 24Gb/s
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | KPM71RUG3T84 |
| SHI Part #: | 45973750 |
| Category: | Hard drives |
| UNSPSC: | 43201803 |
| Manufacturer: | Kioxia |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Hard drives |
| Description | KIOXIA PM7-R Series KPM71RUG3T84 - SSD - 3840 GB - internal - 2.5" - SAS 24Gb/s |
| Manufacturer | Kioxia |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 100.45 mm |
| Dimensions & Weight / Height | 15 mm |
| Dimensions & Weight / Weight | 150 g |
| Dimensions & Weight / Width | 69.85 mm |
| Hard Drive / Capacity | 3840 GB |
| Hard Drive / Form Factor | 2.5" |
| Hard Drive / Hard Drive Type | Internal hard drive |
| Hard Drive / Interface | Serial Attached SCSI 4 |
| Hard Drive / Interface | Serial Attached SCSI 4 |
| Header / Brand | KIOXIA |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Storage / Type | Solid state drive |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% RH |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Shock Tolerance (operating) | 1000 g @ 0.5 ms |
| Vibration Tolerance (operating) | 2.17 gRMS @ 5-800 Hz |
| Expansion & Connectivity | |
| Compatible Bay | 2.5" |
| Interfaces | 1 x SAS 24Gb/s |
| General | |
| Capacity | 3840 GB |
| Depth | 100.45 mm |
| Device Type | Solid state drive - internal |
| Features | Power Loss Protection (PLP), End-to-end data protection, T10 Data Integrity Field (DIF), Power Disable Pin (Pin3), 112-layer 3D BiCS FLASH |
| Form Factor | 2.5" |
| Height | 15 mm |
| Interface | SAS 24Gb/s |
| Weight | 150 g |
| Width | 69.85 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Performance | |
| 4KB Random Read | 720000 IOPS |
| 4KB Random Write | 155000 IOPS |
| Drive Transfer Rate | 22.5 Gbit/s (external) |
| Drive Writes Per Day (DWPD) | 1 |
| Internal Data Rate | 4200 MBps (read) / 3650 MBps (write) |
| Power | |
| Power Consumption | 5 Watt (ready) |
| Reliability | |
| MTBF | 2500000 hours |
