ASRock B760M Pro RS - Motherboard
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |

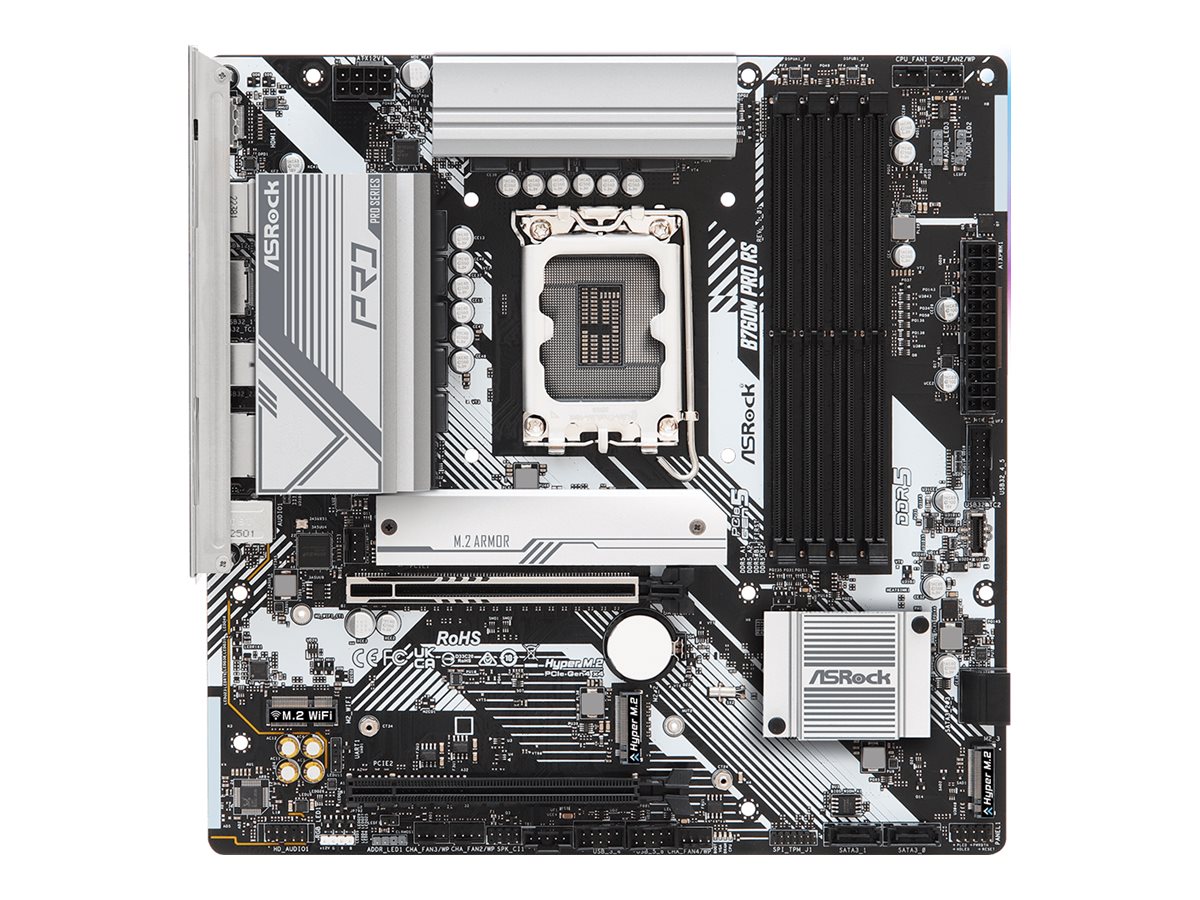

ASRock B760M Pro RS - Motherboard
- micro ATX
- LGA1700 Socket
- B760 Chipset
- USB-C 3.2 Gen 1, USB 3.2 Gen 1
- 2.5 Gigabit LAN
- onboard graphics (CPU required)
- HD Audio (8-channel)
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | B760M PRO RS |
| SHI Part #: | 46066045 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | ASRock |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | ASRock B760M Pro RS - Motherboard - micro ATX - LGA1700 Socket - B760 Chipset - USB-C 3.2 Gen 1, USB 3.2 Gen 1 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel) |
| Manufacturer | ASRock |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 24.4 cm |
| Dimensions & Weight / Width | 24.4 cm |
| Header / Brand | ASRock |
| Mainboard / Chipset Type | Intel B760 |
| Mainboard / Processor Socket | LGA1700 Socket |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Video Output / Type | Graphics adapter (CPU required) |
| Audio | |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Storage Interfaces |
|
| Features | |
| BIOS Features | UEFI BIOS |
| BIOS Type | AMI |
| Hardware Features | 7+1+1 Phase Power Design, 50A Power Stage, pre-mounted I/O shield, ASRock Auto Driver Installer, ASRock POST Status Checker (PSC), Surface Mount Technology (SMT), reinforced PCIe slots, Dr.MOS MOSFET, 6 Layer PCB, ASRock Polychrome RGB, Water Pump Header, ASRock Easy RAID Installer, ASRock EZ Mode, ASRock Full HD UEFI, ASRock Instant Flash, ASRock My Favorites in UEFI, ESD Protection, Hi-Density Power Connectors, ASRock RGB LED, Intel Adaptive Boost Technology (ABT), Intel Hybrid Technology, Intel Thermal Velocity Boost (TVB), Intel Turbo Boost Max Technology 3.0 |
| General | |
| Chipset Type | Intel B760 |
| Compatible Processors | (supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron) |
| Max Processors Qty | 1 |
| Processor Socket | LGA1700 Socket |
| Product Type | Motherboard - micro ATX |
| LAN | |
| Network Controller | Dragon RTL8125BG |
| Network Interfaces | 2.5 Gigabit Ethernet |
| Miscellaneous | |
| Cables Included | 2 x Serial ATA cable |
| Compliant Standards | ErP Ready, EuP Ready, FCC, RoHS, UKCA |
| Depth | 24.4 cm |
| Included Accessories | Standoff for M.2 socket, 4 x M.2 screws |
| Software Included | ASRock A-Tuning, ASRock Dragon 2.5G LAN Software, ASRock Polychrome SYNC |
| Width | 24.4 cm |
| Supported RAM | |
| Bus Clock | 7200 MHz (O.C.) |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0, supported ECC modules operate in non-ECC mode |
| Max Size | 192 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Technology | DDR5 |
