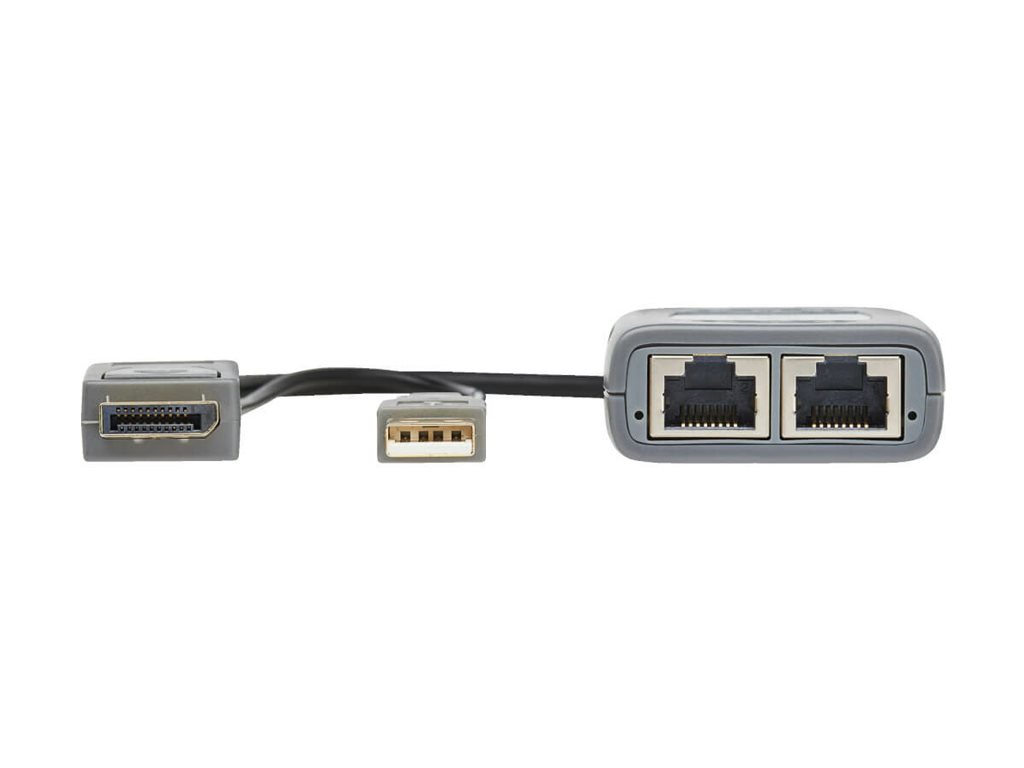

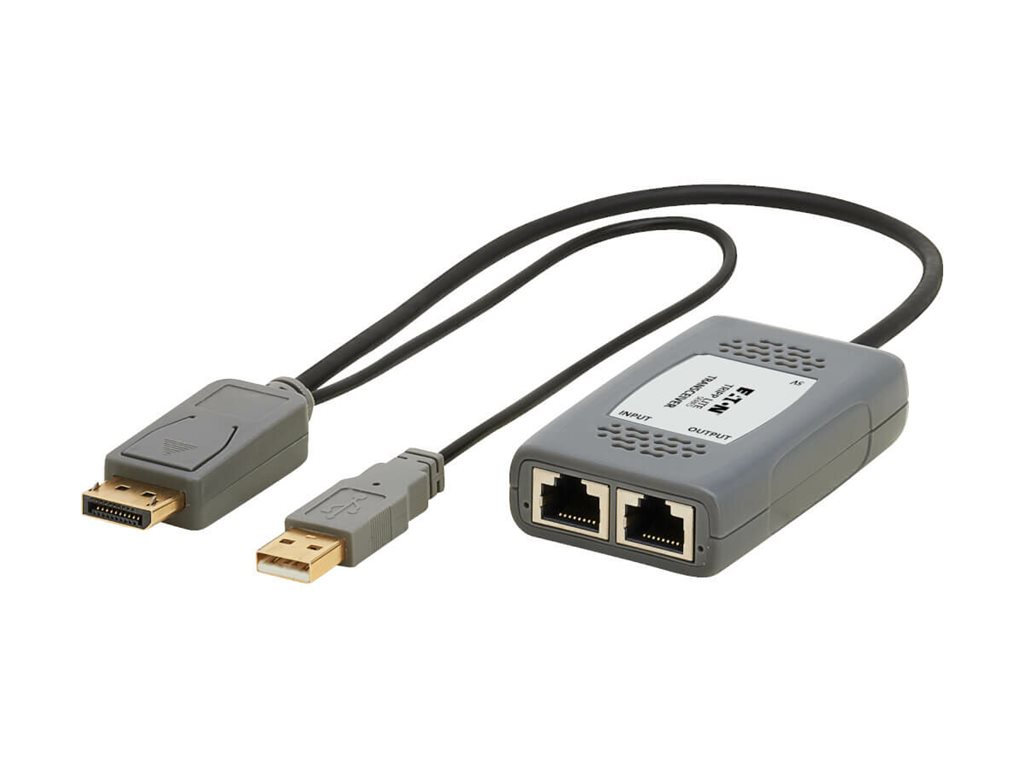

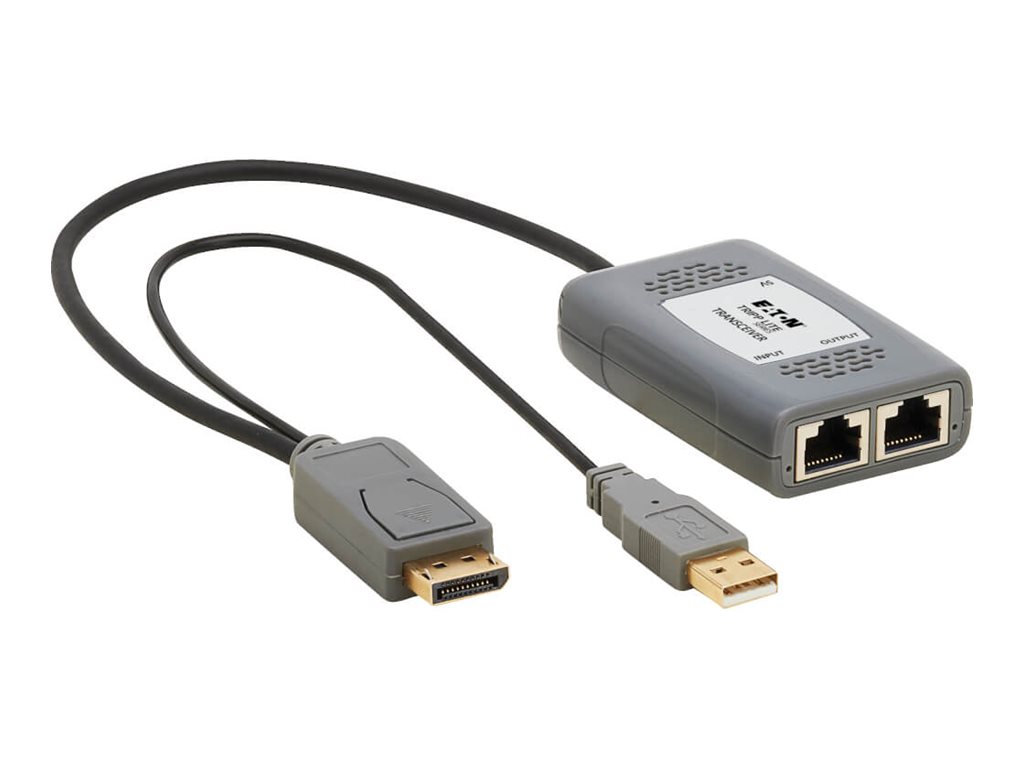

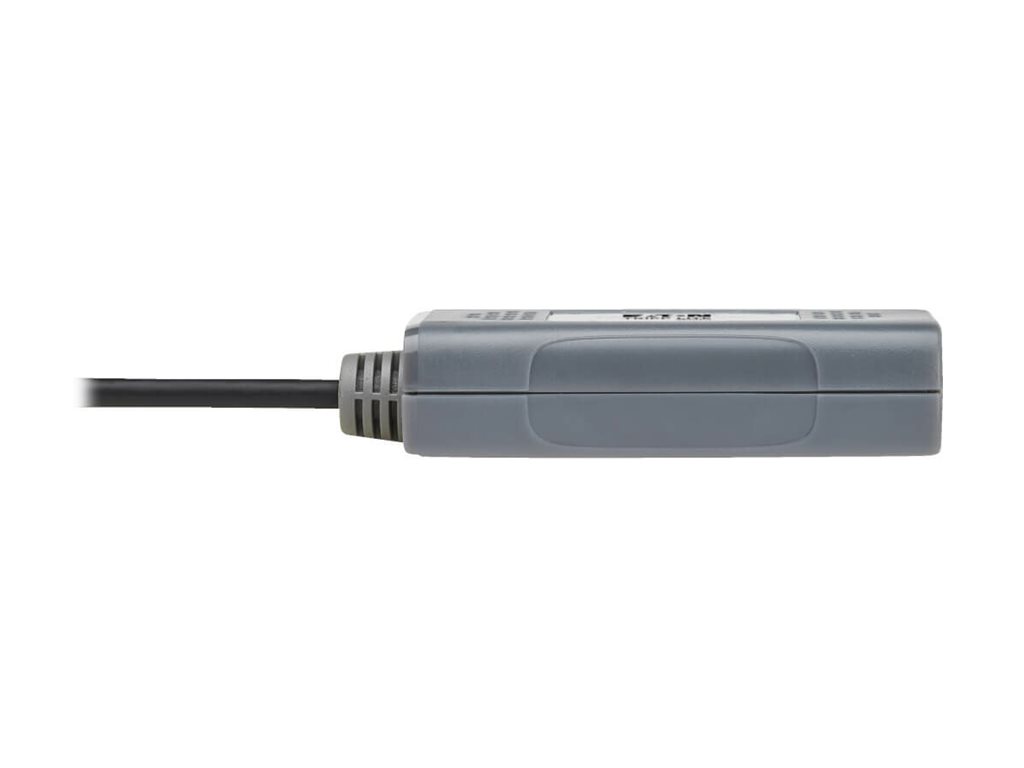

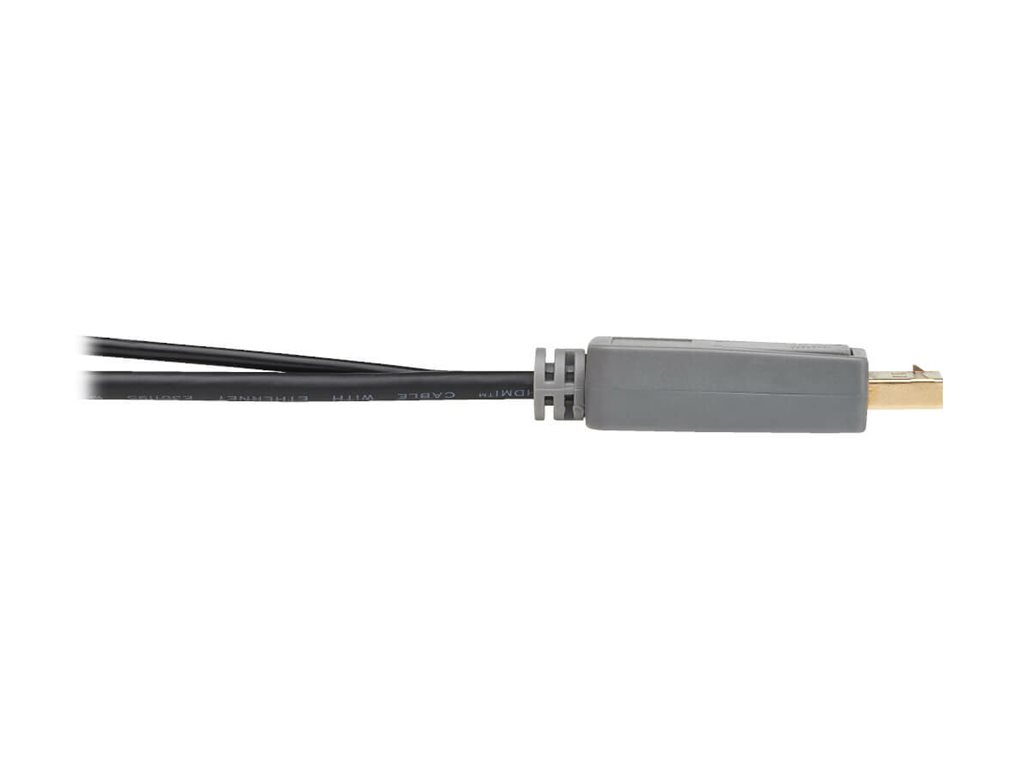

Eaton Tripp Lite Series DisplayPort over Cat6 Pigtail Receiver with Repeater, 4K 60 Hz, 4:4:4, Transceiver, HDCP 2.2, 230 ft. (70.1 m), TAA
MSRP$180.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
Eaton Tripp Lite Series DisplayPort over Cat6 Pigtail Receiver with Repeater, 4K 60 Hz, 4:4:4, Transceiver, HDCP 2.2, 230 ft. (70.1 m), TAA
- Video/audio extender
- receiver
- DisplayPort
- over CAT 6
- 3 ports
- up to 70.1 m
- TAA Compliant
- for P/N: B127U-002-PDPD2, B127U-002-PDPH2, B127U-110-PH, B127U-111-PDPD, B127U-111-PHPH
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $180.00 |
| Mfr Part #: | B127U-110-PD |
| SHI Part #: | 46465963 |
| Category: | Serial port cards |
| UNSPSC: | 43201559 |
| Manufacturer: | Eaton |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Serial port cards |
| Description | Eaton Tripp Lite Series DisplayPort over Cat6 Pigtail Receiver with Repeater, 4K 60 Hz, 4:4:4, Transceiver, HDCP 2.2, 230 ft. (70.1 m), TAA - Video/audio extender - receiver - DisplayPort - over CAT 6 - 3 ports - up to 70.1 m - TAA Compliant - for P/N: B127U-002-PDPD2, B127U-002-PDPH2, B127U-110-PH, B127U-111-PDPD, B127U-111-PHPH |
| Manufacturer | Eaton |
| MSRP | $180.00 |
| UNSPSC | 43201559 |
| Main Specifications | |
| Dimensions & Weight / Depth | 7.5 cm |
| Dimensions & Weight / Height | 1.86 cm |
| Dimensions & Weight / Weight | 250 g |
| Dimensions & Weight / Width | 4.7 cm |
| Header / Brand | Tripp Lite |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | DisplayPort |
| Networking / Form Factor | External |
| Networking / Type | Video/audio extender |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Compatibility Information | |
| Designed For | P/N: B127U-002-PDPD2, B127U-002-PDPH2, B127U-110-PH, B127U-111-PDPD, B127U-111-PHPH, U280-W01-QC3-1 |
| Dimensions & Weight | |
| Depth | 7.5 cm |
| Height | 1.86 cm |
| Weight | 250 g |
| Width | 4.7 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 16.41 cm |
| Shipping Height | 5.51 cm |
| Shipping Width | 26.01 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 85% RH |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black |
| Device Type | Video/audio extender (receiver) |
| Form Factor | External |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Cables Included | Video / audio cable - 30.5 cm |
| Compliant Standards | Plug and Play, ICES, NOM, FCC Part 15 Class B, REACH, RoHS3, UKCA, WEEE |
| TAA Compliant | Yes |
| Networking | |
| Compliant Standards | HDCP 2.2, HDCP 1.4 |
| Connectivity Technology | Wired |
| Data Link Protocol | DisplayPort |
| Features | 4:4:4 chroma subsampling support, 4:2:0 chroma subsampling support, 4:2:2 chroma subsampling support, DTS-HD support, Dolby TrueHD support, 7.1 channel audio support, HDR support, daisy-chaining support, 3D support, 36-bit Deep Color support, EDID mode, unidirectional broadcasting mode, LPCM 2.0 support, LPCM 5.1 support, LPCM 7.1 support, plastic housing, zero latency, cascadable |
| Max Resolution | 3840 x 2160 @ 60 Hz |
| Max Transfer Distance | 70.1 m |
| Ports Qty | 3 |
| Status Indicators | Power, data |
| Power | |
| Power Device | External power adapter |
