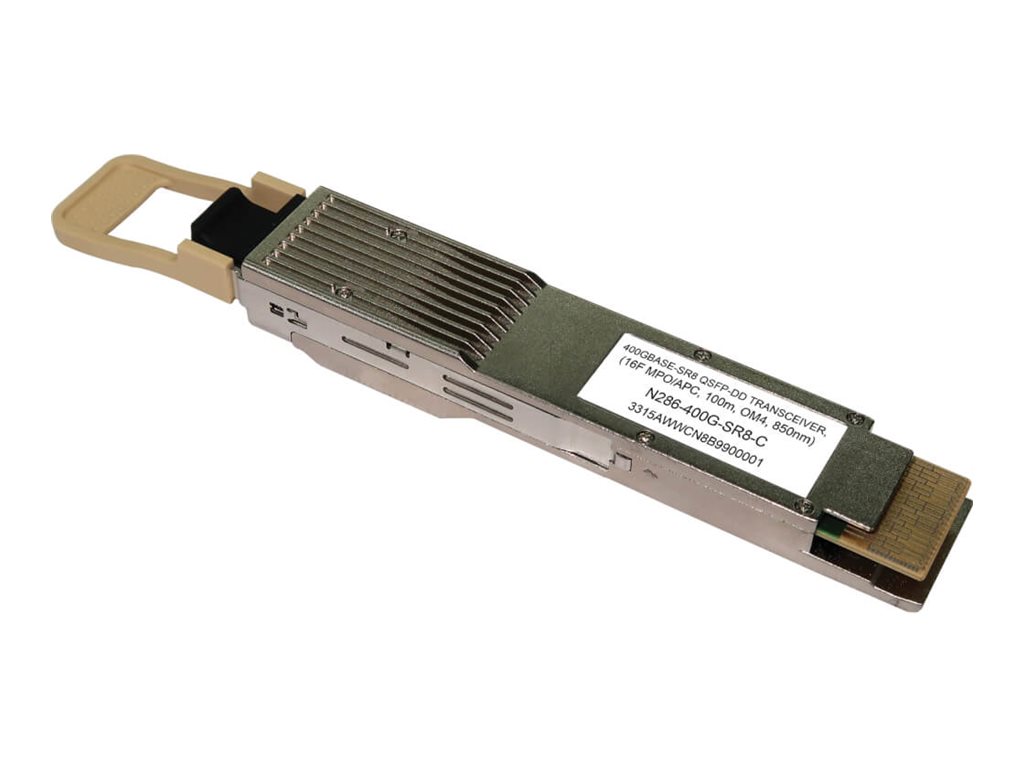

Eaton Tripp Lite Series Cisco-Compatible QSFP-DD Transceiver
MSRP$2,074.49
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
Eaton Tripp Lite Series Cisco-Compatible QSFP-DD Transceiver
- 400GBase-SR8, MPO/APC MMF, 400 Gbps, 850 nm, 100 m (328 ft.)
- QSFP-DD transceiver module
- 400GbE
- 400GBase-SR8
- MPO-16/APC multi-mode
- up to 100 m
- 840-860 nm
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $2,074.49 |
| Mfr Part #: | N286-400G-SR8-C |
| SHI Part #: | 46750423 |
| Category: | Serial port cards |
| UNSPSC: | 43201559 |
| Manufacturer: | Eaton |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Serial port cards |
| Description | Eaton Tripp Lite Series Cisco-Compatible QSFP-DD Transceiver - 400GBase-SR8, MPO/APC MMF, 400 Gbps, 850 nm, 100 m (328 ft.) - QSFP-DD transceiver module - 400GbE - 400GBase-SR8 - MPO-16/APC multi-mode - up to 100 m - 840-860 nm |
| Manufacturer | Eaton |
| MSRP | $2,074.49 |
| UNSPSC | 43201559 |
| Main Specifications | |
| Dimensions & Weight / Weight | 50 g |
| Header / Brand | Eaton |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | 400 Gigabit Ethernet |
| Networking / Data Transfer Rate | 400 Gbps |
| Networking / Form Factor | Plug-in module |
| Networking / Type | QSFP-DD transceiver module |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight | |
| Weight | 50 g |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 85% RH (non-condensing) |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 400GBase-SR8 - MPO-16/APC multi-mode female |
| General | |
| Device Type | QSFP-DD transceiver module |
| Form Factor | Plug-in module |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | OM4, MSA, EN 55032, FCC Part 15 C Class B, IEC/EN 63000, RoHS, UKCA |
| Networking | |
| Cabling Type | 400GBase-SR8 |
| Connectivity Technology | Wired |
| Data Link Protocol | 400GbE |
| Data Transfer Rate | 400 Gbps |
| Features | Digital Diagnostics Monitoring Interface (DDMI), hot swappable, EMI/RFI protection, Cisco compatible, metal housing |
| Max Transfer Distance | 100 m |
| Optical Wave Length | 840-860 nm |
