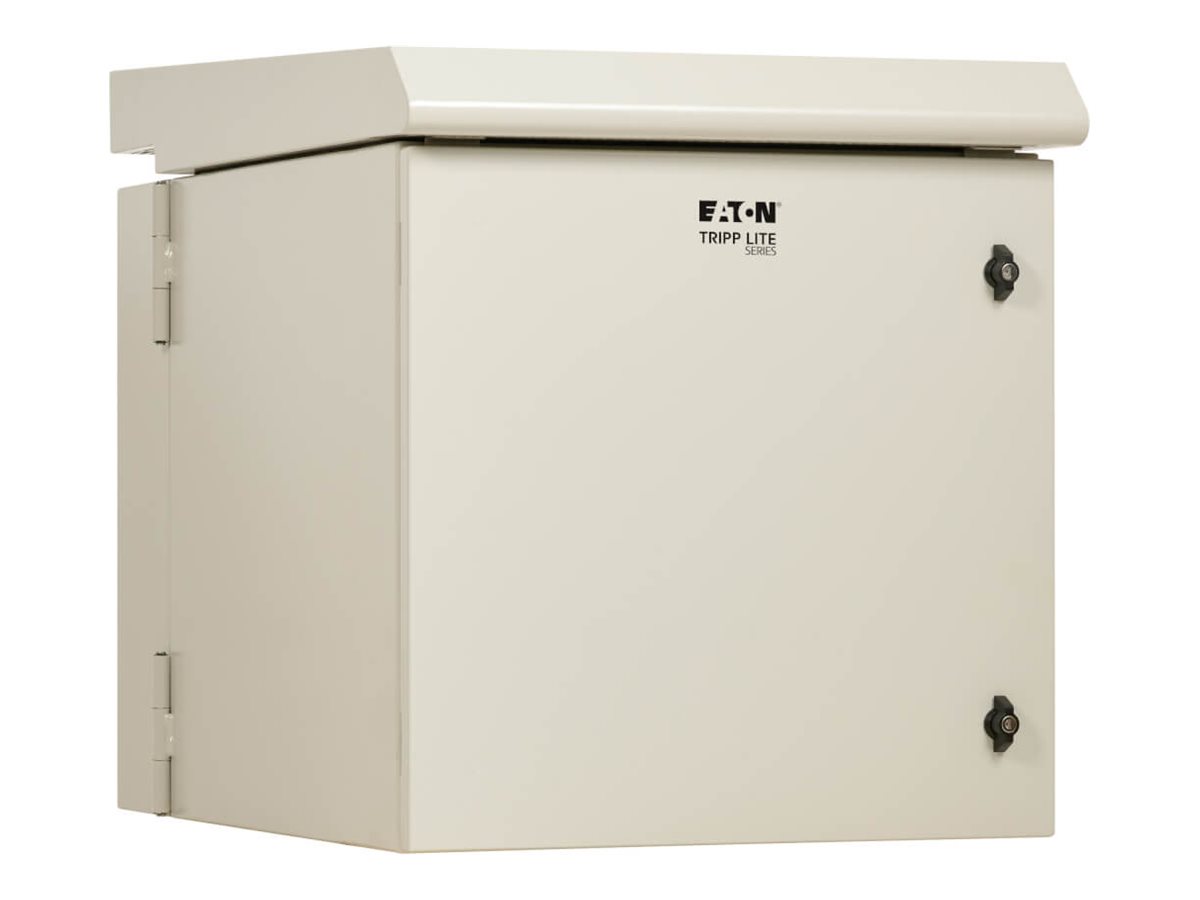

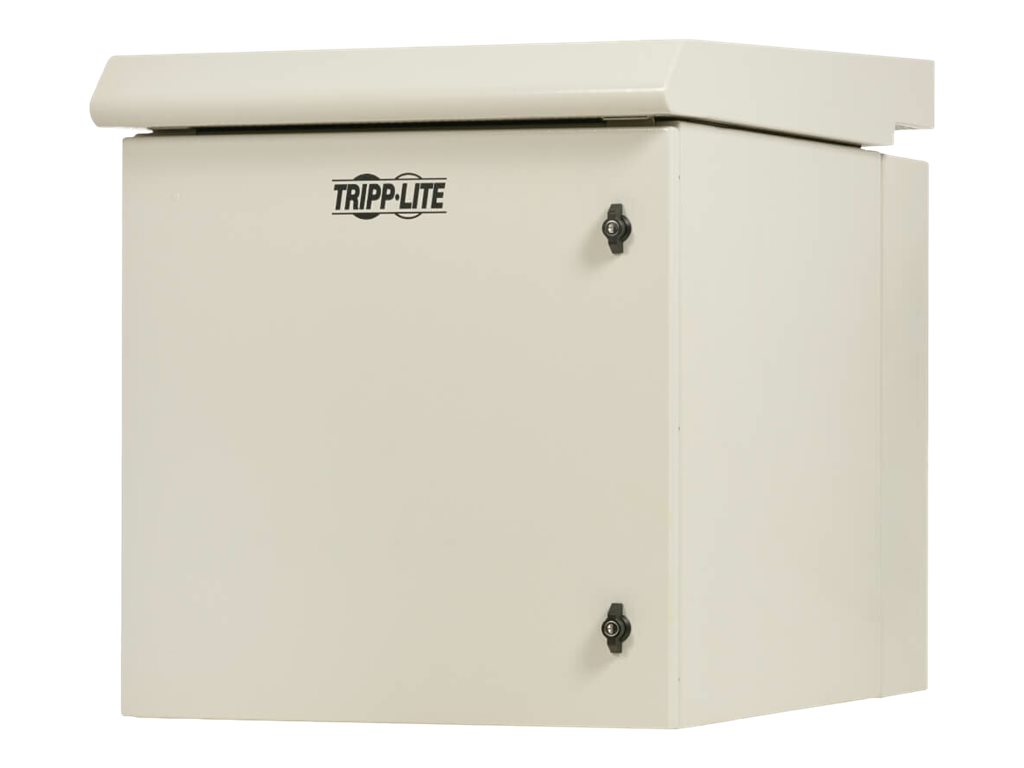

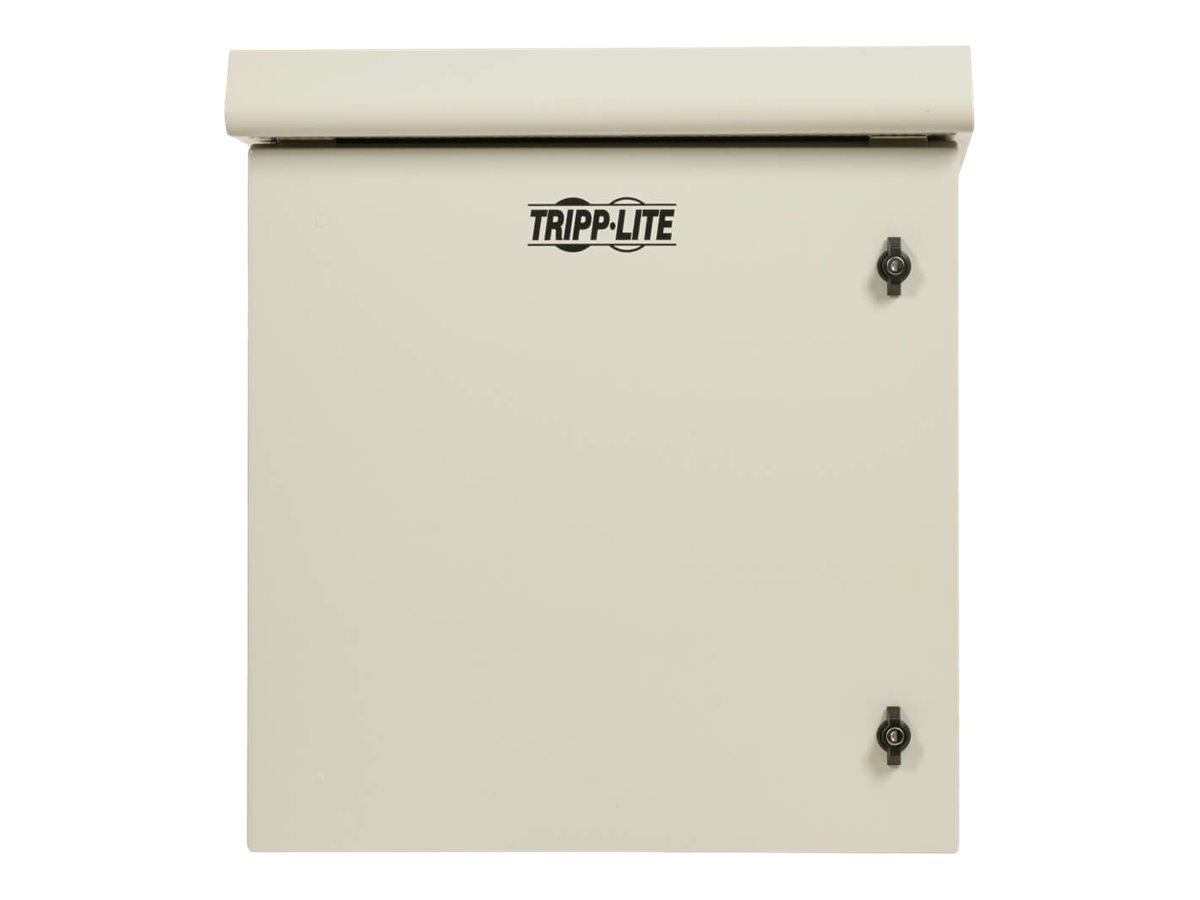

Eaton Tripp Lite Series SmartRack Industrial Enclosure with Lock

MSRP$2,786.67

$2,695.27

Eaton Tripp Lite Series SmartRack Industrial Enclosure with Lock

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
NEMA 3R, Wall Mount, Metal Construction, Hinged Back, Internal Fans, 32 in. Depth, 12U, Gray Cabinet industrial, locking with 2 cooling fans wall mountable

Contracts
DIR-CPO-5094

Eaton Tripp Lite Series SmartRack Industrial Enclosure with Lock

NEMA 3R, Wall Mount, Metal Construction, Hinged Back, Internal Fans, 32 in. Depth, 12U, Gray
Cabinet
industrial, locking
with 2 cooling fans
wall mountable
AC 120 V
150 mm
gray
12U

Additional Details
Price:	$2,695.27
MSRP:	$2,786.67
Mfr Part #:	SRN3RG12USDP
SHI Part #:	47768227
Category:	Rack systems for rack mount electroni...
UNSPSC:	24102001
Manufacturer:	Eaton
Product Type:	Accessories

Space-Saving Wall-Mount Enclosure Houses Rack Equipment up to 32 in. Deep

This SmartRack industrial enclosure is designed to house 12U of 19-inch rack-mount equipment, such as network switches and patch panels. Constructed from steel with a durable gray powder-coated finish, the SRN3RG12USDP has a maximum load capacity of 200 pounds (90.7 kilograms) and is suitable for indoor and outdoor applications.

NEMA 3R Enclosure Designed for Protection Against Harsh Elements

The SRN3RG12USDP protects its contents against the ingress of water (including rain, sleet and snow), solid foreign objects (including falling dirt) and even ice forming on the outside of the enclosure. It is ideal for a multitude of industrial sites, such as factories, construction areas, utility plants, power stations, transportation terminals, distribution hubs, warehouses and other areas where you need to keep sensitive equipment secure, organized and out of the way.

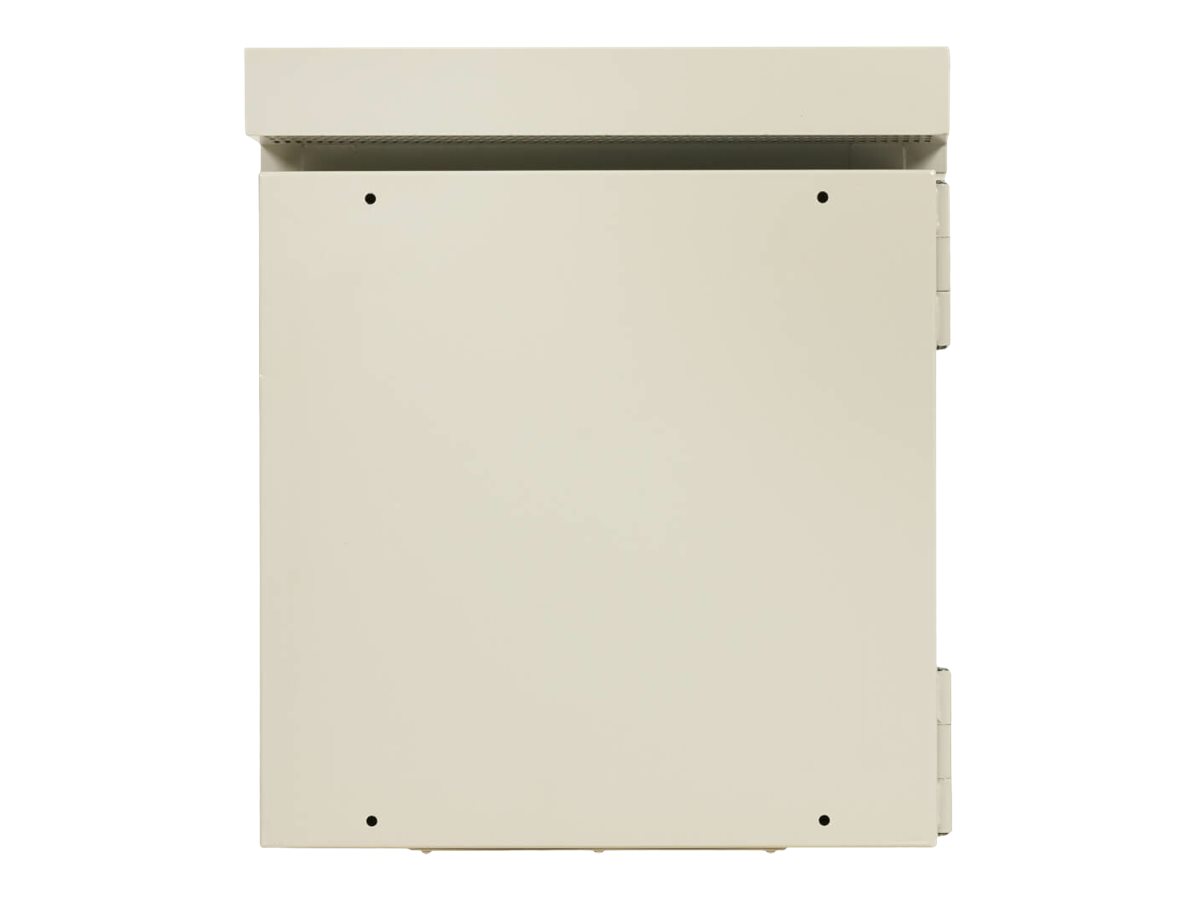

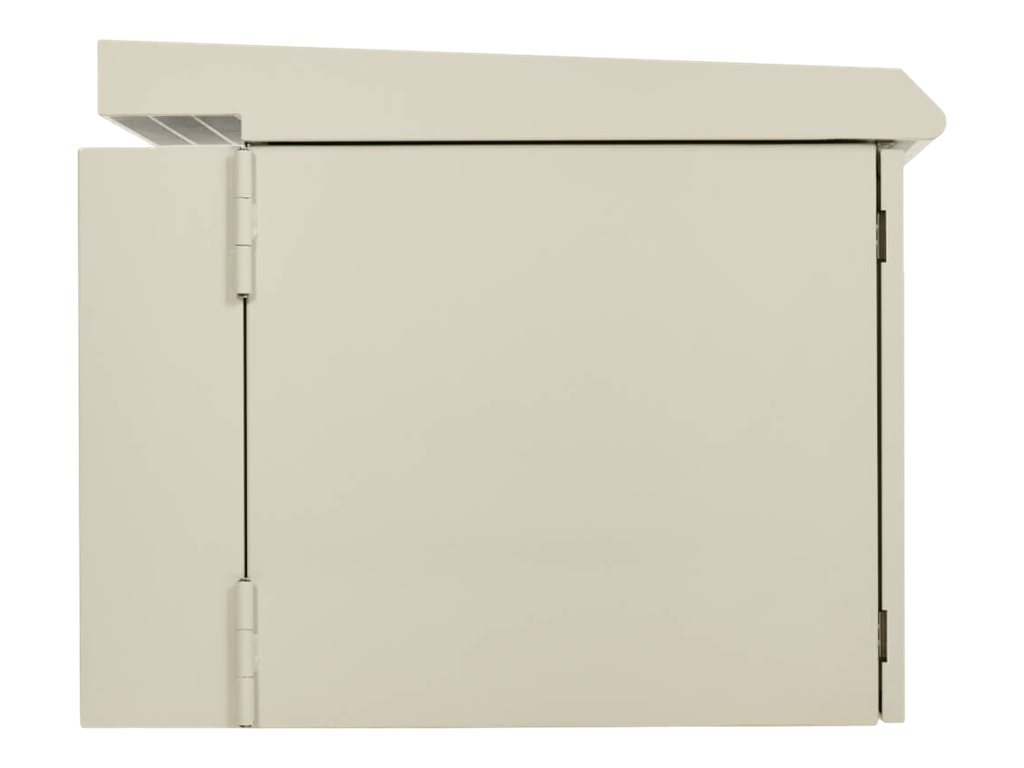

Locks and Hinged Back Allow Easy Authorized Access to Equipment and Cabling

The fully welded steel housing locks securely with the included keys to protect its contents against theft, tampering and unauthorized access. The enclosure swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. Data and power cables may be routed through a bottom conduit cutout.

Easy Enclosure and Equipment Installation

This 12U industrial enclosure comes fully assembled and ready to mount to the wall with user-supplied hardware. Front and rear mounting rails adjust independently to accommodate equipment up to 32 inches deep. Hardware for mounting equipment inside the enclosure is included.

Built-In Fans Help Keep Equipment Cool and Lasting Longer

Two top-mounted fans with thermal switch activate when the temperature inside the enclosure reaches 86°F (30°C). Keeping rack equipment cool helps prevent damage and ensure optimum performance.

General Information
Category	Rack systems for rack mount electroni...
Description	Eaton Tripp Lite Series SmartRack Industrial Enclosure with Lock - NEMA 3R, Wall Mount, Metal Construction, Hinged Back, Internal Fans, 32 in. Depth, 12U, Gray - Cabinet - industrial, locking - with 2 cooling fans - wall mountable - AC 120 V - 150 mm - gray - 12U
Manufacturer	Eaton
MSRP	$2,786.67
UNSPSC	24102001
Main Specifications
Dimensions & Weight / Depth	91.77 cm
Dimensions & Weight / Height	72.36 cm
Dimensions & Weight / Weight	72.34 kg
Dimensions & Weight / Width	63.93 cm
Header / Brand	Tripp Lite
Miscellaneous / Product Color	Gray
Packaged Quantity	1
Product Type	Cabinet
Service & Support / Type	5-year warranty
General
Built-in Devices	2 cooling fans
Color	Gray
Depth	91.77 cm
Finish	Powder coat
Height	72.36 cm
Height (Rack Units)	12U
Package Content	36 screws (10-32), 36 M6 washers, 4 LDPE sheet metal plugs, 4 M10 foam washers, 2 keys, owner's manual
Placing / Mounting	Wall mountable
Product Material	Steel
Product Type	Cabinet - industrial, locking
Shipping Dimensions (WxDxH) / Weight	71.12 cm x 101.6 cm x 87.78 cm / 102.06 kg
Voltage Required	AC 120 V
Weight	72.34 kg
Width	63.93 cm
Heatsink & Fan
Air Flow	190/210 cfm
Fan Diameter	150 mm
Fans Qty	2
Features	PBT blades, aluminum frame
Interface Provided
Connector Provided	Power NEMA 5-15P
Manufacturer Warranty
Service & Support	Limited warranty: - 5 years
Miscellaneous
Compliant Standards	RoHS, REACH, ECA-310-E, EIA-310-E, UL 508A, NEMA Type 3R, CAN/CSA-C22.2 No. 286
Features	Grounding lug, water protection, snow protection, moisture protection, gasketed door, for indoor/outdoor use, 4 vertical mounting rails, ice protection, 1.83 m input cord, sleet resistant, rain protection, dirt-resistant
Mounting Kit	Included
Weight Limit	91 kg
