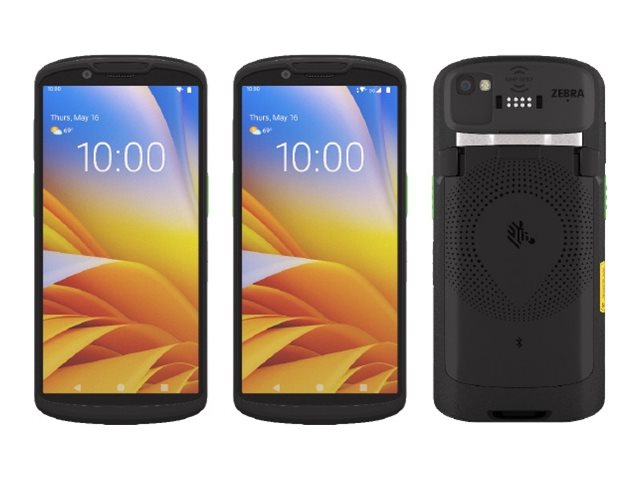

Zebra TC53E - Data collection terminal
MSRP$3,023.35
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
Zebra TC53E - Data collection terminal
- rugged
- Android
- 64 GB
- 6" color (1080 x 2160)
- rear camera + front camera
- barcode reader
- (2D imager)
- USB host
- microSD slot
- NFC, Bluetooth, Wi-Fi 6E
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $3,023.35 |
| Mfr Part #: | TC530E-0T1E1B1001-NA |
| SHI Part #: | 48023725 |
| Category: | PDAs or pen-based computers |
| UNSPSC: | 43211504 |
| Manufacturer: | Zebra Technologies |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | PDAs or pen-based computers |
| Description | Zebra TC53E - Data collection terminal - rugged - Android - 64 GB - 6" color (1080 x 2160) - rear camera + front camera - barcode reader - (2D imager) - USB host - microSD slot - NFC, Bluetooth, Wi-Fi 6E - TAA Compliant |
| Manufacturer | Zebra Technologies |
| MSRP | $3,023.35 |
| UNSPSC | 43211504 |
| Main Specifications | |
| Audio Input / Type | 3 microphones |
| Barcode / Barcode Reader | Yes |
| Dimensions & Weight / Depth | 1.675 cm |
| Dimensions & Weight / Height | 16.48 cm |
| Dimensions & Weight / Weight | 282 g |
| Dimensions & Weight / Width | 7.735 cm |
| Display / Diagonal Size | 6 in |
| Display / Diagonal Size (metric) | 15.2 cm |
| Display / Native Resolution | 1080 x 2160 |
| GPS System / Navigation | GPS/GLONASS/Galileo/BeiDou/QZSS receiver |
| Handheld Type | Data collection terminal |
| Header / Brand | Zebra |
| Header / Country Kits | North America |
| Input Device / Type | Touchscreen |
| Miscellaneous / Product Color | Black |
| Networking / Wireless Connectivity |
|
| OS Provided / Type | Android |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 2.4 GHz |
| Processor / Type | Qualcomm 4490 |
| Service & Support / Type | 1-year warranty |
| Barcodes | |
| Barcode Reader | Yes |
| Barcodes | 1D, 2D |
| Scan Element Type | 2D imager |
| Battery | |
| Capacity | 4680 mAh |
| Technology | PowerPrecision+ - lithium ion |
| Communications | |
| Security Protocols & Features | WEP, WPA, WPA2-Personal, TKIP, AES, WPA3-Personal, WPA2-Enterprise, WPA3-Enterprise, EAP-TTLS, PAP, MS-CHAP, MS-CHAPv2, EAP-TLS, PEAPv0, PEAPv1, EAP-GTC, LEAP, EAP-PWD, Wi-Fi Direct, CCKM |
| Wireless Connectivity | NFC, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| Dimensions & Weight | |
| Depth | 1.675 cm |
| Height | 16.48 cm |
| Weight | 282 g |
| Width | 7.735 cm |
| Display | |
| Features | Corning Gorilla glass, capacitive touch screen, glove touch mode, stylus touch mode, fingerprint-resistant oleophobic coating |
| Image Brightness | 600 cd/m² |
| Resolution | 1080 x 2160 |
| Touchscreen | Multi-Touch |
| Type | 6" color - LED backlight |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Min Storage Temperature | -40 °C |
| Expansion and Connectivity | |
| Expansion Slots | 1 x microSD |
| Interfaces |
|
| USB Host | Yes |
| Front Camera | |
| Sensor Resolution | 8 Megapixel |
| General | |
| Operating System | Android |
| Product Type | Data collection terminal - rugged |
| Input Device | |
| Type | Touchscreen |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Memory | |
| Max Supported Capacity | 2 TB |
| RAM | 8 GB |
| Storage | 64 GB |
| Supported Flash Memory Cards | microSD |
| Miscellaneous | |
| Compliant Standards | GMS, IP65, IP68, RoHS, 2015/863, ISO 19790, ISO 15408, FIPS 140-2, MIL-STD-810H, Bluetooth Class 2, EN/IEC 63000:2018, Directive 2011/65/EU |
| Features | 2x2 MU-MIMO technology, upgradable to Android 17, ESD protection up to 15 kV (air), ESD protection up to 8 kV (direct), ESD protection up to 8 kV (indirect), SE4720 imager, SE55 Advanced Range Scan Engine with IntelliFocus technology, haptic feedback, push-to-talk speaker, volume control, trigger latch, 2.4 m drop to concrete resistant, 1.8 m drop resistant, warm swap, super-wideband (SWB) audio, fullband (FB) audio |
| Localization | North America |
| Sensors | Light sensor, motion sensor, 3-axis accelerometer with MEMS gyro, pressure sensor, proximity sensor, gyro sensor |
| TAA Compliant | Yes |
| Vibrating Alert | Yes |
| Multimedia | |
| Audio | 3 microphones, two speakers |
| Navigation System | |
| Receiver | GPS/GLONASS/Galileo/BeiDou/QZSS |
| Processor | |
| Number of Cores | 8-core |
| Processor | Qualcomm qualcomm 4490 4490 |
| Processor Clock Speed | 2.4 GHz |
| Rear Camera | |
| Features | Torch mode |
| Focus Adjustment | Automatic |
| Light Source | LED flash |
| Sensor Resolution | 16 Megapixel |
| Special Effects | HDR |
| RFID | |
| RFID Specification | ISO 14443A, ISO 14443B, Felica, ISO 15693 |
| Software | |
| Preloaded Software | Google Mobile Services |
