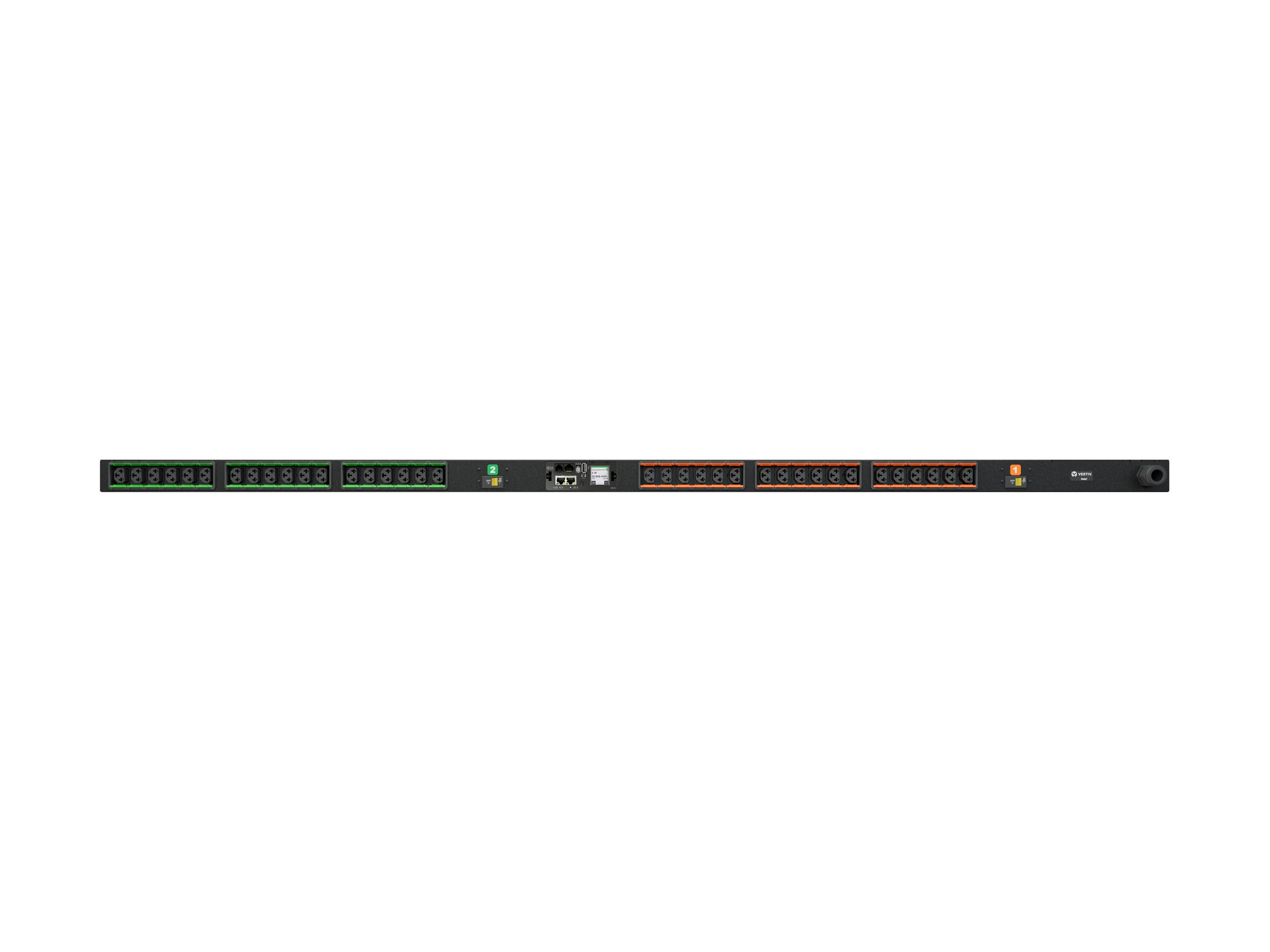

Geist Monitored Unit Level MN05M4B1-36CF18-3TL6A0A10-S
MSRP$1,635.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
Geist Monitored Unit Level MN05M4B1-36CF18-3TL6A0A10-S
- Power distribution unit
- AC 200
- 240 V
- 4.9 kW
- Ethernet 10/100/1000, USB, RS-232
- input: NEMA L6-30P
- output connectors: 36 (IEC 60320 C13/C19)
- black powder coat
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,635.00 |
| Mfr Part #: | VP4N30AM |
| SHI Part #: | 48210940 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Vertiv |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Geist Monitored Unit Level MN05M4B1-36CF18-3TL6A0A10-S - Power distribution unit - AC 200 - 240 V - 4.9 kW - Ethernet 10/100/1000, USB, RS-232 - input: NEMA L6-30P - output connectors: 36 (IEC 60320 C13/C19) - black powder coat - TAA Compliant |
| Manufacturer | Vertiv |
| MSRP | $1,635.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 5.1 cm |
| Dimensions & Weight / Height | 168.3 cm |
| Dimensions & Weight / Width | 5.1 cm |
| Header / Brand | Geist |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Output Connector Qty | 36 |
| Power Device / Voltage Required | AC 200 - 240 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 5-year warranty |
| Dimensions & Weight | |
| Depth | 5.1 cm |
| Height | 168.3 cm |
| Width | 5.1 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 7.26 kg |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black powder coat |
| Device Type | Power distribution unit |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | RoHS, FCC Part 15 A, C-UL, UL, UL 62368-1 |
| Features | Vertical orientation, breaker/switch combination, LED display, circuit/breaker current monitoring, IP reset button, hard reboot button, internal RMS current sensor, internal RMS voltage sensor, 2 x 20A double pole magnetic breakers |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, USB, RS-232 |
| Remote Management Protocol | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP 1, SNMP 2c, SNMP 3, Syslog, TACACS+, Modbus TCP, JSON |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L6-30P |
| Input Voltage | AC 200 - 240 V |
| Input Voltage Range | AC 200 - 240 V |
| Max Electric Current | 30 A |
| Power Capacity | 4.9 kW |
| Power Output Connectors Details | 36 x power IEC 60320 C13/C19 |
