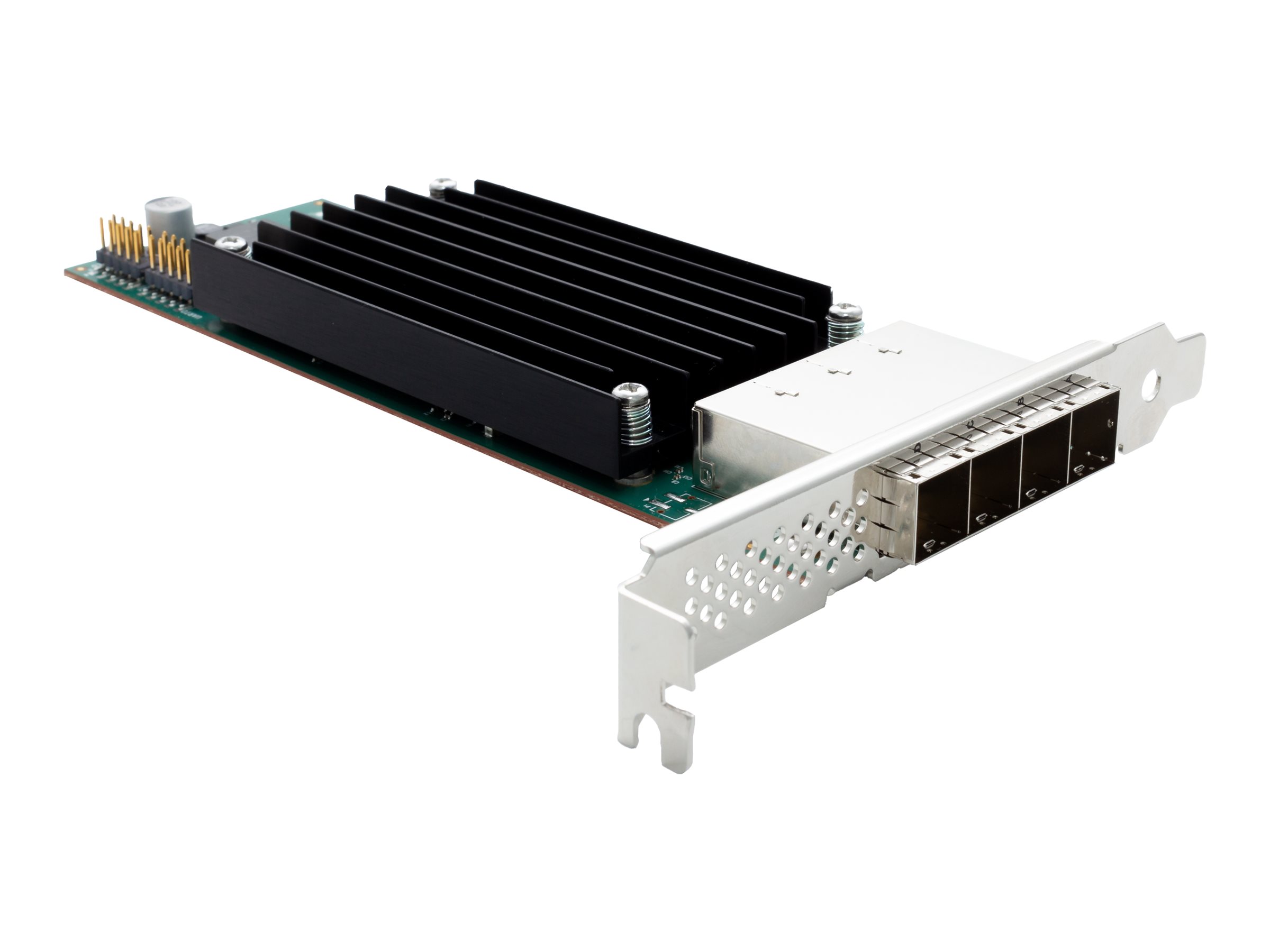

ATTO ExpressSAS 24F0
MSRP$1,395.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
ATTO ExpressSAS 24F0
- Storage controller
- 16 Channel
- SATA 6Gb/s / SAS 24Gb/s
- low profile
- RAID 0, 1, 10, 1E
- PCIe 4.0 x16
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,395.00 |
| Mfr Part #: | ESAH-24F0-000 |
| SHI Part #: | 48259496 |
| Category: | Peripheral controller cards |
| UNSPSC: | 43201407 |
| Manufacturer: | ATTO |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Peripheral controller cards |
| Description | ATTO ExpressSAS 24F0 - Storage controller - 16 Channel - SATA 6Gb/s / SAS 24Gb/s - low profile - RAID 0, 1, 10, 1E - PCIe 4.0 x16 |
| Manufacturer | ATTO |
| MSRP | $1,395.00 |
| UNSPSC | 43201407 |
| Main Specifications | |
| Dimensions & Weight / Depth | 16.8 cm |
| Dimensions & Weight / Height | 6.9 cm |
| General / Product Type | Storage controller |
| Header / Brand | ATTO |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Storage Controller / Form Factor | Plug-in card |
| System Requirements / OS Required |
|
| Dimensions & Weight | |
| Depth | 16.8 cm |
| Height | 6.9 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces | 16 x SATA 6Gb/s / SAS 24Gb/s - Mini SAS HD (SFF-8674) (external) |
| General | |
| Device Type | Storage controller - plug-in card - low profile |
| Host Bus | PCIe 4.0 x16 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | IEC 62368-1, RoHS, RoHS 2 (2011/65/EU), Directive 2015/863, EMC, FCC Part 15, ICES-003, EN55032:2015, CISPR 32:2015, VCCI 32-1 |
| Features | Advanced Data Streaming (ADS), LED indicator |
| MTBF | 4,500,000 hours |
| Package Type | OEM |
| Software / System Requirements | |
| OS Required | Microsoft Windows Server, Apple MacOS, SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Rocky Linux, Ubuntu, VMware ESXi |
| Storage Controller | |
| Channel Qty | 16 |
| Data Transfer Rate | 24 Gbit/s |
| Interface | SATA 6Gb/s / SAS 24Gb/s |
| Max Storage Devices Qty | 2048 |
| RAID Level | RAID 0, RAID 1, RAID 10, RAID 1E |
