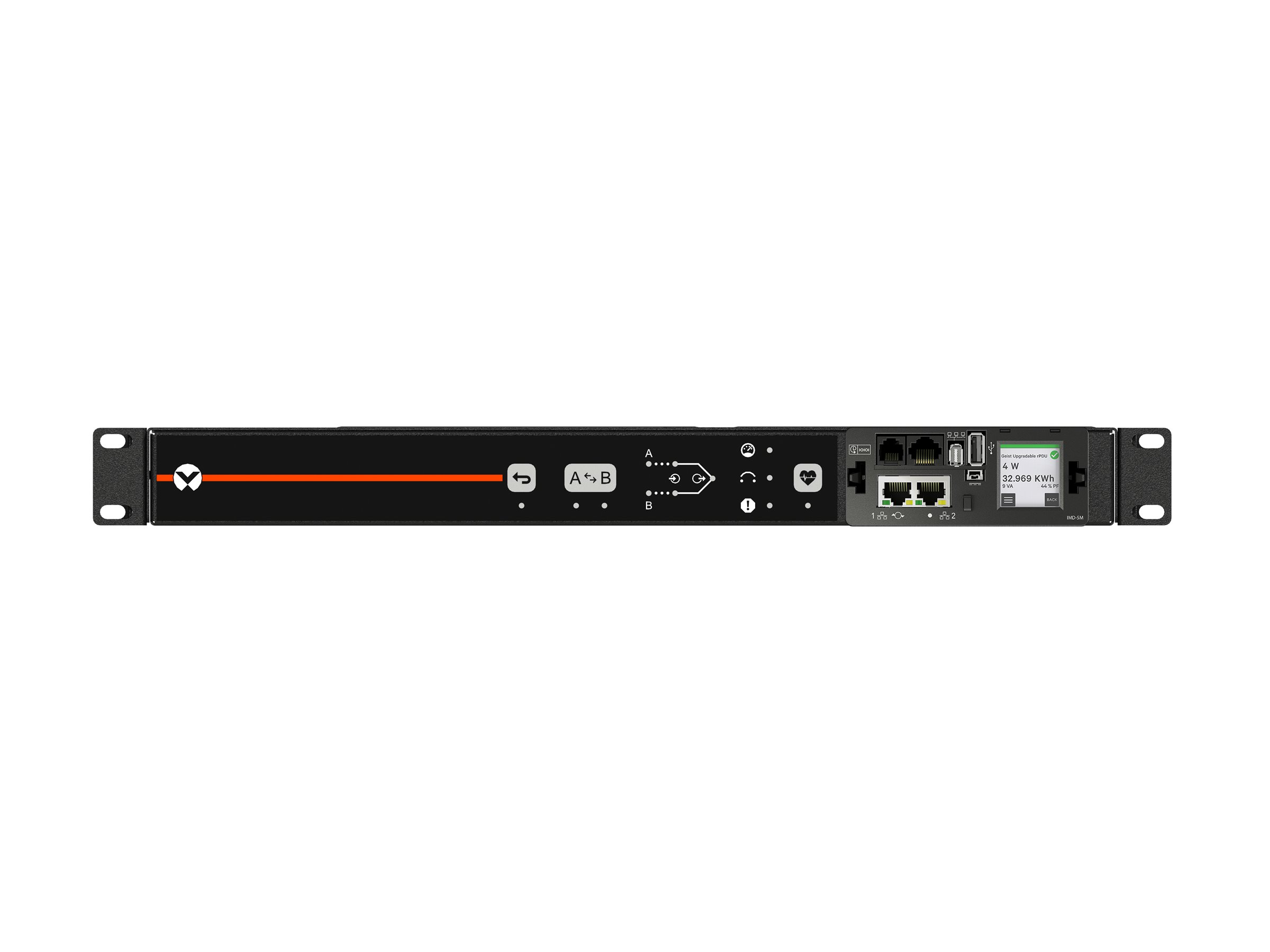

Geist Rack Transfer Switch Unit Level Monitoring AU05M1R0-12CF17-2C20C20A900-D

MSRP$2,157.00

$2,086.25

Geist Rack Transfer Switch Unit Level Monitoring AU05M1R0-12CF17-2C20C20A900-D

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
Power distribution unit (rack-mountable) AC 120/208/230 V 3.6 kW Ethernet 10/100/1000, RS-232, USB input: IEC 60320 C20

Contracts
DIR-CPO-5094

Geist Rack Transfer Switch Unit Level Monitoring AU05M1R0-12CF17-2C20C20A900-D

Power distribution unit (rack-mountable)
AC 120/208/230 V
3.6 kW
Ethernet 10/100/1000, RS-232, USB
input: IEC 60320 C20
output connectors: 12 (IEC 60320 C13/C19)
1U
19"
3 m cord
black powder coat

Additional Details
Price:	$2,086.25
MSRP:	$2,157.00
Mfr Part #:	VA4U21A0
SHI Part #:	48664922
Category:	Rack systems for rack mount electroni...
UNSPSC:	24102001
Manufacturer:	Vertiv
Product Type:	Hardware

General Information
Category	Rack systems for rack mount electroni...
Description	Geist Rack Transfer Switch Unit Level Monitoring AU05M1R0-12CF17-2C20C20A900-D - Power distribution unit (rack-mountable) - AC 120/208/230 V - 3.6 kW - Ethernet 10/100/1000, RS-232, USB - input: IEC 60320 C20 - output connectors: 12 (IEC 60320 C13/C19) - 1U - 19" - 3 m cord - black powder coat
Manufacturer	Vertiv
MSRP	$2,157.00
UNSPSC	24102001
Main Specifications
Dimensions & Weight / Depth	45.7 cm
Dimensions & Weight / Height	4.4 cm
Dimensions & Weight / Width	43.2 cm
General / Subcategory	Power distribution devices
Header / Brand	Geist
Miscellaneous / Product Color	Black
Networking / Remote Management Interface	Ethernet 10/100/1000 RS-232 USB
Packaged Quantity	1
Power Device / Form Factor	Rack-mountable
Power Device / Output Connector Qty	12
Power Device / Voltage Required	AC 120/208/230 V
Product Type	Power distribution unit
Service & Support / Type	5-year warranty with product registration
Battery
Transfer Time	8 ms
Dimensions & Weight
Depth	45.7 cm
Height	4.4 cm
Width	43.2 cm
Dimensions & Weight (Shipping)
Shipping Weight	6.8 kg
Environmental Parameters
Max Operating Temperature	60 °C
Expansion / Connectivity
Interfaces	2 x management (Fast Ethernet) - RJ-45 1 x sensor 1 x RS-232 - RJ-45 1 x USB
General
Color	Black powder coat
Cord Length	3 m
Device Type	Power distribution unit - rack-mountable
Height (Rack Units)	1U
Rack Size	19"
Manufacturer Warranty
Service & Support	Limited warranty - 5 years with product registration (within 120 days of purchase) Limited warranty - 3 years
Miscellaneous
Cables Included	Power cable 3 m
Compliant Standards	UKCA, IEC 62368-1, EN 55032, EN 55035, RoHS, ANSI C12.1, IEC 62053-21, FCC Part 15 A, RCM EMC, China RoHS, UL/CUL 62368-1
Features	Horizontal orientation, LED display, IP reset button, hard reboot button, phase monitoring, monitored, front panel HMI LED overlay
Rack Mounting Kit	Included
Networking
Remote Management Interface	Ethernet 10/100/1000, RS-232, USB
Remote Management Protocol	DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP 1, SNMP 2c, SNMP 3, Syslog, TACACS+, Modbus TCP, JSON
Power Device
Frequency Required	50/60 Hz
Input Connectors	1 x power IEC 60320 C20
Input Voltage	AC 120/208/230 V
Input Voltage Range	AC 100 - 240 V
Max Electric Current	20 A
Power Capacity	3.6 kW
Power Output Connectors Details	12 x power IEC 60320 C13/C19
