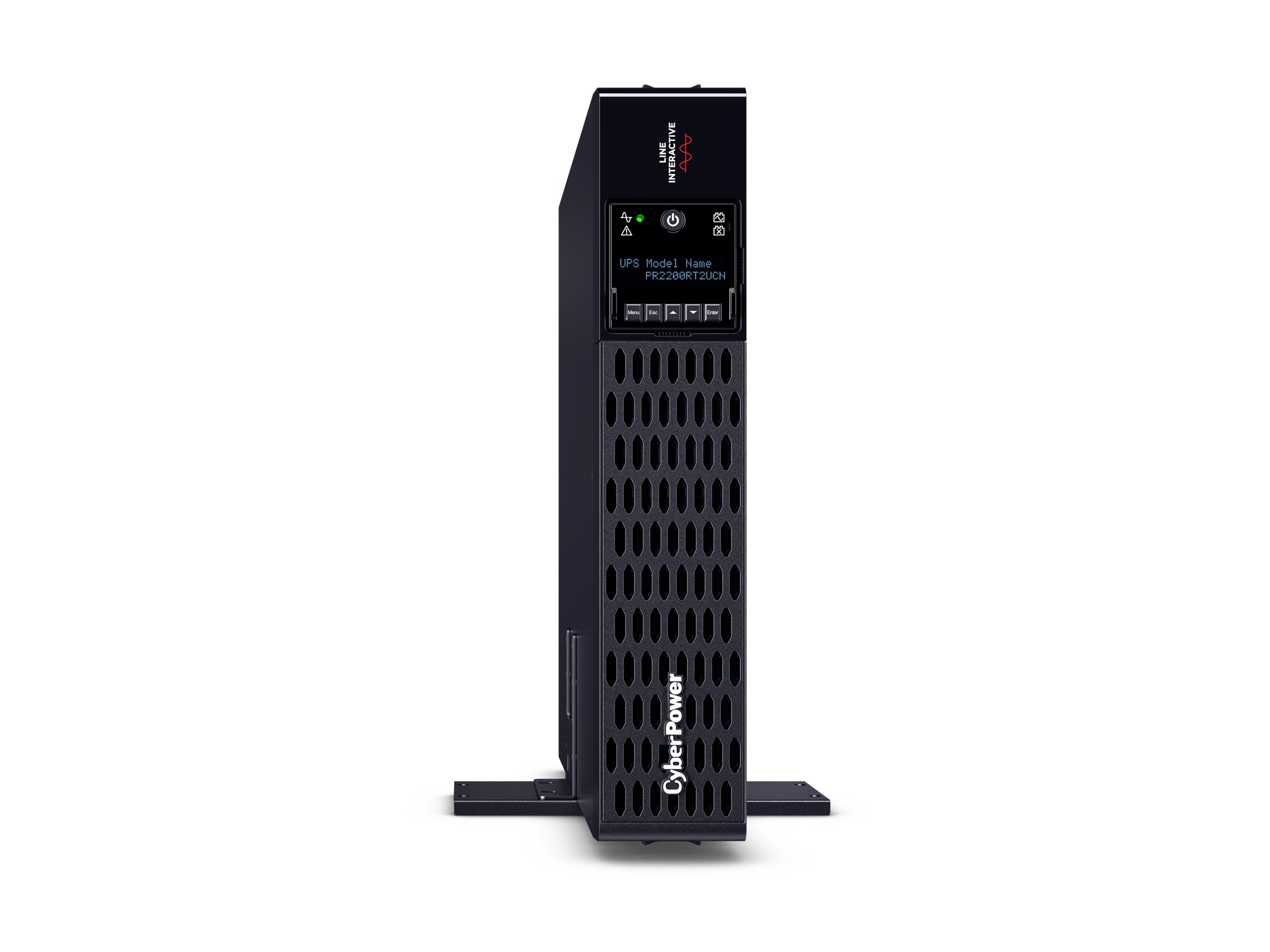

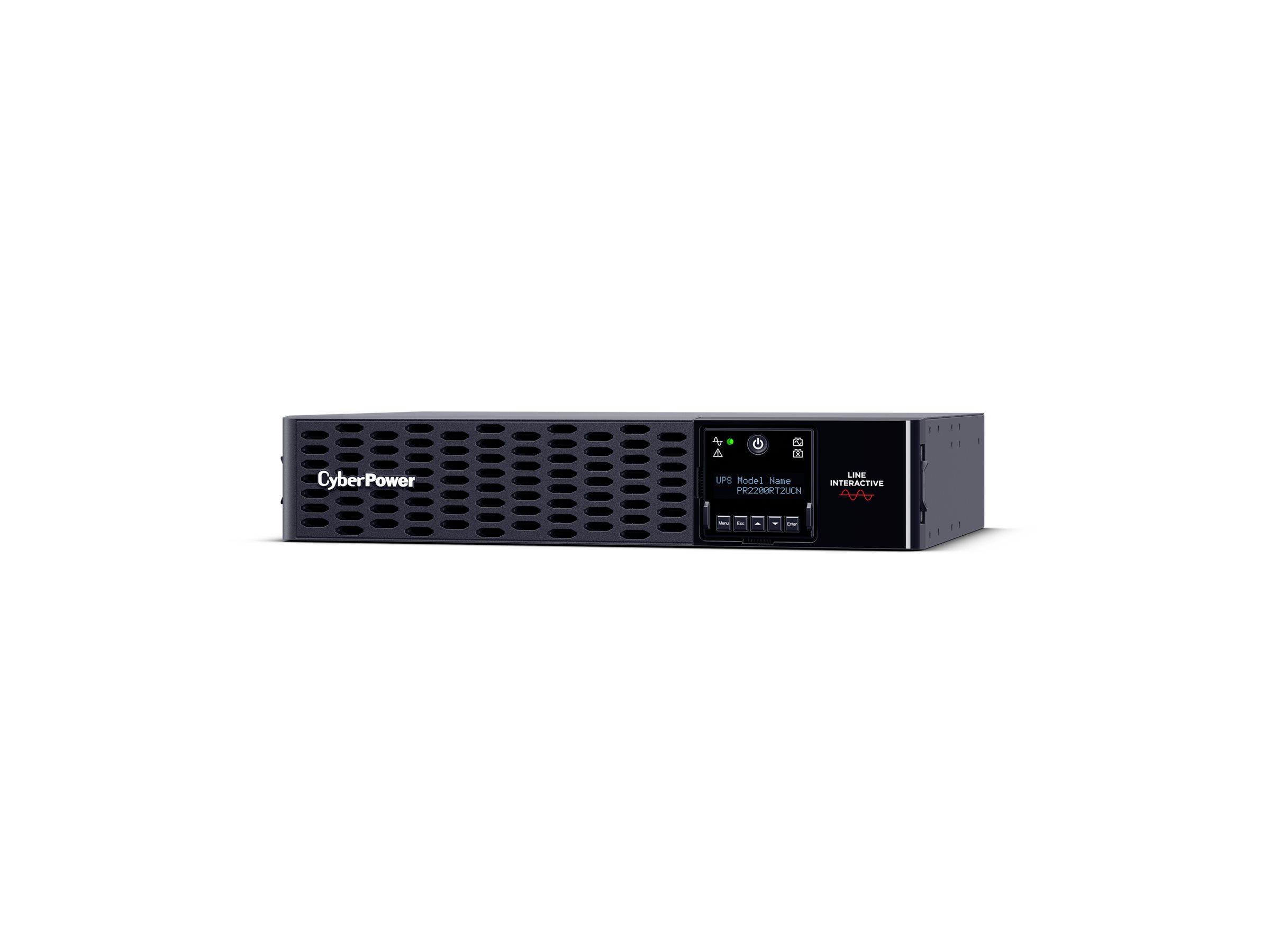

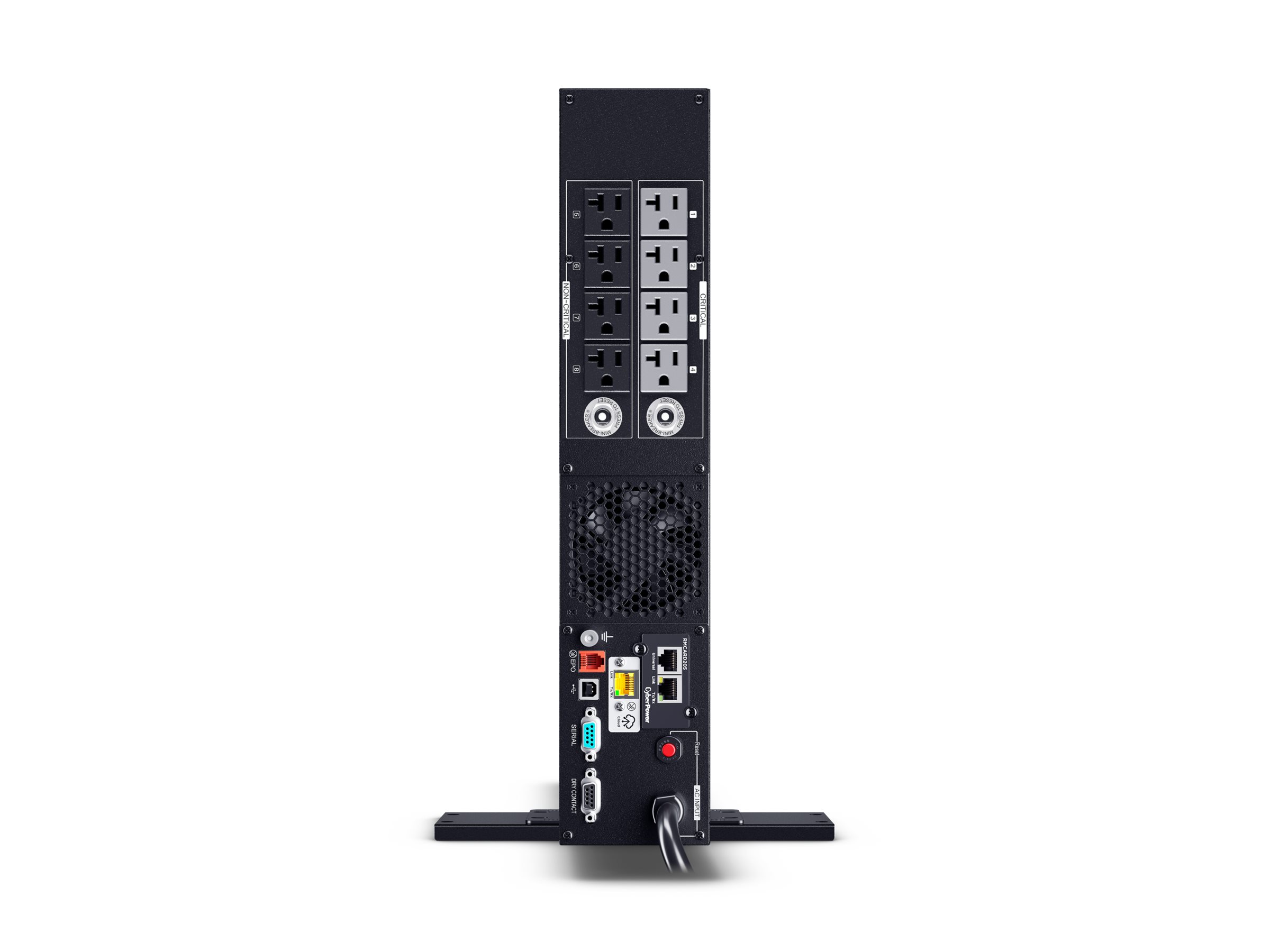

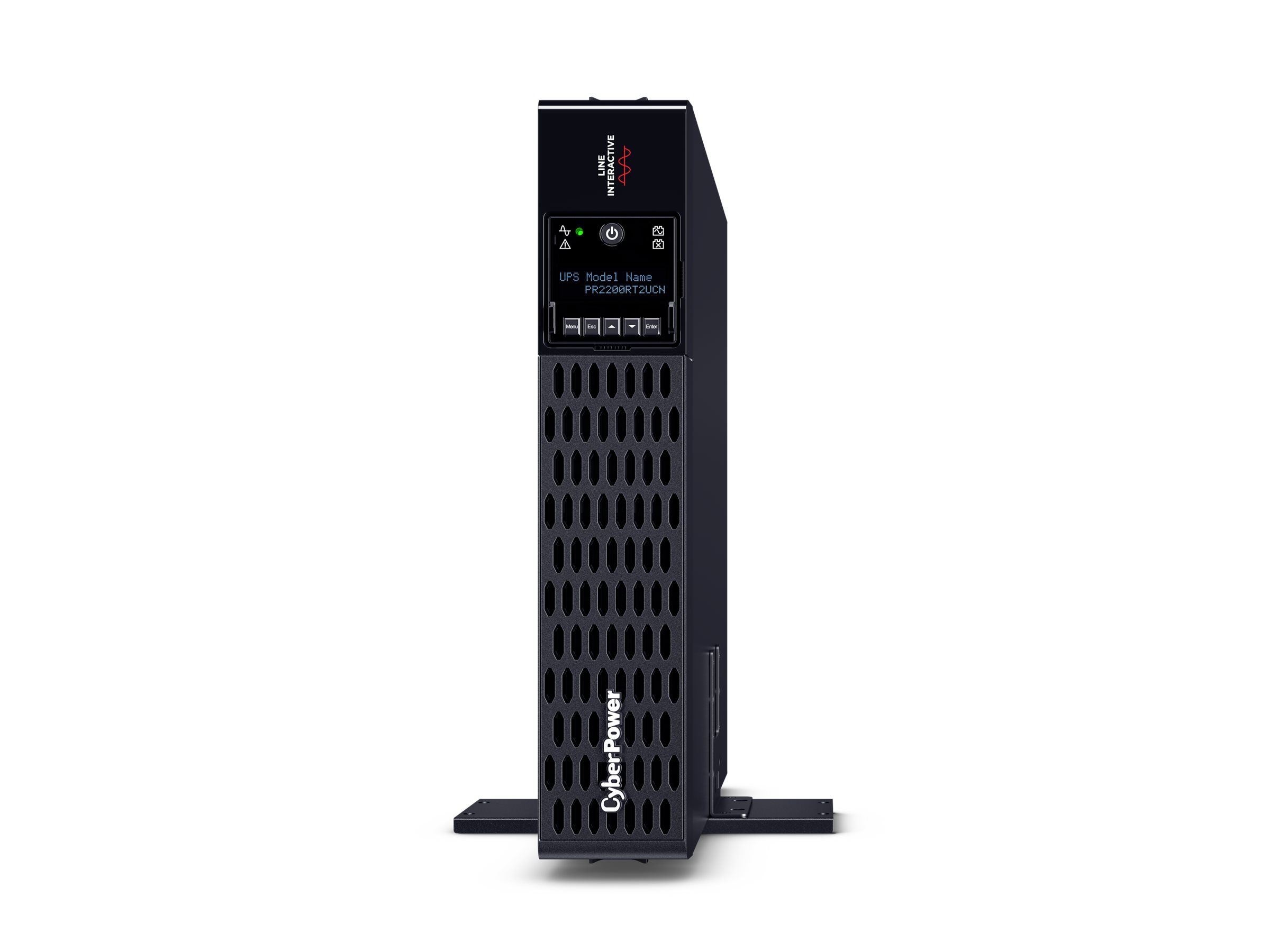

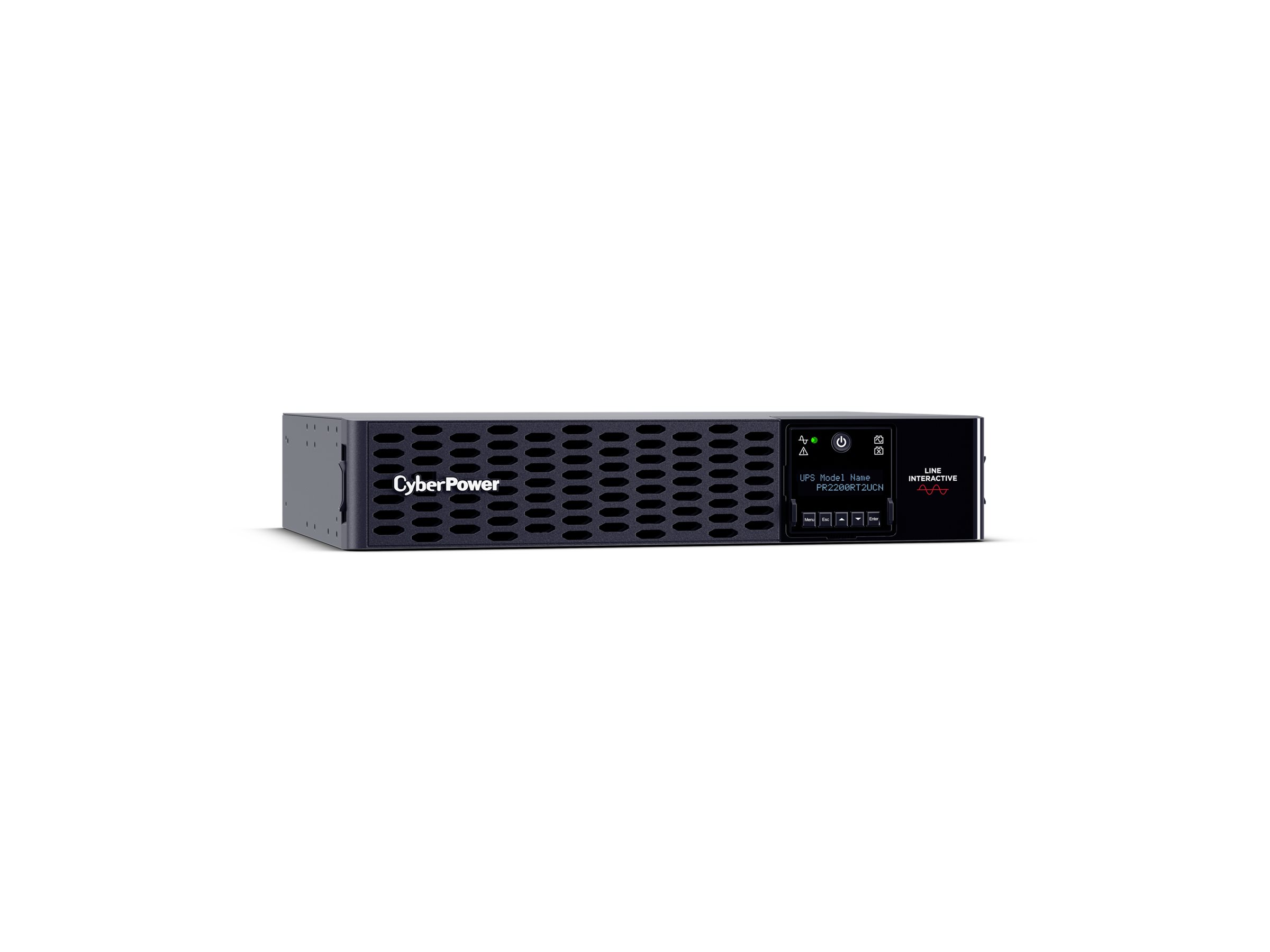

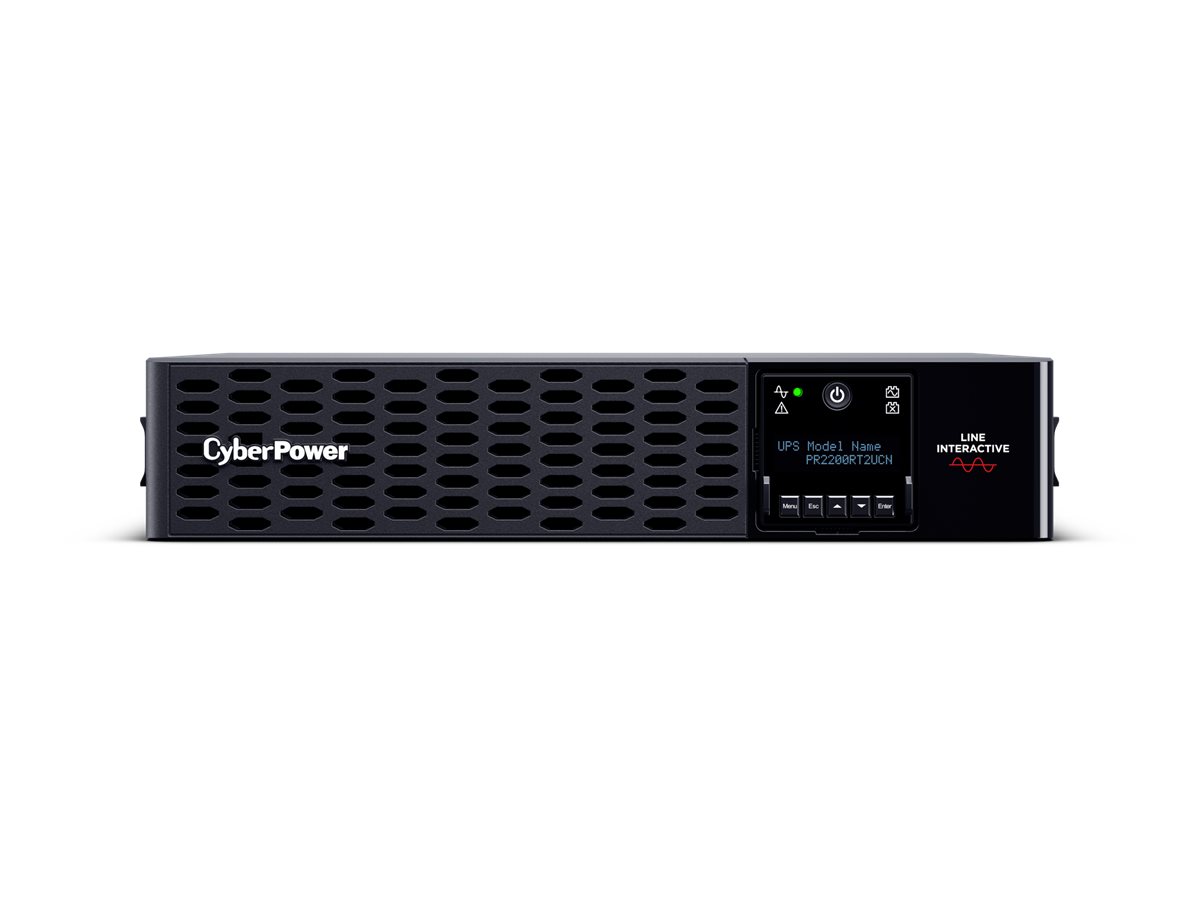

CyberPower Smart App Sinewave PR2200RT2UCN

MSRP$2,500.00
$2,418.00
CyberPower Smart App Sinewave PR2200RT2UCN
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • UPS (rack-mountable / external)
  • AC 100-120 V
  • 2200 Watt
  • 2200 VA
  • 9 Ah
Contracts
   DIR-CPO-5094
CyberPower Smart App Sinewave PR2200RT2UCN
  • UPS (rack-mountable / external)
  • AC 100-120 V
  • 2200 Watt
  • 2200 VA
  • 9 Ah
  • serial, USB, Ethernet
  • output connectors: 8
  • active PFC
  • 2U
  • black
  • with RMCARD205 network management card
  Additional Details
Price: $2,418.00
MSRP: $2,500.00
Mfr Part #: PR2200RT2UCN
SHI Part #: 48671793
Category: Rechargeable batteries
UNSPSC: 26111701
Manufacturer: CyberPower
Product Type: Hardware
General Information
CategoryRechargeable batteries
DescriptionCyberPower Smart App Sinewave PR2200RT2UCN - UPS (rack-mountable / external) - AC 100-120 V - 2200 Watt - 2200 VA - 9 Ah - serial, USB, Ethernet - output connectors: 8 - active PFC - 2U - black - with RMCARD205 network management card
ManufacturerCyberPower
MSRP$2,500.00
UNSPSC26111701
Main Specifications
Dimensions & Weight / Depth41.145 cm
Dimensions & Weight / Height8.64 cm
Dimensions & Weight / Weight27.12 kg
Dimensions & Weight / Width43.43 cm
Header / BrandCyberPower
Miscellaneous / Product ColorBlack
Networking / Remote Management Interface
  • Ethernet
  • Serial
  • USB
Packaged Quantity1
Power Device / Form FactorRack-mountable / external
Power Device / Output Connector Qty8
Power Device / Power Capacity (VA)2200 VA
Power Device / UPS TechnologyLine interactive
Power Device / Voltage RequiredAC 100-120 V
Product TypeUPS
Service & Support / Type3-year warranty
Battery
Capacity9 Ah
FeaturesSealed, hot-swappable
Quantity4
Recharge Time3 hours
Run Time (Up To)
  • 3.2 min at full load
  • 11.8 min at half load
TechnologyLead acid
Transfer Time13 ms
Voltage Provided12 V
Dimensions & Weight
Depth41.145 cm
Height8.64 cm
Weight27.12 kg
Width43.43 cm
Dimensions & Weight (Shipping)
Shipping Depth57.15 cm
Shipping Height26.67 cm
Shipping Weight34.06 kg
Shipping Width53.34 cm
Environmental Parameters
Humidity Range Operating0 - 95% (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Sound Emission52.5 dBA
Expansion / Connectivity
Expansion Slots1 (total) / 1 (free) x SNMP

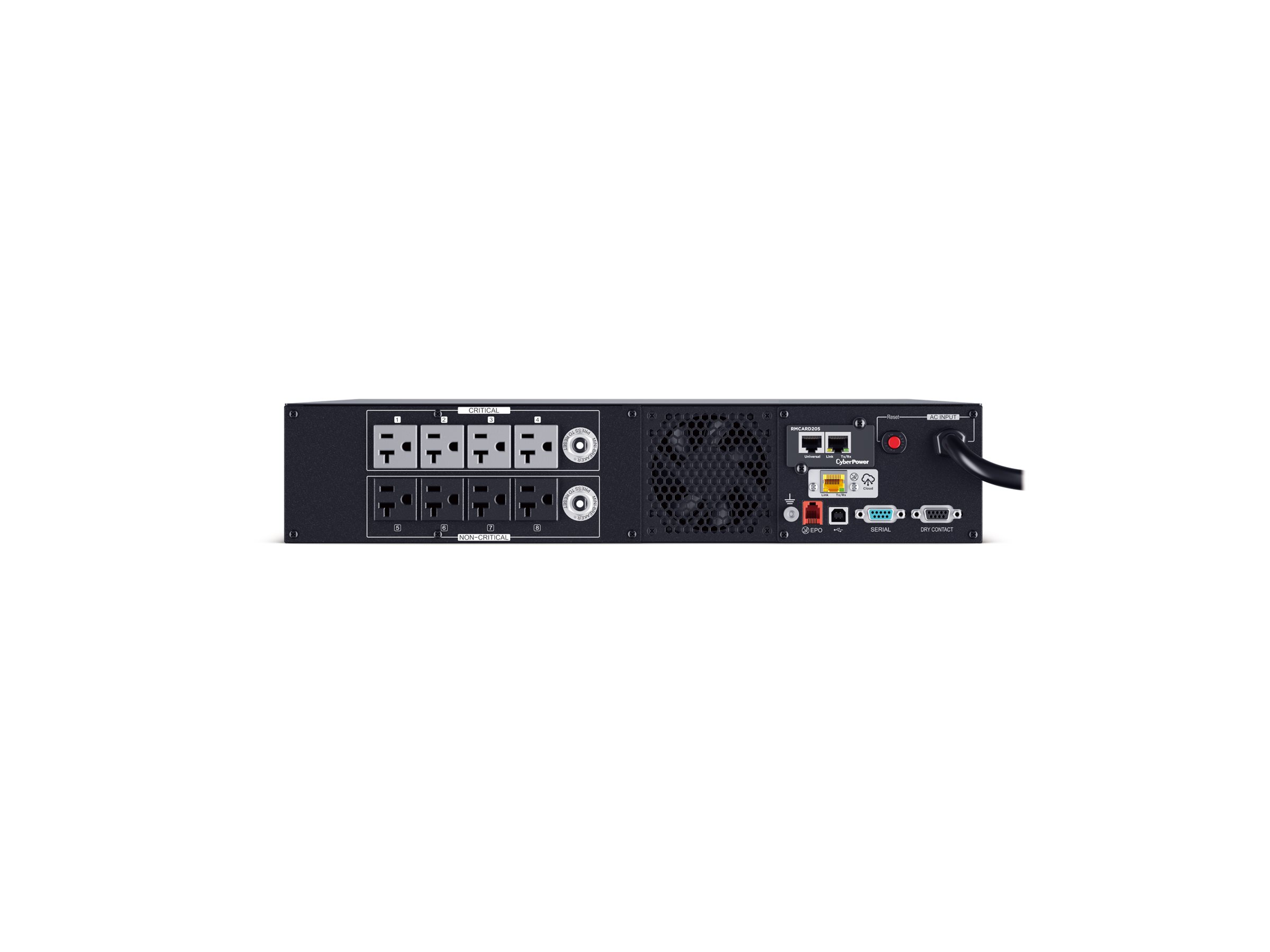

Interfaces
  • 1 x serial
  • 3 x management (Ethernet)
  • 1 x management (USB) - 4 pin USB Type B
  • 1 x EPO (emergency power off)
  • 1 x dry contact
General
Bundled withRMCARD205 network management card
ColorBlack
Device TypeUPS - active Power Factor Correction (PFC) - rack-mountable / external
Height (Rack Units)2U
Manufacturer Warranty
Service & SupportLimited warranty - 3 years
Miscellaneous
Cables Included
  • Power cable 3 m
  • USB cable - external
  • Emergency power off cable - external
Compliant StandardsUL 1778, VCCI, FCC Class A certified, CSA C22.2 No. 107.3, RoHS
Equipment Protection Value400000 US Dollars
FeaturesTool-less front panel, metal housing, emergency power off, Automatic Voltage Regulation (AVR), Battery Equalization Technology, Fast Charge technology, rotatable LCD panel, Enhanced Battery Management (EBM), GreenPower UPS Bypass Technology, user-replaceable batteries, 30A fuse, twist lock plug, Impedance Tolerant EMI/RFI filtering, audible alarm, Human Interface Device (HID) support, LED indicators
Networking
Remote Management InterfaceSerial, USB, Ethernet
Remote Management ProtocolHTTP, SNMP
Power Device
Circuit ProtectionCircuit breaker
Frequency Provided50/60 Hz ± 1%
Frequency Required47 - 63 Hz
Input Connectors1 x power NEMA 5-20P
Input VoltageAC 100-120 V
Input Voltage RangeAC 75 - 149 V
Input Voltage Range (Adjustable)AC 69 - 155 V
Output VoltageAC 100/110/120 V + 5% / - 5% - 50/60 Hz
Output WaveformSinewave
Power Capacity2200 watt / 2200 VA
Power Factor (PF)1.0

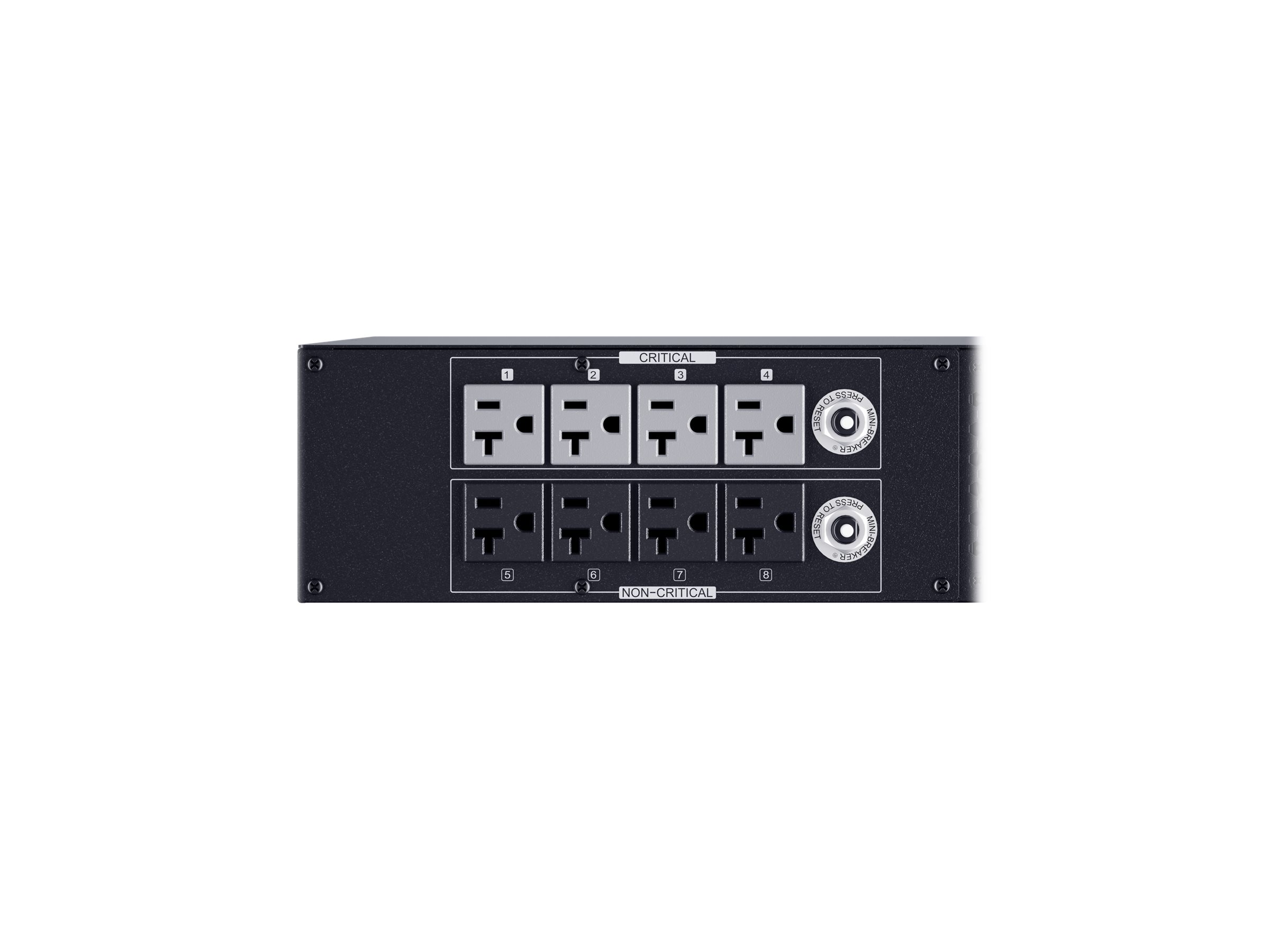

Power Output Connectors Details8 x power NEMA 5-20R
Surge Energy Rating2430 joules
Surge SuppressionYes
UPS TechnologyLine interactive
Software / System Requirements
Software IncludedPowerPanel Business
Sustainability Information
ENERGY STARYes
