WD Red SN700 WDS400T1R0C-68BDK0
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |

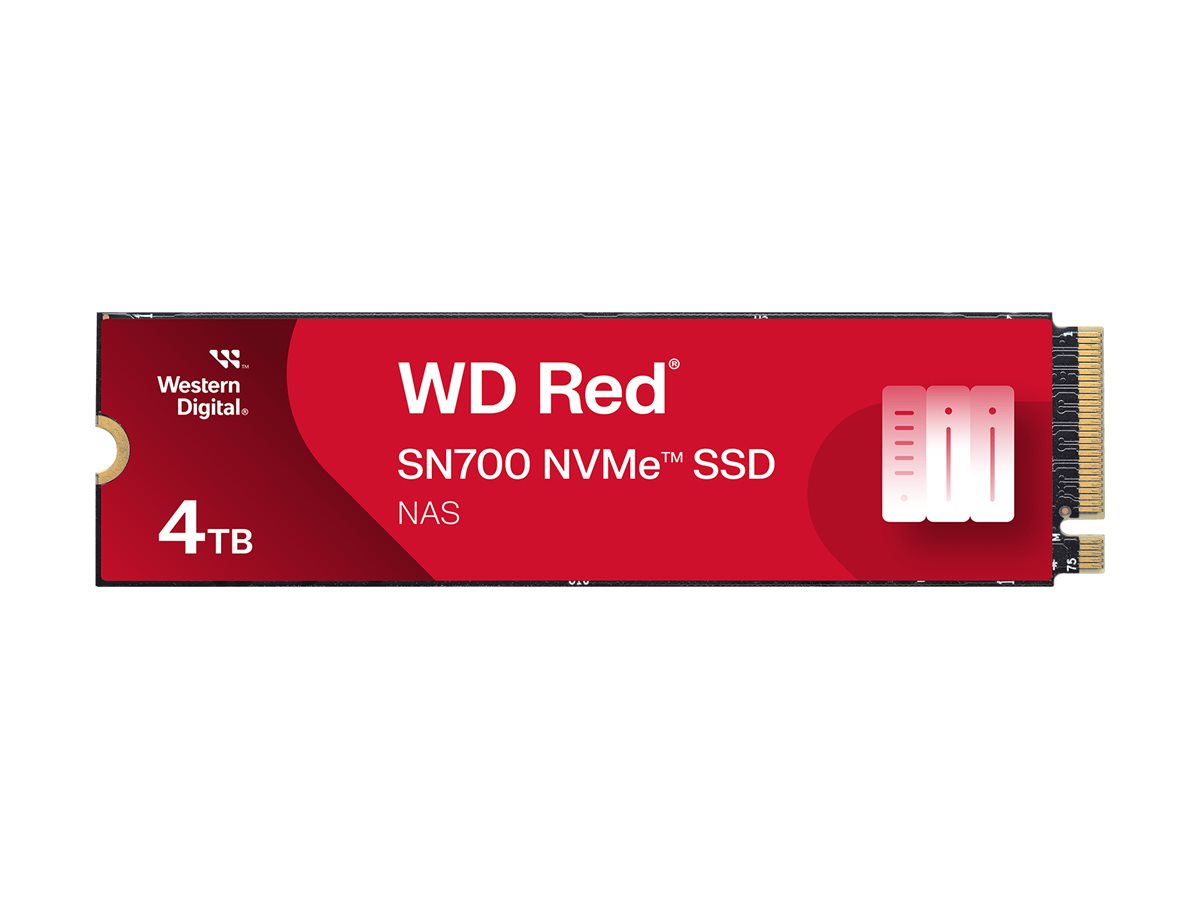

WD Red SN700 WDS400T1R0C-68BDK0
- SSD
- 4 TB
- internal
- M.2 2280
- PCIe 3.0 x4 (NVMe)
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | WDS400T1R0C-68BDK0 |
| SHI Part #: | 48933535 |
| Category: | Hard drives |
| UNSPSC: | 43201803 |
| Manufacturer: | Western Digital |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Hard drives |
| Description | WD Red SN700 WDS400T1R0C-68BDK0 - SSD - 4 TB - internal - M.2 2280 - PCIe 3.0 x4 (NVMe) |
| Manufacturer | Western Digital |
| MSRP | $0.00 |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 80 mm |
| Dimensions & Weight / Height | 2.38 mm |
| Dimensions & Weight / Weight | 7.5 g |
| Dimensions & Weight / Width | 22 mm |
| Hard Drive / Capacity | 4 TB |
| Hard Drive / Form Factor | M.2 2280 |
| Hard Drive / Hard Drive Type | Internal hard drive |
| Hard Drive / Interface | PCI Express 3.0 x4 (NVMe) |
| Hard Drive / Interface | PCI Express 3.0 x4 (NVMe) |
| Header / Brand | WD |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Storage / Type | Solid state drive |
| Environmental Parameters | |
| Max Operating Temperature | 70 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -55 °C |
| Expansion & Connectivity | |
| Compatible Bay | M.2 2280 |
| Interfaces | 1 x PCI Express 3.0 x4 (NVMe) - M.2 Card |
| General | |
| Capacity | 4 TB |
| Depth | 80 mm |
| Device Type | Solid state drive - internal |
| Features | 24x7 continuous operation |
| Form Factor | M.2 2280 |
| Height | 2.38 mm |
| Interface | PCIe 3.0 x4 (NVMe) |
| Weight | 7.5 g |
| Width | 22 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | BSMI, ICES-003, NMB-003, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB Scheme, TUV, UL |
| Performance | |
| Internal Data Rate | 3400 MBps (read) / 3100 MBps (write) |
| Maximum 4KB Random Read | 550000 IOPS |
| Maximum 4KB Random Write | 520000 IOPS |
| SSD Endurance | 5100 TB |
| Power | |
| Power Consumption |
|
| Reliability | |
| 24x7 Operation | Yes |
| MTBF | 1,750,000 hours |
