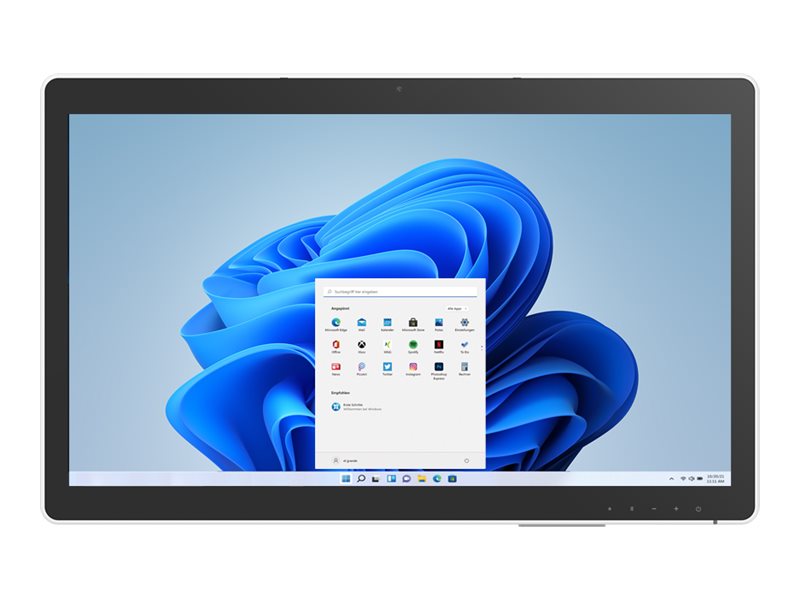

DT Research Medical-Grade Integrated LCD System 502TF

MSRP$2,642.00
$2,555.34
DT Research Medical-Grade Integrated LCD System 502TF
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • All-in-one Core i5 i5-14400T / up to 4.5 GHz
  • RAM 8 GB
  • SSD 1 TB
  • UHD Graphics 730
  • IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.3
Contracts
   DIR-CPO-5094
DT Research Medical-Grade Integrated LCD System 502TF
  • All-in-one Core i5 i5-14400T / up to 4.5 GHz
  • RAM 8 GB
  • SSD 1 TB
  • UHD Graphics 730
  • IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.3
  • Win 11
  • monitor: LCD 21.5" 1920 x 1080 (Full HD) touchscreen
  • white
  Additional Details
Price: $2,555.34
MSRP: $2,642.00
Mfr Part #: 502T-514B
SHI Part #: 48981123
Category: Desktop computers
UNSPSC: 43211507
Manufacturer: DT Research
Product Type: Hardware
General Information
CategoryDesktop computers
DescriptionDT Research Medical-Grade Integrated LCD System 502TF - All-in-one Core i5 i5-14400T / up to 4.5 GHz - RAM 8 GB - SSD 1 TB - UHD Graphics 730 - IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.3 - Win 11 - monitor: LCD 21.5" 1920 x 1080 (Full HD) touchscreen - white
ManufacturerDT Research
MSRP$2,642.00
UNSPSC43211507
Main Specifications
Chassis / Form FactorAll-in-one
Dimensions & Weight / Depth4 cm
Dimensions & Weight / Height32.4 cm
Dimensions & Weight / Weight6.08 kg
Dimensions & Weight / Width51.8 cm
Display / Diagonal Size21.5 in
Display / Diagonal Size (metric)54.6 cm
Display / Native Resolution1920 x 1080
Display / TypeLCD
Display / Widescreen DisplayYes
Hard Drive / Capacity1 TB
Header / BrandDT Research
Miscellaneous / Product ColorWhite
Networking / Data Link Protocol
  • Bluetooth 5.3
  • Ethernet
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax (Wi-Fi 6)
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Networking / Wireless LAN SupportedYes
Networking / Wireless Protocol
  • 802.11a/b/g/n/ac/ax
  • Bluetooth 5.3
Optical Storage / Drive TypeNo optical drive
Optical Storage / TypeNone
OS Provided / TypeWindows 11
Packaged Quantity1
Processor / Clock Speed1.5 GHz
Processor / Generation14
Processor / ManufacturerIntel
Processor / Number of Cores10-core
Processor / Processor NumberI5-14400T
Processor / TypeCore i5
Service & Support / Type3-year warranty
System / Hard Drive Capacity1 TB
System / TypePersonal computer
Video Output / Graphics ProcessorIntel UHD Graphics 730
Audio Input
TypeMicrophone
Cache Memory
Cache Per Processor20 MB
Installed Size20 MB
Dimensions & Weight
Depth4 cm
Height32.4 cm
Weight6.08 kg
Width51.8 cm
Environmental Parameters
Humidity Range Operating0 - 90% (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Expansion / Connectivity

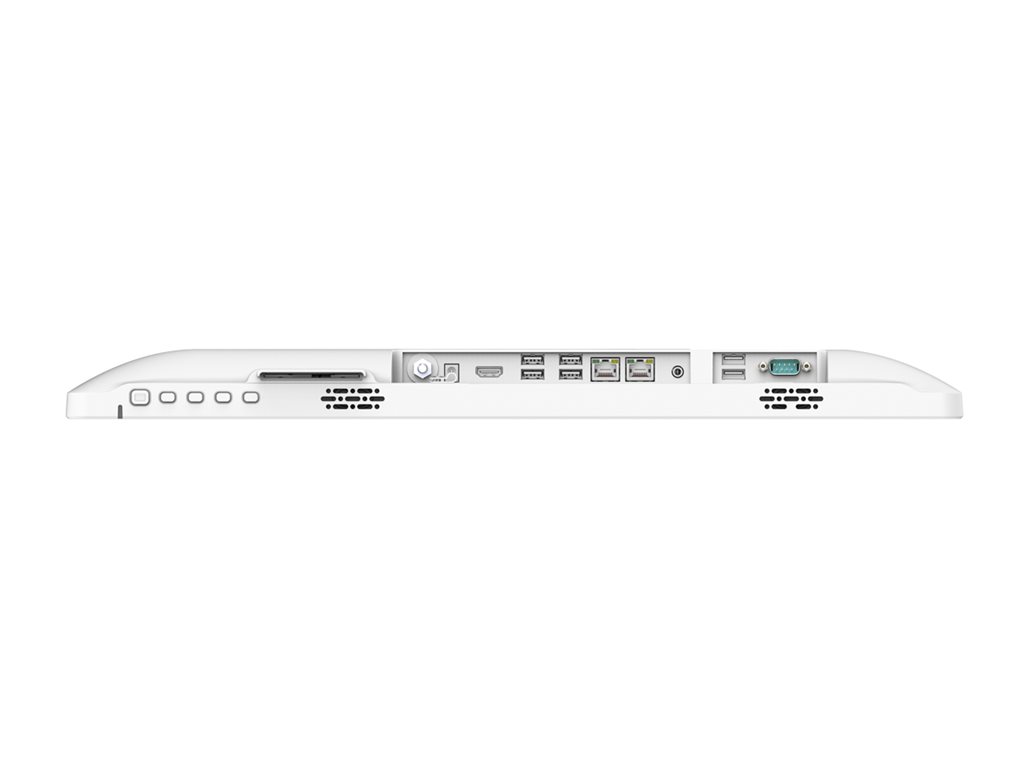

Interfaces
  • 4 x USB 3.2 Gen 1 - Type A
  • 2 x USB 2.0 - Type A
  • 1 x USB 2.0 - Type C
  • 1 x serial
  • 1 x headphones - mini-jack
  • 1 x HDMI
  • 2 x LAN
General
Built-in DevicesSpeaker
ColorWhite
Embedded SecurityTrusted Platform Module (TPM 2.0) Security Chip
Product Form FactorAll-in-one
TypePersonal computer
Graphics Controller
Graphics ProcessorIntel UHD Graphics 730
Video InterfacesHDMI
Hard Drive
Capacity1 x 1 TB
TypeSSD
Manufacturer Warranty
Service & SupportLimited warranty - 3 years
Miscellaneous
Compliant StandardsIP65 front, IPX2, ANSI/AAMI ES60601-1, IEC 60601-1, IEC 60601-1-2, FCC part 18, FCC Part 15 Class B, GB 17625.1, GB 4943.1, GB/T9254, EMC, RED, RCM, CCC

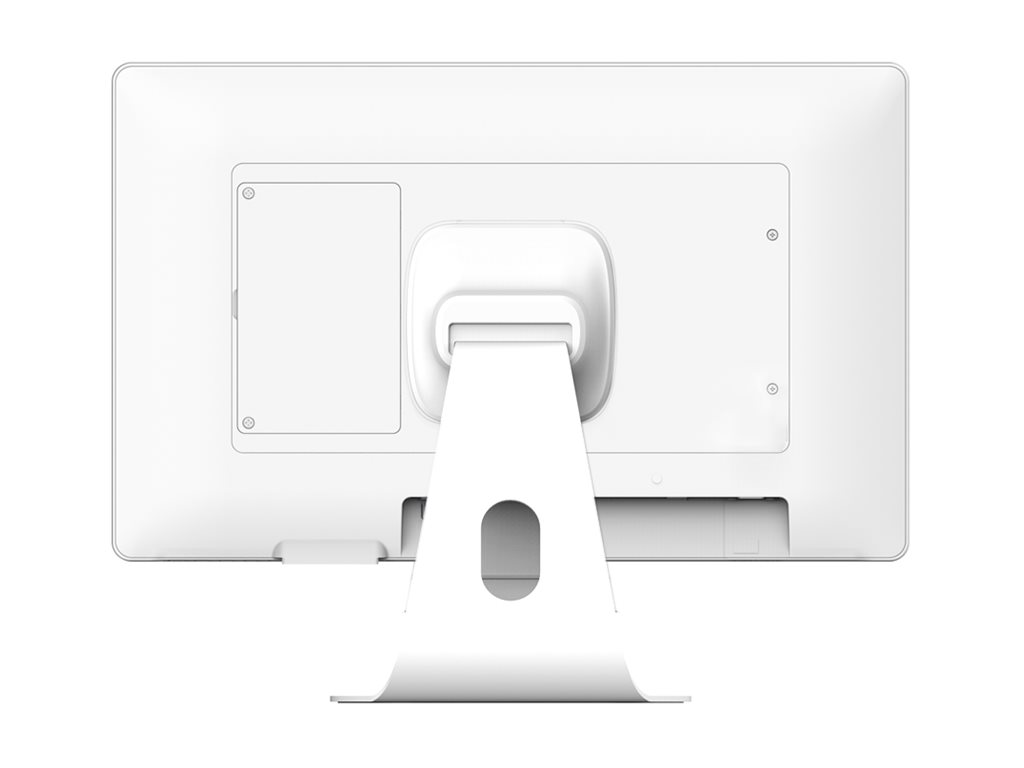

VESA Mounting Interface100 x 100 mm
Monitor
Diagonal Size21.5"
Monitor FeaturesFanless cooling, antimicrobial enclosure, capacitive touch screen
Monitor TypeLCD
Native Resolution1920 x 1080 (Full HD)
TouchscreenYes
Widescreen DisplayYes
Networking
Data Link ProtocolIEEE 802.11g, IEEE 802.11n, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11ac, IEEE 802.11b, Bluetooth 5.3, IEEE 802.11a, Ethernet
Wireless LAN SupportedYes
Operating System / Software
OS ProvidedWindows 11
Optical Storage
TypeNo optical drive
Power
Device TypePower adapter
Voltage RequiredAC 100-240 V
Processor / Chipset
Clock Speed1.5 GHz (P-core) / 1.1 GHz (E-core)
CPUIntel Core i5 (14th Gen) i5-14400T
CPU Qty1
Max CPU Qty1
Max Turbo Speed4.5 GHz (P-core) / 3.2 GHz (E-core)
Number of Cores10-core
RAM
Installed Size8 GB (installed) / 64 GB (max)
Sustainability Information
ENERGY STAR CertifiedYes
ENERGY STAR Version8.0
