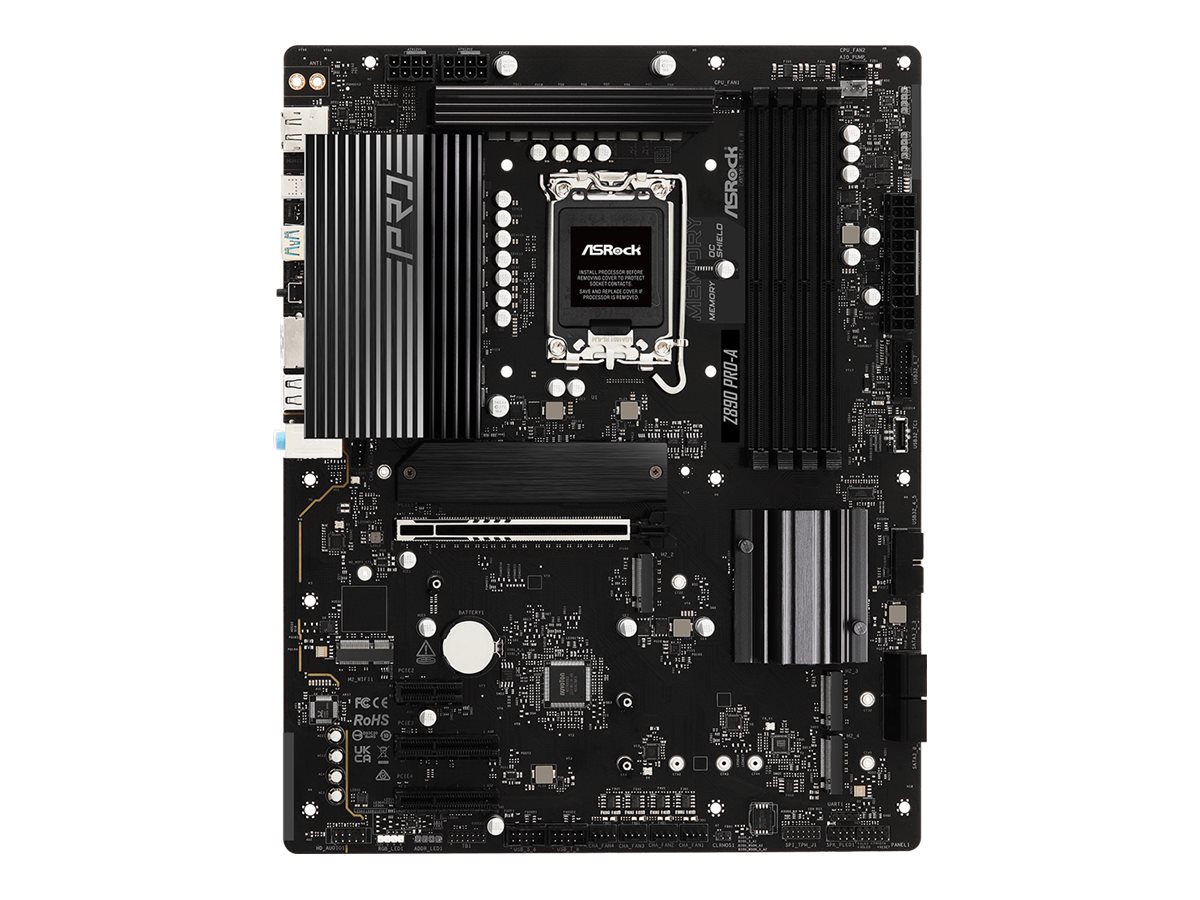

ASRock Z890 Pro-A - Motherboard
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
ASRock Z890 Pro-A - Motherboard
- ATX
- LGA1851 Socket
- Z890 Chipset
- USB4, USB-C 3.2 Gen 2x2, USB 3.2 Gen 1, USB 3.2 Gen 2
- 2.5 Gigabit LAN
- onboard graphics (CPU required)
- HD Audio (8-channel)
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | Z890 PRO-A |
| SHI Part #: | 49048265 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | ASRock |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | ASRock Z890 Pro-A - Motherboard - ATX - LGA1851 Socket - Z890 Chipset - USB4, USB-C 3.2 Gen 2x2, USB 3.2 Gen 1, USB 3.2 Gen 2 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel) |
| Manufacturer | ASRock |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 24.4 cm |
| Dimensions & Weight / Width | 30.5 cm |
| Header / Brand | ASRock |
| Mainboard / Chipset Type | Intel Z890 |
| Mainboard / Processor Socket | LGA1851 Socket |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Video Output / Type | Graphics adapter (CPU required) |
| Audio | |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Storage Interfaces |
|
| Features | |
| BIOS Features | UEFI BIOS |
| BIOS Type | AMI |
| Hardware Features | 16+1+1+1+1 Phase Power Design, Memory OC Shield, pre-mounted I/O shield, BIOS FlashBack button, ASRock Auto Driver Installer, ASRock POST Status Checker (PSC), Intel Hybrid Technology, Intel Turbo Boost Max Technology 3.0, Intel Thermal Velocity Boost (TVB), Intel Adaptive Boost Technology (ABT), CUDIMM support, ASRock EZ Mode, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Instant Flash, 2oz Copper PCB, Dr.MOS MOSFET, lightning gen5 solution, VRM heatsink design, DIY Friendly Design, Enlarged Heatsink Armor, M.2 heatsink, enlarged M.2 heatsink, aluminum heatsink design, Nahimic Audio Enhacer, ASRock Polychrome RGB, ASRock Steel Slots |
| General | |
| Chipset Type | Intel Z890 |
| Compatible Processors | (supports Intel Core Ultra processors (Series 2)) |
| Max Processors Qty | 1 |
| Processor Socket | LGA1851 Socket |
| Product Type | Motherboard - ATX |
| LAN | |
| Network Controller | Dragon RTL8125BG |
| Network Interfaces | 2.5 Gigabit Ethernet |
| Miscellaneous | |
| Cables Included | 2 x Serial ATA cable |
| Compliant Standards | FCC, ErP Ready, EuP Ready |
| Depth | 24.4 cm |
| Included Accessories | IO shield, 1 x M.2 screw |
| Software Included | ASRock A-Tuning, ASRock Dragon 2.5G LAN Software, ASRock Polychrome SYNC |
| Width | 30.5 cm |
| Supported RAM | |
| Bus Clock | 9066 MHz (O.C.), 6800 MHz (O.C.), 6533 MHz (O.C.), 5600 MHz (O.C.), 5600 MHz, 4800 MHz, 4400 MHz |
| Features | Intel Extreme Memory Profiles (XMP) 3.0, dual channel memory architecture |
| Max Size | 256 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC |
| Technology | DDR5 |
