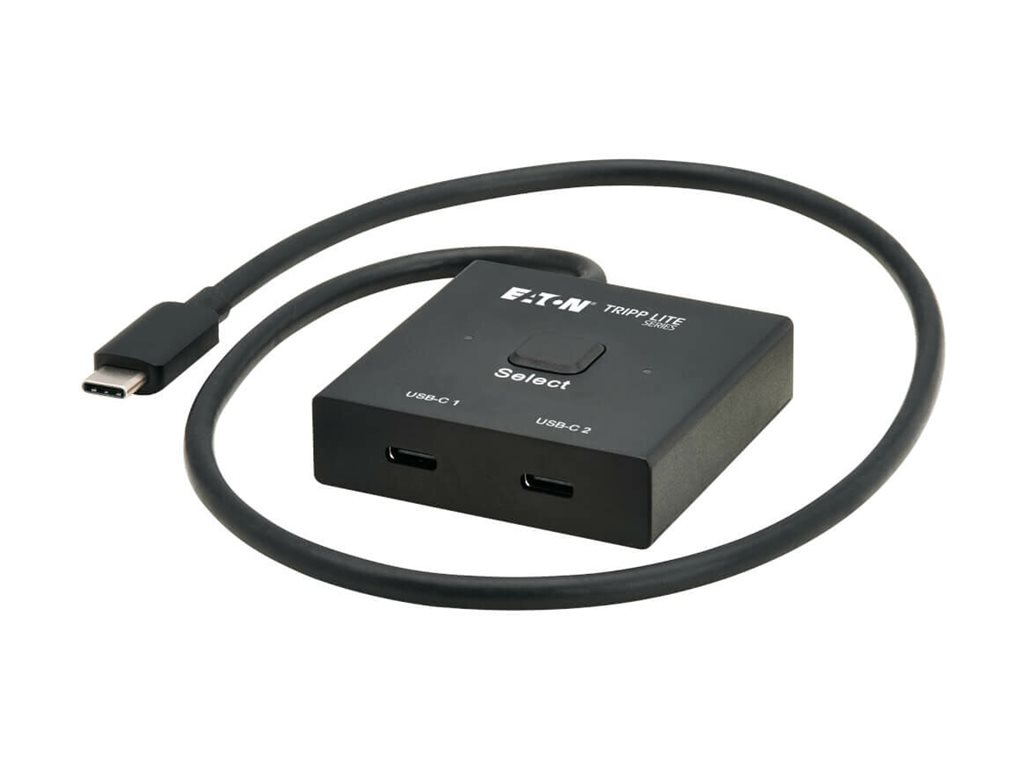

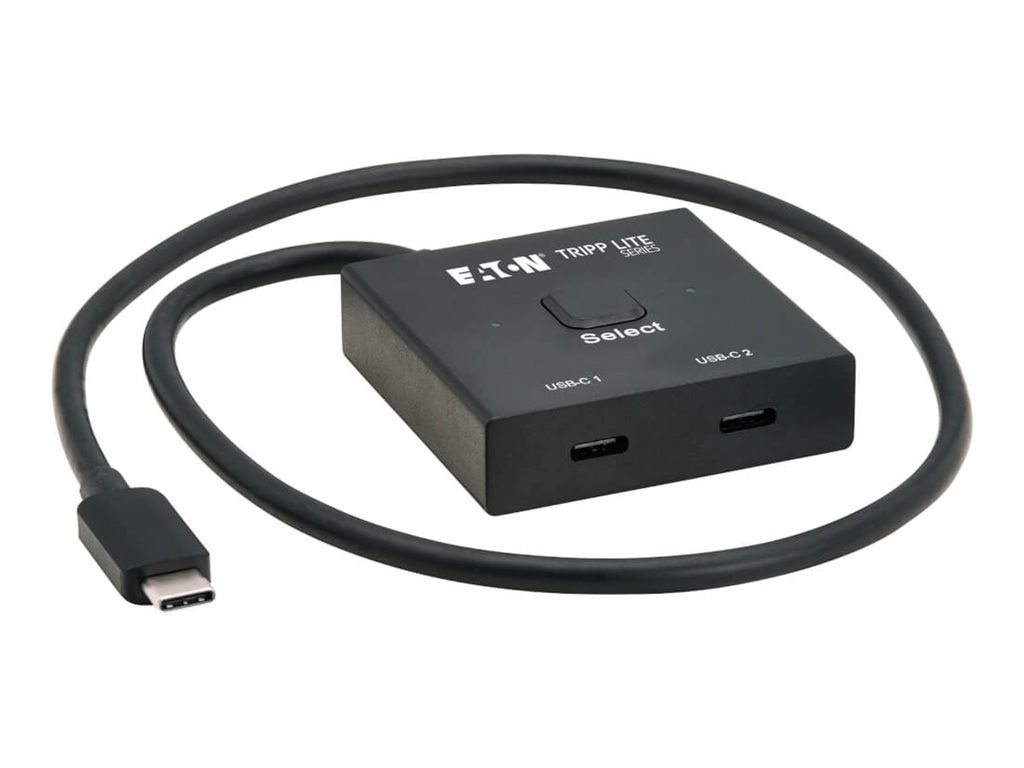

Eaton Tripp Lite series 2x1 Bi-Directional USB-C Switch 8K60Hz Video HDCP Passthrough USB 3.2 Gen 2 100W PD Charging

Connect 2 Audio/Video Sources to a Display or 2 Displays to a Single A/V Source

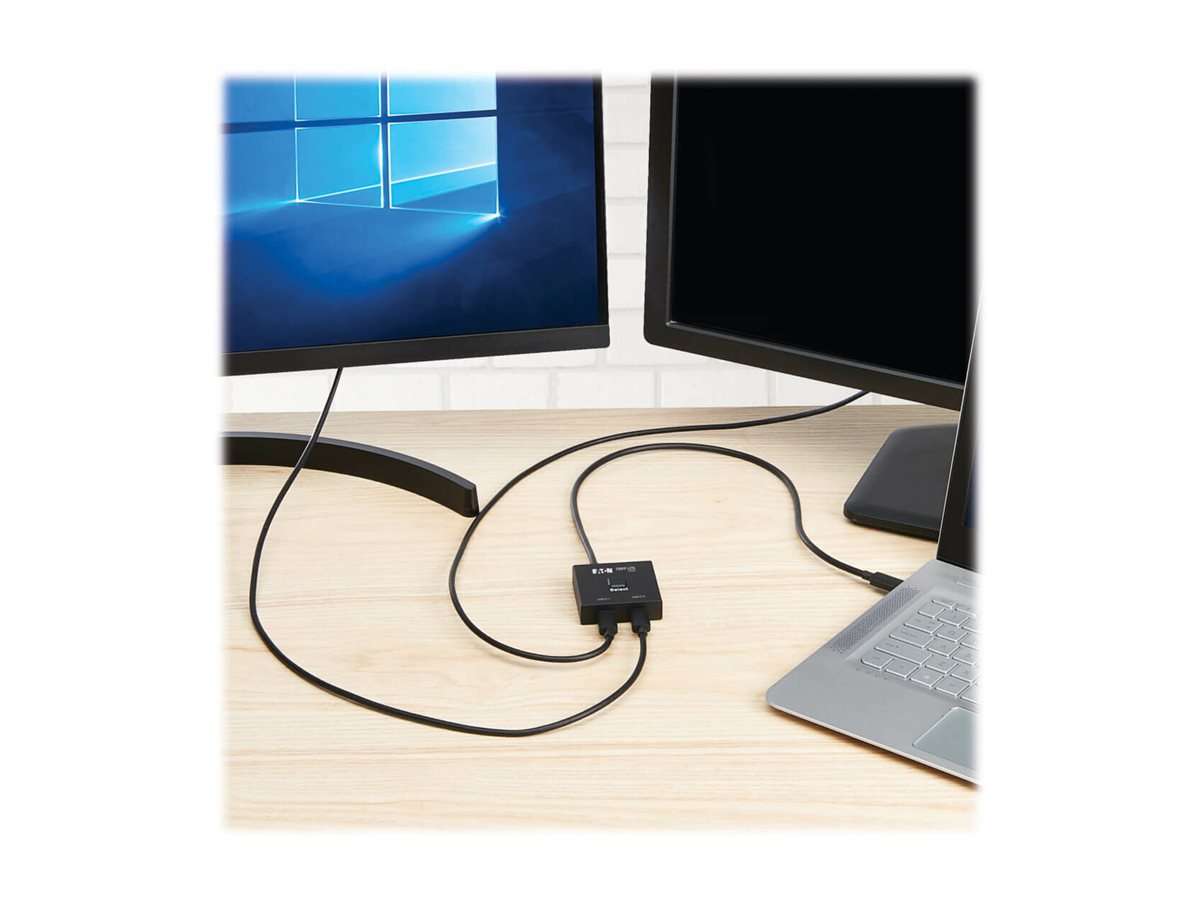

The U415-002-BDS connects two 8K or 4K source devices to one 8K or 4K display and lets you switch back and forth between them. Or you can connect two displays to a single source and switch between the displays. This bi-directional HDMI switch works with a wide range of sources (media servers, Blu-ray players, game consoles, etc.) and displays (televisions, monitors, projectors) to let you customize your A/V installation.

Suitable for a Wide Range of Audio/Video Applications for Work or Play

This switch is recommended anywhere a variety of video signals is transmitted to a hi-def display. It is suitable for home theaters, video and multimedia presentations, security applications or digital signage in classrooms, bars, restaurants, conference rooms, lecture halls, exhibition centers and trade shows.

Also Functions as a USB Hub and Multiport Adapter

When not being used as an 8K video switch, the U415-002-BDS acts as a USB-C hub for connecting peripherals and charging mobile devices. It can switch between two hosts and one USB-C peripheral or one host and two peripherals. It supports USB 3.2 Gen 2 speeds up to 10 Gbps to ensure lightning-fast data transfers between the host and an external storage device. The USB-C PD 3.0 port also provides up to 100W for charging the host device.

Transmits Top-of-the-Line Ultra High Definition Video

This USB-C switch is capable of extending the host device's desktop or mirroring the host's content to a connected display at 8K (7680 x 4320) at 60 Hz or 4K (3840 x 2160) at 120 Hz. Ideal for creative professionals and gamers looking for the best video resolution possible, the U415-002-BDS can switch between a work or personal laptop and a high-end design or gaming laptop quickly and easily.

Note

: Only one video output is supported at one time. The host device(s), USB-C cabling and display(s) must support DisplayPort Alt Mode and 8K video resolution for 8K resolution to be obtained.

Plug-and-Play Operation for Quick Setup and Immediate Use

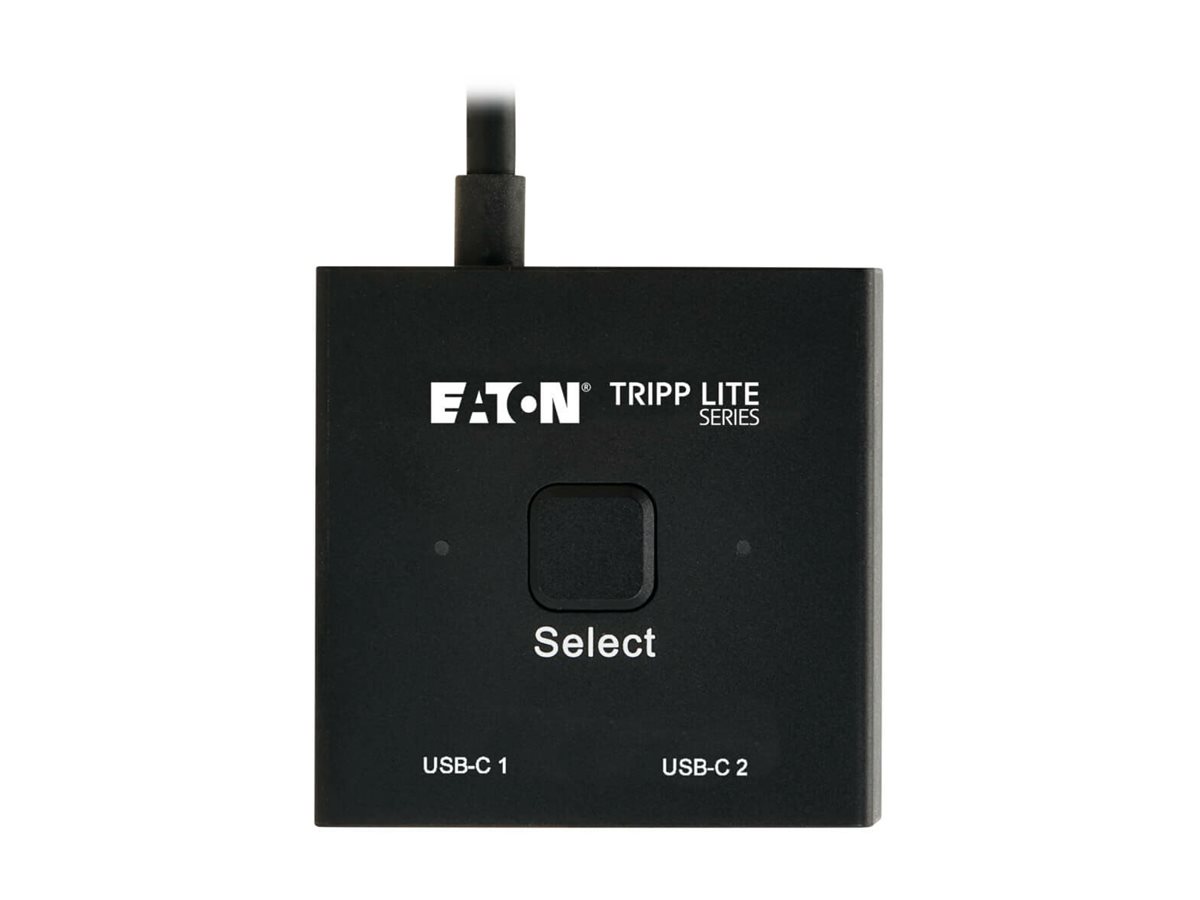

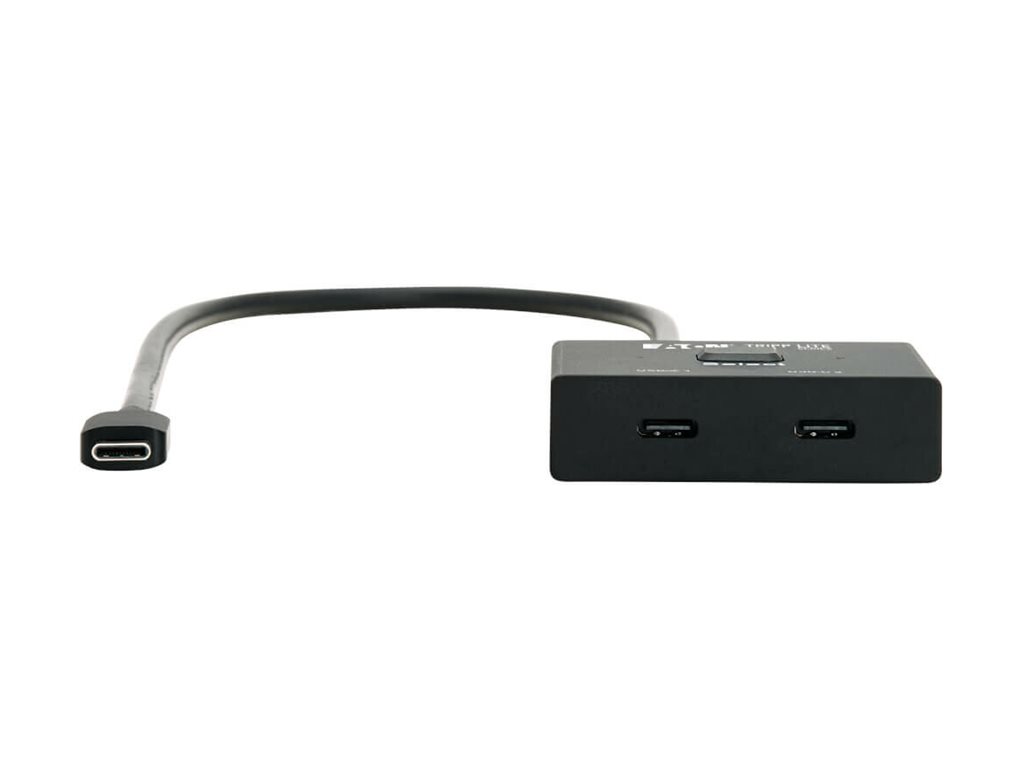

The U415-002-BDS works right out of the box with no software or external power required. Connect your devices to the switch's USB-C ports with user-supplied USB-C cables (sold separately). Use the push button on top of the unit to switch between the dual ports. A blue LED identifies which output is being used. The two USB-C outputs are compatible with USB-C-to-HDMI or USB-C-to-DisplayPort adapter cables for use with traditional video inputs on monitors and televisions.
