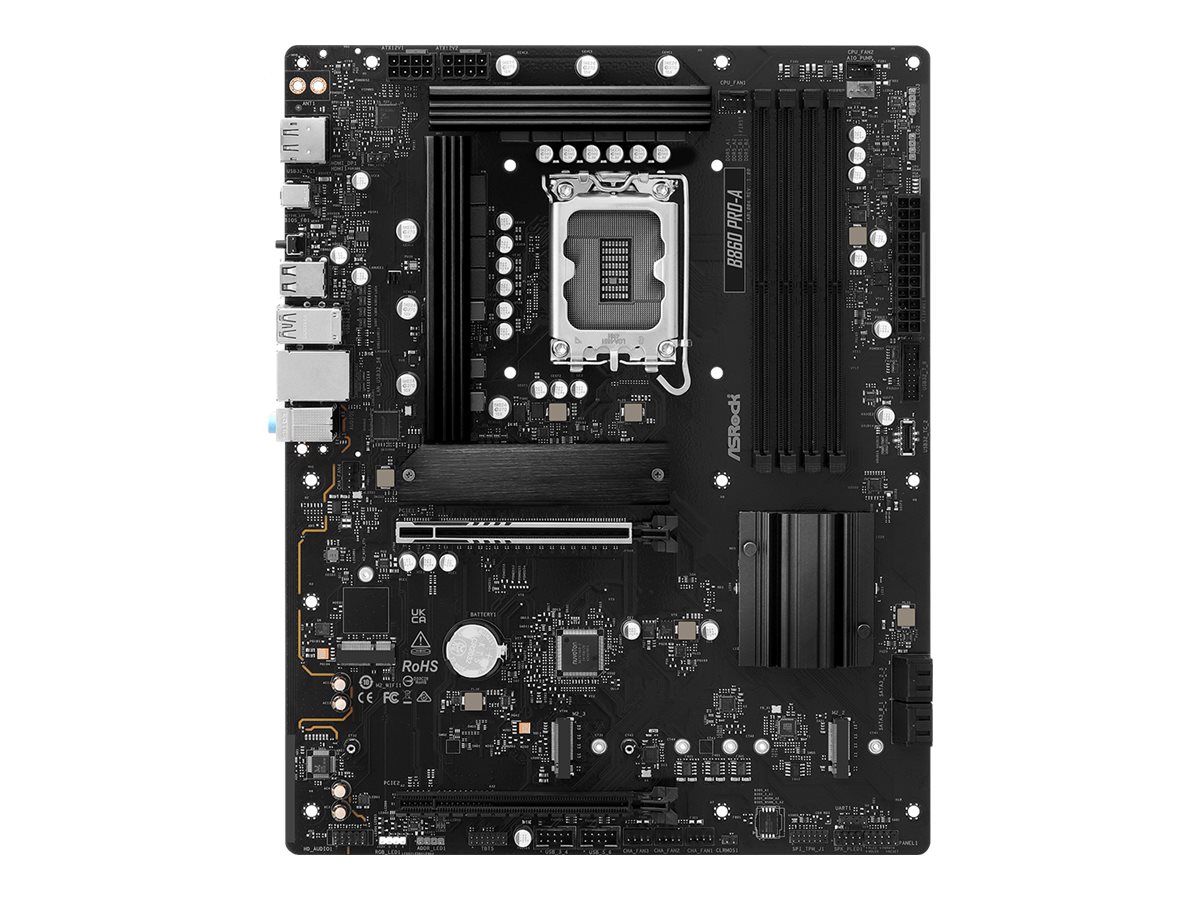

ASRock B860 Pro-A - Motherboard
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
ASRock B860 Pro-A - Motherboard
- ATX
- LGA1851 Socket
- B860 Chipset
- USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1
- 2.5 Gigabit LAN, Bluetooth
- onboard graphics (CPU required)
- HD Audio (8-channel)
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | B860 PRO-A |
| SHI Part #: | 49765723 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | ASRock |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | ASRock B860 Pro-A - Motherboard - ATX - LGA1851 Socket - B860 Chipset - USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1 - 2.5 Gigabit LAN, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel) |
| Manufacturer | ASRock |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 24.4 cm |
| Dimensions & Weight / Width | 30.5 cm |
| Header / Brand | ASRock |
| Mainboard / Chipset Type | Intel B860 |
| Mainboard / Processor Socket | LGA1851 Socket |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Video Output / Type | Graphics adapter (CPU required) |
| Audio | |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Storage Interfaces |
|
| Features | |
| BIOS Features | UEFI BIOS |
| BIOS Type | AMI |
| Hardware Features | ASRock Auto Driver Installer, ASRock EZ Mode, ASRock Full HD UEFI, ASRock Instant Flash, ASRock My Favorites in UEFI, BIOS FlashBack button, ASRock POST Status Checker (PSC), Intel Hybrid Technology, Intel Turbo Boost Max Technology 3.0, Intel Thermal Velocity Boost (TVB), Intel Adaptive Boost Technology (ABT), CUDIMM support, 10+1+1+1+1 Power Phase Design, 20K black capacitors, pre-mounted I/O shield, M.2 heatsink, VRM heatsink design, chipset heatsink, Smart Power Stage (SPS) technology, DIY Friendly Design, aluminum heatsink design, ASRock Polychrome RGB, ASRock Steel Slots, enlarged M.2 heatsink, Dr.MOS MOSFET, 6 Layer PCB |
| General | |
| Chipset Type | Intel B860 |
| Compatible Processors | (supports Intel Core Ultra processors (Series 2)) |
| Max Processors Qty | 1 |
| Processor Socket | LGA1851 Socket |
| Product Type | Motherboard - ATX |
| LAN | |
| Network Controller | Dragon RTL8125BG |
| Network Interfaces | 2.5 Gigabit Ethernet, Bluetooth 5.3 |
| Miscellaneous | |
| Cables Included | 2 x Serial ATA cable |
| Compliant Standards | FCC, ErP Ready, EuP Ready |
| Depth | 24.4 cm |
| Included Accessories | 1 x M.2 screw |
| Software Included | ASRock A-Tuning, ASRock Dragon 2.5G LAN Software, ASRock Polychrome SYNC |
| Width | 30.5 cm |
| Supported RAM | |
| Bus Clock | 4333 MHz (O.C.) |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0 |
| Max Size | 256 GB |
| Registered or Buffered | Unbuffered, clocked unbuffered |
| Supported RAM Integrity Check | Non-ECC |
| Technology | DDR5 |
