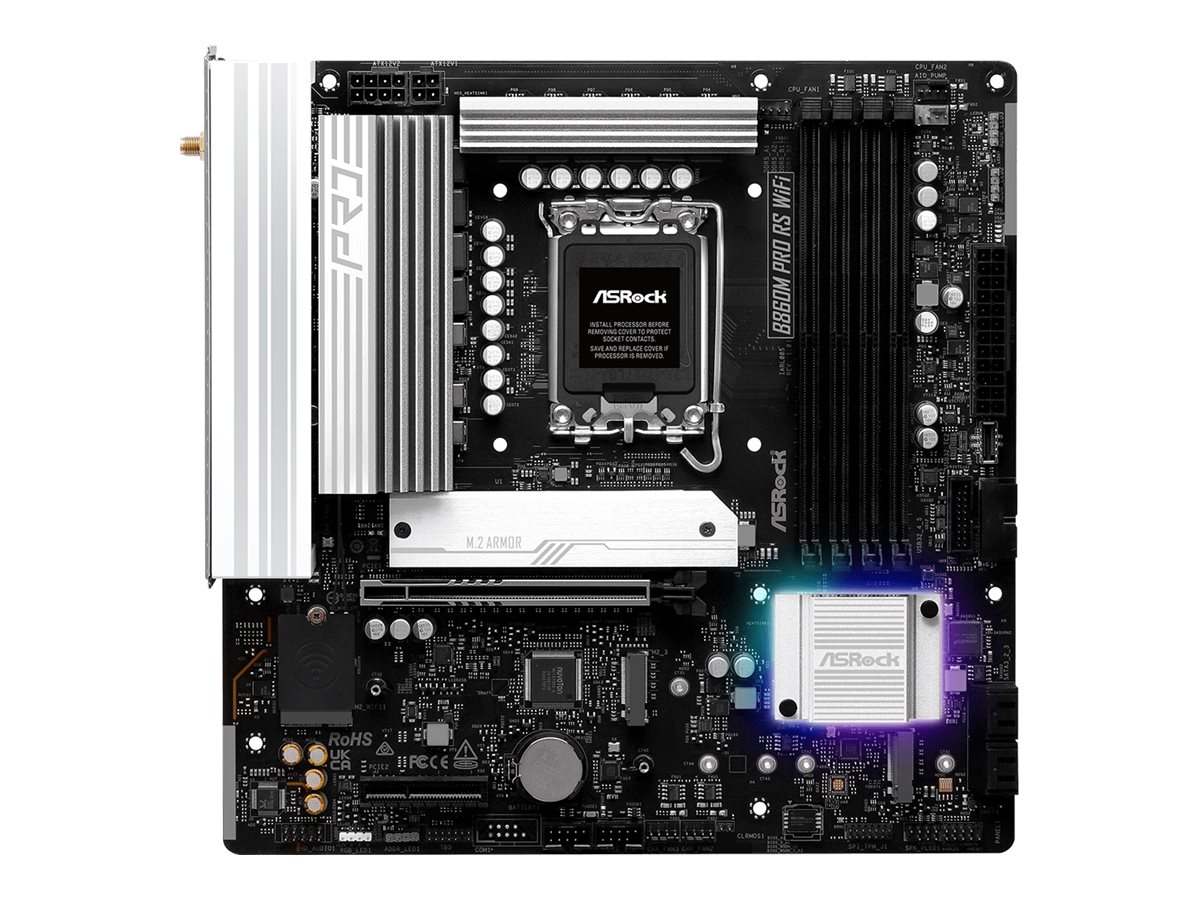

ASRock B860M Pro RS WiFi
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
ASRock B860M Pro RS WiFi
- Motherboard
- micro ATX
- LGA1851 Socket
- B860 Chipset
- USB-C 3.2 Gen 2x2, USB 3.2 Gen 1, USB-C 3.2 Gen 1
- 2.5 Gigabit LAN, Bluetooth, Wi-Fi 6E
- onboard graphics (CPU required)
- HD Audio (8-channel)
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | B860M PRO RS WIFI |
| SHI Part #: | 49765725 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | ASRock |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | ASRock B860M Pro RS WiFi - Motherboard - micro ATX - LGA1851 Socket - B860 Chipset - USB-C 3.2 Gen 2x2, USB 3.2 Gen 1, USB-C 3.2 Gen 1 - 2.5 Gigabit LAN, Bluetooth, Wi-Fi 6E - onboard graphics (CPU required) - HD Audio (8-channel) |
| Manufacturer | ASRock |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 24.4 cm |
| Dimensions & Weight / Width | 24.4 cm |
| Header / Brand | ASRock |
| Mainboard / Chipset Type | Intel B860 |
| Mainboard / Processor Socket | LGA1851 Socket |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Video Output / Type | Graphics adapter (CPU required) |
| Audio | |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector |
| Storage Interfaces |
|
| Features | |
| BIOS Features | UEFI BIOS |
| BIOS Type | AMI |
| Hardware Features | 10+1+1+1+1 Power Phase Design, pre-mounted I/O shield, BIOS FlashBack button, ASRock Auto Driver Installer, ASRock POST Status Checker (PSC), Intel Hybrid Technology, Intel Turbo Boost Max Technology 3.0, Intel Thermal Velocity Boost (TVB), Intel Adaptive Boost Technology (ABT), CUDIMM support, ASRock EZ Mode, ASRock Full HD UEFI, ASRock Instant Flash, ASRock My Favorites in UEFI, 6 Layer PCB, chipset heatsink, Dr.MOS MOSFET, M.2 heatsink, Nahimic Audio Enhacer, reinforced PCIe slots, Surface Mount Technology (SMT), VRM heatsink design, DIY Friendly Design, aluminum heatsink design, ASRock Polychrome RGB, ASRock Steel Slots |
| General | |
| Chipset Type | Intel B860 |
| Compatible Processors | (supports Intel Core Ultra processors (Series 2)) |
| Max Processors Qty | 1 |
| Processor Socket | LGA1851 Socket |
| Product Type | Motherboard - micro ATX |
| LAN | |
| Network Controller | Dragon RTL8125BG |
| Network Interfaces | 2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| Miscellaneous | |
| Cables Included | 2 x Serial ATA cable |
| Compliant Standards | HDCP 2.3, DisplayPort 1.4, FCC, ErP Ready, EuP Ready |
| Depth | 24.4 cm |
| Included Accessories | 1 x M.2 screw, 2 x ASRock WiFi 2.4/5/6 GHz Antennas |
| Software Included | ASRock A-Tuning, ASRock Dragon 2.5G LAN Software, ASRock Polychrome SYNC |
| Width | 24.4 cm |
| Supported RAM | |
| Bus Clock | 8666 MHz (O.C.), 5600 MHz, 6800 MHz (O.C.), 6533 MHz (O.C.), 4800 MHz, 5600 MHz (O.C.) |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0, AMD EXPO technology |
| Max Size | 256 GB |
| Registered or Buffered | Unbuffered, clocked unbuffered |
| Supported RAM Integrity Check | Non-ECC |
| Technology | DDR5 |
