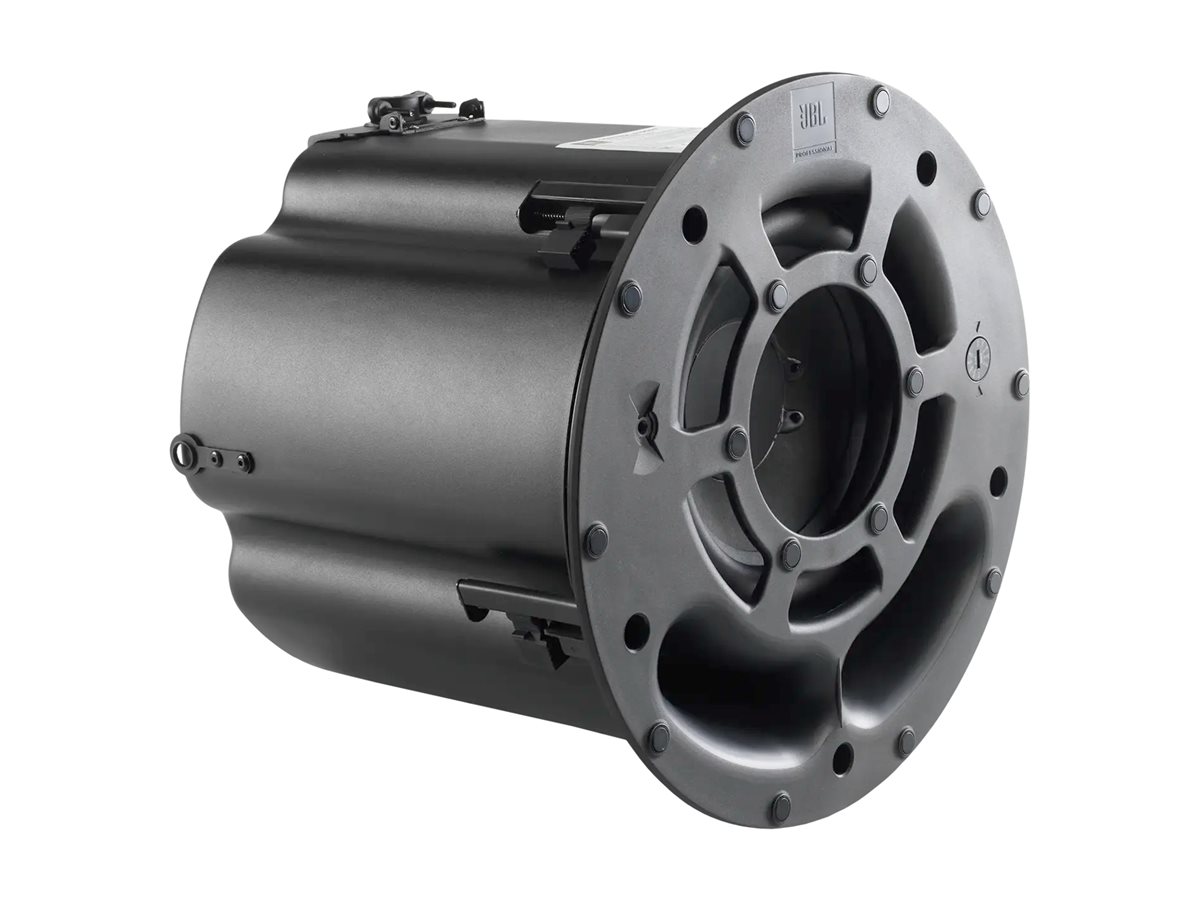

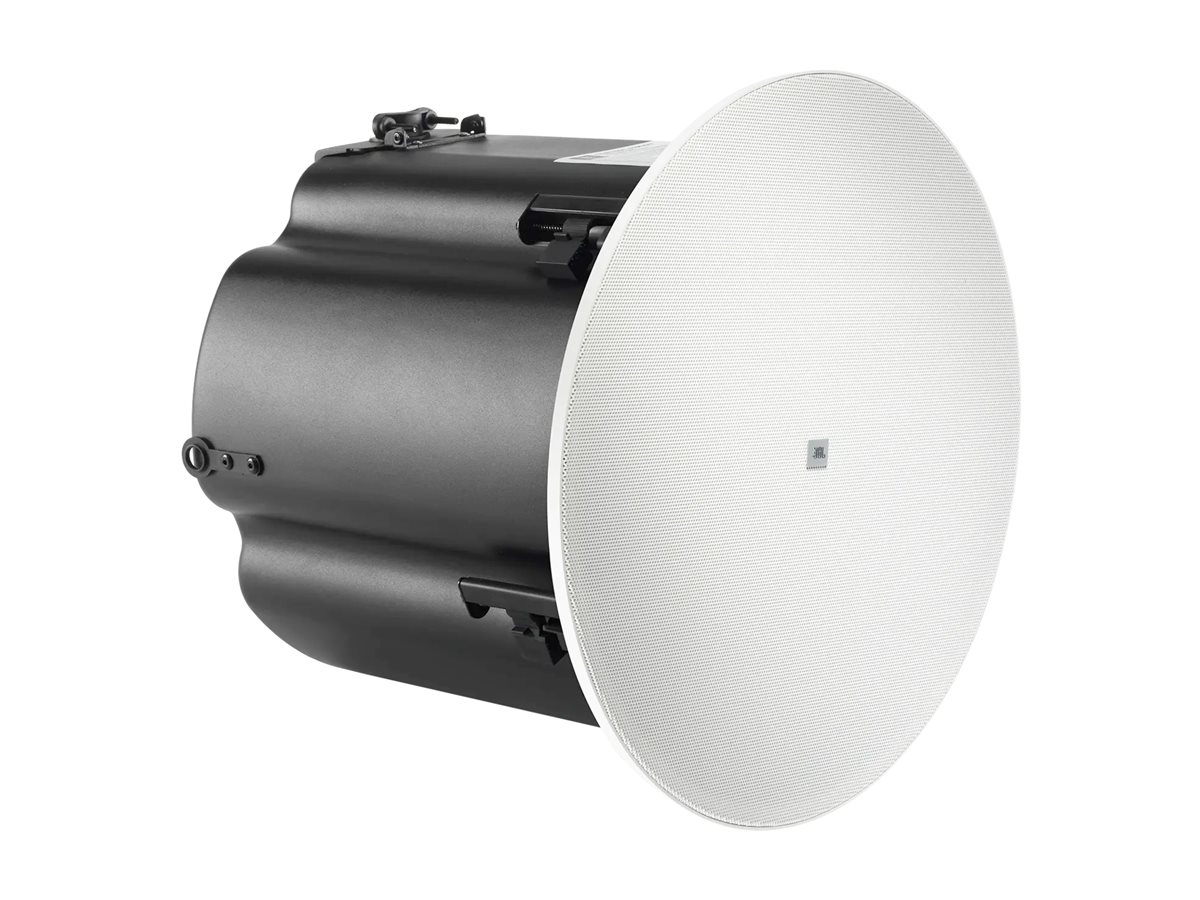

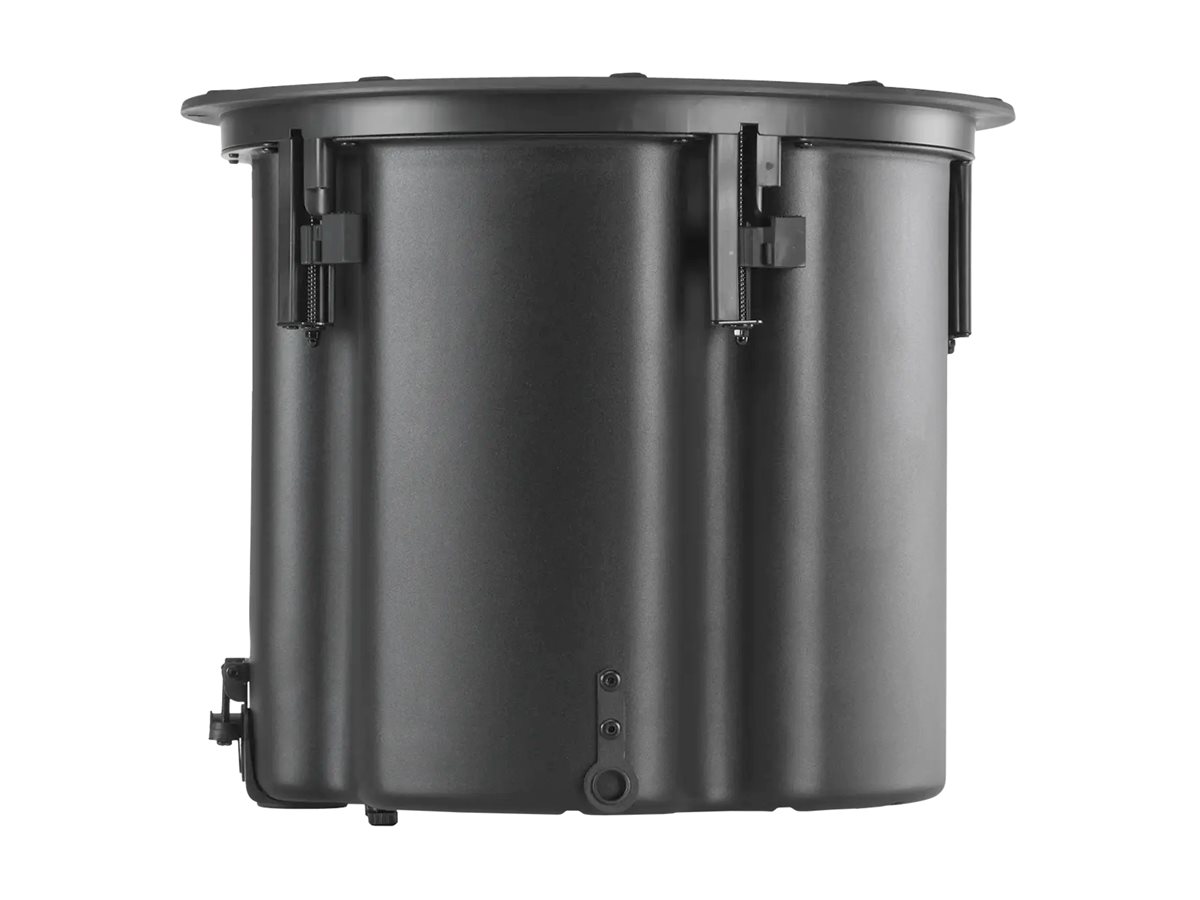

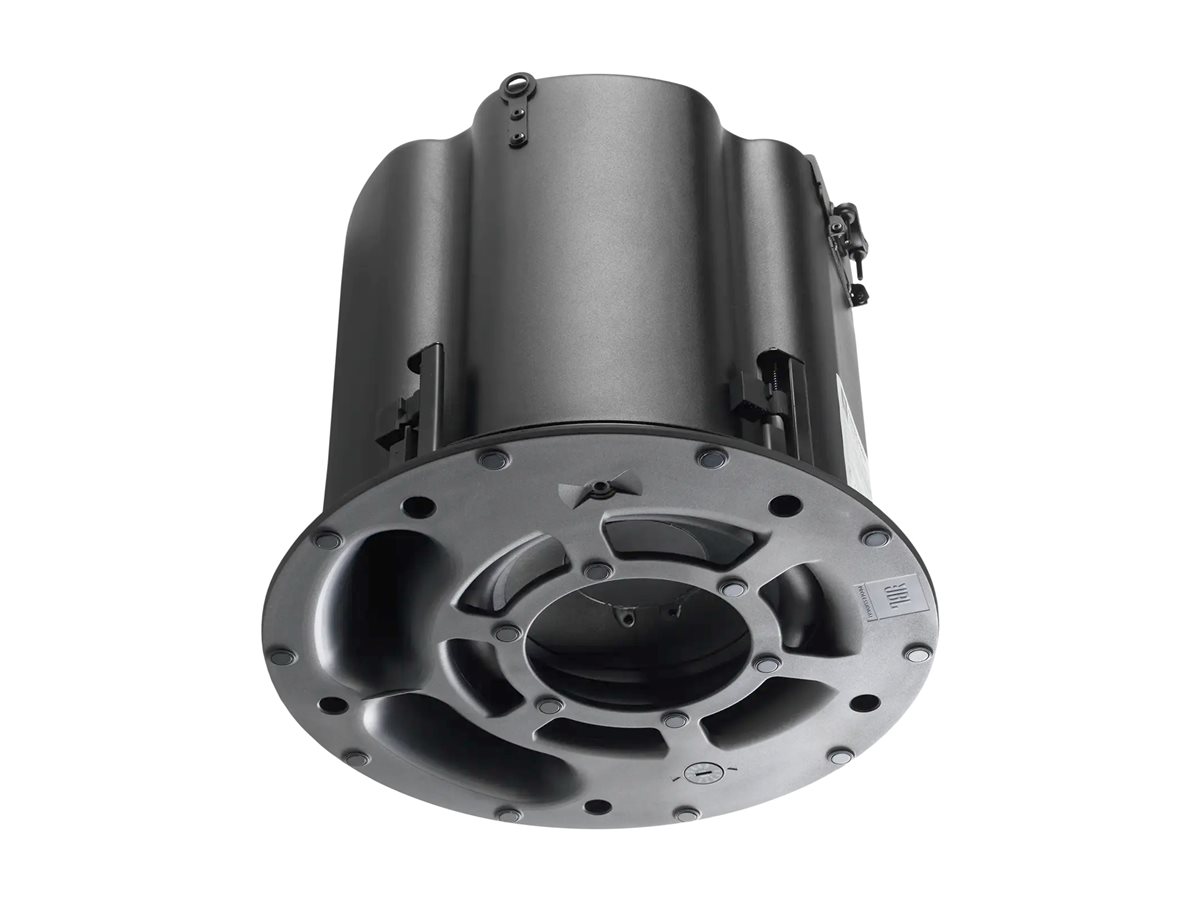

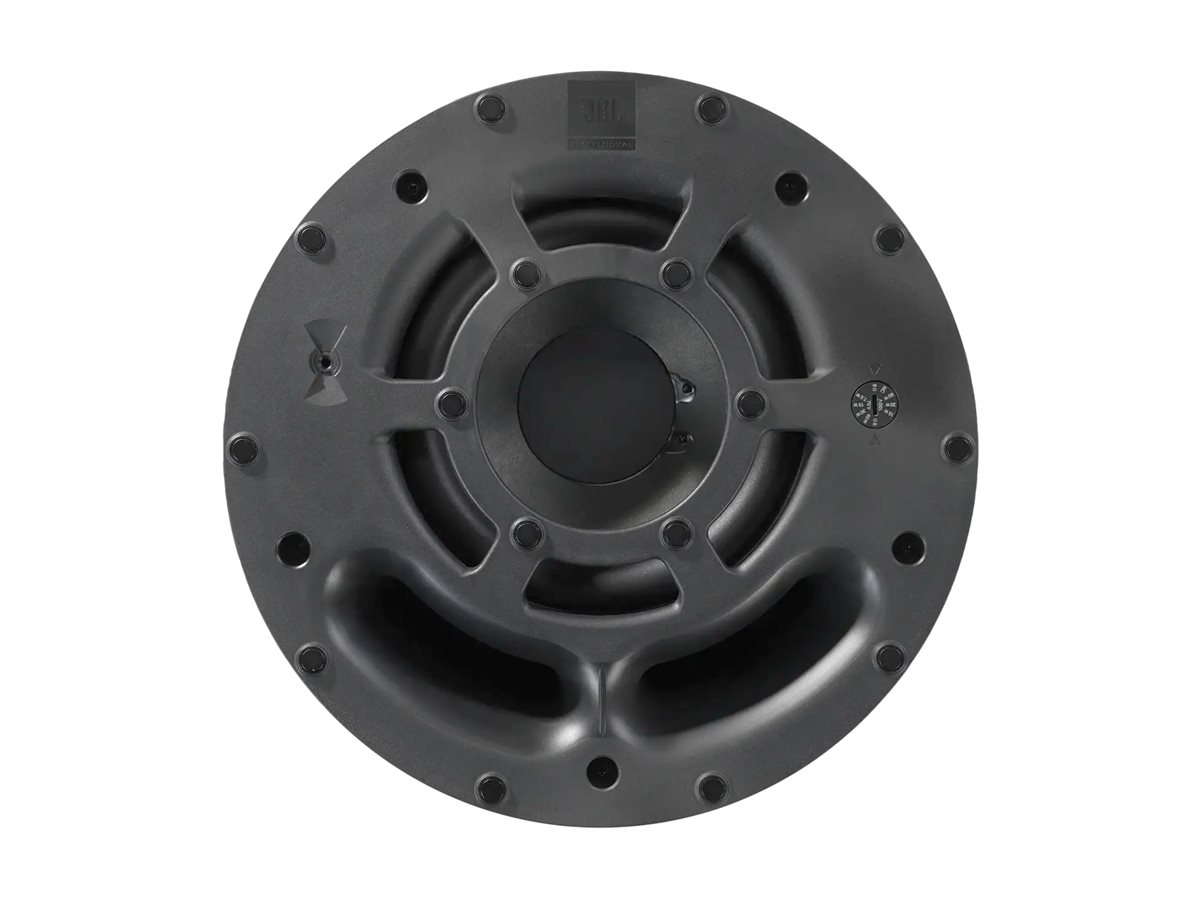

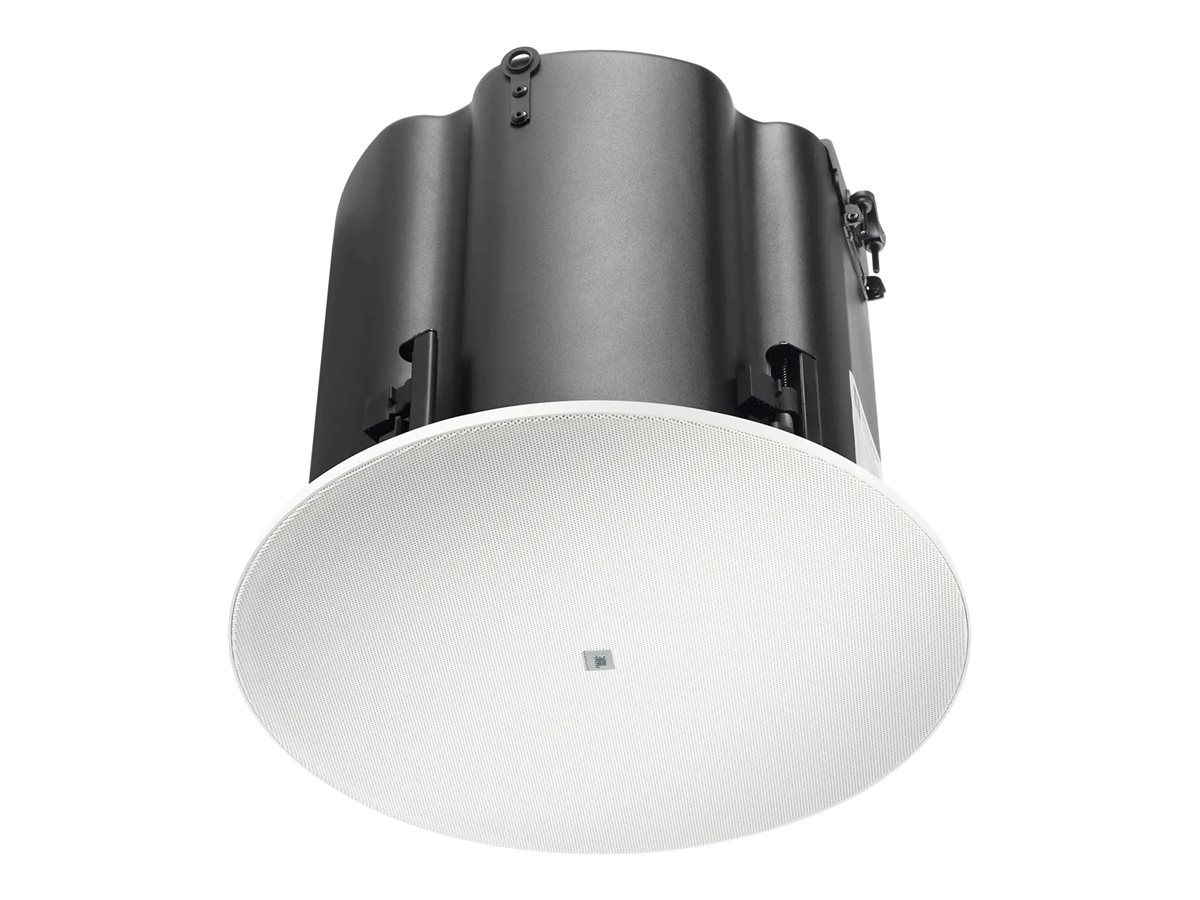

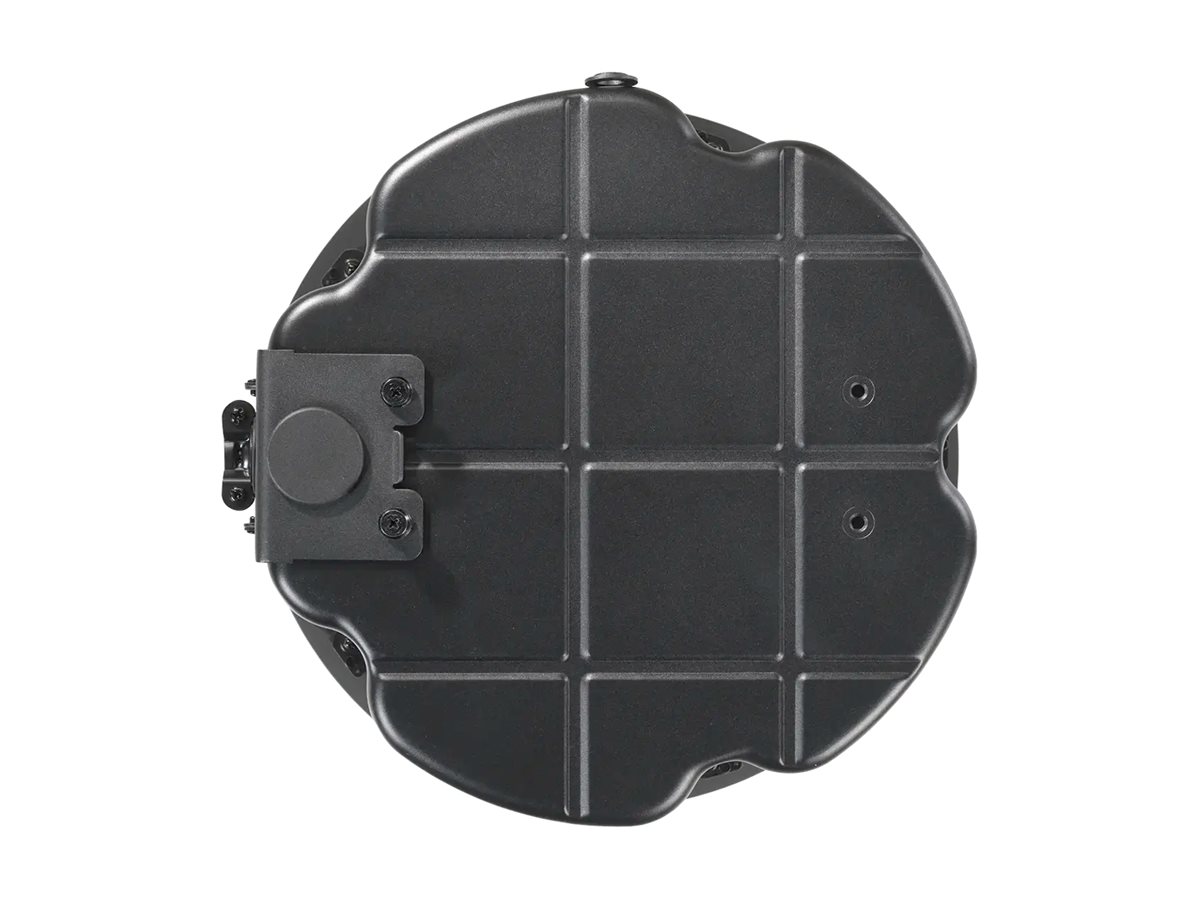

JBL Professional Control 400 Series 419CS/T
MSRP$455.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
JBL Professional Control 400 Series 419CS/T
- 400 Series
- subwoofer
- for PA system
- 160 Watt
- 8"
- white, RAL 9003 (pack of 2)
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $455.00 |
| Mfr Part #: | JBL-C419CS/T |
| SHI Part #: | 49804575 |
| Category: | Speakers |
| UNSPSC: | 52161512 |
| Manufacturer: | Harman |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Speakers |
| Description | JBL Professional Control 400 Series 419CS/T - 400 Series - subwoofer - for PA system - 160 Watt - 8" - white, RAL 9003 (pack of 2) |
| Manufacturer | Harman |
| MSRP | $455.00 |
| UNSPSC | 52161512 |
| Main Specifications | |
| Dimensions & Weight / Height | 28.9 cm |
| Dimensions & Weight / Weight | 8.8 kg |
| Header / Brand | JBL |
| Miscellaneous / Product Color | White |
| Packaged Quantity |
|
| Speaker System / Amplification Type | Passive |
| Speaker System / Connectivity Technology | Wired |
| Speaker System / Nominal (RMS) Output Power | 160 Watt |
| Connections | |
| Connector Type | 2 x speakers input (2-pin Euroblock) |
| Cutout & Mounting Dimensions | |
| Diameter | 30.8 cm |
| Dimensions & Weight | |
| Diameter | 34.6 cm |
| Height | 28.9 cm |
| Weight | 8.8 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 25.27 kg |
| Environmental Parameters | |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Design Features | Magnetically attached grilles, paintable grille |
| Enclosure Color | White, RAL 9003 |
| Enclosure Design | Bass reflex |
| Enclosure Material | Powder-coated steel back can, polypropylene |
| Packaged Quantity | 2 (specifications are for single item) |
| Product Type | Subwoofer - for PA system |
| Protection | Overload protection |
| Miscellaneous | |
| Compliant Standards | IP33, UL 1480A, UL 2043, NFPA 70, NFPA 90, S7232/UL, CSA C22.2 No. 205, EN 60849, IEC 60849, IEC/EN 60529, IEC/EN 63000 |
| Included Accessories | Backcan, C-ring, tile rails |
| Speaker System | |
| Continuous Power | 160 Watt |
| Continuous Power Details | 320 W (program) |
| Controls | Low pass filter |
| Coverage | 180° conical |
| Detachable Grilles | Yes |
| Frequency Response (-10dB) | 47 - 320 Hz |
| Frequency Response (+/-3dB) | 55 - 150 Hz |
| Integrated Transformer | 70V/100V or 8 Ohm operation |
| Max Output Level (Max SPL) | 124 dB |
| Nominal Impedance | 8 Ohm |
| Peak Power | 640 Watt |
| Recommended Placing | In-ceiling mounted |
| Sensitivity | 96 dB |
| Series | 400 Series |
| Speaker Diameter | 8" |
| Speaker Type | Passive |
| Speaker System Details | |
| Driver Details | Subwoofer: subwoofer driver - 8" - paper - cone |
