Eaton 9PX G2 MBP11K208G2
MSRP$1,466.40
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |

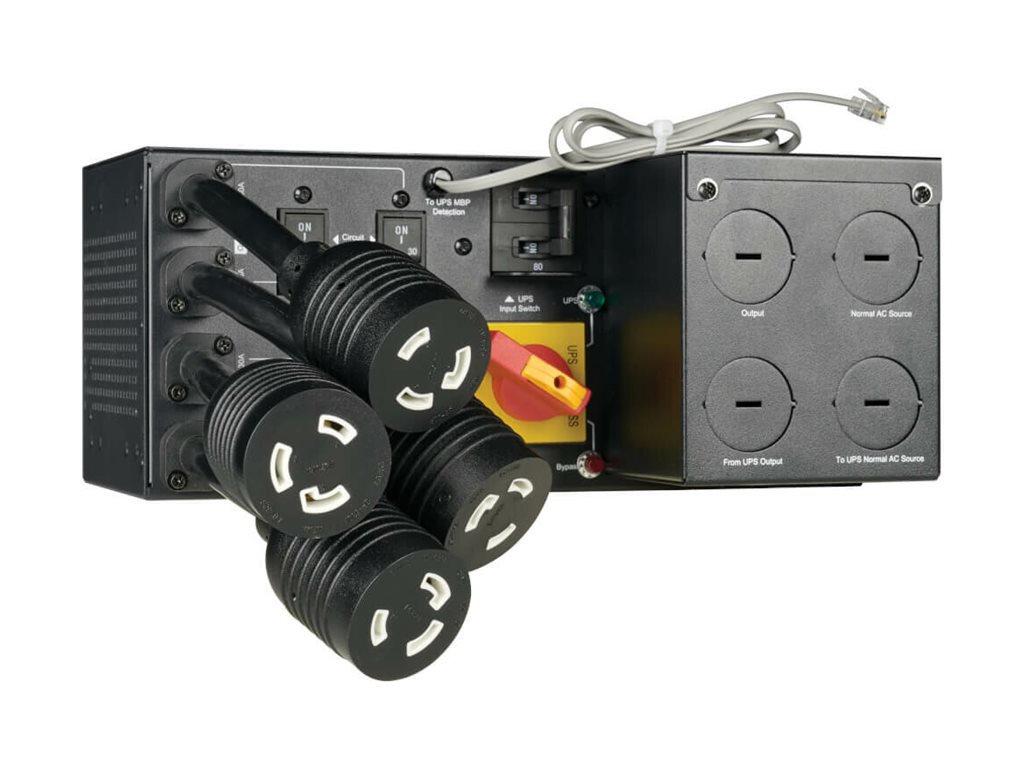

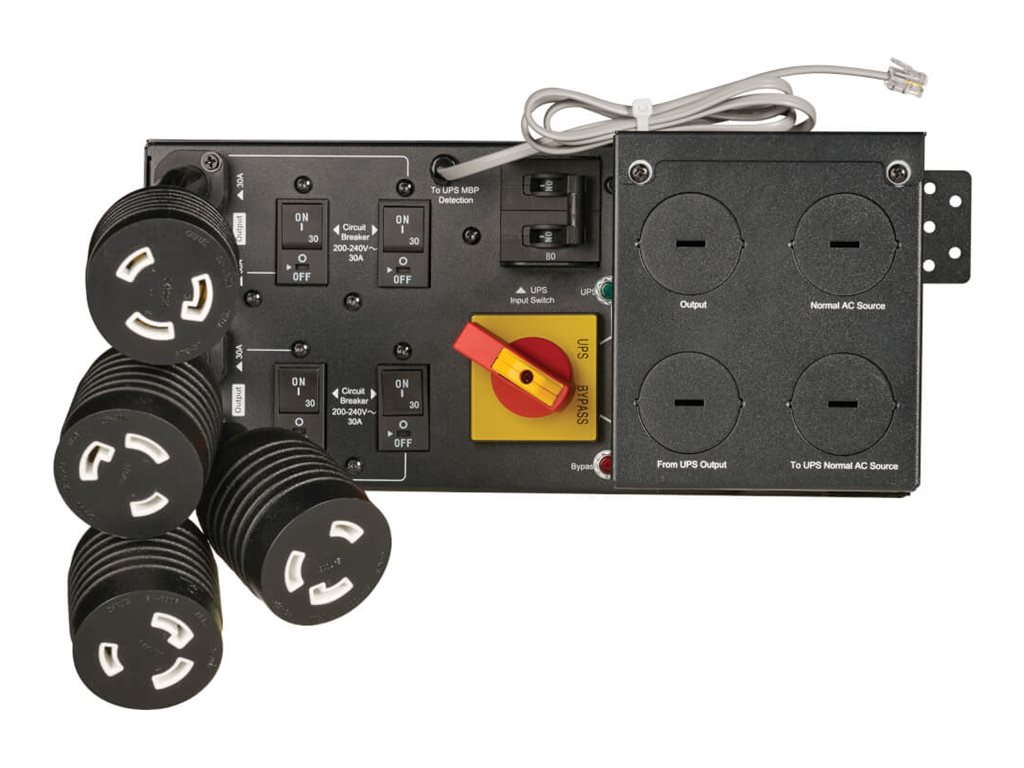

Eaton 9PX G2 MBP11K208G2
- Bypass switch (rack-mountable / external)
- 11000 Watt
- 11000 VA
- output connectors: 4
- 0U
- for P/N: 9PX11KG2, 9PX11KTF11G2, 9PX8KG2
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,466.40 |
| Mfr Part #: | MBP11K208G2 |
| SHI Part #: | 50007591 |
| Category: | Power adapters or inverters |
| UNSPSC: | 39121006 |
| Manufacturer: | Eaton |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Power adapters or inverters |
| Description | Eaton 9PX G2 MBP11K208G2 - Bypass switch (rack-mountable / external) - 11000 Watt - 11000 VA - output connectors: 4 - 0U - for P/N: 9PX11KG2, 9PX11KTF11G2, 9PX8KG2 |
| Manufacturer | Eaton |
| MSRP | $1,466.40 |
| UNSPSC | 39121006 |
| Main Specifications | |
| Dimensions & Weight / Depth | 13 cm |
| Dimensions & Weight / Height | 13 cm |
| Dimensions & Weight / Weight | 4.6 kg |
| Dimensions & Weight / Width | 29 cm |
| Header / Brand | Eaton |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable / external |
| Power Device / Output Connector Qty | 4 |
| Power Device / Power Capacity (VA) | 11000 VA |
| Product Type | Bypass switch |
| Service & Support / Type | 3-year warranty |
| Compatibility Information | |
| Designed For | P/N: 9PX11KG2, 9PX11KTF11G2, 9PX8KG2 |
| Dimensions & Weight | |
| Depth | 13 cm |
| Height | 13 cm |
| Weight | 4.6 kg |
| Width | 29 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Device Type | Bypass switch - rack-mountable / external |
| Height (Rack Units) | 0U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | Mexico NOM, RoHS, EN 61000-4-2, IEC/EN 62040-1, IEC/EN 62040-2, EN 61000-4-3, EN 62040-3, IEC 61000-4-6, IEC 61000-4-5, EN 61000-4-4, cULus, NOM |
| Included Accessories | 2 x input/output cover, input/output cover fixation kit, 2 x conduit for UPS input/output connection, 4 x conduit fitting, mounting hardware |
| Power Device | |
| Frequency Provided | 50/60 Hz |
| Input Connectors | Hardwire |
| Output Voltage | AC 208/220/230/240 V 50/60 Hz |
| Power Capacity | 11000 Watt / 11000 VA |
| Power Output Connectors Details | 4 x power NEMA L6-30R |
