Eaton Tripp Lite Series
MSRP$148.32
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |

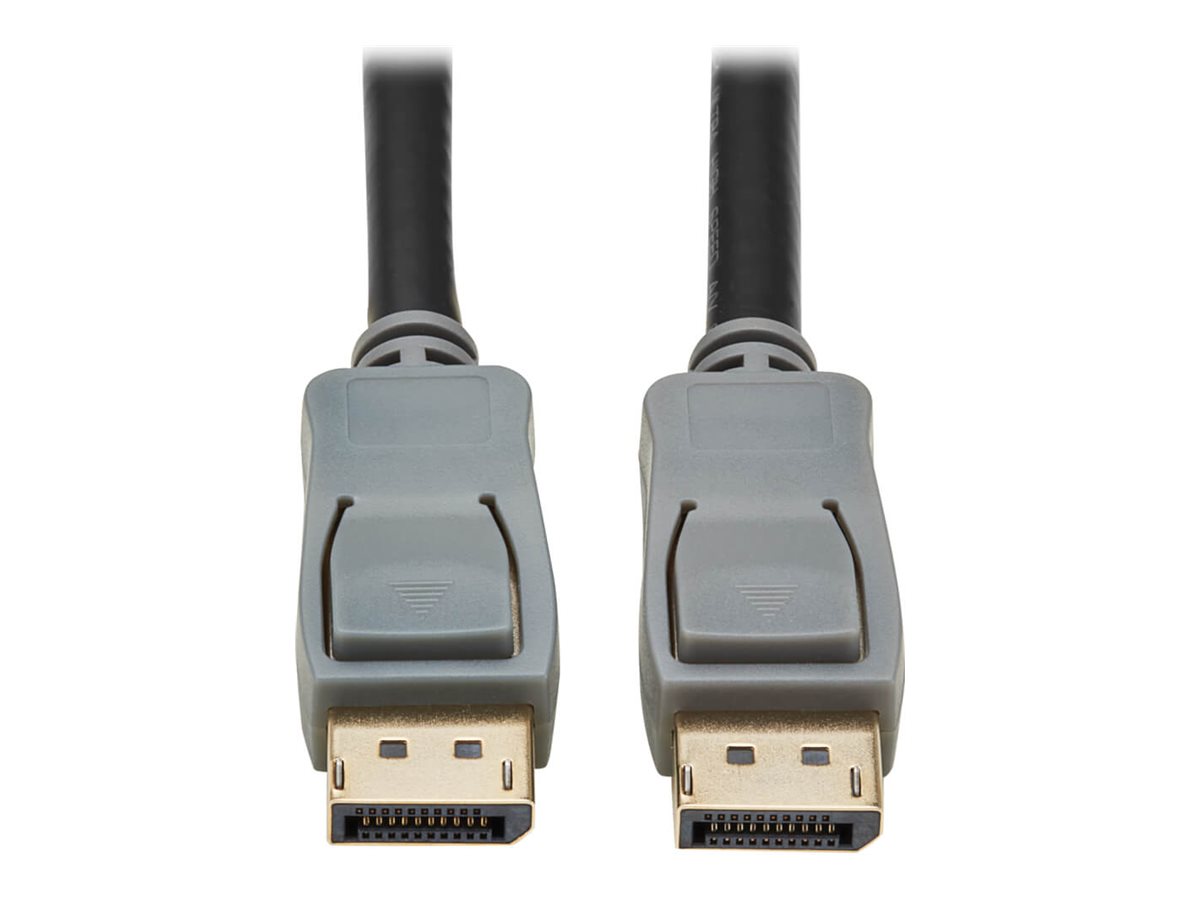

Eaton Tripp Lite Series
- DisplayPort cable
- DisplayPort (M) latched to DisplayPort (M) latched
- DisplayPort 2.1
- 10.7 m
- passive, 4K60Hz UHD support
- gray, black
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $148.32 |
| Mfr Part #: | P580-035-4K6 |
| SHI Part #: | 50011561 |
| Category: | Signal cable |
| UNSPSC: | 26121604 |
| Manufacturer: | Eaton |
| Product Type: | Hardware |
Control/Interface Boards
- Extender Kit
- video/audio extender
- over CAT 6
- up to 70 m
- TAA Compliant
- for P/N: P580-020-8K6, P580-025-8K6, P580-030-8K6, P580-035-4K6, P580-050-4K6, P580-070-4K6
MSRP $526.00
$508.75
- Video/audio extender
- HDMI, DisplayPort
- over CAT 6
- up to 70 m
- TAA Compliant
- for P/N: P580-020-8K6, P580-025-8K6, P580-030-8K6, P580-035-4K6, P580-050-4K6, P580-070-4K6
MSRP $375.00
$362.70
| General Information | |
|---|---|
| Category | Signal cable |
| Description | Eaton Tripp Lite Series - DisplayPort cable - DisplayPort (M) latched to DisplayPort (M) latched - DisplayPort 2.1 - 10.7 m - passive, 4K60Hz UHD support - gray, black |
| Manufacturer | Eaton |
| MSRP | $148.32 |
| UNSPSC | 26121604 |
| Main Specifications | |
| Cable Type | DisplayPort cable |
| Header / Brand | Eaton |
| Left Connector Type | 20 pin DisplayPort |
| Length | 10.7 m |
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Right Connector Type | 20 pin DisplayPort |
| Service & Support / Type | Limited lifetime warranty |
| Connectivity | |
| Connector | 20 pin DisplayPort - male - latched |
| Connector (Second End) | 20 pin DisplayPort - male - latched |
| Dimensions & Weight (Shipping) | |
| Service & Support | Limited lifetime warranty |
| Shipping Depth | 1.27 cm |
| Shipping Height | 43.2 cm |
| Shipping Weight | 630 g |
| Shipping Width | 35.6 cm |
| General | |
| American Wire Gauge (AWG) | 26/30 |
| Color | Gray, black |
| Features | Passive cable, 4K60Hz UHD support, EMI/RFI protection, HBR2 support, maximum resolution 3840x2160 at 60Hz, bidirectional, Chroma subsampling (4:4:4), 24-bit True Color, double shielded, 21.6 Gbps bandwidth |
| Jacket Material | PVC |
| Length | 10.7 m |
| Outside Diameter | 7.3 mm |
| Plated Connector | Gold |
| Type | DisplayPort cable |
| Weight | 610 g |
| Miscellaneous | |
| Compliant Standards | DisplayPort 2.1, Plug and Play, FCC, RoHS, WEEE, REACH, VW-1, HDCP 2.2, UKCA |
