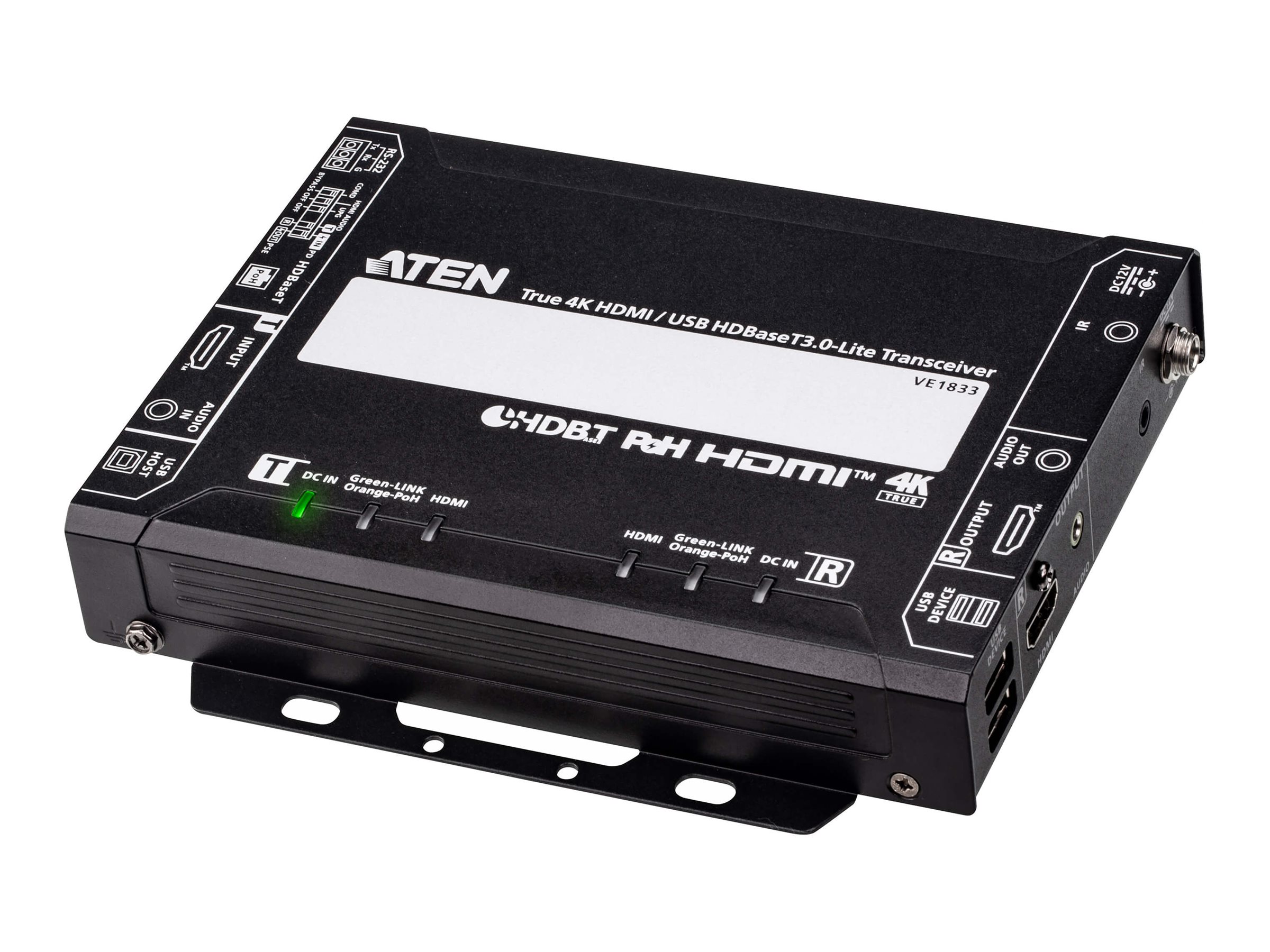

ATEN - Video/audio/infrared/serial extender
MSRP$555.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
ATEN - Video/audio/infrared/serial extender
- HDBaseT 3.0, HDBaseT Lite
- over CAT 6a
- up to 40 m
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $555.00 |
| Mfr Part #: | VE1833 |
| SHI Part #: | 50548107 |
| Category: | Serial port cards |
| UNSPSC: | 43201559 |
| Manufacturer: | ATEN |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Serial port cards |
| Description | ATEN - Video/audio/infrared/serial extender - HDBaseT 3.0, HDBaseT Lite - over CAT 6a - up to 40 m |
| Manufacturer | ATEN |
| MSRP | $555.00 |
| UNSPSC | 43201559 |
| Main Specifications | |
| Dimensions & Weight / Depth | 16.6 cm |
| Dimensions & Weight / Height | 2.9 cm |
| Dimensions & Weight / Weight | 640 g |
| Dimensions & Weight / Width | 12.49 cm |
| Header / Brand | ATEN |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Form Factor | Rack-mountable |
| Networking / Type | Video/audio/infrared/serial extender |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight | |
| Depth | 16.6 cm |
| Height | 2.9 cm |
| Weight | 640 g |
| Width | 12.49 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Video/audio/infrared/serial extender |
| Form Factor | Rack-mountable |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | Plug and Play |
| Included Accessories | Power cable, RS-232 terminal block |
| Networking | |
| Compliant Standards | HDCP 2.3, HDCP 2.2 |
| Connectivity Technology | Wired |
| Data Link Protocol | HDBaseT 3.0, HDBaseT Lite |
| Features | Bi-directional RS-232, 4:4:4 chroma subsampling support, bi-directional power over HDBaseT (PoH), Dolby Vision support, HDMI audio support, HDR support, HDR+ support, 3D support, Deep Color support, firmware upgradable, 8KV/15KV ESD Protector, 18 Gbps bandwidth, metal housing, bi-directional IR |
| Max Resolution | 4096 x 2160 / 3840 x 2160 @ 60 Hz |
| Max Transfer Distance | 40 m |
| Max Video Bandwidth | 600 MHz |
| Status Indicators | Power, link, HDMI input, HDMI output |
| Power | |
| Power Device | External power adapter |
