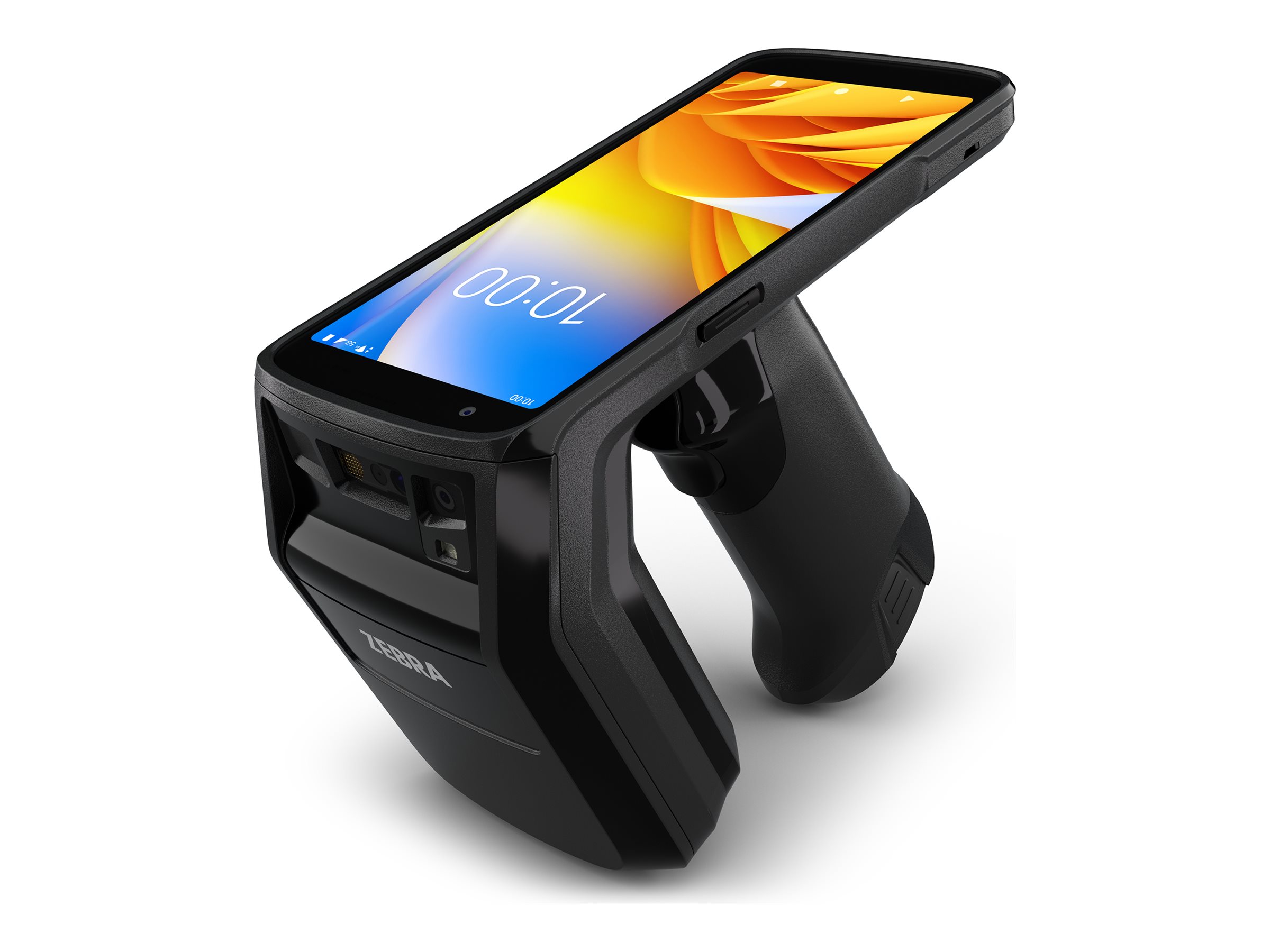

Zebra TC22R - Data collection terminal
MSRP$2,298.85
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
Zebra TC22R - Data collection terminal
- Android
- 64 GB
- 6" color (1080 x 2160)
- rear camera + front camera
- barcode reader
- (2D imager)
- USB host
- Wi-Fi 6E, Bluetooth, NFC
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $2,298.85 |
| Mfr Part #: | TC2205-0G1250SS-FT |
| SHI Part #: | 50599994 |
| Category: | PDAs or pen-based computers |
| UNSPSC: | 43211504 |
| Manufacturer: | Zebra Technologies |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | PDAs or pen-based computers |
| Description | Zebra TC22R - Data collection terminal - Android - 64 GB - 6" color (1080 x 2160) - rear camera + front camera - barcode reader - (2D imager) - USB host - Wi-Fi 6E, Bluetooth, NFC |
| Manufacturer | Zebra Technologies |
| MSRP | $2,298.85 |
| UNSPSC | 43211504 |
| Main Specifications | |
| Barcode / Barcode Reader | Yes |
| Dimensions & Weight / Depth | 17.7 cm |
| Dimensions & Weight / Height | 14.5 cm |
| Dimensions & Weight / Weight | 569 g |
| Dimensions & Weight / Width | 8.4 cm |
| Display / Diagonal Size | 6 in |
| Display / Diagonal Size (metric) | 15.2 cm |
| Display / Native Resolution | 1080 x 2160 |
| Handheld Type | Data collection terminal |
| Header / Brand | Zebra |
| Input Device / Type | Touchscreen |
| Miscellaneous / Product Color | Black |
| Networking / Wireless Connectivity |
|
| OS Provided / Type | Android |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 2.1 GHz |
| Service & Support / Type | 1-year warranty |
| Barcodes | |
| Barcode Reader | Yes |
| Scan Element Type | 2D imager |
| Battery | |
| Capacity | 7000 mAh |
| Technology | PowerPrecision - lithium ion |
| Communications | |
| Security Protocols & Features | WEP, WPA, WPA2, TKIP, AES, WPA3-Personal, WPA3-SAE, WPA-Enterprise, WPA2-Enterprise, WPA3-Enterprise, EAP-TTLS, PAP, MS-CHAP, MS-CHAPv2, EAP-TLS, PEAPv0, PEAPv1, EAP-GTC, LEAP, EAP-PWD, GCMP256 |
| Wireless Connectivity | 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.2, NFC |
| Dimensions & Weight | |
| Depth | 17.7 cm |
| Height | 14.5 cm |
| Weight | 569 g |
| Width | 8.4 cm |
| Display | |
| Features | Capacitive touch screen, glove touch mode |
| Image Brightness | 450 cd/m² |
| Resolution | 1080 x 2160 |
| Touchscreen | Multi-Touch |
| Type | 6" color - LED backlight |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | -10 °C |
| Min Storage Temperature | -40 °C |
| Expansion and Connectivity | |
| Interfaces | USB-C 3.1 |
| USB Host | Yes |
| Front Camera | |
| Sensor Resolution | 5 Megapixel |
| General | |
| Operating System | Android |
| Product Type | Data collection terminal |
| Input Device | |
| Type | Touchscreen |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Memory | |
| RAM | 6 GB |
| Storage | 64 GB |
| Miscellaneous | |
| Compliant Standards | IPv4, IPv6, EPC Class1 Gen2, EPC Gen2 V2, IP65, Bluetooth Class 2 |
| Features | LED indicator, trigger, 2x2 MU-MIMO technology, SE4710 imager, 1.5 m drop to concrete resistant, ESD protection up to 15 kV (air), ESD protection up to 8 kV (direct), TAA (Trade Agreements Act) compliant |
| Vibrating Alert | Yes |
| Processor | |
| Number of Cores | 6-core |
| Processor | Qualcomm 5430 |
| Processor Clock Speed | 2.1 GHz |
| Rear Camera | |
| Focus Adjustment | Automatic |
| Sensor Resolution | 16 Megapixel |
| RFID | |
| RFID Specification | ISO 14443A, ISO 14443B, UHF, Mifare, ISO 15693 |
