SIIG DP Cyber 4S - Serial adapter
MSRP$124.99
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |

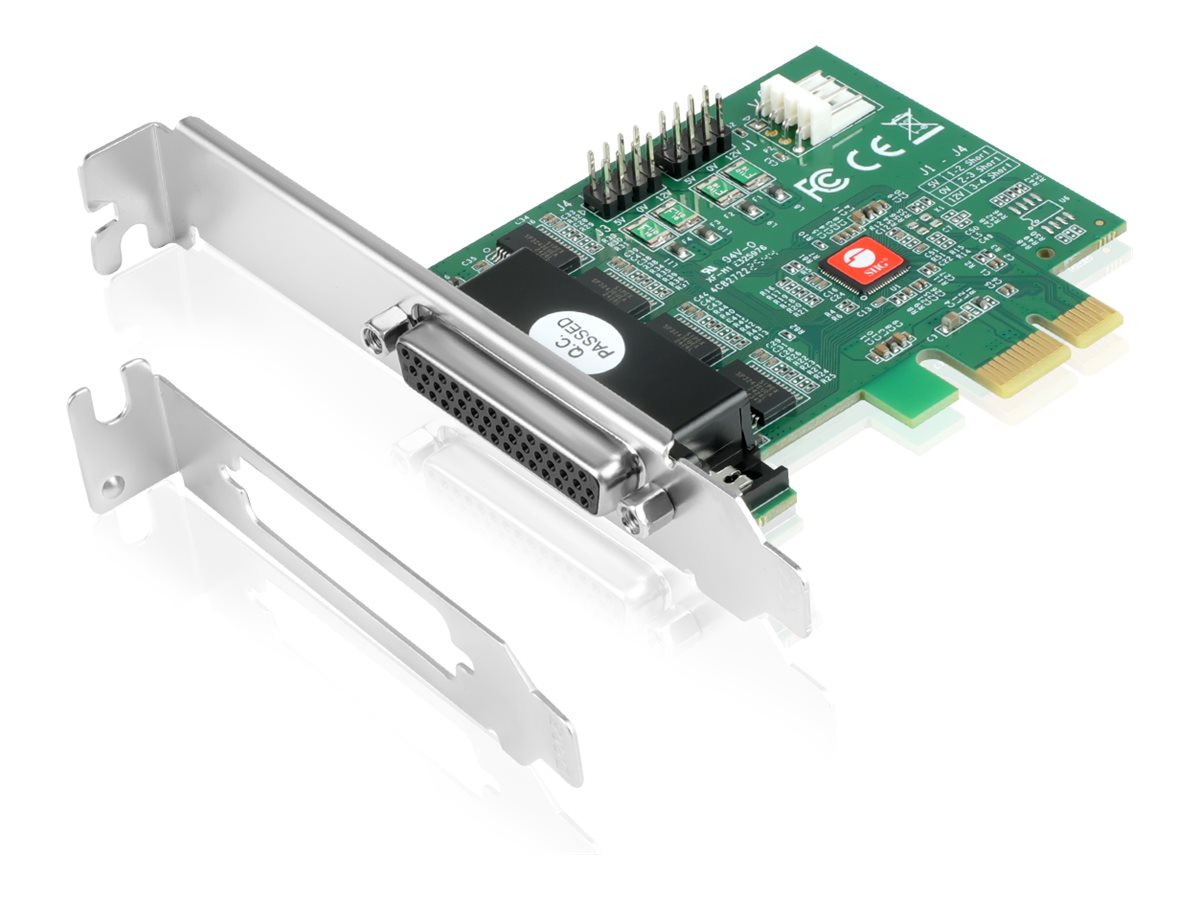

SIIG DP Cyber 4S - Serial adapter
- PCIe low profile
- RS-232 x 1
- green
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $124.99 |
| Mfr Part #: | JJ-E40011-S6 |
| SHI Part #: | 50692475 |
| Category: | Serial port cards |
| UNSPSC: | 43201559 |
| Manufacturer: | SIIG |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Serial port cards |
| Description | SIIG DP Cyber 4S - Serial adapter - PCIe low profile - RS-232 x 1 - green - TAA Compliant |
| Manufacturer | SIIG |
| MSRP | $124.99 |
| UNSPSC | 43201559 |
| Main Specifications | |
| Dimensions & Weight / Depth | 12 cm |
| Dimensions & Weight / Height | 9.19 cm |
| Dimensions & Weight / Weight | 50 g |
| Dimensions & Weight / Width | 2 cm |
| Header / Brand | SIIG |
| Miscellaneous / Product Color | Green |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | RS-232 |
| Networking / Data Transfer Rate | 921 Kbps |
| Networking / Type | Serial adapter |
| Packaged Quantity | 1 |
| Service & Support / Type | 2-year warranty |
| System Requirements / OS Required |
|
| Dimensions & Weight | |
| Depth | 12 cm |
| Height | 9.19 cm |
| Weight | 50 g |
| Width | 2 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces | 1 x RS-232 - 9 pin D-Sub (DB-9) |
| General | |
| Device Type | Serial adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express x1 |
| PCI Specification Revision | PCIe 2.0 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |

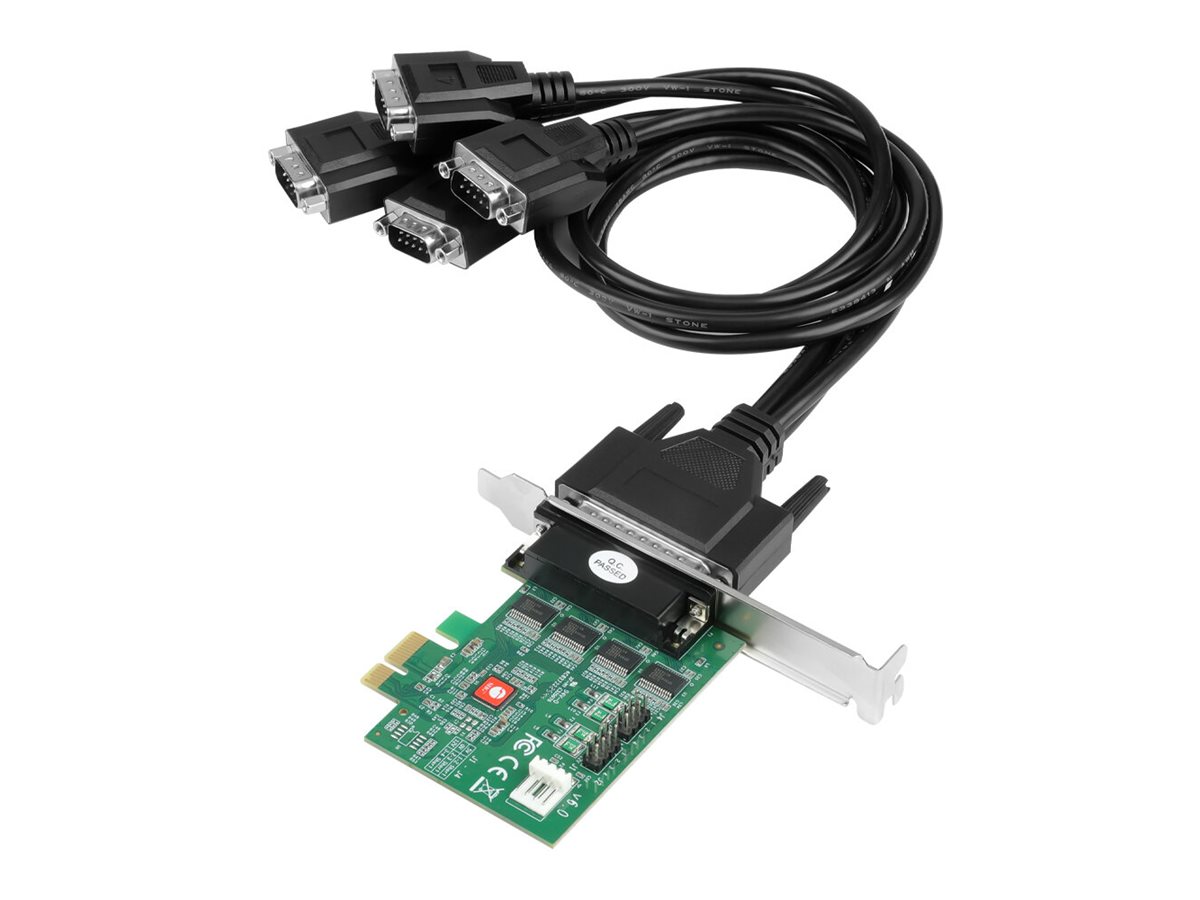

| Cables Included | 1 x 4 x DB-9 to RS-232 cable (external) |
| Color | Green |
| Compliant Standards | FCC, RoHS |

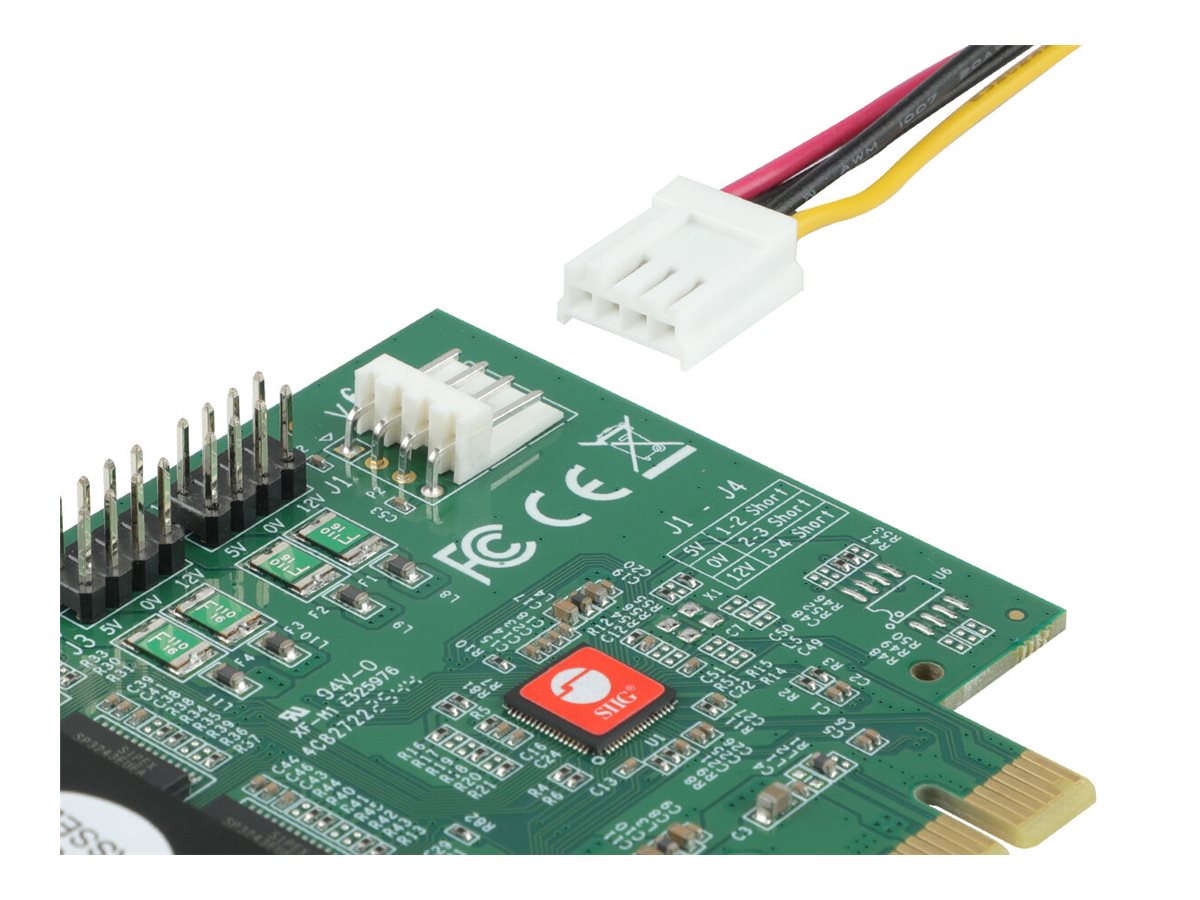

| Included Accessories | Low-profile bracket, power cable |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-232 |
| Data Transfer Rate | 921 Kbps |
| Features | Software flow control, 256-byte FIFO, 16550 UART support |
| Ports | RS-232 x 1 |
| Processor / Memory | |
| Processor | ASIX AX99100 |
| Software / System Requirements | |
| OS Required | Microsoft Windows XP / Vista / 7 / 10, Windows 11, Windows 8.x |
| Software Included | Driver |
