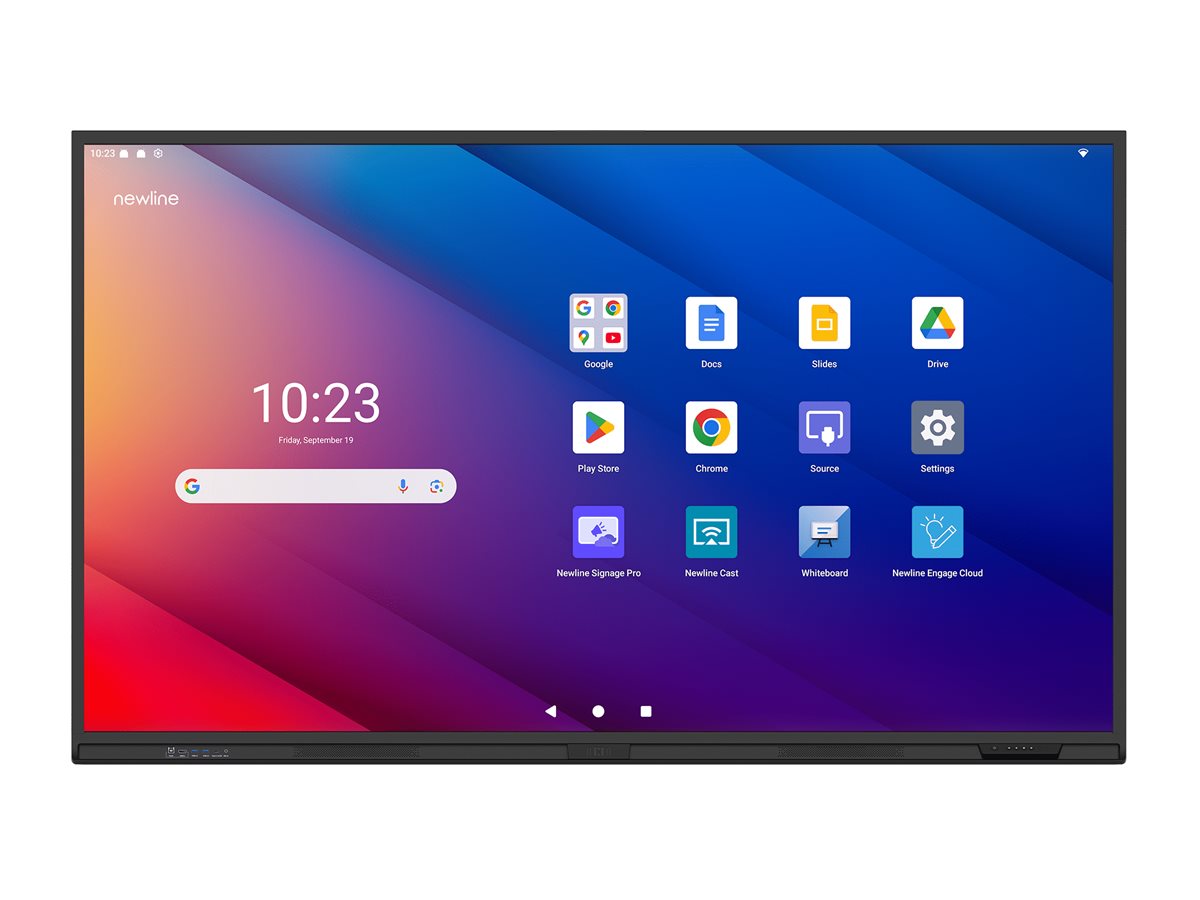

Newline TT-8625QELT - 86" Diagonal Class Q Pro Elite Series LED-backlit LCD display
MSRP$9,319.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
Newline TT-8625QELT - 86" Diagonal Class Q Pro Elite Series LED-backlit LCD display
- education / business
- with touchscreen (multi touch) / 8-microphone array / detachable 4K camera/ NFC reader
- Android
- 4K UHD (2160p) 3840 x 2160
- Direct LED
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $9,319.00 |
| Mfr Part #: | TT-8625QELT |
| SHI Part #: | 50820520 |
| Category: | Flat panel displays |
| UNSPSC: | 43211902 |
| Manufacturer: | Newline Interactive |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Flat panel displays |
| Description | Newline TT-8625QELT - 86" Diagonal Class Q Pro Elite Series LED-backlit LCD display - education / business - with touchscreen (multi touch) / 8-microphone array / detachable 4K camera/ NFC reader - Android - 4K UHD (2160p) 3840 x 2160 - Direct LED |
| Manufacturer | Newline Interactive |
| MSRP | $9,319.00 |
| UNSPSC | 43211902 |
| Main Specifications | |
| Dimensions & Weight / Depth | 11.9 cm |
| Dimensions & Weight / Height | 119.1 cm |
| Dimensions & Weight / Weight | 64.5 kg |
| Dimensions & Weight / Width | 198.2 cm |
| Display / Diagonal Size | 86 in |
| Header / Brand | Newline |
| Miscellaneous / Product Color | Black |
| Service & Support / Type | 3-year warranty |
| Television / Brightness | 400 cd/m² |
| Television / Combined with | Touchscreen (multi touch) / 8-microphone array / detachable 4K camera/ NFC reader |
| Television / Diagonal Size | 86 in |
| Television / Diagonal Size (cm) | 218 cm |
| Television / Display Format | 4K UHD (2160p) |
| Television / Image Aspect Ratio | 16:9 |
| Television / PC Interface | DisplayPort |
| Television / Resolution | 3840 x 2160 |
| Television / Type | LED-backlit LCD flat panel display |
| Television / Viewing Angle | 178° |
| Audio System | |
| Additional Features | Built-in 8-array microphone |
| Output Power / Total | 70 Watt |
| Speaker System | 2 speakers, subwoofer |
| Speakers |
|
| Connections | |
| Connector Type |
|
| Dimensions & Weight (Shipping) | |
| Depth (Shipping) | 22.7 cm |
| Height (Shipping) | 129 cm |
| Weight (Shipping) | 82.5 kg |
| Width (Shipping) | 211.9 cm |
| Display | |
| Additional Features | 8-bit + 2-bit FRC, zero bonding technology, infrared touch technology |
| Backlight Life | 50,000 hour(s) |
| Brightness | 400 cd/m² |
| Coating | Anti-glare, anti-fingerprint, antimicrobial coating, 9H Hard, 3.2 mm glass, 4-8% haze |
| Color Support | 1070000000 colors |
| Commercial Features | PDM (Public Display Mode), Open Pluggable Standard (OPS) support |
| Display Format | 4K UHD (2160p) |
| Dynamic Contrast Ratio | 4000:1 |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| Image Aspect Ratio | 16:9 |
| LCD Backlight Technology | Direct LED |
| Operation Hours / Days | 24 / 7 |
| Resolution | 3840 x 2160 |
| Response Time | 6.5 ms |
| Touchpoints Qty | 50 |
| Viewing Angle | 178° |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Combined With | Touchscreen (multi touch) / 8-microphone array / detachable 4K camera/ NFC reader |
| Commercial Use | Yes - education / business |
| Depth | 11.9 cm |
| Diagonal Class | 86" |
| HDMI Ports Qty | 3 ports |
| Height | 119.1 cm |
| Operating System | Android OS 15 |
| PC Interface | DisplayPort |
| Platform | Android |
| Power Consumption (Max) | 550 Watt |
| Product Type | LED-backlit LCD flat panel display |
| Protection | Tempered glass protection |
| Series | Q Pro Elite Series |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Video Interface | HDMI |
| Weight | 64.5 kg |
| Width | 198.2 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Media Player | |
| Configuration | 4 x ARM Cortex-A76 + 4 x ARM Cortex-A55 - 16 GB - 256 GB - Mali-G610 MC4 |
| USB Port | Yes |
| USB Ports Qty | 7 |
| Miscellaneous | |
| Compliant Standards | Google EDLA |
| Network & Internet Multimedia | |
| Bluetooth Version | Bluetooth 5.2 |
| Connectivity | NFC, LAN, Wi-Fi, Bluetooth |
| LAN Protocol | Ethernet |
| Wi-Fi Protocol | 802.11a, 802.11ac, 802.11ax, 802.11b, 802.11g, 802.11n |
| Power | |
| Input Voltage | AC 110-240 V |
| Power Consumption Stand by | 0.5 Watt |
| Power Device | Power supply |
| Stands & Mounts | |
| Flat Panel Mount Interface | 800 x 400 mm |
| VESA Compatibility | Yes |
