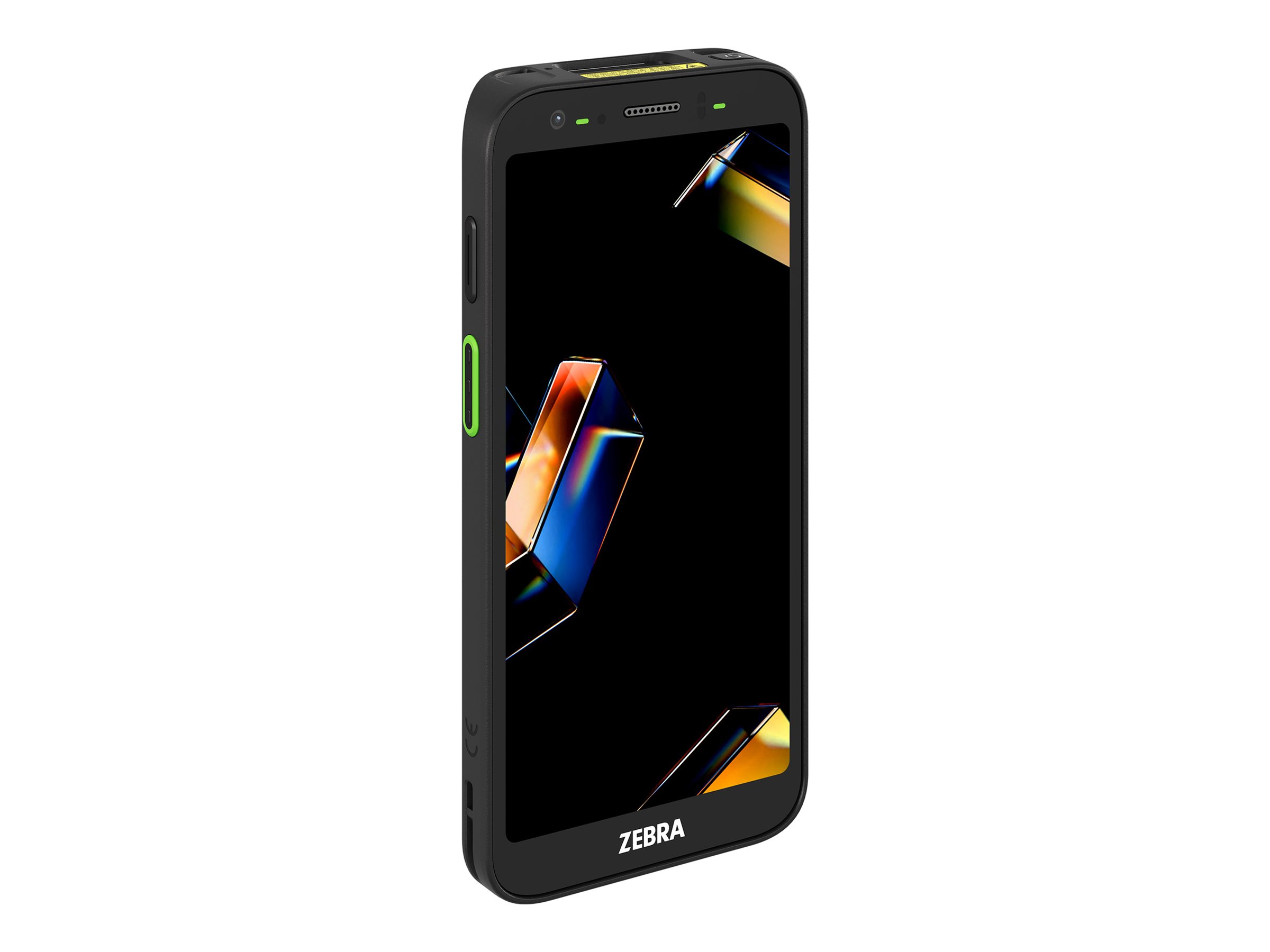

Zebra TC501 - Data collection terminal
MSRP$3,996.25
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
Zebra TC501 - Data collection terminal
- rugged
- Android
- 256 GB UFS card
- 6" color AMOLED (2160 x 1080)
- rear camera + front camera
- barcode reader
- (2D imager)
- microSD slot
- Wi-Fi 7, Bluetooth 6.0, NFC
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $3,996.25 |
| Mfr Part #: | TC5010-041B2B0001-NA |
| SHI Part #: | 51014738 |
| Category: | PDAs or pen-based computers |
| UNSPSC: | 43211504 |
| Manufacturer: | Zebra Technologies |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | PDAs or pen-based computers |
| Description | Zebra TC501 - Data collection terminal - rugged - Android - 256 GB UFS card - 6" color AMOLED (2160 x 1080) - rear camera + front camera - barcode reader - (2D imager) - microSD slot - Wi-Fi 7, Bluetooth 6.0, NFC |
| Manufacturer | Zebra Technologies |
| MSRP | $3,996.25 |
| UNSPSC | 43211504 |
| Main Specifications | |
| Audio Input / Type | Two microphones |
| Barcode / Barcode Reader | Yes |
| Dimensions & Weight / Depth | 1.55 cm |
| Dimensions & Weight / Height | 7.79 cm |
| Dimensions & Weight / Weight | 273 g |
| Dimensions & Weight / Width | 16.315 cm |
| Display / Diagonal Size | 6 in |
| Display / Diagonal Size (metric) | 15.2 cm |
| Display / Native Resolution | 2160 x 1080 |
| Handheld Type | Data collection terminal |
| Header / Brand | Zebra |
| Header / Country Kits | North America |
| Input Device / Type | Touchscreen |
| Miscellaneous / Product Color | Black |
| Networking / Wireless Connectivity |
|
| OS Provided / Type | Android |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 2.9 GHz |
| Processor / Type | Dragonwing |
| Service & Support / Type | 1-year warranty |
| Barcodes | |
| Barcode Reader | Yes |
| Barcodes | 1D, 2D |
| Max Working Distance | 2 m |
| Scan Element Type | 2D imager |
| Battery | |
| Capacity | 5000 mAh |
| Technology | PowerPrecision+ - lithium ion |
| Communications | |
| Security Protocols & Features | WPA3-Enterprise, GCMP256, EAP-TLS, AES-CCMP, EAP-TTLS, PAP, PEAPv0, PEAPv1, EAP-GTC, EAP-PWD, WPA3-Personal, WPA3-SAE, TKIP, WPA, WPA2-Personal, WEP, EAP-SIM, EAP-AKA |
| Wireless Connectivity | 802.11a/b/g/n/ac/ax/be, Bluetooth 6.0, NFC |
| Dimensions & Weight | |
| Depth | 1.55 cm |
| Height | 7.79 cm |
| Weight | 273 g |
| Width | 16.315 cm |
| Display | |
| Features | GorillaGlass Victus, Optically Bonded, glove touch mode, capacitive touch screen, water rejection, anti-fingerprint, smudge resistant |
| Image Brightness | 1500 cd/m² |
| Resolution | 2160 x 1080 |
| Touchscreen | Multi-Touch |
| Type | 6" color AMOLED |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Min Storage Temperature | -40 °C |
| Expansion and Connectivity | |
| Interfaces |
|
| Front Camera | |
| Focus Adjustment | Fixed focus |
| Sensor Resolution | 8 Megapixel |
| General | |
| Operating System | Android |
| Product Type | Data collection terminal - rugged |
| Input Device | |
| Type | Touchscreen |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Memory | |
| Max Supported Capacity | 2 TB |
| RAM | 12 GB - LPDDR5 SDRAM |
| Storage | 256 GB UFS card |
| Supported Flash Memory Cards | microSD |
| Miscellaneous | |
| Compliant Standards | IP68, IP65, RoHS, Directive 2011/65/EU, REACH SVHC 1097/2006, Directive 2015/863 |
| Features | Voice over Internet Protocol (VoIP), Voice over Long-Term Evolution (VoLTE), fullband (FB) audio, super-wideband (SWB) audio, 2x2 MU-MIMO technology, SR560 scan engine, MIL-STD-810H tested |
| Localization | North America |
| Sensors | 3-axis gyro sensor, 3-axis accelerometer, magnetometer, proximity sensor, light sensor |
| Vibrating Alert | Yes |
| Multimedia | |
| Audio | Two microphones, stereo speakers |
| Processor | |
| Number of Cores | 8-core |
| Processor | Qualcomm Dragonwing Q-6690 |
| Processor Clock Speed | 2.9 GHz |
| Rear Camera | |
| Features | Phase Detect Auto-Focus (PDAF) |
| Focus Adjustment | Automatic |
| Light Source | LED flash |
| Sensor Resolution | 50 Megapixel |
| Special Effects | HDR |
| RFID | |
| Frequency | 865-868 MHz / 902-928 MHz |
| RFID Specification | EPC Class 1 Generation 2, EPC Class 1 Generation 2 V2 |
| Second Rear Camera | |
| Features | Phase Detect Auto-Focus (PDAF), autofocus, Ultra-wide angle shot |
| Sensor Resolution | 13 Megapixel |
