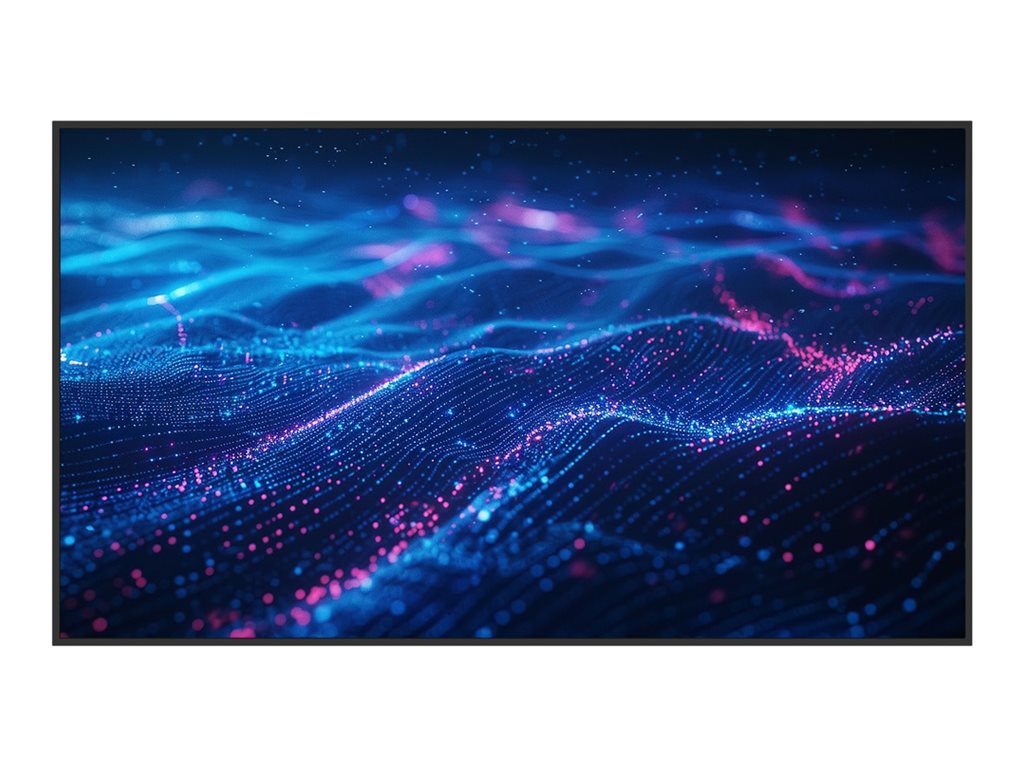

Newline DSX-8626 - 86" Diagonal Class DSX Series LED-backlit LCD display
MSRP$3,889.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
Newline DSX-8626 - 86" Diagonal Class DSX Series LED-backlit LCD display
- digital signage
- Android
- 4K UHD (2160p) 3840 x 2160
- HDR
- Direct LED
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $3,889.00 |
| Mfr Part #: | DSX-8626 |
| SHI Part #: | 51037783 |
| Category: | Flat panel displays |
| UNSPSC: | 43211902 |
| Manufacturer: | Newline Interactive |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Flat panel displays |
| Description | Newline DSX-8626 - 86" Diagonal Class DSX Series LED-backlit LCD display - digital signage - Android - 4K UHD (2160p) 3840 x 2160 - HDR - Direct LED |
| Manufacturer | Newline Interactive |
| MSRP | $3,889.00 |
| UNSPSC | 43211902 |
| Main Specifications | |
| Dimensions & Weight / Depth | 6.86 cm |
| Dimensions & Weight / Height | 110 cm |
| Dimensions & Weight / Weight | 40.8 kg |
| Dimensions & Weight / Width | 193 cm |
| Display / Diagonal Size | 86 in |
| Header / Brand | Newline |
| Miscellaneous / Product Color | Black |
| Service & Support / Type | 3-year warranty |
| Television / Brightness | 700 cd/m² |
| Television / Diagonal Size | 86 in |
| Television / Diagonal Size (cm) | 218 cm |
| Television / Display Format | 4K UHD (2160p) |
| Television / Image Aspect Ratio | 16:9 |
| Television / Resolution | 3840 x 2160 |
| Television / Type | LED-backlit LCD flat panel display |
| Television / Viewing Angle | 178° |
| Audio System | |
| Output Power / Total | 2 Watt |
| Speaker System | 2 speakers |
| Speakers | 2 x main channel speaker - 10 Watt |
| Connections | |
| Connector Type |
|
| Dimensions & Weight (Shipping) | |
| Depth (Shipping) | 23.1 cm |
| Height (Shipping) | 125 cm |
| Weight (Shipping) | 61.6 kg |
| Width (Shipping) | 210 cm |
| Display | |
| Additional Features | 8-bit+FRC, Wake On LAN |
| Backlight Life | 50,000 hour(s) |
| Brightness | 700 cd/m² |
| Coating | 25% haze |
| Color Support | 1070000000 colors |
| Commercial Features | Newline Signage Pro, Real-Time Clock (RTC) |
| Display Format | 4K UHD (2160p) |
| Dynamic Contrast Ratio | 5000:1 |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| Image Aspect Ratio | 16:9 |
| LCD Backlight Technology | Direct LED |
| Operation Hours / Days | 24 / 7 |
| Resolution | 3840 x 2160 |
| Response Time | 6.5 ms |
| Viewing Angle | 178° |
| Viewing Angle (Vertical) | 178° |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Commercial Use | Yes - digital signage |
| Depth | 6.86 cm |
| Design | 13.9mm bezel width |
| Diagonal Class | 86" |
| HDMI Ports Qty | 2 ports |
| HDR Capable | Yes |
| Height | 110 cm |
| Modes | Portrait mode, landscape mode |
| Operating System | Android OS 14 |
| Picture Enhancements | 93% DCI-P3 color gamut, 85% Color Gamut NTSC |
| Platform | Android |
| Power Consumption (Max) | 450 Watt |
| Power Consumption Operational | 360 Watt |
| Product Type | LED-backlit LCD flat panel display |
| Series | DSX Series |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Video Interface | HDMI |
| Weight | 40.8 kg |
| Width | 193 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Media Player | |
| Configuration | 4 x ARM Cortex-A72 + 4 x ARM Cortex-A53 - 4 GB - 32 GB - Mali-G52 MC3 |
| USB Port | Yes |
| USB Ports Qty | 2 |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | ADA |
| Included Accessories | 3 power cables (EU/UK/US plugs) |
| Network & Internet Multimedia | |
| Bluetooth Version | Bluetooth 5.2 |
| Connectivity | LAN, Wi-Fi, Bluetooth |
| LAN Protocol | Ethernet |
| Wi-Fi Protocol | 802.11a, 802.11ac, 802.11ax, 802.11b, 802.11g, 802.11n |
| Power | |
| Input Voltage | AC 100-240 V |
| Power Consumption Stand by | 0.5 Watt |
| Power Device | Power supply |
| Remote Control | |
| Battery Form Factor | AAA type |
| Battery Included | Yes |
| Type | Remote control |
| Stands & Mounts | |
| Flat Panel Mount Interface | 700 x 500 mm |
| VESA Compatibility | Yes |
