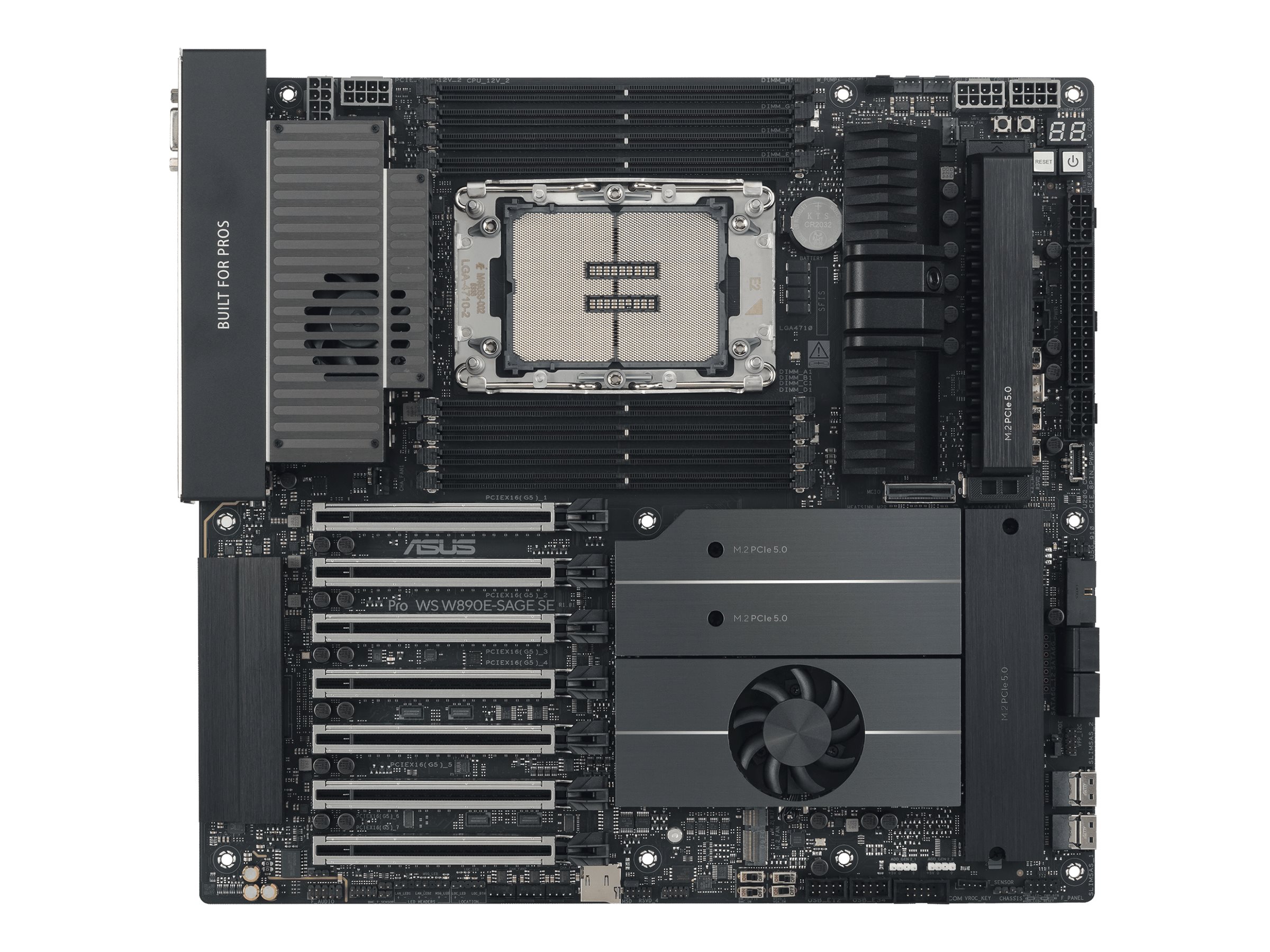

ASUS Pro WS W890E-SAGE SE
MSRP$1,199.99
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
ASUS Pro WS W890E-SAGE SE
- Motherboard
- extended ATX / SSI EEB
- LGA4710-2 Socket
- W890 Chipset
- USB 3.2 Gen 1, USB-C 3.2 Gen 2x2, USB4, USB 3.2 Gen 2
- Gigabit LAN, 10 Gigabit LAN
- onboard graphics
- HD Audio (8-channel)
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,199.99 |
| Mfr Part #: | PRO WS W890E-SAGE SE |
| SHI Part #: | 51390376 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | ASUS |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | ASUS Pro WS W890E-SAGE SE - Motherboard - extended ATX / SSI EEB - LGA4710-2 Socket - W890 Chipset - USB 3.2 Gen 1, USB-C 3.2 Gen 2x2, USB4, USB 3.2 Gen 2 - Gigabit LAN, 10 Gigabit LAN - onboard graphics - HD Audio (8-channel) |
| Manufacturer | ASUS |
| MSRP | $1,199.99 |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 33 cm |
| Dimensions & Weight / Width | 30.5 cm |
| Header / Brand | ASUS |
| Mainboard / Chipset Type | Intel W890 |
| Mainboard / Processor Socket | LGA4710-2 Socket |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Video Output / Graphics Processor | ASPEED AST2600 |
| Video Output / Type |
|
| Audio | |
| Audio Codec | Realtek ALC1220P |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 24-pin main power connector, 2 x 8-pin PCI Express power connector, 2 x 8-pin ATX12V connectors, 2 x 8-pin PCI Express to CPU power connector |
| Storage Interfaces |
|
| Features | |
| BIOS Features | UEFI BIOS |
| BIOS Type | AMI |
| Hardware Features | BIOS FlashBack button, Preboot eXecution Environment (PXE), BIOS FlashBack LED, ASUS 5X Protection III, ASUS DIGI+ VRM, ASUS Overvoltage Protection, ASUS Q-Design, ASUS SafeSlot, ASUS Stainless Steel Back I/O, ESD Guards, LANGuard, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, PCIe Slot Q-Release, Q-Code, ASUS Aura Sync, ASUS EZ DIY, ASUS ProCool II, ASUS Q-Connector, ASUS SafeDIMM, Clear CMOS Button, CrashFree BIOS 3, M.2 heatsink, M.2 heatsink backplate, overcurrent protection, pre-mounted I/O shield, Q-LED, Q-Slot, steel backplate, VRM heatsink design, FlexKey button, ReTry button, 16+2+2+1+2 Phase Power Design, chipset heatsink |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| General | |
| Chipset Type | Intel W890 |
| Compatible Processors | (supports Intel Xeon 600 series) |
| Max Processors Qty | 1 |
| Processor Socket | LGA4710-2 Socket |
| Product Type | Motherboard - extended ATX / SSI EEB |
| Graphics | |
| Graphics Controller | ASPEED AST2600 |
| LAN | |
| Network Interfaces | Gigabit Ethernet, 10 Gigabit Ethernet |
| Miscellaneous | |
| Cables Included | 2 x Serial ATA cable |
| Depth | 33 cm |
| Included Accessories | Thermistor cable pack, 4-pin to 24-pin adapter cable, AngleBoost fan kit, 2 x thermal pads for M.2 SSD, 2 x M.2 screw package, AMI license sticker, M.2 backplate rubber package, M.2 Q-Latch, Q-Connector, E2A CPU carrier, E2B CPU carrier, ACC Express Activation Key Card |
| Software Included | Adobe Creative Cloud (free trial), Armoury Crate, ASUS AURA Creator, ASUS Control Center Express, ASUS CPU-Z, ASUS DriverHub, ASUS Fan Xpert 4, Norton 360 Deluxe (60 days trial), WinRAR (40 days trial) |
| Width | 30.5 cm |
| Supported RAM | |
| Features | Intel Extreme Memory Profiles (XMP), 8-channel memory architecture |
| Max Size | 4 TB |
| Registered or Buffered | Unbuffered, registered, 3DS-RDIMM, MRDIMM |
| Supported RAM Integrity Check | ECC |
| Technology | DDR5 |
