DT Research DT574LA - Medical Grade
MSRP$3,448.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |

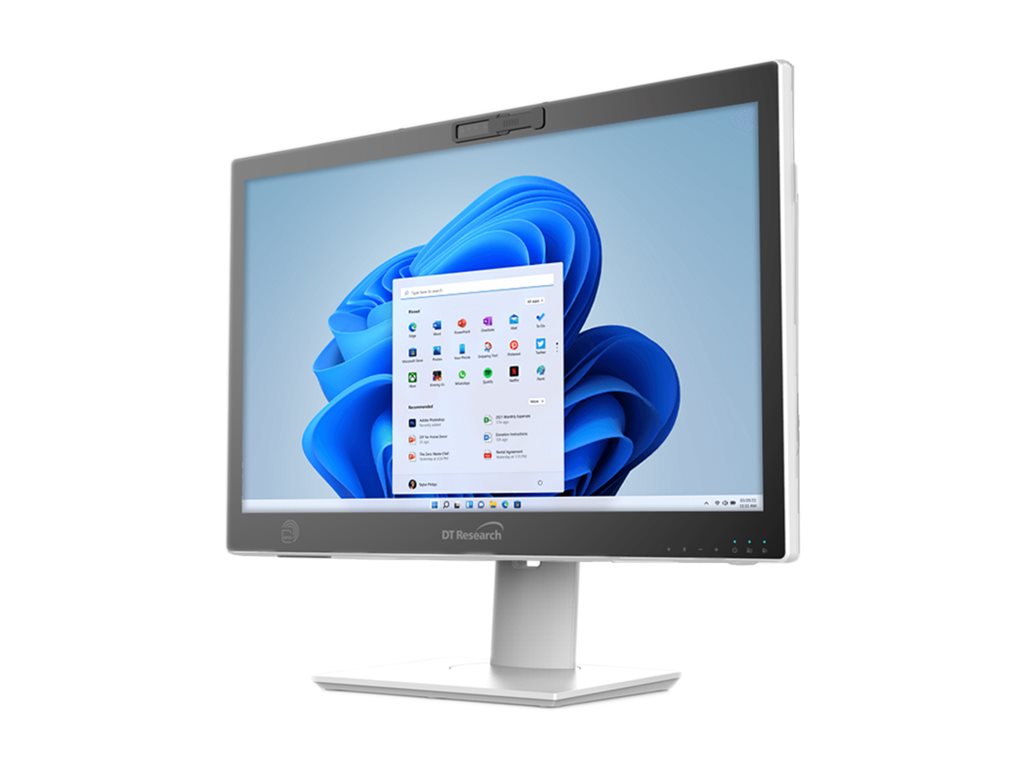

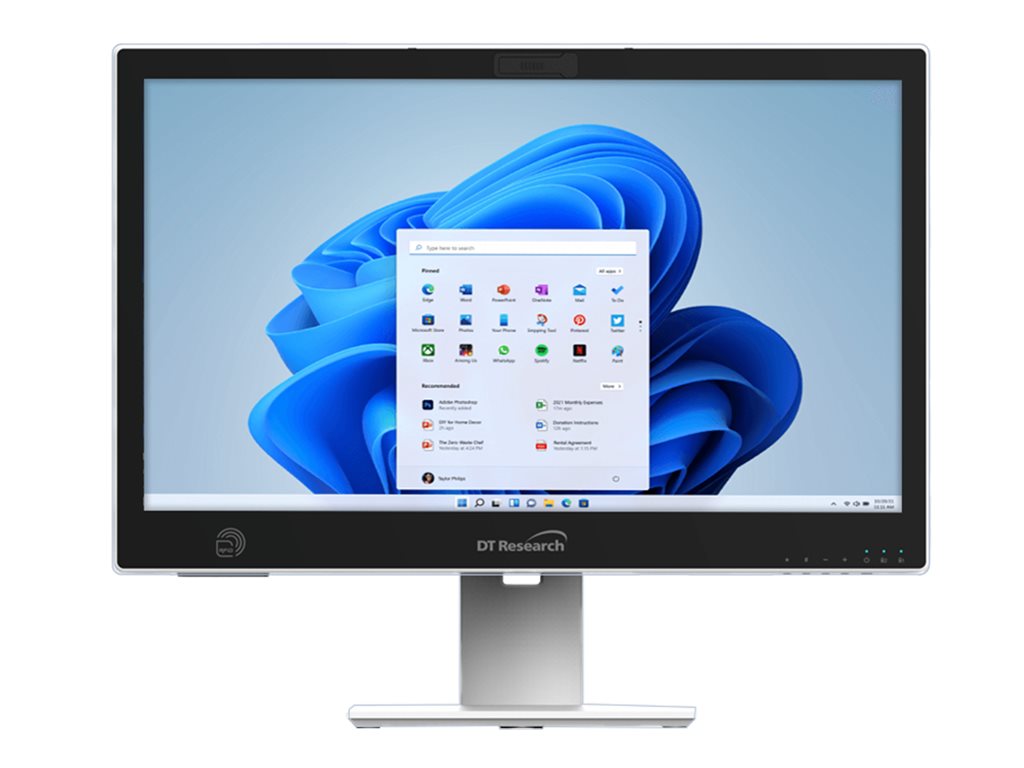

DT Research DT574LA - Medical Grade
- all-in-one Core Ultra 5 225U / up to 4.8 GHz
- RAM 8 GB
- SSD 512 GB
- Intel Graphics
- Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7), Bluetooth 5.4
- Win 11 IoT Enterprise
- monitor: LCD 23.8" 1920 x 1080 (Full HD) touchscreen
- white
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $3,448.00 |
| Mfr Part #: | 574LA-514A |
| SHI Part #: | 52152091 |
| Category: | Desktop computers |
| UNSPSC: | 43211507 |
| Manufacturer: | DT Research |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Desktop computers |
| Description | DT Research DT574LA - Medical Grade - all-in-one Core Ultra 5 225U / up to 4.8 GHz - RAM 8 GB - SSD 512 GB - Intel Graphics - Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7), Bluetooth 5.4 - Win 11 IoT Enterprise - monitor: LCD 23.8" 1920 x 1080 (Full HD) touchscreen - white |
| Manufacturer | DT Research |
| MSRP | $3,448.00 |
| UNSPSC | 43211507 |
| Main Specifications | |
| Chassis / Form Factor | All-in-one |
| Dimensions & Weight / Depth | 4.25 cm |
| Dimensions & Weight / Height | 36.8 cm |
| Dimensions & Weight / Weight | 7.4 kg |
| Dimensions & Weight / Width | 56.9 cm |
| Display / Diagonal Size | 23.8 in |
| Display / Diagonal Size (metric) | 60.5 cm |
| Display / Native Resolution | 1920 x 1080 |
| Display / Type | LCD |
| Display / Widescreen Display | Yes |
| Hard Drive / Capacity | 512 GB |
| Header / Brand | DT Research |
| Miscellaneous / Product Color |
|
| Networking / Data Link Protocol |
|
| Networking / Wireless LAN Supported | Yes |
| Networking / Wireless Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type |
|
| Packaged Quantity | 1 |
| Processor / Generation | Series 2 |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 12-core |
| Processor / Processor Number | 225U |
| Processor / Type | Core Ultra 5 |
| RAM / Form Factor | SO-DIMM 262-pin |
| RAM / Technology | DDR5 SDRAM |
| System / Hard Drive Capacity | 512 GB |
| System / Type | Personal computer |
| Video Output / Graphics Processor | Intel Graphics |
| Audio Input | |
| Type | Array microphone |
| Cache Memory | |
| Cache Per Processor | 12 MB |
| Installed Size | 12 MB |
| Dimensions & Weight | |
| Depth | 4.25 cm |
| Height | 36.8 cm |
| Weight | 7.4 kg |
| Width | 56.9 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Built-in Devices | 5 W speakers, capacitive touch screen |
| Color | White |
| Embedded Security | Firmware Trusted Platform Module (fTPM) |
| Product Form Factor | All-in-one |
| Type | Personal computer |
| Graphics Controller | |
| Graphics Processor | Intel Graphics - up to 8 TOPS |
| Video Interfaces | HDMI |
| Hard Drive | |
| Capacity | 1 x 512 GB |
| Type | SSD |
| Miscellaneous | |
| Compliant Standards | IP65 front, IP54 rear, ANSI/AAMI ES 60601-1, IEC 60601-1, IEC 60601-1-2, FCC part 18, FCC Part 15 Class B, CE/EMC |
| VESA Mounting Interface | VESA, 100 x 100 mm |
| Monitor | |
| Diagonal Size | 23.8" |
| Image Brightness | 250 cd/m² |
| Image Contrast Ratio | 1000:1 |
| Monitor Features | Fanless cooling, Slim Design, Projected Capacitive Touch (P-CAP) technology, antimicrobial enclosure |
| Monitor Type | LCD |
| Native Resolution | 1920 x 1080 (Full HD) |
| Touchscreen | Yes |
| Widescreen Display | Yes |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7), Bluetooth 5.4 |
| Wireless LAN Supported | Yes |
| Neural Processor Unit (NPU) | |
| AI Datatype Support on NPU | INT8 |
| AI Software Frameworks Supported by NPU | OpenVINO, WindowsML, DirectML, ONNX RT |
| Neural Processor Unit (NPU) | Intel AI Boost |
| NPU Performance Up To (TOPS) | 12 TOPS |
| Sparsity Support | Yes |
| Total Processor Performance Up To (TOPS) | 24 TOPS |
| Windows Studio Effects Support | Yes |
| Operating System / Software | |
| OS Provided | Windows 11 IoT Enterprise |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| Device Type | Power adapter + battery (not included) |
| Voltage Required | AC 100-240 V |
| Processor / Chipset | |
| CPU | Intel Core Ultra 5 (Series 2) 225U |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Max Turbo Speed | 4.8 GHz |
| Number of Cores | 12-core |
| Processor Main Features | Intel Turbo Boost Technology 2, Hyper-Threading Technology, Intel Smart Cache, 14 Threads |
| RAM | |
| Configuration Features | 1 x 8 GB |
| Form Factor | SO-DIMM 262-pin |
| Installed Size | 8 GB |
| Slots | 1 (total) / 0 (empty) |
| Technology | DDR5 SDRAM |
