HPE 5120-24G-PoE+ SI
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

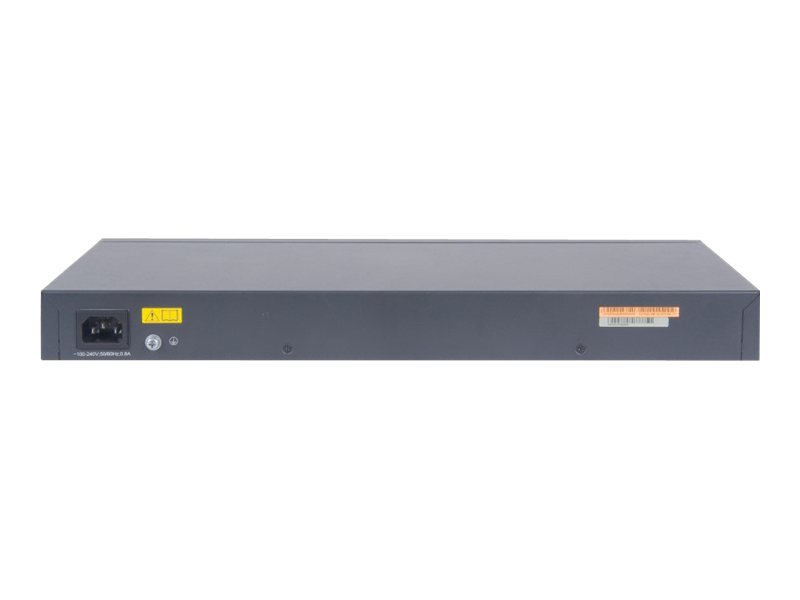

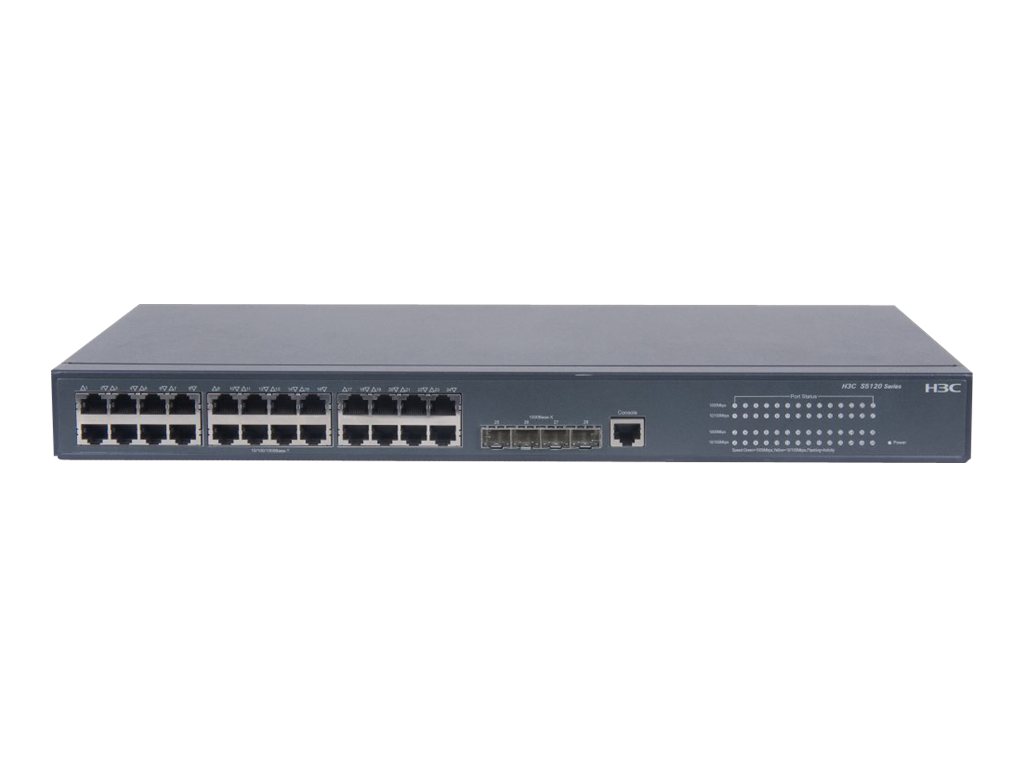

HPE 5120-24G-PoE+ SI
- Switch
- L4
- managed
- 24 x 10/100/1000 + 4 x Gigabit SFP
- rack-mountable
- PoE (370 W)
| Additional Details | |
|---|---|
| Mfr Part #: | JG091A#ABA |
| SHI Part #: | 22647104 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | Hewlett Packard Enterprise |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | HPE 5120-24G-PoE+ SI - Switch - L4 - managed - 24 x 10/100/1000 + 4 x Gigabit SFP - rack-mountable - PoE (370 W) |
| Manufacturer | Hewlett Packard Enterprise |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 42 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Weight | 7 kg |
| Dimensions & Weight / Width | 44 cm |
| Header / Brand | HPE |
| Header / Country Kits | United States |
| Header / Localization | English |
| Networking / Form Factor | Rack-mountable |
| Networking / Ports Qty | 24 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight | |
| Depth | 42 cm |
| Height | 4.4 cm |
| Weight | 7 kg |
| Width | 44 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | RADIUS, Secure Shell v.2 (SSH2) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3at |
| Device Type | Switch - 24 ports - L4 - managed |
| Enclosure Type | Rack-mountable 1U |
| Encryption Algorithm | SSL |
| Features | Flow control, layer 3 switching, layer 2 switching, DHCP support, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, Jumbo Frames support, PoE+, STP Root Guard, LACP support, LLDP support |
| Flash Memory | 128 MB |
| Jumbo Frame Support | Yes |
| MAC Address Table Size | 8K entries |
| Performance |
|
| PoE Budget | 370 W |
| Ports | 24 x 10/100/1000 + 4 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE |
| RAM | 128 MB SDRAM |
| Remote Management Protocol | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH-2, CLI |
| Routing Protocol | OSPF, RIP, IGMP, static IPv4 routing |
| Subtype | Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance parts replacement - lifetime |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, CISPR 22 Class A, GOST, EN 61000-3-2, NOM, VCCI Class A ITE, EN 61000-3-3, EN55022 Class A, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EMC, FCC Part 15, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, RoHS, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, ANATEL, EN 60825-1, EN 300 386 |
| Localization | English / United States |
| Rack Mounting Kit | Included |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
