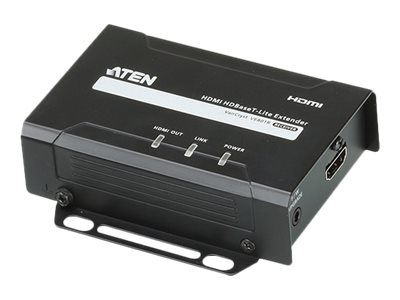

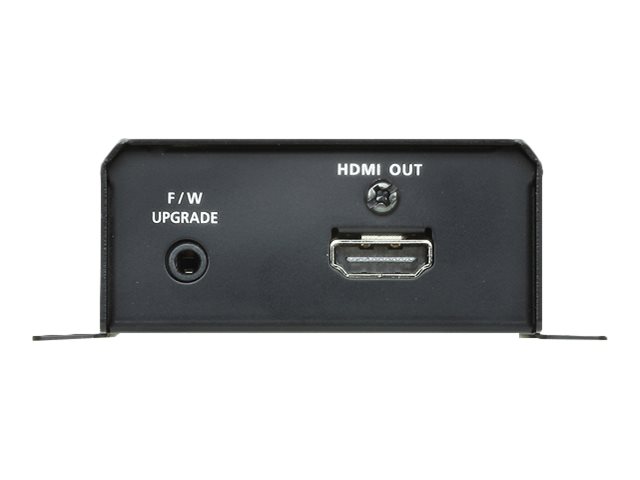

ATEN VE801R HDMI HDBaseT-Lite Extender
MSRP$150.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
ATEN VE801R HDMI HDBaseT-Lite Extender
- Video/audio extender
- up to 70 m
- for P/N: VE802T-AT-E, VE901T-AT-E, VS1818T-AT-E
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $150.00 |
| Mfr Part #: | VE801R |
| SHI Part #: | 30201816 |
| Category: | Serial port cards |
| UNSPSC: | 43201559 |
| Manufacturer: | ATEN |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Serial port cards |
| Description | ATEN VE801R HDMI HDBaseT-Lite Extender - Video/audio extender - up to 70 m - for P/N: VE802T-AT-E, VE901T-AT-E, VS1818T-AT-E |
| Manufacturer | ATEN |
| MSRP | $150.00 |
| UNSPSC | 43201559 |
| Main Specifications | |
| Dimensions & Weight / Depth | 8.7 cm |
| Dimensions & Weight / Height | 3 cm |
| Dimensions & Weight / Weight | 250 g |
| Dimensions & Weight / Width | 10.3 cm |
| Header / Brand | ATEN |
| Networking / Connectivity Technology | Wired |
| Networking / Form Factor | External |
| Networking / Type | Video/audio extender |
| Packaged Quantity | 1 |
| Compatibility Information | |
| Designed For | P/N: VE802T-AT-E, VE901T-AT-E, VS1818T-AT-E |
| Dimensions & Weight | |
| Depth | 8.7 cm |
| Height | 3 cm |
| Weight | 250 g |
| Width | 10.3 cm |
| Environmental Parameters | |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Video/audio extender |
| Form Factor | External |
| Networking | |
| Connectivity Technology | Wired |
| Features | 3D support, HDBaseT Lite technology, 4K resolution support, firmware upgradable, HDCP compliant, CEC passthrough |
| Max Resolution | 4096 x 2160 |
| Max Transfer Distance | 70 m |
| Power | |
| Power Device | External power adapter |
