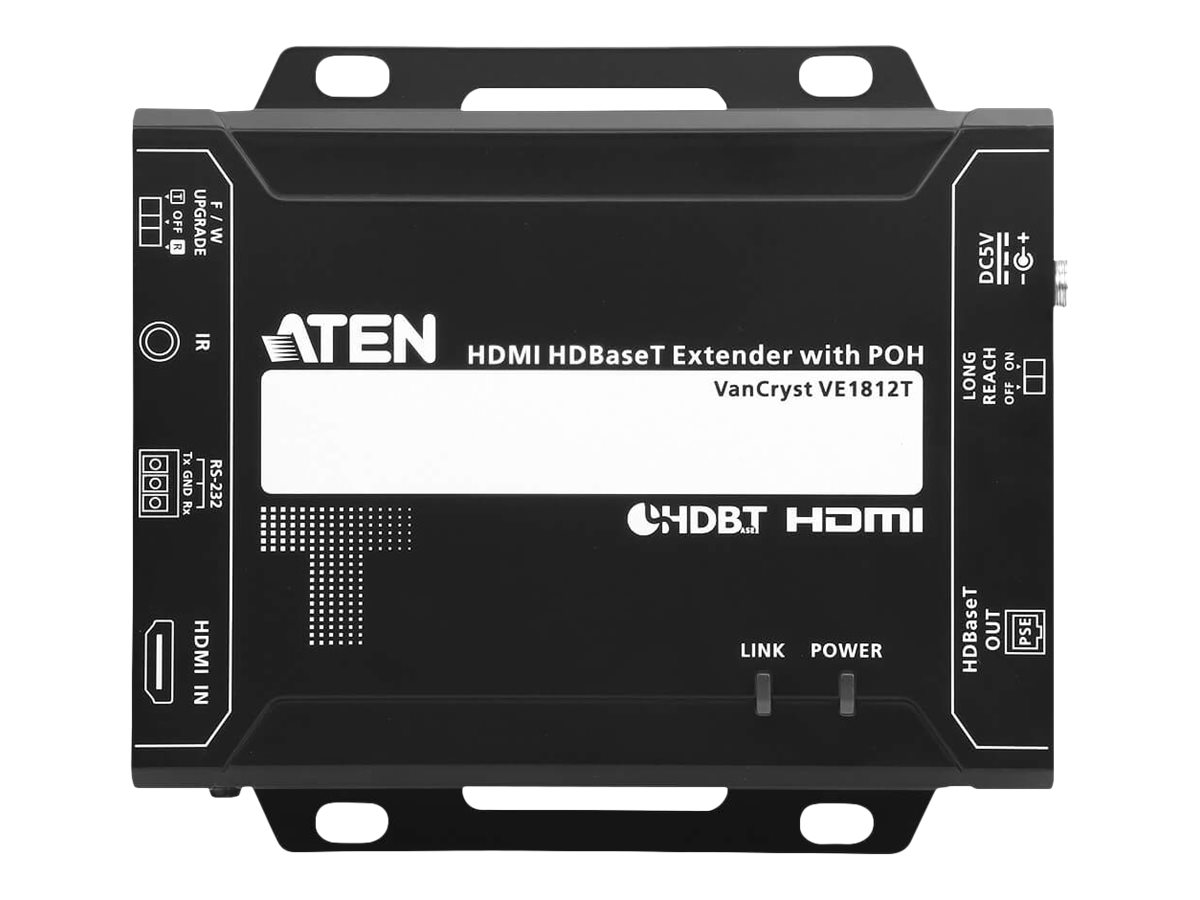

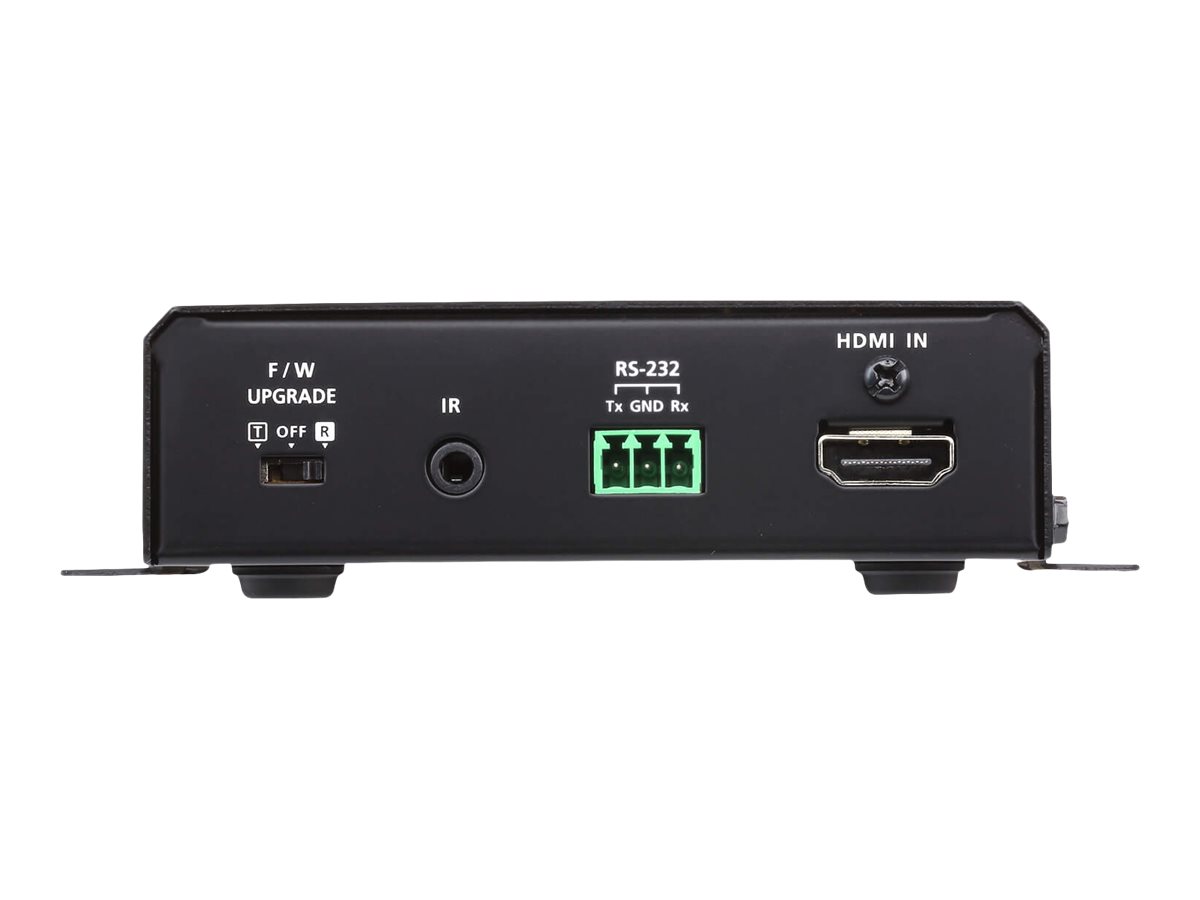

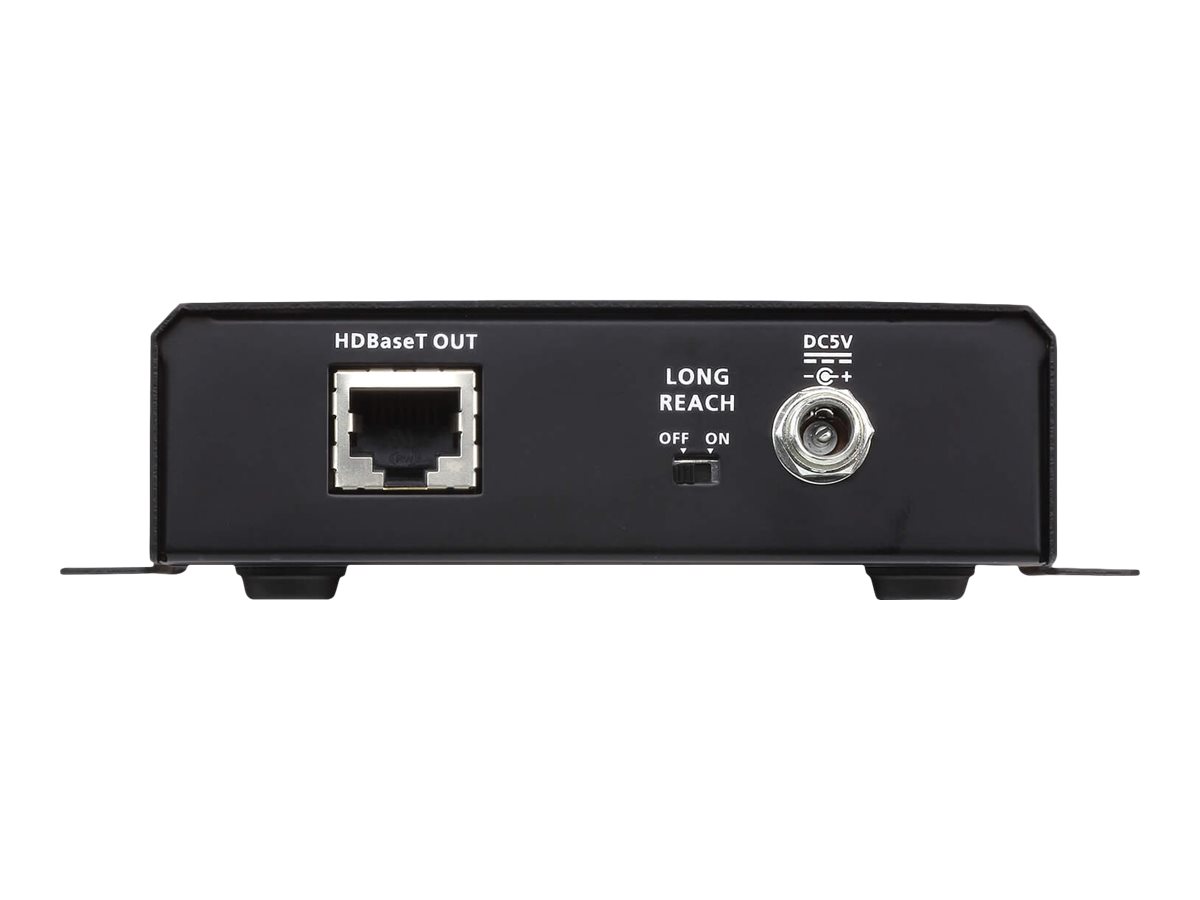

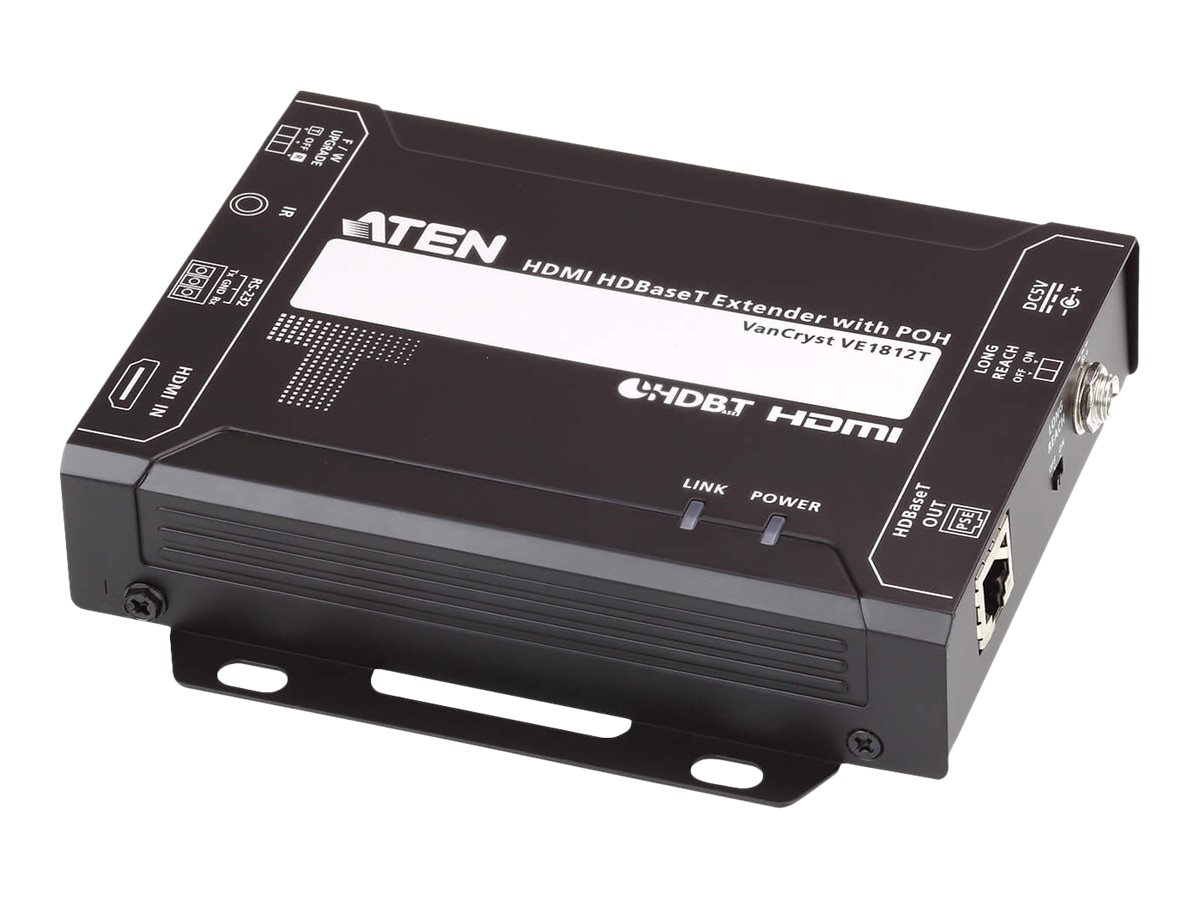

ATEN VE1812 HDMI HDBaseT Extender with POH
MSRP$592.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
ATEN VE1812 HDMI HDBaseT Extender with POH
- Video/audio/infrared extender
- HDBaseT
- up to 150 m
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $592.00 |
| Mfr Part #: | VE1812 |
| SHI Part #: | 34421260 |
| Category: | Serial port cards |
| UNSPSC: | 43201559 |
| Manufacturer: | ATEN |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Serial port cards |
| Description | ATEN VE1812 HDMI HDBaseT Extender with POH - Video/audio/infrared extender - HDBaseT - up to 150 m |
| Manufacturer | ATEN |
| MSRP | $592.00 |
| UNSPSC | 43201559 |
| Main Specifications | |
| Dimensions & Weight / Depth | 13.6 cm |
| Dimensions & Weight / Height | 2.9 cm |
| Dimensions & Weight / Weight | 450 g |
| Dimensions & Weight / Width | 10.1 cm |
| Header / Brand | ATEN |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | HDBaseT |
| Networking / Data Transfer Rate | 10.2 Gbps |
| Networking / Form Factor | Rack-mountable |
| Networking / Type | Video/audio/infrared extender |
| Packaged Quantity | 1 |
| Compatibility Information | |
| Designed For |
|
| Dimensions & Weight | |
| Depth | 13.6 cm |
| Height | 2.9 cm |
| Weight | 450 g |
| Width | 10.1 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Video/audio/infrared extender |
| Form Factor | Rack-mountable |
| Miscellaneous | |
| Compliant Standards | CEC, RoHS |
| Included Accessories | IR transmitter, IR receiver, 2 x RS-232 terminal blocks |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDBaseT |
| Data Transfer Rate | 10.2 Gbps |
| Features | HDCP compliant, 3D support, 4K resolution support, metal housing, 1080p resolution support, 2K resolution support |
| Max Resolution | 4096 x 2160 @ 60 Hz |
| Max Transfer Distance | 150 m |
| Power | |
| Power Device | External power adapter |
| Power Over Ethernet (PoE) | PoH |
