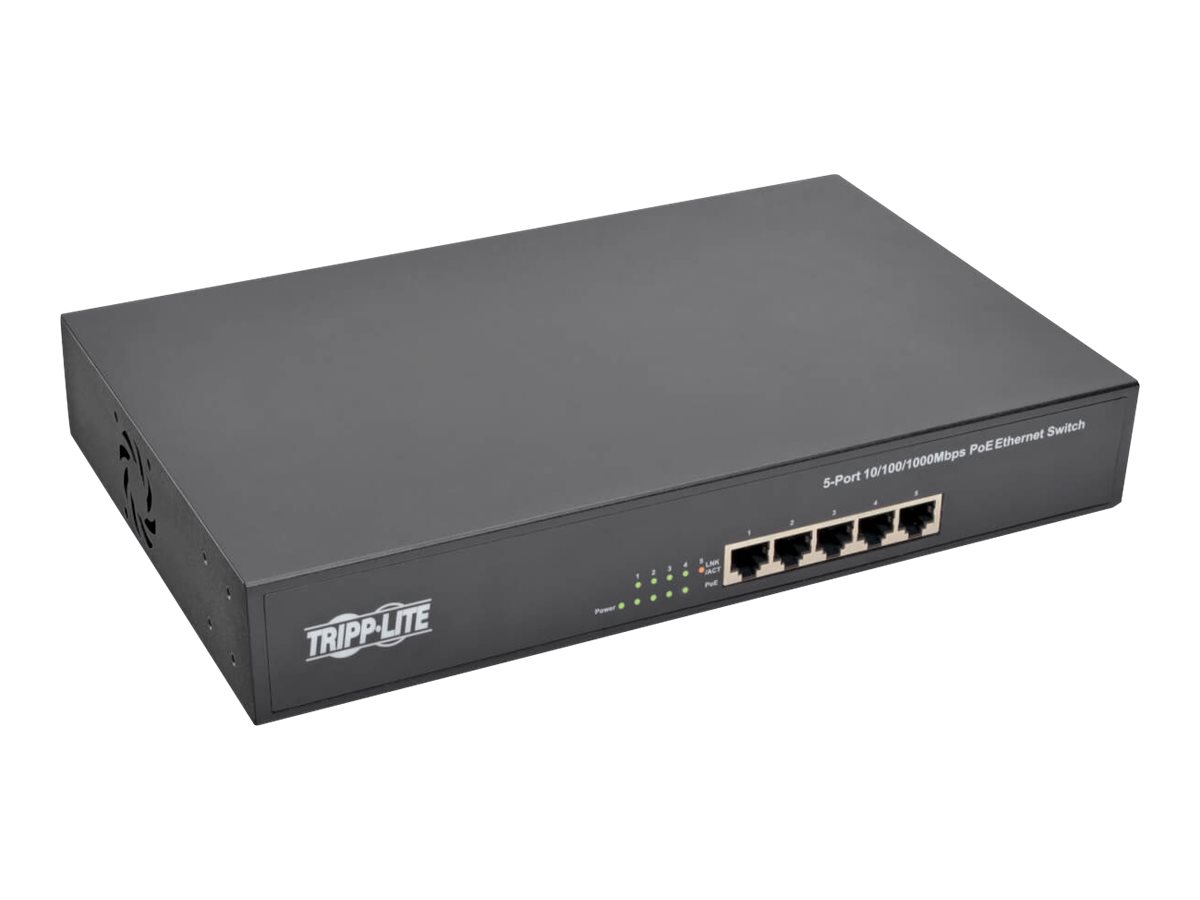

Tripp Lite 5-Port 10/100/1000 Mbps 1U Rack-Mount/Desktop Gigabit Ethernet Unmanaged Switch with PoE
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
Tripp Lite 5-Port 10/100/1000 Mbps 1U Rack-Mount/Desktop Gigabit Ethernet Unmanaged Switch with PoE
- Switch
- unmanaged
- 5 x 10/100/1000 (PoE+)
- desktop, rack-mountable
- PoE+ (75 W)
- AC 100
- 240 V
| Additional Details | |
|---|---|
| Mfr Part #: | NG5POE |
| SHI Part #: | 33018106 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | Eaton |
| Product Type: | Hardware |
Audio/Video Cables
- Patch cable
- RJ-45 (M) to RJ-45 (M)
- 3.05 m
- UTP
- CAT 6
- molded, snagless, stranded
MSRP $12.98
$12.55
- Patch cable
- RJ-45 (M) to RJ-45 (M)
- 30 cm
- UTP
- CAT 6
- molded, snagless, stranded
MSRP $5.75
$5.56
- Patch cable
- RJ-45 (M) to RJ-45 (M)
- 7.62 m
- UTP
- CAT 6
- molded, snagless, stranded
MSRP $24.51
$23.71
Power Cables
- Power cable
- IEC 60320 C13 to NEMA 5-15 (M)
- AC 110 V
- 1.8 m
- black
MSRP $12.50
$12.09
- Power cable
- IEC 60320 C13 to NEMA 5-15 (M)
- AC 110 V
- 1.8 m
- left-angled connector
- black
MSRP $14.21
$13.74
- 10A, 125V, 18 AWG, 4 ft. (1.22 m), Black
- Power cable
- power IEC 60320 C13 to NEMA 5-15 (M)
- AC 110 V
- 1.2 m
- black
MSRP $11.83
$11.44
| General Information | |
|---|---|
| Category | Network switches |
| Description | Tripp Lite 5-Port 10/100/1000 Mbps 1U Rack-Mount/Desktop Gigabit Ethernet Unmanaged Switch with PoE - Switch - unmanaged - 5 x 10/100/1000 (PoE+) - desktop, rack-mountable - PoE+ (75 W) - AC 100 - 240 V |
| Manufacturer | Eaton |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 17.88 cm |
| Dimensions & Weight / Height | 4.44 cm |
| Dimensions & Weight / Weight | 1.43 kg |
| Dimensions & Weight / Width | 27.99 cm |
| Header / Brand | Tripp Lite |
| Miscellaneous / Product Color | Black |
| Networking / Form Factor |
|
| Networking / Ports Qty | 5 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Dimensions & Weight | |
| Depth | 17.88 cm |
| Height | 4.44 cm |
| Weight | 1.43 kg |
| Width | 27.99 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces | 5 x 1000Base-T RJ-45 PoE+ - 30 W |
| General | |
| Compliant Standards | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3, IEEE 802.3az, IEEE 802.3at |
| Device Type | Switch - 5 ports - unmanaged |
| Enclosure Type | Desktop, rack-mountable 1U |
| Features | Full duplex capability, flow control, auto-negotiation, Energy Efficient Ethernet, auto-uplink (auto MDI/MDI-X), crossover detection, Back Pressure Support, half duplex mode |
| Jumbo Frame Support | 9000 bytes |
| Performance | Switching capacity: 10 Gbps |
| PoE Budget | 75 W |
| Ports | 5 x 10/100/1000 (PoE+) |
| Power Over Ethernet (PoE) | PoE+ |
| Status Indicators | Power, link/activity, port transmission speed |
| Subtype | Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Color | Black |
| Compliant Standards | UL 60950-1:2007 Second Edition, FCC Class B certified, NOM, CAN/CSA C22.2 No. 60950-1-07 Second Edition 2014-10, Plug and Play |

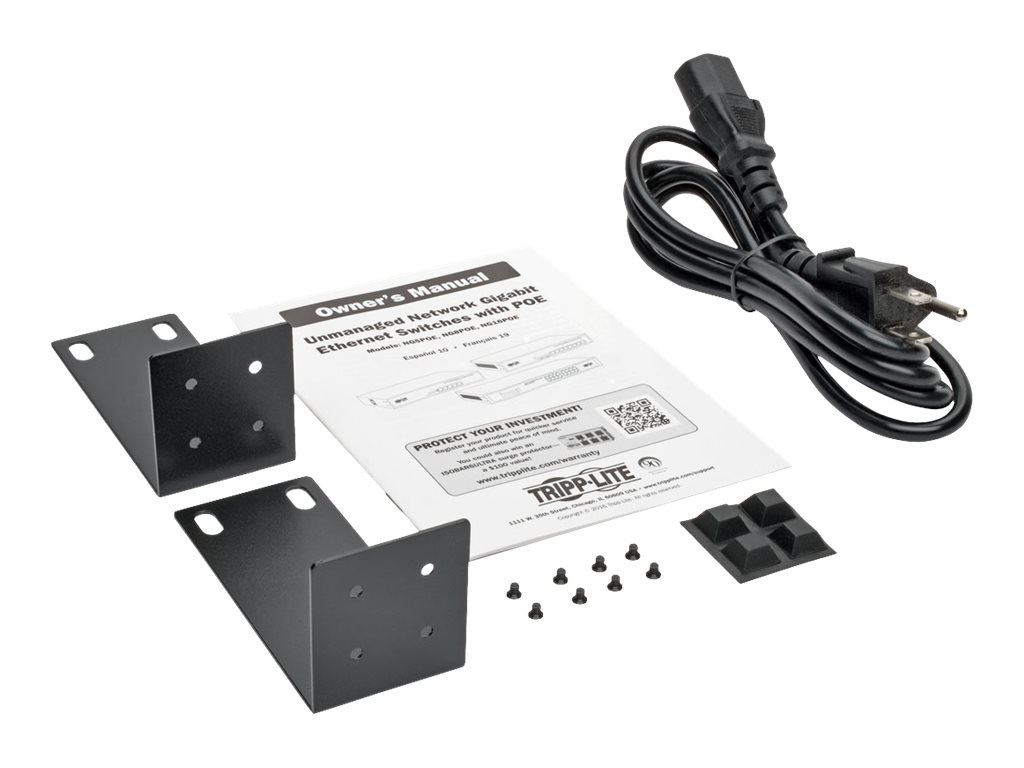

| Included Accessories | 4 rubber feet |
| Rack Mounting Kit | Included |
| Power | |
| Power Consumption Operational | 78 watt |
| Power Device | Internal power supply |

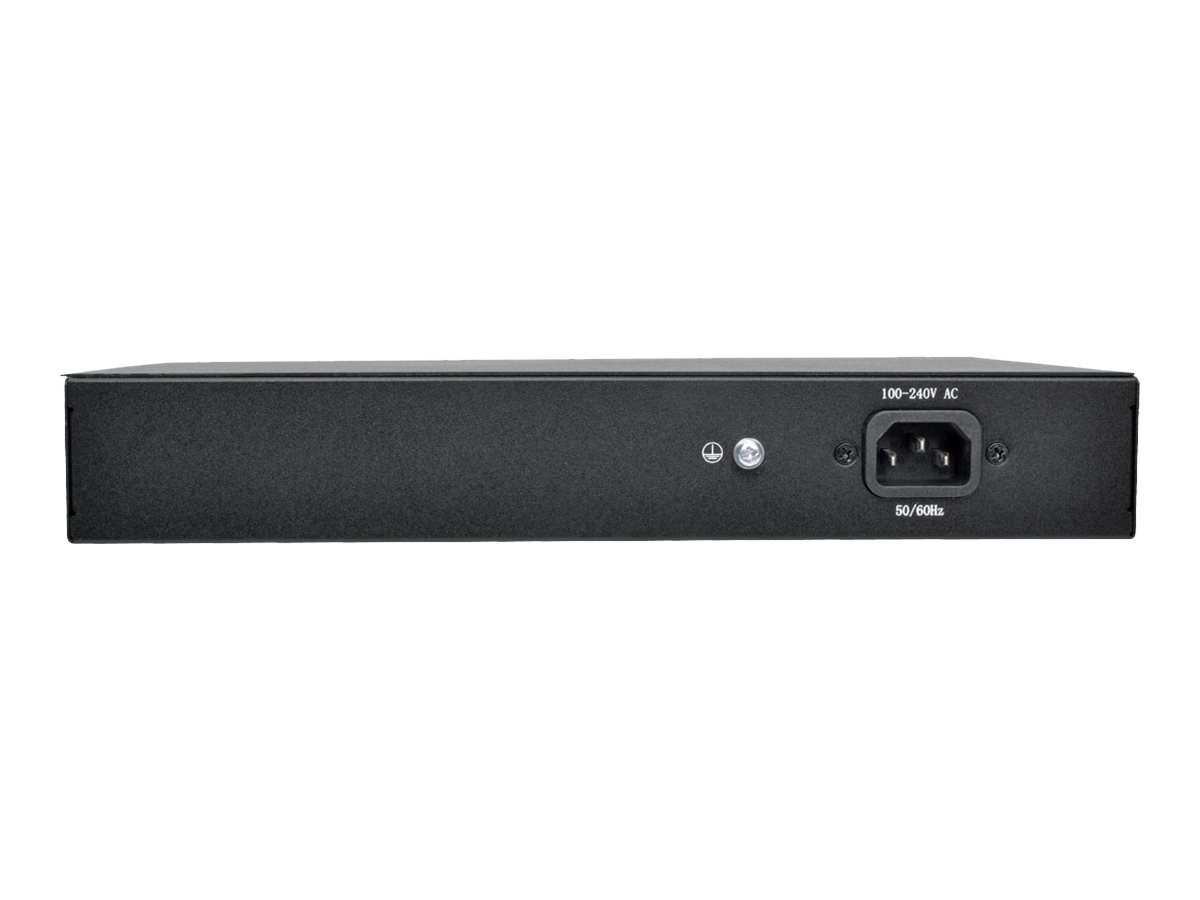

| Voltage Required | AC 100 - 240 V (50/60 Hz) |
