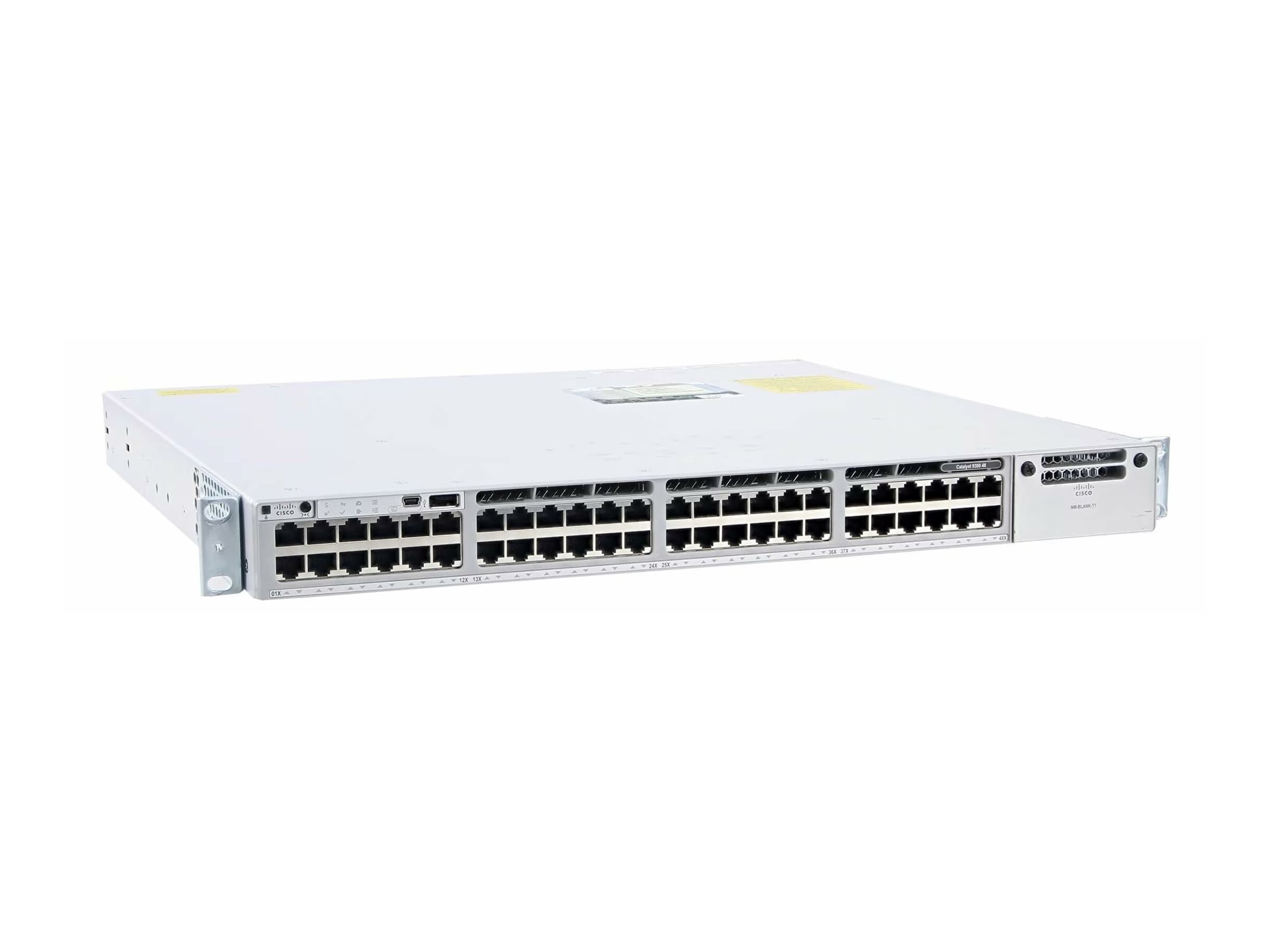

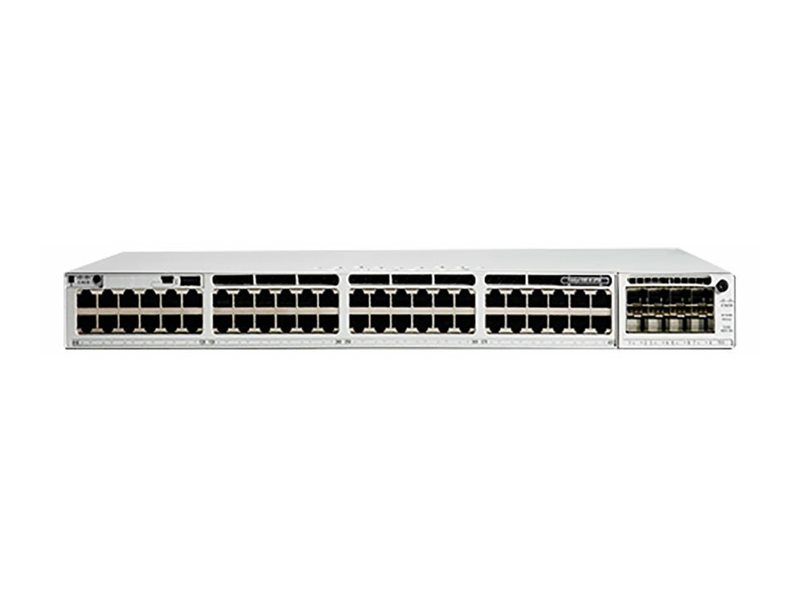

Cisco Catalyst 9300 - Network Advantage


MSRP$13,192.04
$9,852.00
Cisco Catalyst 9300 - Network Advantage

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • switch
  • L3
  • managed
  • 48 x 10/100/1000 (UPOE)
  • rack-mountable
Cisco Catalyst 9300 - Network Advantage
  • switch
  • L3
  • managed
  • 48 x 10/100/1000 (UPOE)
  • rack-mountable
  • UPOE (822 W)
  Additional Details
Price: $9,852.00
MSRP: $13,192.04
Mfr Part #: C9300-48U-A
SHI Part #: 34038391
Category: Network switches
UNSPSC: 43222612
Manufacturer: Cisco Systems
Product Type: Hardware

Network Cables

Cisco StackWise 480 - Stacking cable
  • 1 m
  • for Catalyst 3850-24, 3850-48
MSRP $300.44 $182.00
Cisco StackWise 480 - Stacking cable
  • 3 m
  • for Catalyst 3850-24, 3850-48
MSRP $450.66 $279.00
Cisco StackWise 480 - Stacking cable
  • 50 cm
  • for Catalyst 3850-24, 3850-48
MSRP $124.21 $101.00

Network Interface Cards

Cisco Catalyst 9300 Series Network Module
  • Expansion module
  • 10 Gigabit SFP+ x 8
  • for Catalyst 9300
MSRP $3,128.17 $2,024.00
Cisco Catalyst 9300 Series Network Module
  • Expansion module
  • Gigabit SFP x 4
  • for Catalyst 9300
MSRP $663.68 $496.00
Cisco - Expansion module
  • 25 Gigabit Ethernet x 2
  • for P/N: C9300-24U-10E, C9300-24UX-1A, C9300-48UN-10A
MSRP $3,151.71 $2,354.00
General Information
CategoryNetwork switches
DescriptionCisco Catalyst 9300 - Network Advantage - switch - L3 - managed - 48 x 10/100/1000 (UPOE) - rack-mountable - UPOE (822 W)
ManufacturerCisco Systems
MSRP$13,192.04
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth44.5 cm
Dimensions & Weight / Height4.4 cm
Dimensions & Weight / Weight7.72 kg
Dimensions & Weight / Width44.5 cm
Header / BrandCisco
Miscellaneous / Product ColorGray
Networking / Form FactorRack-mountable
Networking / Ports Qty48
Networking / TypeSwitch
Packaged Quantity1
Service & Support / TypeLimited lifetime warranty
System Requirements / OS RequiredCisco IOS Universal
Dimensions & Weight
Depth44.5 cm
Height4.4 cm
Weight7.72 kg
Width44.5 cm
Environmental Parameters
Humidity Range Operating5 - 90% (non-condensing)
Humidity Range Storage5 - 90% (non-condensing)
Max Operating Temperature45 °C
Max Storage Temperature70 °C
Min Operating Temperature-5 °C
Min Storage Temperature-40 °C
Expansion / Connectivity
Expansion Slots1 (total) / 1 (free) x expansion slot
Interfaces
  • 48 x 1000Base-T RJ-45 UPOE
  • 1 x USB 2.0
General
Capacity
  • IPv4 routing table entries: 32000
  • IPv6 routing table entries: 16000
  • Flexible NetFlow entries: 64000
  • VLAN IDs: 4000
  • Switched virtual interfaces (SVIs): 2000
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
Device TypeSwitch - 48 ports - L3 - managed - stackable
Enclosure TypeRack-mountable 1U
Encryption Algorithm128-bit AES
FeaturesDHCP support, trunking, Syslog support, full duplex mode, SSO, CBWFQ, WRED, STP support, ACL support, QoS, NSR, RSPAN, MIB, Cisco StackWise-480 technology, Cisco StackPower technology, FNF, MSDP, 802.1x authentication, 16MB packet buffer, FTP client, MACsec support, 3 fans, CoPP, VXLAN, AVC, SSM, integrated Wireshark, VLAN Double Tagging (Q-in-Q), EoMPLS, H-VPLS, Private VLAN, L3VPN support, ERSPAN, SGT caching, SGACL, ITSM integration, third-party IPAM integration
Flash Memory16 GB
Jumbo Frame Support9198 bytes
MAC Address Table Size32000 entries
Performance
  • Switching capacity: 128 Gbps
  • Stacking bandwidth: 480 Gbps
  • Forwarding rate: 190.48 Mpps
PoE Budget822 W
Ports48 x 10/100/1000 (UPOE)
Power Over Ethernet (PoE)UPOE
RAM8 GB
Remote Management ProtocolSNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Routing ProtocolOSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng
Status IndicatorsStatus
SubtypeGigabit Ethernet
Manufacturer Warranty
Service & Support
  • Limited warranty - replacement - lifetime - response time: next business day
  • Technical support - consulting - 90 days
Miscellaneous
Cables Included1 x stacking cable - 50 cm
Compliant StandardsCISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, EN 300 386, TVCN 7317, VCCI V-3/2009 Class A, CAN/CSA-C22.2 No. 60950-1
MTBF227,410 hours
Power
Installed Qty1
Max Supported Qty2
Power DeviceInternal power supply - hot-plug
Power Provided1100 Watt
Power RedundancyOptional
Voltage RequiredAC 120/230 V (50 - 60 Hz)
Software / System Requirements
OS RequiredCisco IOS Universal
Software IncludedCisco ONE C9300 DNA Advantage 48-port Term license, 25 x Cisco ONE ISE BASE Licenses Term, 25 x Cisco ONE ISE PLUS Licenses Term, Cisco ONE StealthWatch License Term - 25 Flow Licenses, Cisco ONE C9300 Advantage Add-On Term
