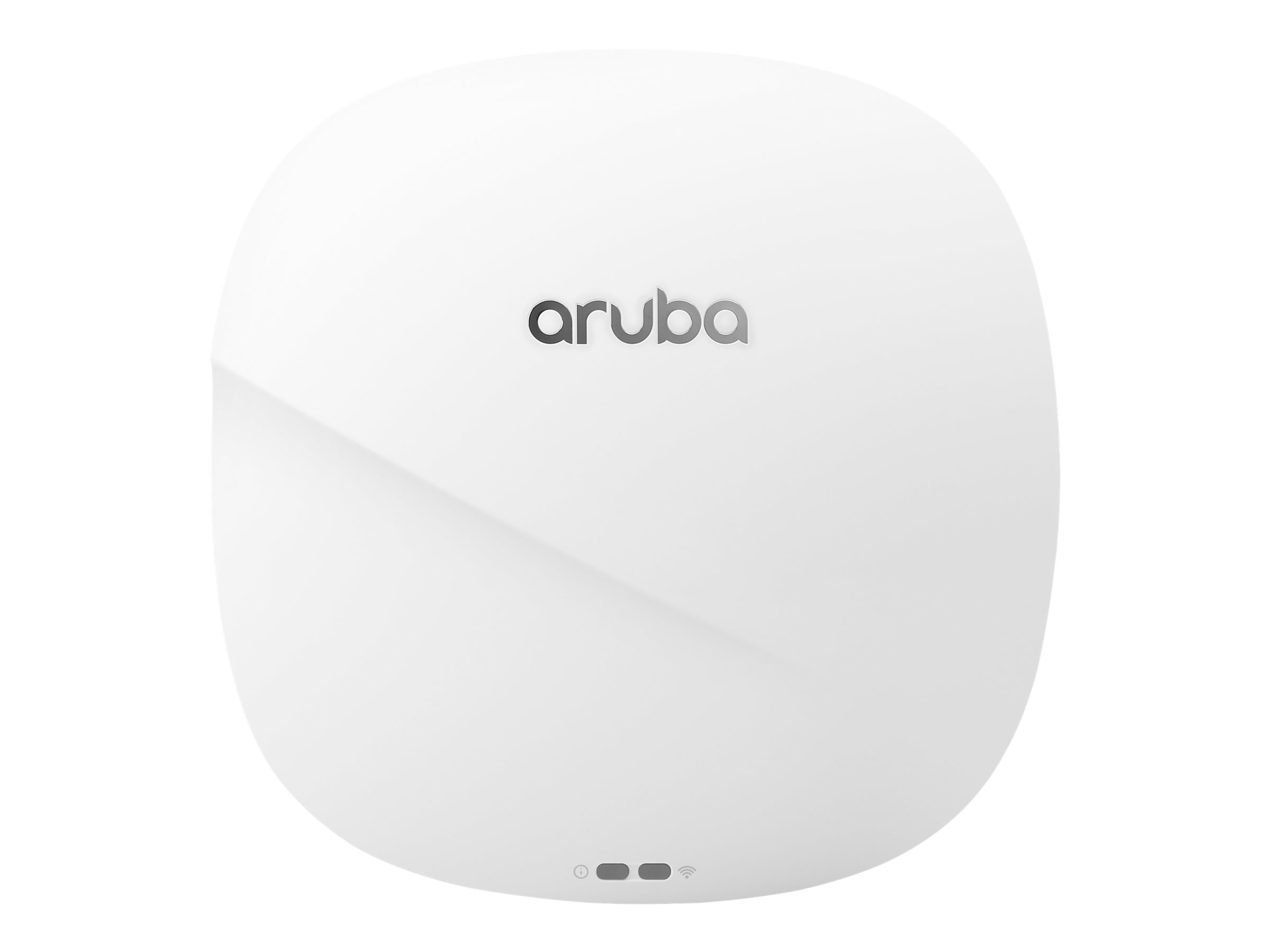

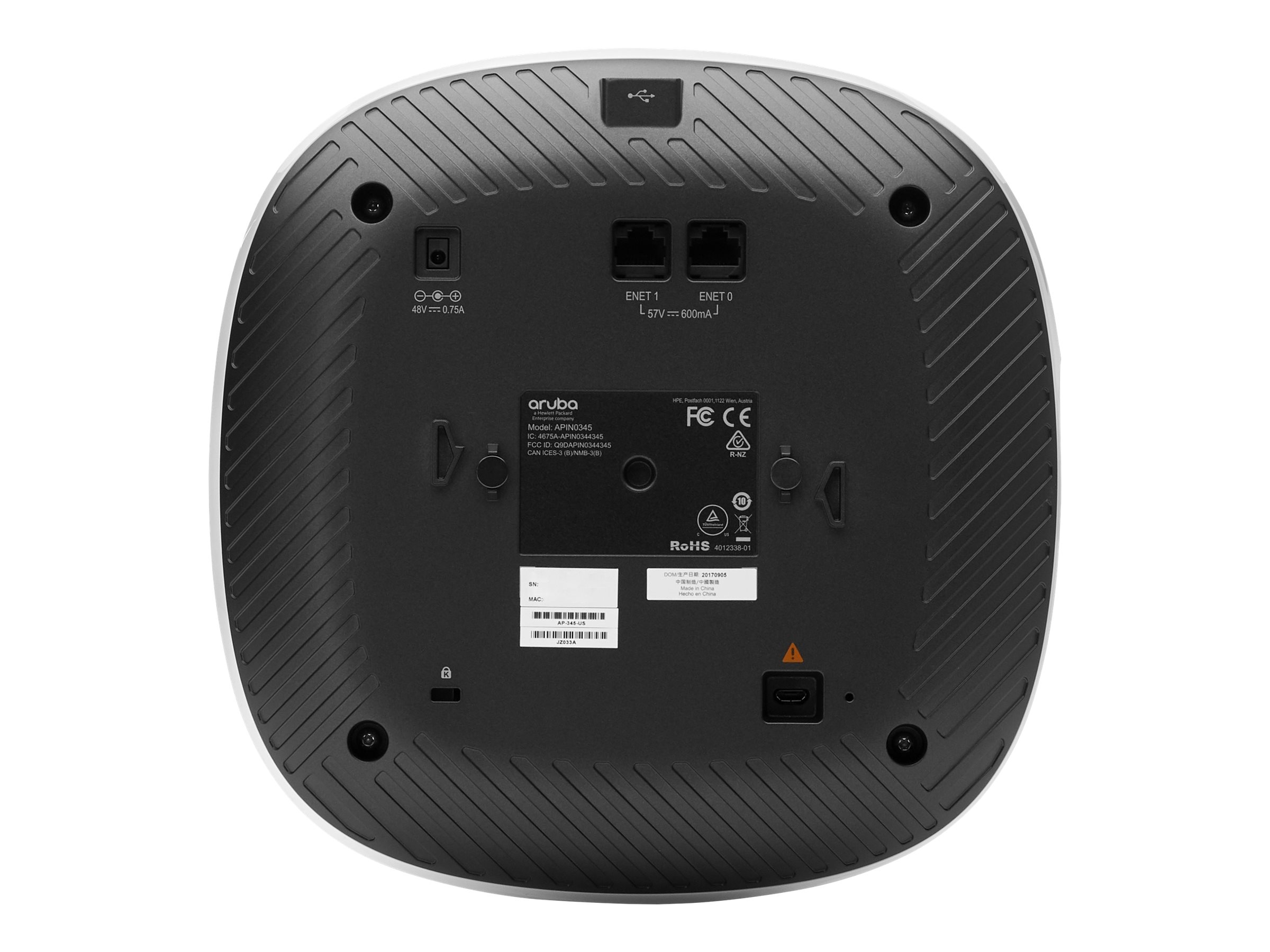

HPE Aruba AP-345 (US)
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
HPE Aruba AP-345 (US)
- Wireless access point
- Wi-Fi
- Dual Band
- in-ceiling
| Additional Details | |
|---|---|
| Mfr Part #: | JZ033A |
| SHI Part #: | 34516929 |
| Category: | Network management system |
| UNSPSC: | 43222634 |
| Manufacturer: | Hewlett Packard Enterprise |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network management system |
| Description | HPE Aruba AP-345 (US) - Wireless access point - Wi-Fi - Dual Band - in-ceiling |
| Manufacturer | Hewlett Packard Enterprise |
| UNSPSC | 43222634 |
| Main Specifications | |
| Dimensions & Weight / Depth | 22.4 cm |
| Dimensions & Weight / Height | 5.2 cm |
| Dimensions & Weight / Weight | 1.05 kg |
| Dimensions & Weight / Width | 22.5 cm |
| Header / Brand | Aruba |
| Networking / Connectivity Technology | Wireless |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 2166 Mbps |
| Networking / Form Factor | In-ceiling |
| Networking / Type | Wireless access point |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| System Requirements / OS Required |
|
| Antenna | |
| Antenna | Internal |
| Antenna Qty | 8 |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 29 cm |
| Shipping Height | 8.8 cm |
| Shipping Weight | 1.65 kg |
| Shipping Width | 33.9 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 93% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Depth | 22.4 cm |
| Device Type | Wireless access point |
| Height | 5.2 cm |
| Ruggedized Design | Indoor |
| Weight | 1.05 kg |
| Width | 22.5 cm |
| Internet of Things (IoT) | |
| Communications Technology | Bluetooth Low Energy (LE) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | CB, UL 2043, FCC, cTUVus, EN 60601-1-1, LVD 2014/35/EU, Directive 2014/30/EU, ISED, Directive 2014/53/EU, IEC/EN/UL 60950, EN60601-1-2 |
| Included Accessories | 2 mounting clips |
| MTBF | 640,000 hours |
| Networking | |
| Capacity |
|
| Compliant Standards | IEEE 802.3af, IEEE 802.3ad (LACP), Wi-Fi CERTIFIED, IEEE 802.3at, IEEE 802.3bz |
| Connectivity Technology | Wireless |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Data Transfer Rate | 2166 Mbps |
| Features | Firewall protection, MDI/MDI-X switch, DFS support, Quality of Service (QoS), Trusted Platform Module (TPM), reset button, Link Aggregation Control Protocol (LACP), Adaptive Radio Management (ARM), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), security lock slot (cable lock sold separately), Advanced Cellular Coexistence (ACC), ClientMatch, cyclic shift diversity (CSD), AppRF technology, Aruba Beacons Bluetooth Low-Energy (BLE) technology, Reputation Enabled Defense, packet aggregation A-MPDU, packet aggregation A-MSDU, wireless intrusion protection, Air Monitor (AM), Space-Time Block Code, Intelligent Power Monitoring (IPM), SecureJack, Secure Core Technology (SCT), 4x4 MU-MIMO technology, Aruba AirMatch, spectrum analyzer |
| Form Factor | In-ceiling |
| Frequency Band | 2.4 GHz, 5 GHz |
| Line Coding Format | CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM |
| Performance |
|
| Spread Spectrum Method | OFDM, DSSS |
| Status Indicators | System, status |
| Power | |
| Power Consumption Operational | 20 Watt |
| Power Over Ethernet (PoE) Supported | PoE |
| Software / System Requirements | |
| OS Required | ArubaOS, InstantOS |
