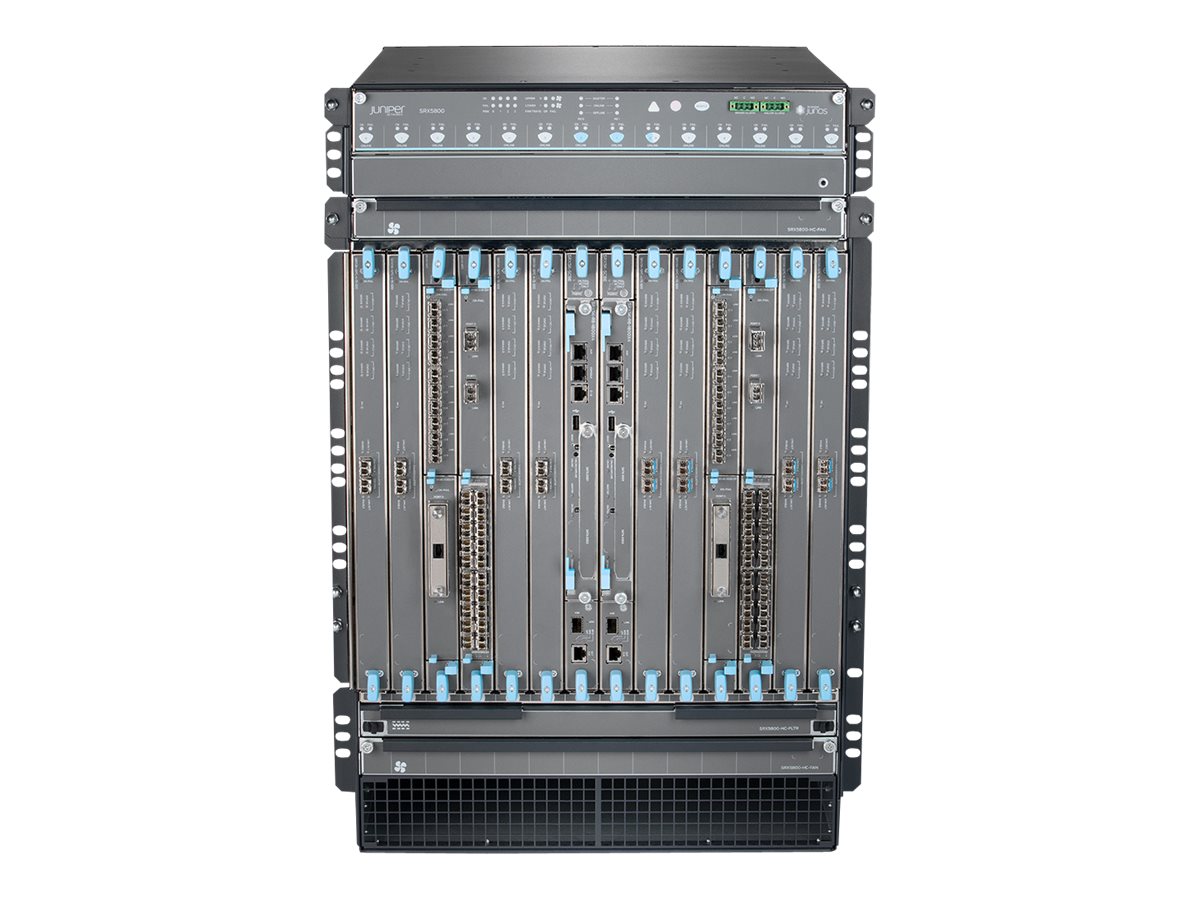

Juniper Networks SRX 5800

Login for Price
Juniper Networks SRX 5800
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Security appliance
  • rack-mountable
  • with Juniper Networks SRX5KRE3-128G, 2x SRX5K-SCB4, 2x HC PEM
Juniper Networks SRX 5800
  • Security appliance
  • rack-mountable
  • with Juniper Networks SRX5KRE3-128G, 2x SRX5K-SCB4, 2x HC PEM
  Additional Details
Mfr Part #: SRX5800X-BASE2
SHI Part #: 38262989
Category: Firewall appliances
UNSPSC: 43222501
Manufacturer: Juniper Networks
Product Type: Hardware
General Information
CategoryFirewall appliances
DescriptionJuniper Networks SRX 5800 - Security appliance - rack-mountable - with Juniper Networks SRX5KRE3-128G, 2x SRX5K-SCB4, 2x HC PEM
ManufacturerJuniper Networks
UNSPSC43222501
Main Specifications
Dimensions & Weight / Depth59.7 cm
Dimensions & Weight / Height70.5 cm
Dimensions & Weight / Width44.5 cm
Header / BrandJuniper Networks
Miscellaneous / Product ColorGray
Networking / Connectivity TechnologyWired
Networking / Form FactorRack-mountable
Networking / TypeSecurity appliance
Packaged Quantity1
System Requirements / OS RequiredJUNOS
Environmental Parameters
Humidity Range Operating5 - 85% (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature5 °C
Expansion / Connectivity
Expansion Slots
  • 11 (total) / 11 (free) x expansion slot
  • 8 (total) / 8 (free) x Service Processing Card (SPC)
  • 2 (total) / 1 (free) x Routing Engine (RE)
  • 2 (total) / 0 (free) x Switch Control Board (SCB)
General
Built-in Devices128 GB SSD, enhanced midplane
Bundled withJuniper Networks SRX5KRE3-128G, 2x SRX5K-SCB4, 2x HC PEM
Depth59.7 cm
Device TypeSecurity appliance
Height70.5 cm
Width44.5 cm
Miscellaneous
Compliant StandardsNEBS level 3, EMC
Networking
Authentication MethodRADIUS, X.509 certificates
Capacity
  • Concurrent sessions: 100000000
  • New sessions per second: 420000
  • Maximum number of users: unlimited
  • VPN tunnels (site-to-site): 15000
  • VPN tunnel interfaces: 15000
  • Virtual routers: 2000
  • Security zones: 2000
  • Maximum logical network members: 32
  • Virtual interfaces (VLANs): 4096
  • BGP instances: 1000
  • BGP peers: 2000
  • BGP routes: 1000000
  • OSPF instances: 400
  • OSPF routes: 1000000
  • RIP instances: 50
Connectivity TechnologyWired
Encryption AlgorithmDES, Triple DES, MD5, AES, IKE, DH, SHA-1, PKI
FeaturesFirewall protection, NAT support, VPN support, PAT support, Syslog support, traffic shaping, DoS attack prevention, DiffServ support, Weighted Round Robin (WRR) queuing, IPv6 support, High Availability, Intrusion Prevention System (IPS), firmware upgradable, DDos attack prevention, Weighted Random Early Detection (WRED), IPSec Virtual Private Network (VPN), anti-malware protection, Quality of Service (QoS), DHCP server, anti-spyware protection, DHCP relay, Link Aggregation Control Protocol (LACP), Traffic Control, Class of Service (CoS), In-Service Software Upgrade (ISSU), 2 fan trays
Form FactorRack-mountable
Network / Transport ProtocolIPSec, DHCP
Performance
  • Firewall throughput: 320 Gbps
  • Firewall throughput (IMIX): 2 Tbps
  • Firewall throughput (large packets): 2 Tbps
  • VPN throughput (256-bit AES+SHA1 IPSec): 200 Gbps
  • IPS throughput: 100 Gbps
  • Latency: 7 µs
Remote Management ProtocolSNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, CLI
Routing ProtocolOSPF, RIP-1, RIP-2, BGP, static IP routing, OSPFv3, ECMP, policy-based routing (PBR), RIPng, Bidirectional Forwarding Detection (BFD), IPv4-to-IPv6 Multicast
Processor / Memory / Storage
Processors Installed1 x Intel Xeon 1.8 GHz
RAM16 GB
Software / System Requirements
OS RequiredJUNOS
