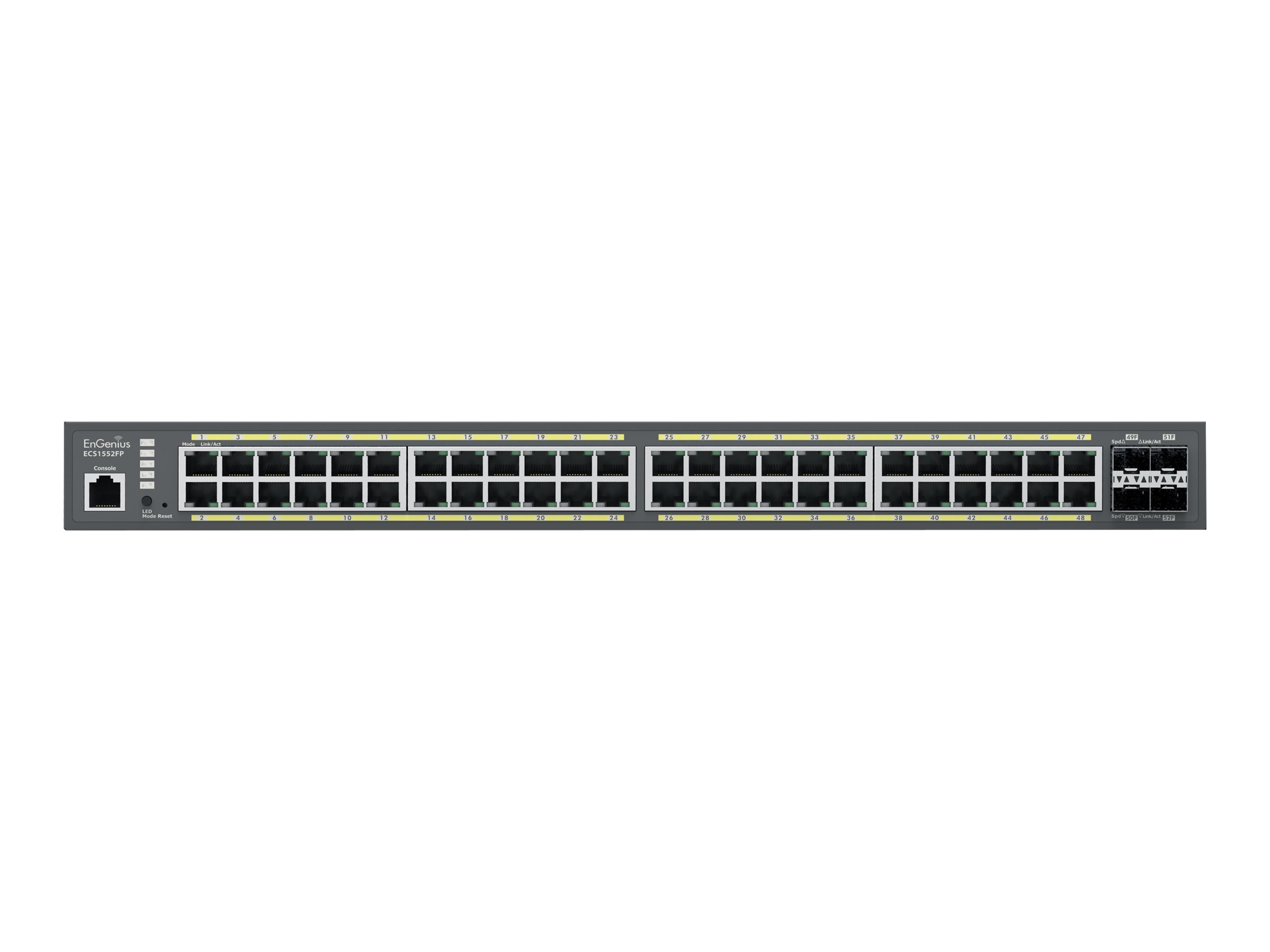

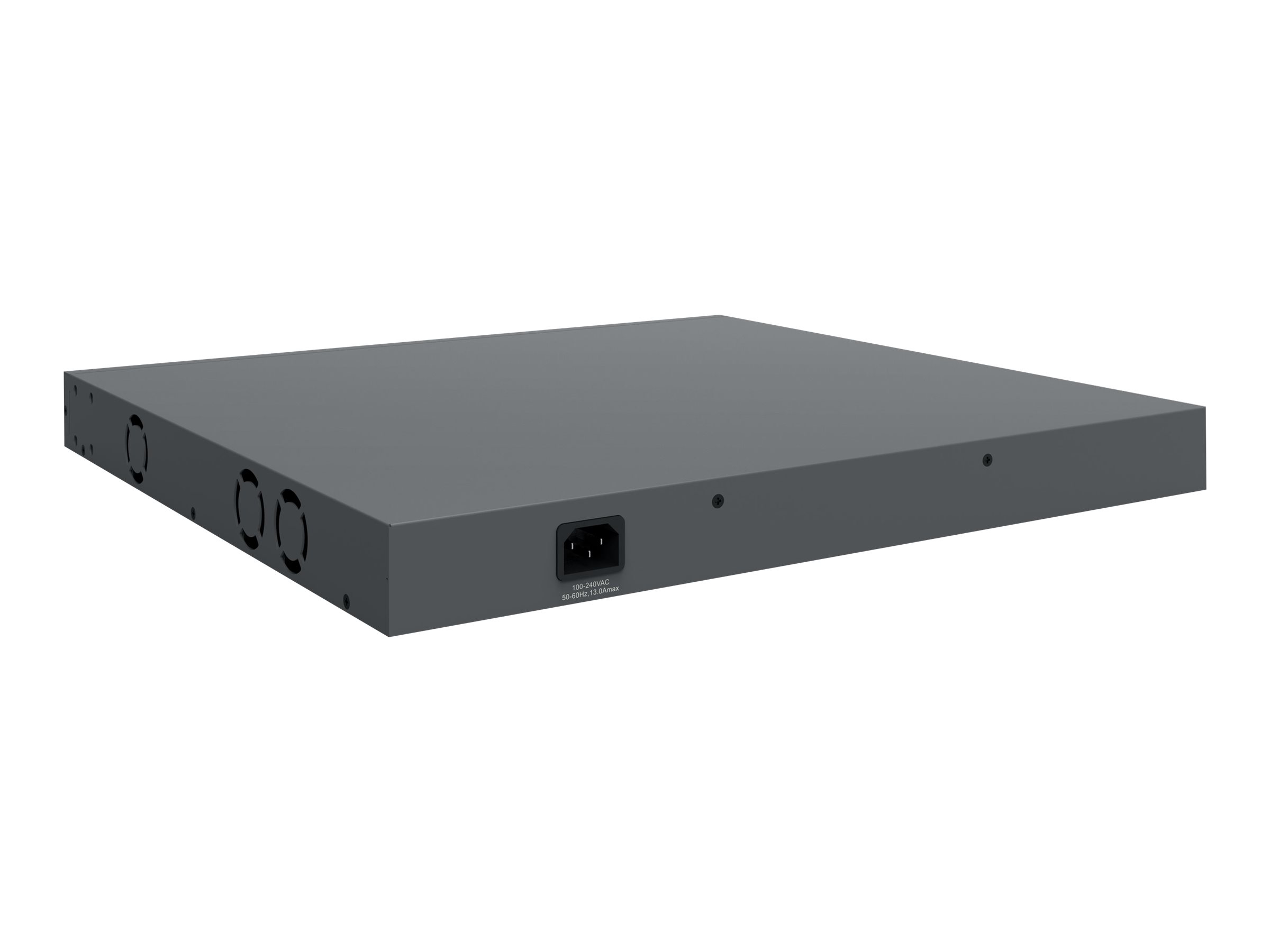

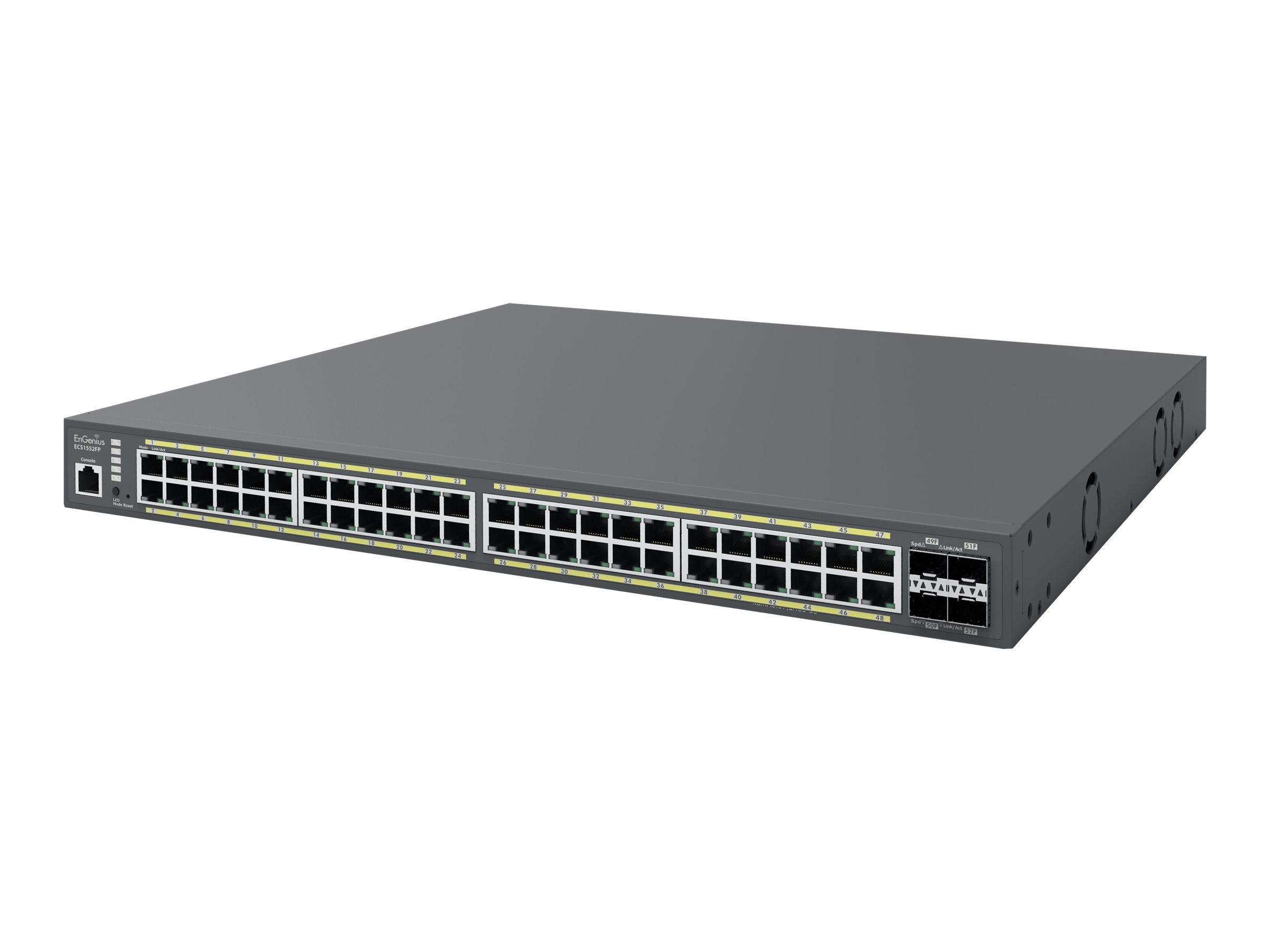

EnGenius Cloud Switch Series ECS1552FP
MSRP$799.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
EnGenius Cloud Switch Series ECS1552FP
- Switch
- managed
- 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
- rack-mountable
- PoE+ (740 W)
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $799.00 |
| Mfr Part #: | ECS1552FP |
| SHI Part #: | 38617278 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | EnGenius |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | EnGenius Cloud Switch Series ECS1552FP - Switch - managed - 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ - rack-mountable - PoE+ (740 W) |
| Manufacturer | EnGenius |
| MSRP | $799.00 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 26 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Weight | 4.76 kg |
| Dimensions & Weight / Width | 44 cm |
| Header / Brand | EnGenius |
| Miscellaneous / Product Color | Black |
| Networking / Form Factor | Rack-mountable |
| Networking / Ports Qty | 48 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 26 cm |
| Height | 4.4 cm |
| Weight | 4.76 kg |
| Width | 44 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 43.2 cm |
| Shipping Height | 8.3 cm |
| Shipping Weight | 5.9 kg |
| Shipping Width | 53.4 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | RADIUS |
| Capacity |
|
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.3at, IEEE 802.3az |
| Device Type | Switch - 48 ports - managed |
| Enclosure Type | Rack-mountable 1U |
| Encryption Algorithm | SSL |
| Features | Flow control, full duplex capability, IGMP snooping, Syslog support, store and forward, IPv6 support, STP support, DHCP snooping, ACL support, QoS, SSH support, MLD snooping, reset button, bandwidth control, IPv4 support, DHCP relay, Port Security, 2MB packet buffer, Multicast filtering function, CoS, MAC and IP-based ACLs support, Time-controlled ACLs support, Protocol-based VLANs support, ARP inspection, Link Aggregation, scheduler, Voice VLAN, secure backup, Selectable Operation Modes, DSCP Trust, WRR, loopback detection, VLAN Tagging, port-based VLAN, ARP filtering, import SSL certificate |
| Flash Memory | 128 MB |
| Jumbo Frame Support | 9KB |
| MAC Address Table Size | 32000 entries |
| Performance | Switching capacity: 176 Gbps |
| PoE Budget | 740 W |
| Ports | 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| RAM | 512 MB SDRAM |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH |
| Status Indicators | Power, fail, PoE, LAN, link/activity/speed, PoE max |
| Subtype | Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | 1 x network cable |
| Compliant Standards | IC, FCC |
| Rack Mounting Kit | Included |
| Power | |
| Power Consumption Operational | 745.61 Watt |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
