SIIG HDMI 4K30Hz KVM over Cat 6 Extender

MSRP$339.99

$328.84

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
Transmitter and receiver video/audio/USB extender USB 2.0, HDMI up to 100 m

Contracts
DIR-CPO-5094

SIIG HDMI 4K30Hz KVM over Cat 6 Extender

General Information
Category	Serial port cards
Description	SIIG HDMI 4K30Hz KVM over Cat 6 Extender - Transmitter and receiver - video/audio/USB extender - USB 2.0, HDMI - up to 100 m
Manufacturer	SIIG
MSRP	$339.99
UNSPSC	43201559
Main Specifications
Header / Brand	SIIG
Networking / Connectivity Technology	Wired
Networking / Data Link Protocol	HDMI USB 2.0
Networking / Form Factor	External
Networking / Type	Video/audio/USB extender
Packaged Quantity	1
Service & Support / Type	2-year warranty
Dimensions & Weight
Dimensions (WxDxH) / Weight Details	Receiver: 9 cm x 13.3 cm x 2.5 cm / 313 g Transmitter: 9 cm x 13.3 cm x 2.5 cm / 322 g
Environmental Parameters
Humidity Range Operating	0 - 90% (non-condensing)
Max Operating Temperature	50 °C
Min Operating Temperature	0 °C
Expansion / Connectivity

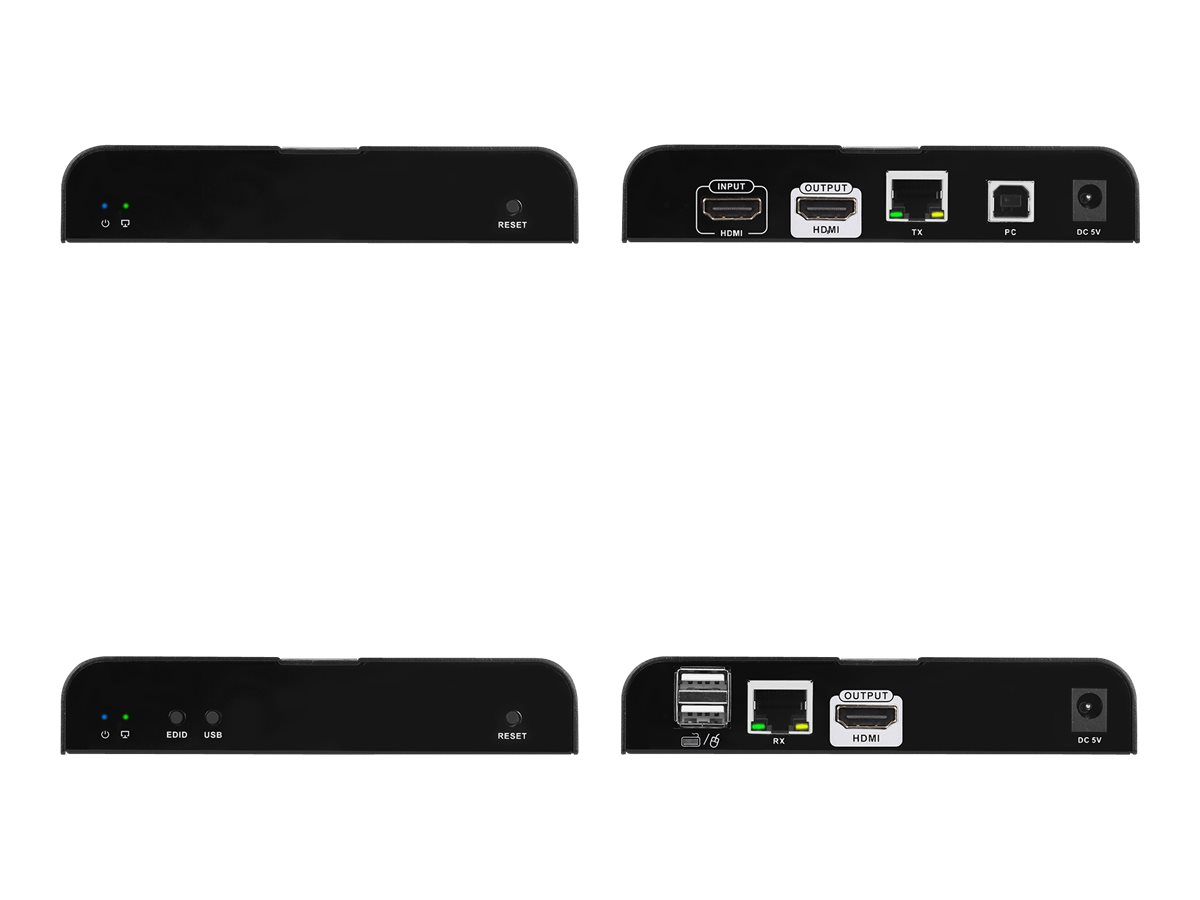

Interfaces	1 x HDMI (output) - 19 pin HDMI Type A female 2 x USB 2.0 (output) - Type A 1 x network (input) - RJ-45 1 x network (output) - RJ-45 1 x USB 2.0 (loop-through) - Type A 1 x USB 2.0 (output for local user) - Type B
General
Device Type	Video/audio/USB extender
Form Factor	External
Manufacturer Warranty
Service & Support	Limited warranty - 2 years
Miscellaneous
Compliant Standards	FCC, RoHS
Networking
Compliant Standards	HDCP 2.2
Connectivity Technology	Wired
Data Link Protocol	USB 2.0, HDMI
Features	HDCP compliant, reset button, 4K resolution support
Max Resolution	4096 x 2160 @ 30 Hz
Max Transfer Distance	100 m
Power
Installed Qty	2
Power Device	External power adapter
Voltage Required	AC 120/230 V (50/60 Hz)
