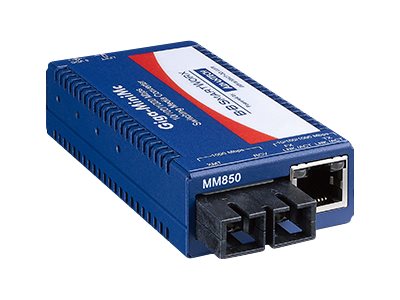

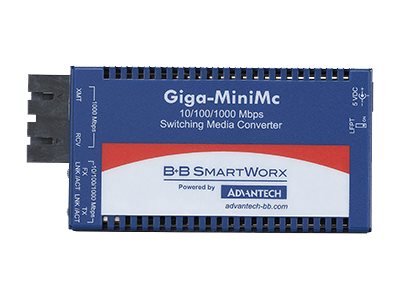

GIGA-MINIMC, TX/SSFX-SM1310-SC-WDM
MSRP$450.45
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
GIGA-MINIMC, TX/SSFX-SM1310-SC-WDM
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $450.45 |
| Mfr Part #: | IMC-370-SST-PS-A |
| SHI Part #: | 40214564 |
| Category: | Network h/w components and accessories |
| UNSPSC: | 43221700 |
| Manufacturer: | B+B SmartWorx |
| Product Type: | Other |
| General Information | |
|---|---|
| Category | Network h/w components and accessories |
| Description | GIGA-MINIMC, TX/SSFX-SM1310-SC-WDM |
| Manufacturer | B+B SmartWorx |
| MSRP | $450.45 |
| UNSPSC | 43221700 |
| Main Specifications | |
| ABC Code | B |
| Height | 2.24 |
| Length | 5.70 |
| One Source Flag | YNN N |
| Replacement Part | 6447328 |
| Serialized Flag | Y |
| SKU Created Date | 200514 |
| Width | 5.20 |
| Dimensions & Weight | |
| Depth | 8.51 cm |
| Height | 2.11 cm |
| Weight | 317 g |
| Width | 4.57 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Fiber media converter |
| Form Factor | External |
| Miscellaneous | |
| Compliant Standards | Plug and Play, FCC Class B certified, CSA, UL, cUL, Directive 2002/95/EC, NEMA TS-2 |
| Networking | |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T, 1000Base-SSLX |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab |
| Connectivity Technology | Wired |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode, Link Fault Pass Through function (LFP), metal housing, Jumbo Frames support (up to 10240 bytes) |
| Max Transfer Distance | 15 km |
| Optical Wave Length | 1310 (TX) / 1550 (RX) nm |
| Status Indicators | Status |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
