Hardware Networking and Security Hubs and Switches

Hubs and Switches

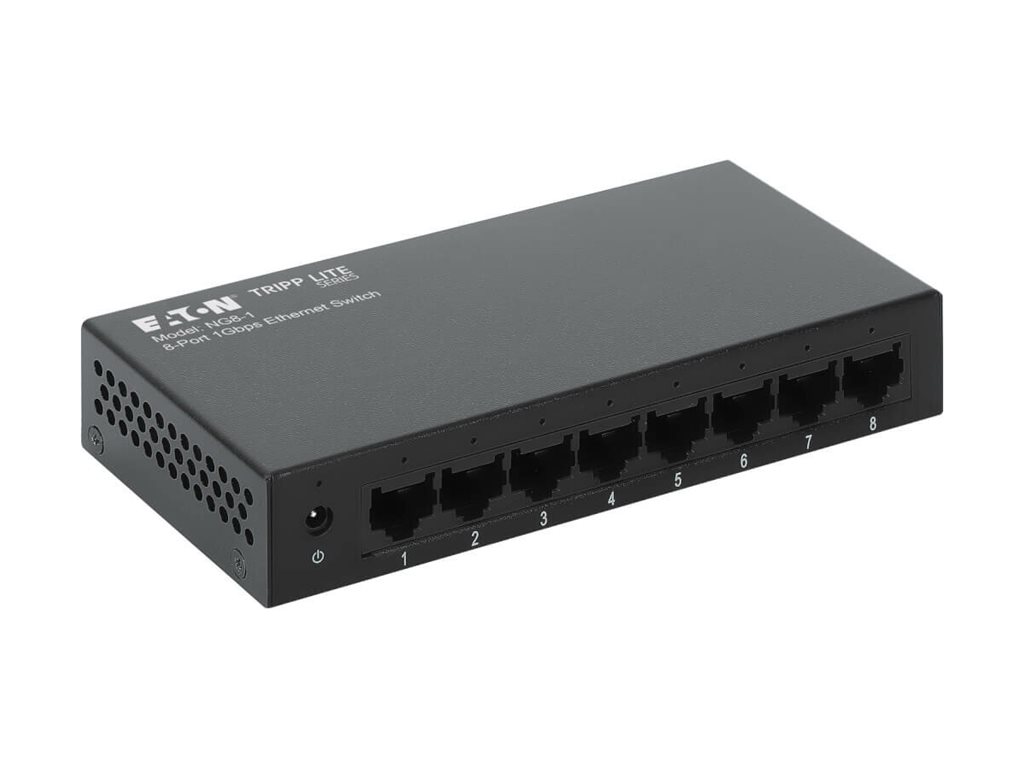

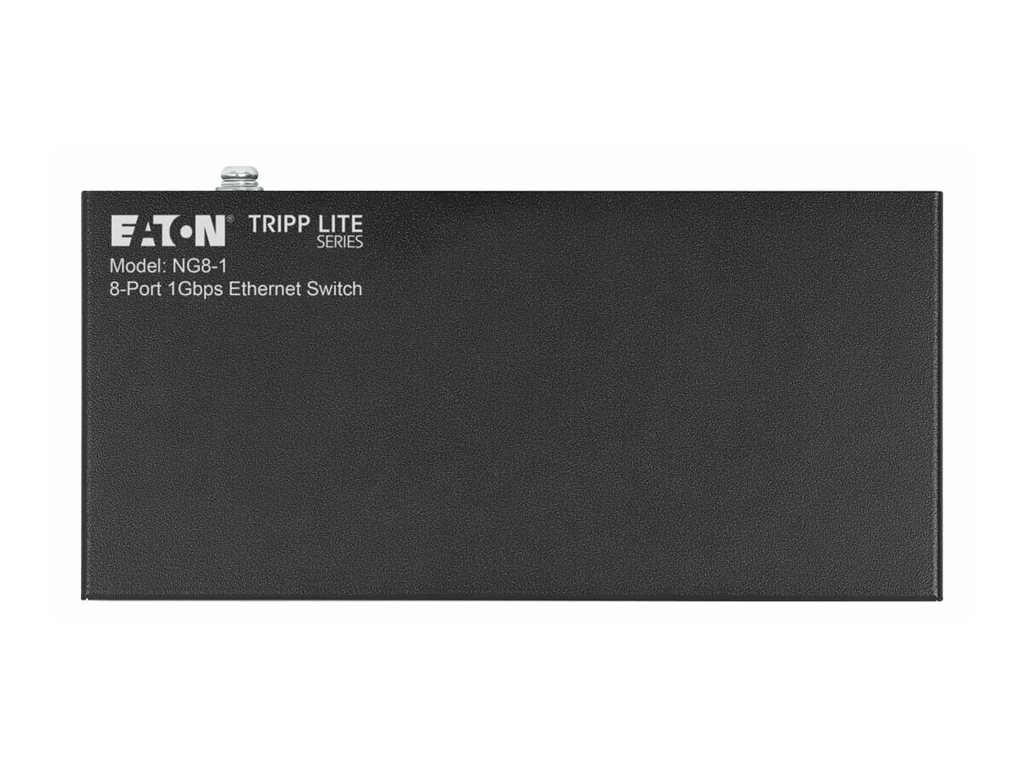

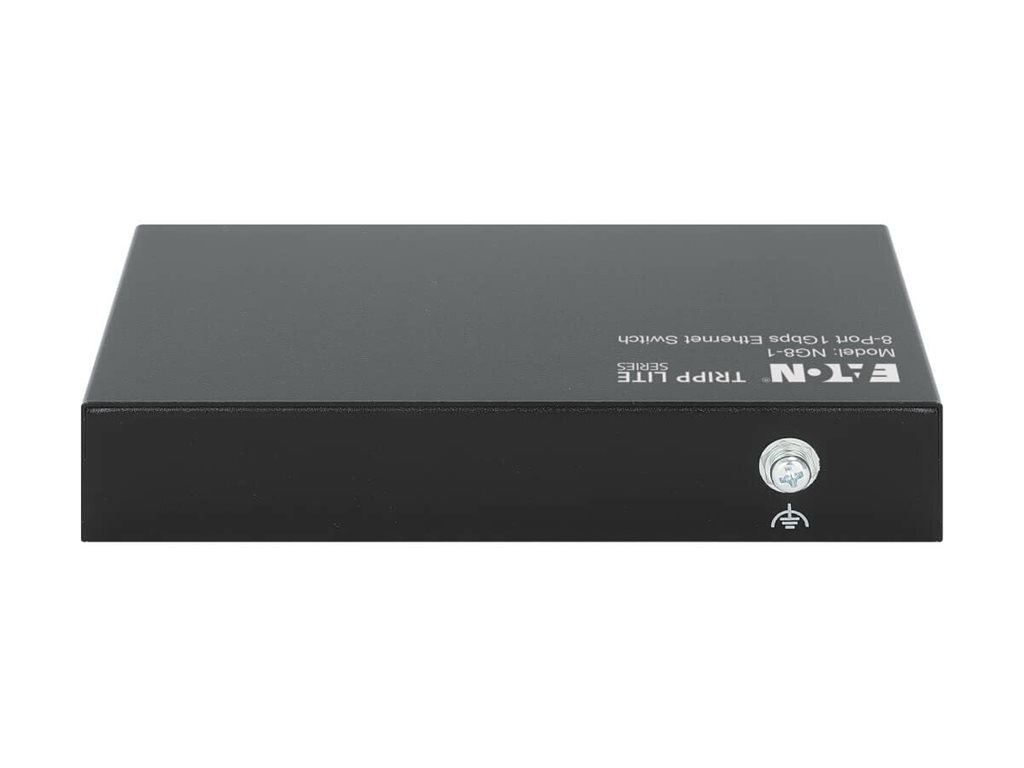

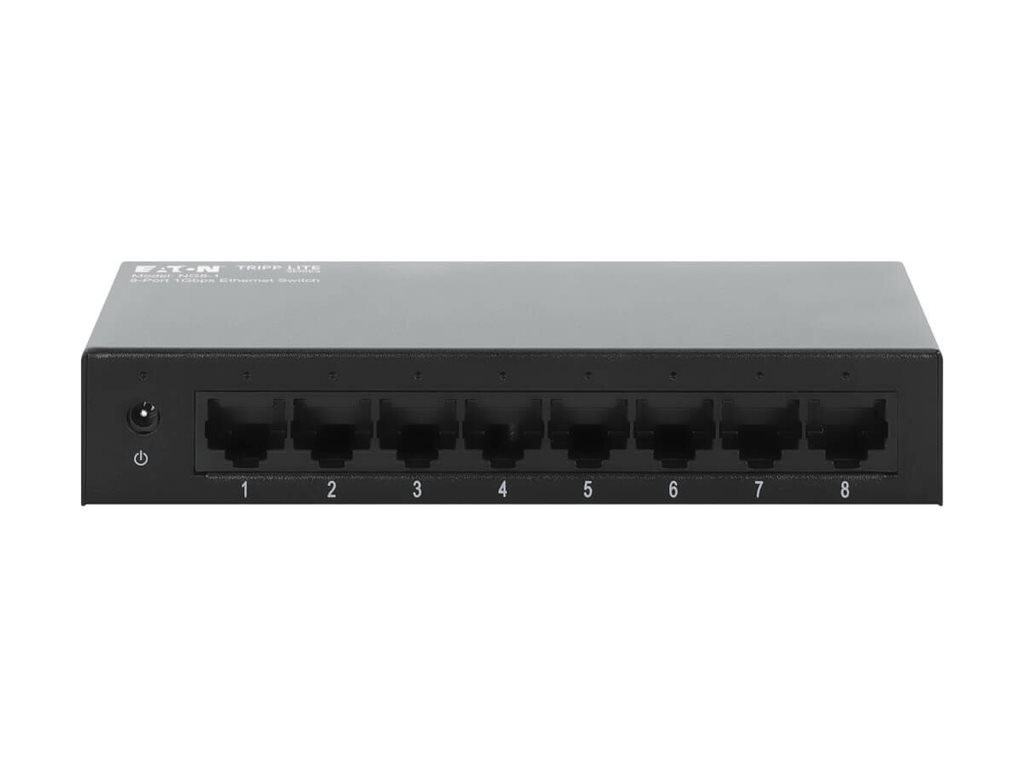

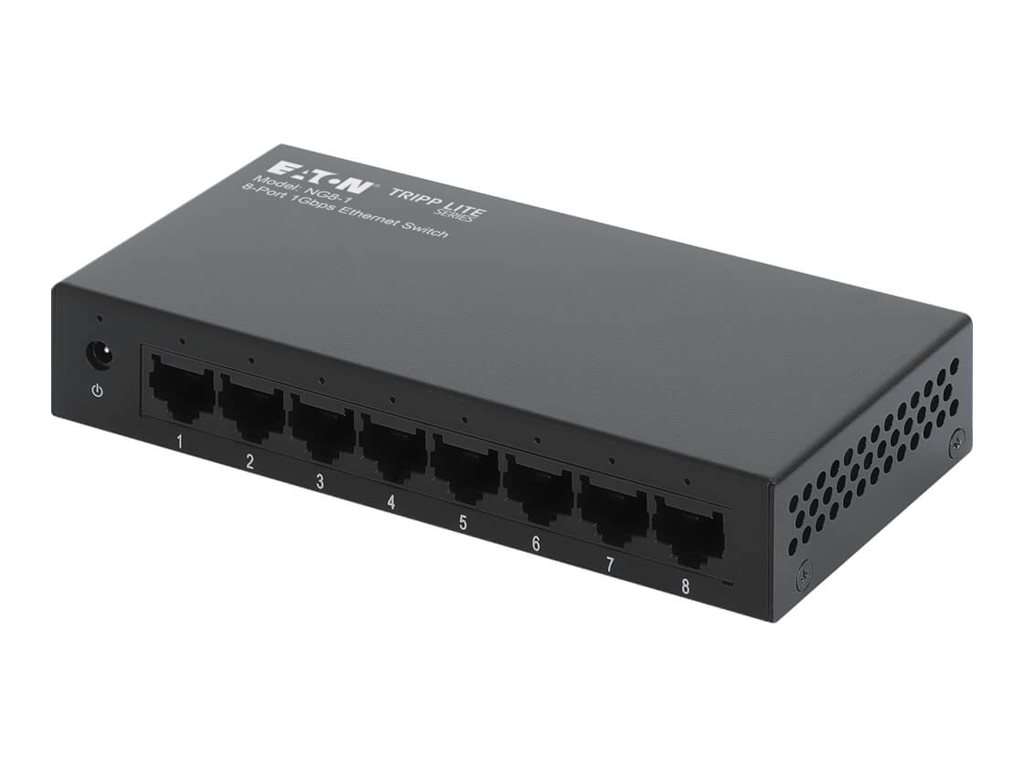

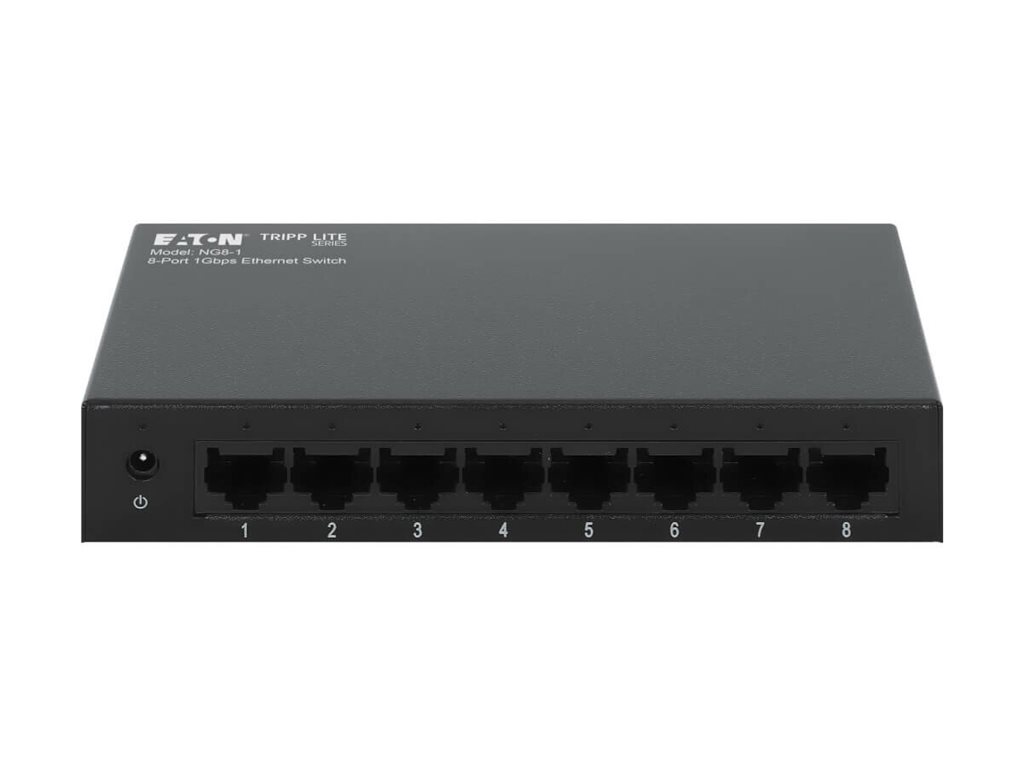

Eaton Tripp Lite series Desktop Gigabit Ethernet Unmanaged Switch 8-Port 10/100/1000 Mbps Metal

MSRP$55.00

$53.20

Eaton Tripp Lite series Desktop Gigabit Ethernet Unmanaged Switch 8-Port 10/100/1000 Mbps Metal

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
Switch unmanaged 8 x 10/100/1000 desktop, wall-mountable for P/N: N200-003-BL, N200-010-BL, N200-015-BL, N200-025-BL, N201-S07-BL, N201-S15-BL

Contracts
DIR-CPO-5094

Eaton Tripp Lite series Desktop Gigabit Ethernet Unmanaged Switch 8-Port 10/100/1000 Mbps Metal

Switch
unmanaged
8 x 10/100/1000
desktop, wall-mountable
for P/N: N200-003-BL, N200-010-BL, N200-015-BL, N200-025-BL, N201-S07-BL, N201-S15-BL

Additional Details
Price:	$53.20
MSRP:	$55.00
Mfr Part #:	NG8-1
SHI Part #:	48977331
Category:	Switch matrixes
UNSPSC:	43222612
Manufacturer:	Eaton
Product Type:	Hardware

8-Port Unmanaged Gigabit Ethernet Switch for Home Offices and Workgroups

The energy-efficient NG8-1 network switch connects up to eight devices, such as computers, routers, printers and servers, to a Gigabit Ethernet network and allows them to communicate with each other. It's recommended for your home network, small office or data center, workgroup or creative production environment. It helps you share large bandwidth-intensive files, such as CAD drawings and videos, at Gigabit (1000 Mbps/1 Gbps) speeds, improving efficiency and cutting costly downtime.

Maximum Network Functionality

The NG8-1 features eight twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX functionality, so crossover cables and uplink ports are not needed for connections to PCs, routers and other switches. No configuration is required, so you can have your Gigabit network up and running immediately. IEEE 802.3x flow control (full duplex) and back pressure (half duplex) allow smooth transmission of large files.

Complies with IEEE Energy Efficient Ethernet Standards

The NG8-1 supports IEEE 802.3az Energy Efficient Ethernet standards by automatically shifting unused ports into a low-power state without interrupting network connections. It consumes very little input power-just 2.75W. It also meets IEEE 802.3ab, 802.3i and 802.3u standards.

Plug-and-Play Functionality for Easy Use

No configuration is required in setting up the unmanaged NG8-1, so you can have your 10/100/1000 Mbps network up and running immediately. Cat5/5e/6/6a UTP/STP cables (sold separately) provide optimal performance. Easy-to-read LEDs indicate connection and activity status for each port. The NG8-1 supports MAC address auto-learning and auto-aging for efficient routing.

Heavy-Duty Metal Enclosure with Versatile Installation Options

This rugged switch features a detachable five-foot (1.5-meter) power cord with NEMA 1-15P plug that connects to a protected UPS or standard AC outlet. The housing contains no fan, resulting in silent operation. The NG8-1 is designed for desktop placement, but also features keyhole tabs for optional wall mounting.

General Information
Category	Switch matrixes
Description	Eaton Tripp Lite series Desktop Gigabit Ethernet Unmanaged Switch 8-Port 10/100/1000 Mbps Metal - Switch - unmanaged - 8 x 10/100/1000 - desktop, wall-mountable - for P/N: N200-003-BL, N200-010-BL, N200-015-BL, N200-025-BL, N201-S07-BL, N201-S15-BL
Manufacturer	Eaton
MSRP	$55.00
UNSPSC	43222612
Main Specifications
Dimensions & Weight / Depth	7.62 cm
Dimensions & Weight / Height	2.79 cm
Dimensions & Weight / Weight	240 g
Dimensions & Weight / Width	13.97 cm
Header / Brand	Eaton
Miscellaneous / Product Color	Black
Networking / Form Factor	Desktop Wall-mountable
Networking / Ports Qty	8
Networking / Type	Switch
Packaged Quantity	1
Service & Support / Type	3-year warranty
Compatibility Information
Designed For	P/N: N200-003-BL, N200-005-BL, N200-010-BL, N200-015-BL, N200-025-BL, N201-001-BK, N201-005-BK, N201-010-BK, N201-014-BK, N201-025-BK, N201-S03-BL, N201-S05-BL, N201-S07-BL, N201-S15-BL, N202-025-BL, N202-050-BL, WEXT1A
Dimensions & Weight
Depth	7.62 cm
Height	2.79 cm
Weight	240 g
Width	13.97 cm
Dimensions & Weight (Shipping)
Shipping Depth	8.51 cm
Shipping Height	6.4 cm
Shipping Weight	710 g
Shipping Width	14.81 cm
Environmental Parameters
Humidity Range Operating	10 - 90% RH (non-condensing)
Max Operating Temperature	40 °C
Max Storage Temperature	70 °C
Min Operating Temperature	0 °C
Min Storage Temperature	-40 °C
Expansion / Connectivity
Interfaces	8 x 10/100/1000Base-T RJ-45
General
Compliant Standards	IEEE 802.3x, IEEE 802.3az, IEEE 802.3i, IEEE 802.3ab, IEEE 802.3u
Device Type	Switch - 8 ports - unmanaged
Enclosure Type	Desktop, wall-mountable
Features	Auto-negotiation, auto-uplink (auto MDI/MDI-X), flow control, full duplex mode, half duplex mode, EEE, MAC address auto-learning, MAC address auto-aging, metal housing, fanless
Jumbo Frame Support	9KB
Performance	Switching capacity: 16 Gbps Port switching capacity: 2 Gbps
Ports	8 x 10/100/1000
Status Indicators	Power, status
Subtype	Gigabit Ethernet
Manufacturer Warranty
Service & Support	Limited warranty - 3 years
Miscellaneous
Color	Black
Compliant Standards	Plug and Play, CAN/CSA-C22.2 No. 62368-1, EN 55032, EN 55035, UL 62368-1, FCC Part 15 B, RoHS, UKCA
Power
Electric Current Required	0.25 A
Power Device	External power adapter
Power Provided	DC 5 V - 1 A
Voltage Required	AC 100-240 V (50/60 Hz)
