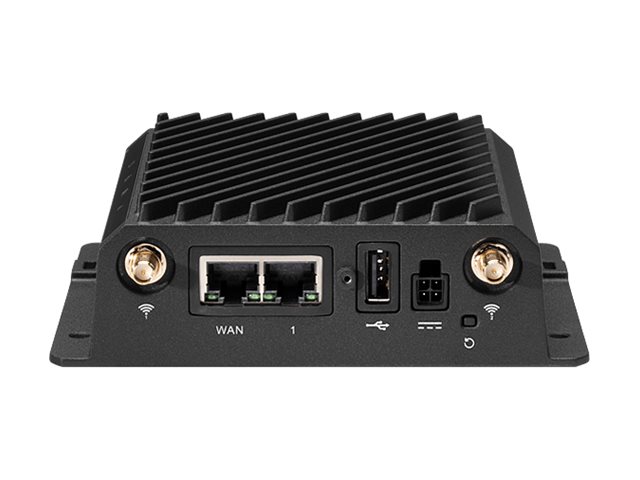

3-YR E-RATE BUS WIFI: NETCLOUD MOBILE ESSENTIALS PLAN
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
3-YR E-RATE BUS WIFI: NETCLOUD MOBILE ESSENTIALS PLAN
| Additional Details | |
|---|---|
| Mfr Part #: | MAX3-0980-5GD-XE |
| SHI Part #: | 49011522 |
| Category: | Network bridges |
| UNSPSC: | 43222631 |
| Manufacturer: | Cradlepoint |
| Product Type: | Other |
| General Information | |
|---|---|
| Category | Network bridges |
| Description | 3-YR E-RATE BUS WIFI: NETCLOUD MOBILE ESSENTIALS PLAN |
| Manufacturer | Cradlepoint |
| UNSPSC | 43222631 |
| Main Specifications | |
| Height | 2.25 |
| Length | 9.75 |
| UPC | 0840292718890 |
| Width | 9.00 |

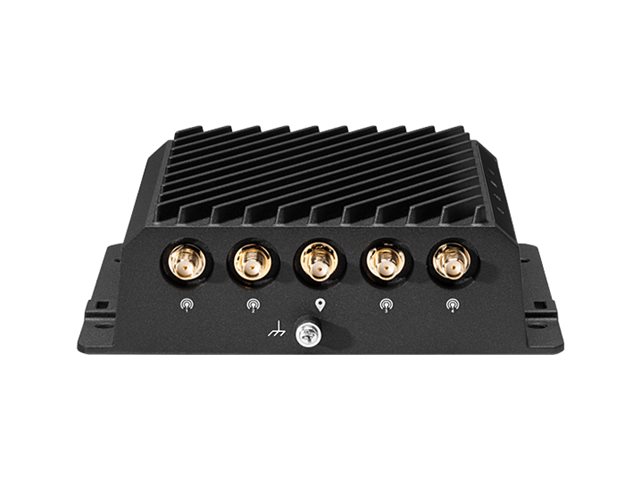

| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 7 |
| Communications | |
| Cellular Band | 5G n1, 5G n2, 5G n20, 5G n25, 5G n28, 5G n3, 5G n30, 5G n38, 5G n40, 5G n41, 5G n48, 5G n5, 5G n66, 5G n7, 5G n71, 5G n75, 5G n77, 5G n78, 5G n79, 5G n8, LTE B1, LTE B12, LTE B13, LTE B14, LTE B17, LTE B18, LTE B19, LTE B2, LTE B20, LTE B25, LTE B26, LTE B28, LTE B29, LTE B3, LTE B30, LTE B32, LTE B34, LTE B38, LTE B39, LTE B4, LTE B40, LTE B41, LTE B42, LTE B43, LTE B46, LTE B48, LTE B5, LTE B66, LTE B7, LTE B71, LTE B8, HSPA+ B1, HSPA+ B19, HSPA+ B2, HSPA+ B4, HSPA+ B5, HSPA+ B8 |
| Cellular Protocol | 5G NR, LTE Advanced Pro, WCDMA, UMTS, HSPA+, FDD LTE, TDD LTE |
| Generation | 5G, 4G, 3G |
| Max Transfer Rate | 3.4 Gbps |
| Type | Wireless cellular modem |
| Compatibility Information | |
| Designed For | P/N: 170635-000, 170665-000, 170716-001, 170717-000, 170864-000, 170869-000, 170873-000, 170900-015, 170904-001 |
| Dimensions & Weight | |
| Depth | 12.15 cm |
| Height | 4.1 cm |
| Weight | 601 g |
| Width | 13.36 cm |
| Environmental Parameters | |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -30 °C |
| Expansion / Connectivity | |
| Expansion Slots | 2 (total) / 2 (free) x Nano-SIM |
| Interfaces |
|
| General | |
| Built-in Devices | GPS, Galileo, GLONASS, Beidou |
| Bundled Services | 3 years NetCloud Mobile Essentials + Standard Plan |
| Capacity |
|
| Compliant Standards | IEEE 802.11k, IEEE 802.11v, IEEE 802.11b, IEEE 802.11ac, IEEE 802.11g, IEEE 802.11n, IEEE 802.11a, IEEE 802.11ax, NMEA, TAIP, IP64, ISO 7637-2, UL, cUL, CB Scheme, EN 62368-1, SAE J1455, e-mark certified, WEEE, RoHS, REACH, CP65, FIPS 140-3 Level 1, MIL-STD 810H 514.8, BSS 7239, Class 1 Div 2 (C1D2), MIL-STD 810H 516.8, NFPA 130, FCC Part 96 CBRS, IC, RCM, UKCA, PTCRB, GCF |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11ac, IEEE 802.11g, IEEE 802.11n, IEEE 802.11a, IEEE 802.11ax (Wi-Fi 6) |
| Device Type | Router |
| Enclosure Type | Desktop |
| Encryption Algorithm | WPA-Personal, WPA2-Personal, WPA3-Personal, WPA2-Enterprise, WPA3-Enterprise |
| Features | eSIM support, 2x2 MU-MIMO technology, Access Point operational mode, dual core CPU, Docker Support, 3GPP Release 16, IDS/IPS support |
| Flash Memory | 8 GB |
| Frequency Band | 2.4 GHz / 5 GHz |
| Performance |
|
| Processor | ARM8 |
| RAM | 921 MB |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Line Properties | |
| Line Coding Format | 256 QAM |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Localization | North America |
| Manufacturer Selling Program | E-Rate program |
| MTBF | 1,407,191 hours |
| Power | |
| Power Consumption Operational | 11 watt |
| Power Device | External power adapter |
