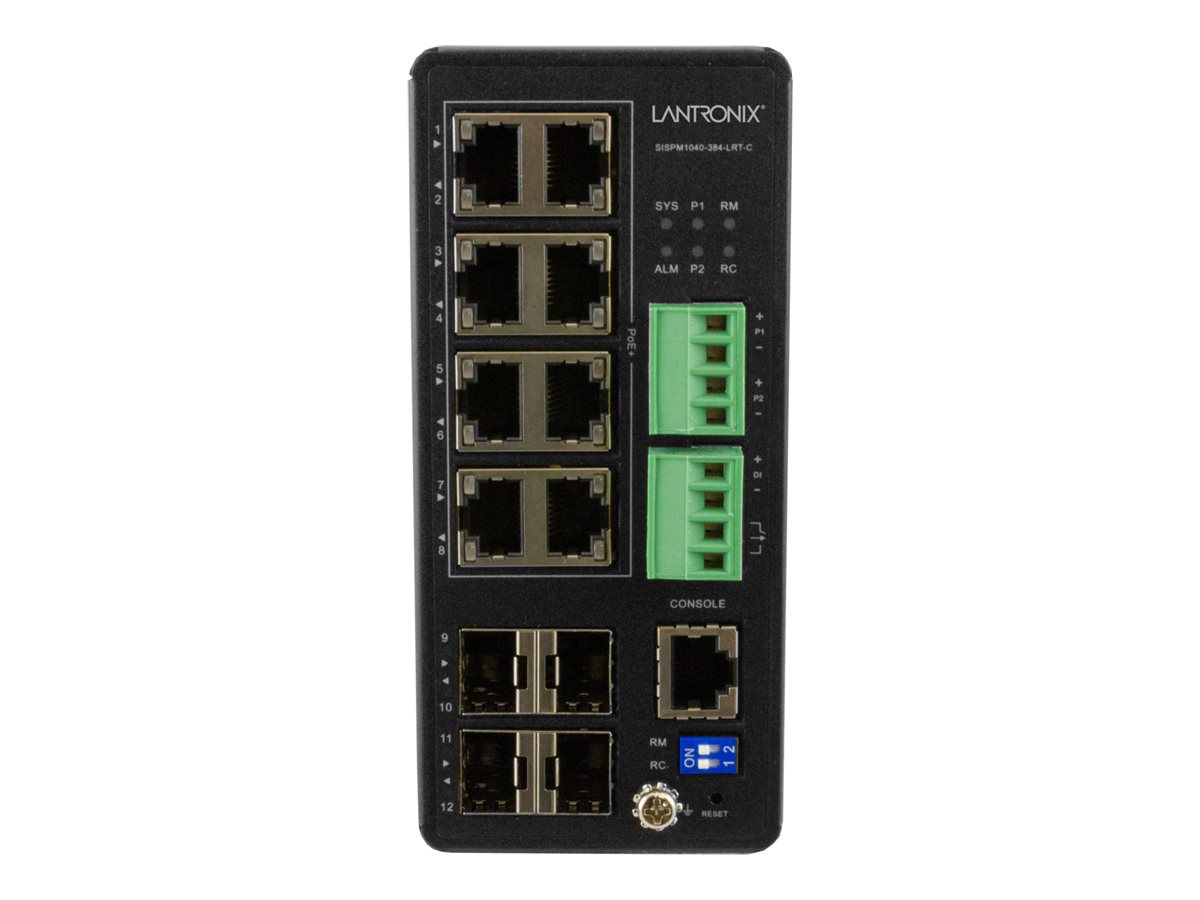

Lantronix SISPM1040-300 Series
MSRP$1,478.70
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
Lantronix SISPM1040-300 Series
- Switch
- hardened
- managed
- 8 x 10/100/1000 (PoE+) + 4 x 1000Base-X SFP
- DIN rail mountable
- PoE+ (120 W)
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,478.70 |
| Mfr Part #: | SISPM1040-384-LRT-C |
| SHI Part #: | 49616685 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | Lantronix |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | Lantronix SISPM1040-300 Series - Switch - hardened - managed - 8 x 10/100/1000 (PoE+) + 4 x 1000Base-X SFP - DIN rail mountable - PoE+ (120 W) - TAA Compliant |
| Manufacturer | Lantronix |
| MSRP | $1,478.70 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 13.5 cm |
| Dimensions & Weight / Height | 13 cm |
| Dimensions & Weight / Weight | 1 kg |
| Dimensions & Weight / Width | 6.2 cm |
| Header / Brand | Lantronix |
| Miscellaneous / Product Color | Black |
| Networking / Form Factor | DIN rail mountable |
| Networking / Ports Qty | 8 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Dimensions & Weight | |
| Depth | 13.5 cm |
| Height | 13 cm |
| Weight | 1 kg |
| Width | 6.2 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 75 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | RADIUS, TACACS+, Secure Shell (SSH), Secure Shell v.2 (SSH2) |
| Capacity |
|
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1s, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3ah, IEEE 802.3ag, IEEE 802.1D, IEEE 1588v2, ITU-T Y.1731, ITU-T G.8032 |
| Device Type | Switch - 8 ports - managed |
| Enclosure Type | DIN rail mountable |
| Features | Hardened, fanless, PTP, topology view, floor plan view, web-based management, built-in DIP switch, over-current protection, reverse polarity protection, DMS, Store-and-forward technology, LLDP support, SCP, reset button, ERPS, EPSRing, WDT, port mirroring, APR, DHCP support, PoE scheduling, port based access control, Q-in-Q tunneling, MAC based VLAN, VLAN management, PVE, Voice VLAN, GVRP, VLAN ID filtering, IP address filtering, DSCP Marking, loop protection, QoS, IPv4 and IPv6 dual stack, static routing, IP source guard, Syslog support, SNMP trap, DHCP client, DHCP server, DHCP relay, DHCP Option 82, MRP, wall mountable |
| Jumbo Frame Support | 9.6KB |
| MAC Address Table Size | 8K entries |
| Performance | Backplane switching capacity: 24 Gbps |
| PoE Budget | 120 W |
| Ports | 8 x 10/100/1000 (PoE+) + 4 x 1000Base-X SFP |
| Power Over Ethernet (PoE) | PoE+ |
| RAM | 128 MB |
| Remote Management Protocol | Web GUI, SFTP, HTTPS, SCP, UDP, TCP/IP, SMTP, SNMP 1, SNMP 2c, SNMP 3, Telnet, CLI |
| Routing Protocol | Static IP routing, IGMP, IGMPv2, IGMPv3 |
| Status Indicators | System, power 1, ring master, coupling, power 2, alarm, port status |
| Subtype | Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | NDAA, IEC 62439-2, IP30, EMI, FCC Part 15, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, IEC 60068-2-32, IEC 60068-2-27, IEC 60068-2-6, NEMA TS-2, IEC 62368-1, EN 62368-1, UL Class 1 Division 2, EN 50155, EN 50121-4, DNV, IEC 61850-3, IEEE 1613 |
| Included Accessories | DIN-rail bracket |
| MTBF | 100,874 hours |
| TAA Compliant | Yes |
| Power | |
| Power Consumption Operational | 11.1 Watt |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| Voltage Required | DC 48 - 57 V |
| Software / System Requirements | |
| Software Included | Percepxion IoT Edge Solutions Platform |
