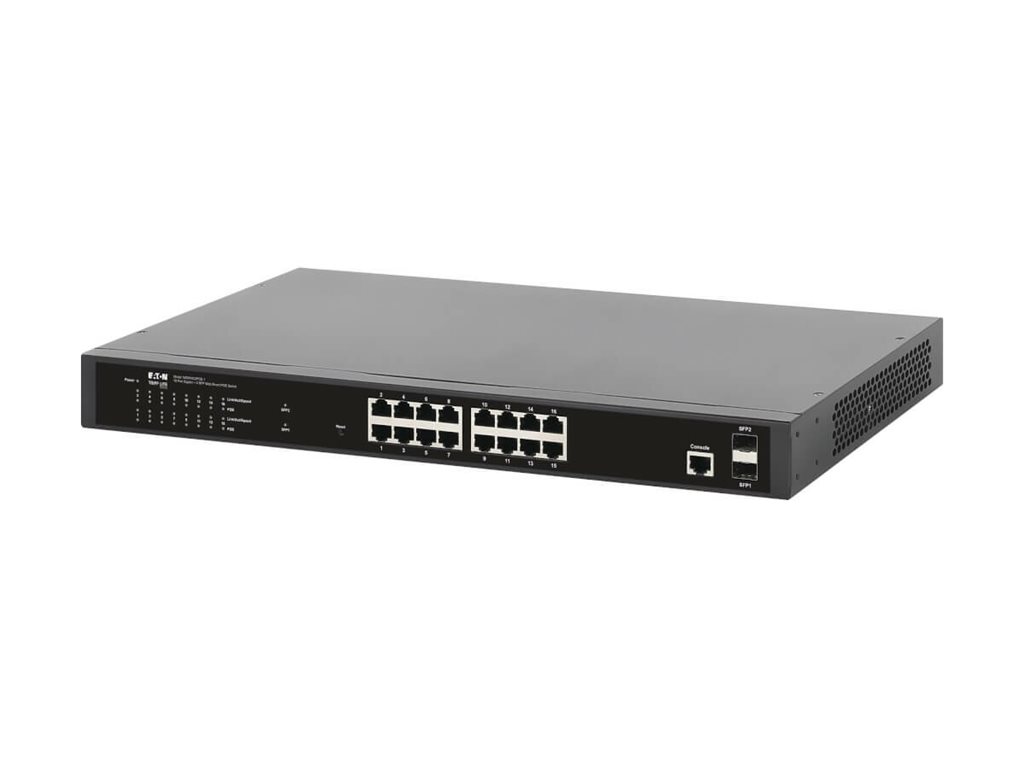

16-PORT MANAGED GIGABIT ETHERNE T SWITCH WITH POE+ LAYER 2 1 GBPS 2

Enterprise Managed Network Switch

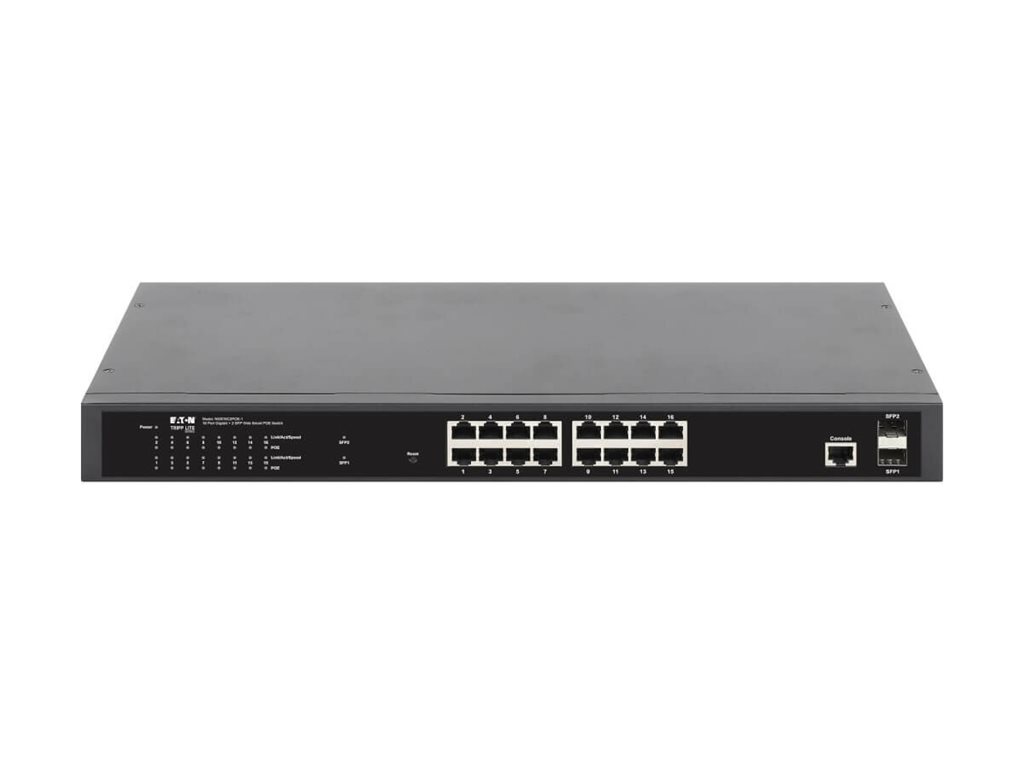

? 16 twisted-pair RJ45 Gigabit Ethernet ports with PoE+

? Auto-negotiable 10/100/1000 Mbps

? Automatic MDI/MDIX cross-over detection

? 36 Gbps switching capacity (2 Gbps per port with full duplex)

? Easy-to-read LEDs indicate connection and activity status for each port

? Supports 8k jumbo frames

? Supports MAC address auto-learning and auto-aging up to 8,000 addresses

? Advanced Enterprise-level and L2 management features

Built-In Web-Smart Management Software

? Monitors and controls connected equipment via simple Web interface

? VLAN, trunking, VPN, port monitoring and other features improve network efficiency and performance

Dual Dedicated SFP Ports

? Connect to SFP modules for uplinking to other switches via optical fiber or copper

? LEDs indicate interface traffic

Compliant with Energy Efficient Ethernet standards

? Automatically shifts unused ports to low power state without interrupting network connection

? Meets IEEE 802.3ab, 802.3i, 802.3u, 802.3x, 802.3, 802.1q, 802.1d, 802.1w and 802.3ad standards

Versatile Installation Options

? Fanless metal housing mounts in 1U of EIA-standard 19 in. racks

? Supports desktop installation using included rubber feet on flat surface

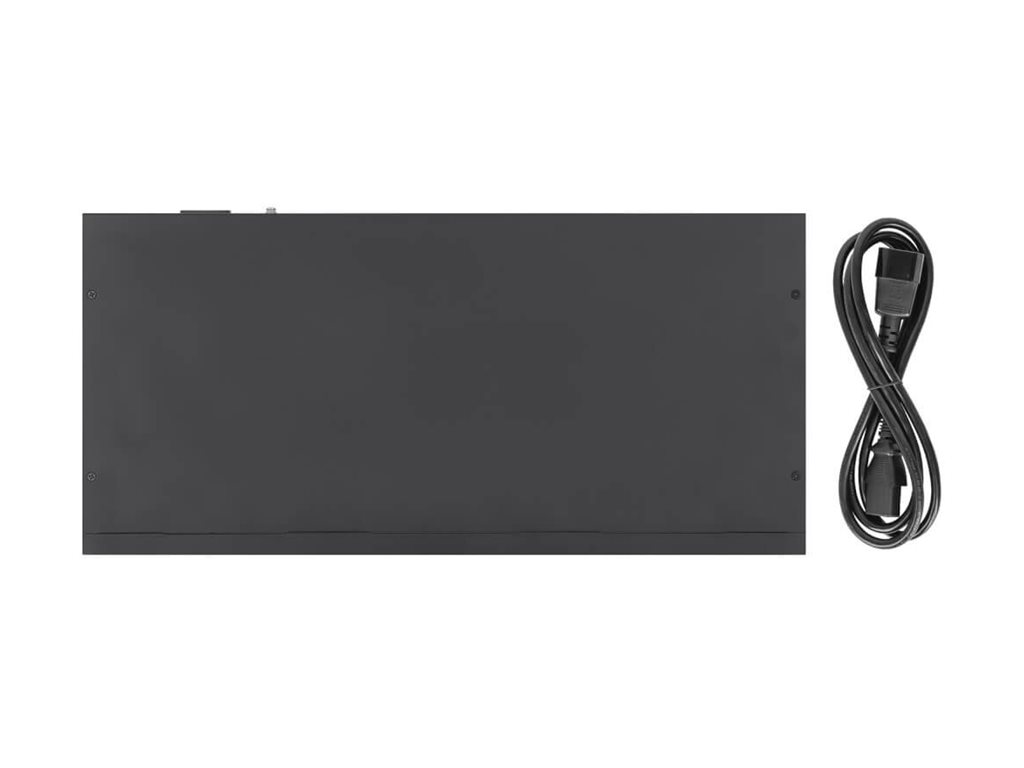

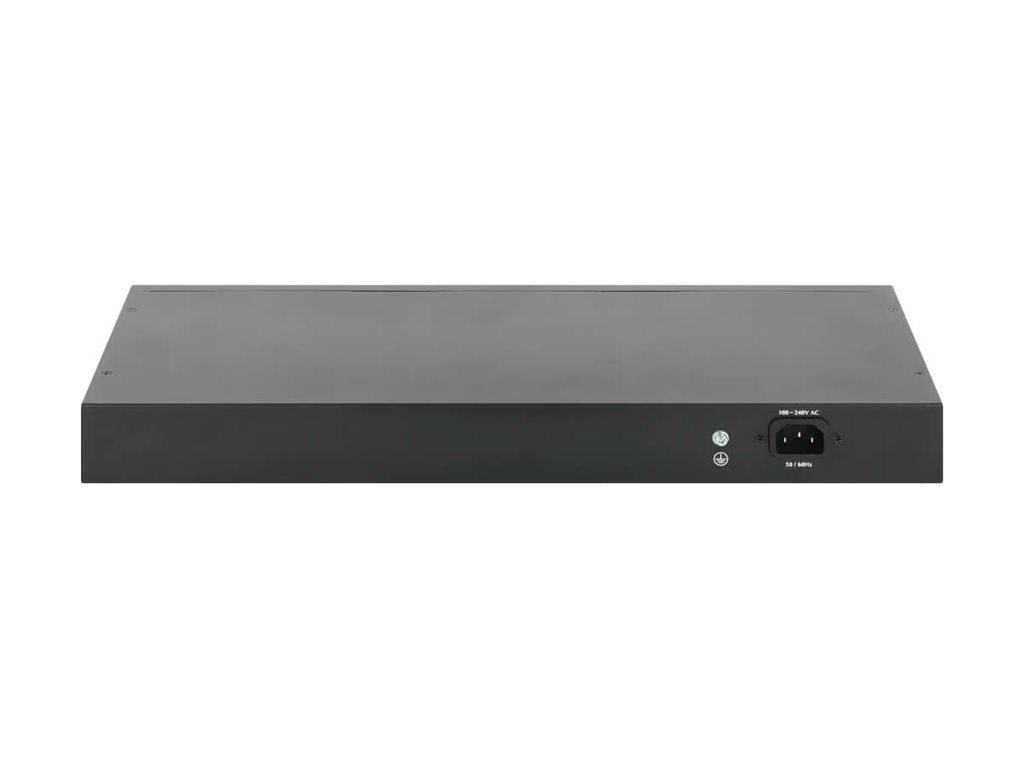

? 5 ft. power cord with C14 plug connects to compatible AC power source

Works with the Most Popular Web Browsers

The NGS16C2POE-1 is browser-based and works independently from the connected computer's operating system. Because switch compatibility is based on common hardware standards, rather than system software dependencies, the NGS16C2POE-1 accommodates most platforms. Preferred web browsers include Google Chrome (on both Windows and macOS) and Microsoft Edge (Windows only).
