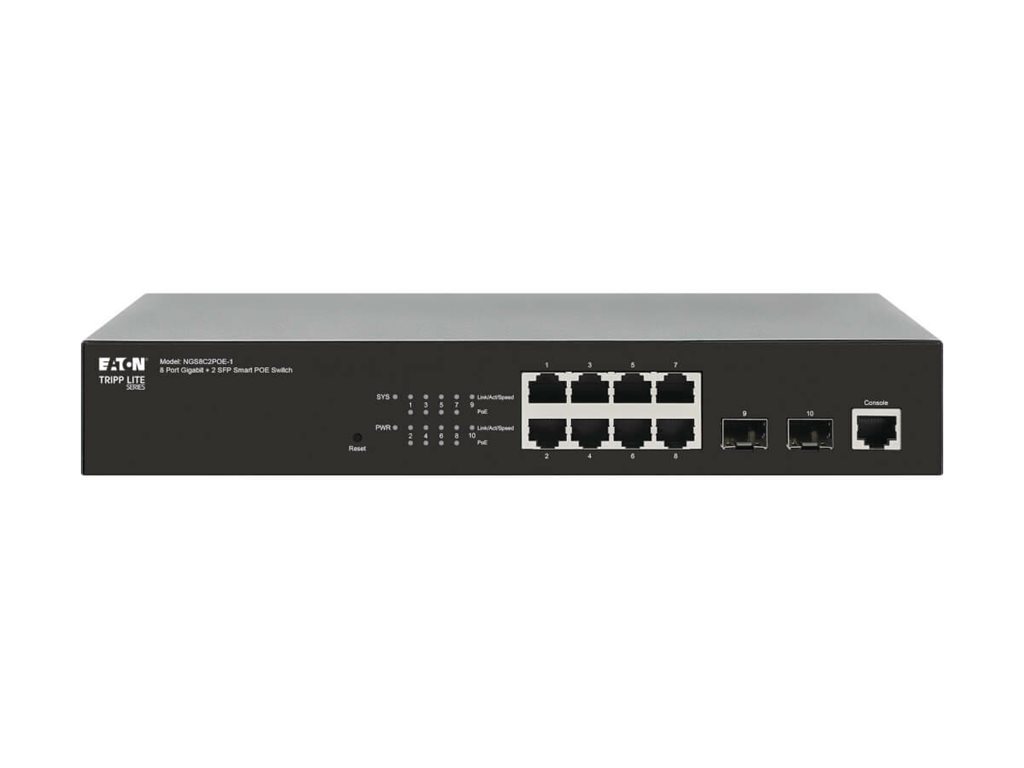

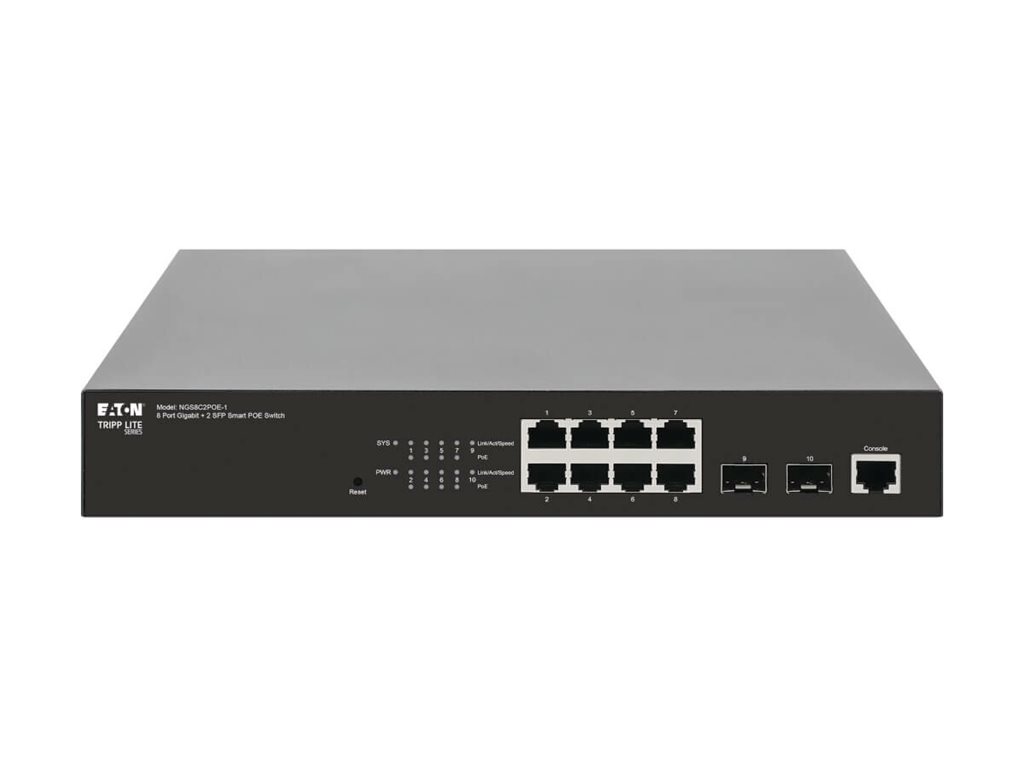

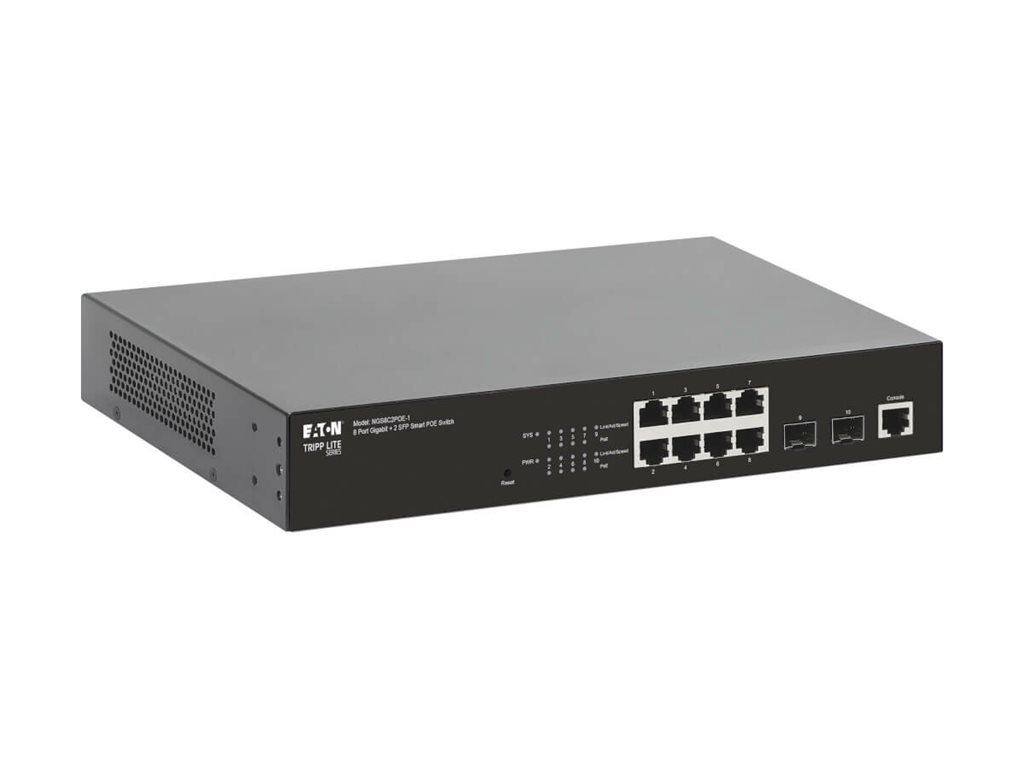

Eaton Tripp Lite series
MSRP$329.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
Eaton Tripp Lite series
- Switch
- smart
- 8 x 10/100/1000 (PoE+) + 2 x 1000Base-SX (uplink)
- rack-mountable
- PoE+ (140 W)
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $329.00 |
| Mfr Part #: | NGS8C2POE-1 |
| SHI Part #: | 49703175 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | Eaton |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | Eaton Tripp Lite series - Switch - smart - 8 x 10/100/1000 (PoE+) + 2 x 1000Base-SX (uplink) - rack-mountable - PoE+ (140 W) |
| Manufacturer | Eaton |
| MSRP | $329.00 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 43.99 cm |
| Dimensions & Weight / Height | 4.39 cm |
| Dimensions & Weight / Weight | 1.9 kg |
| Dimensions & Weight / Width | 20.78 cm |
| Header / Brand | Eaton |
| Miscellaneous / Product Color | Black |
| Networking / Form Factor | Rack-mountable |
| Networking / Ports Qty | 8 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight | |
| Depth | 43.99 cm |
| Height | 4.39 cm |
| Weight | 1.9 kg |
| Width | 20.78 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 2.5 kg |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| Device Type | Switch - 8 ports - smart |
| Enclosure Type | Rack-mountable 1U |
| Features | 1 fan, auto-uplink (auto MDI/MDI-X), DHCP snooping, MAC address auto-learning, SNMP support, Storm Control, flow control, VPN support, auto-negotiation, trunking, QoS, tagged VLAN, crossover detection, metal housing, reset button |
| Jumbo Frame Support | 10000 bytes |
| MAC Address Table Size | 8000 entries |
| Performance | Switching capacity: 20 Gbps |
| PoE Budget | 140 W |
| Ports | 8 x 10/100/1000 (PoE+) + 2 x 1000Base-SX (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| Remote Management Protocol | SNMP, RMON |
| Status Indicators | Link/activity/speed, PoE, power, system |
| Subtype | Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |

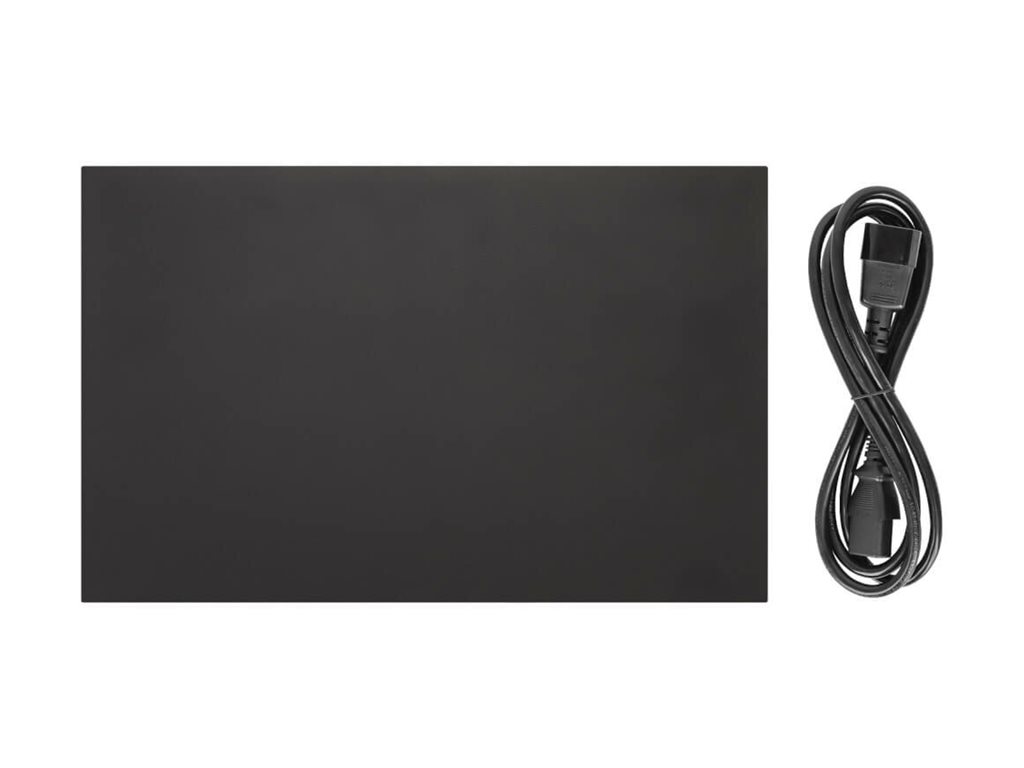

| Cables Included | Power cable (C14) - 1.52 cm |
| Compliant Standards | RoHS, UKCA, FCC 47 CFR part 15 B class B, CAN/CSA-C22.2 No. 62368-1, ICES (Canada), IEC 62368-1, UL 62368-1 |
| Included Accessories | 4 rubber feet |

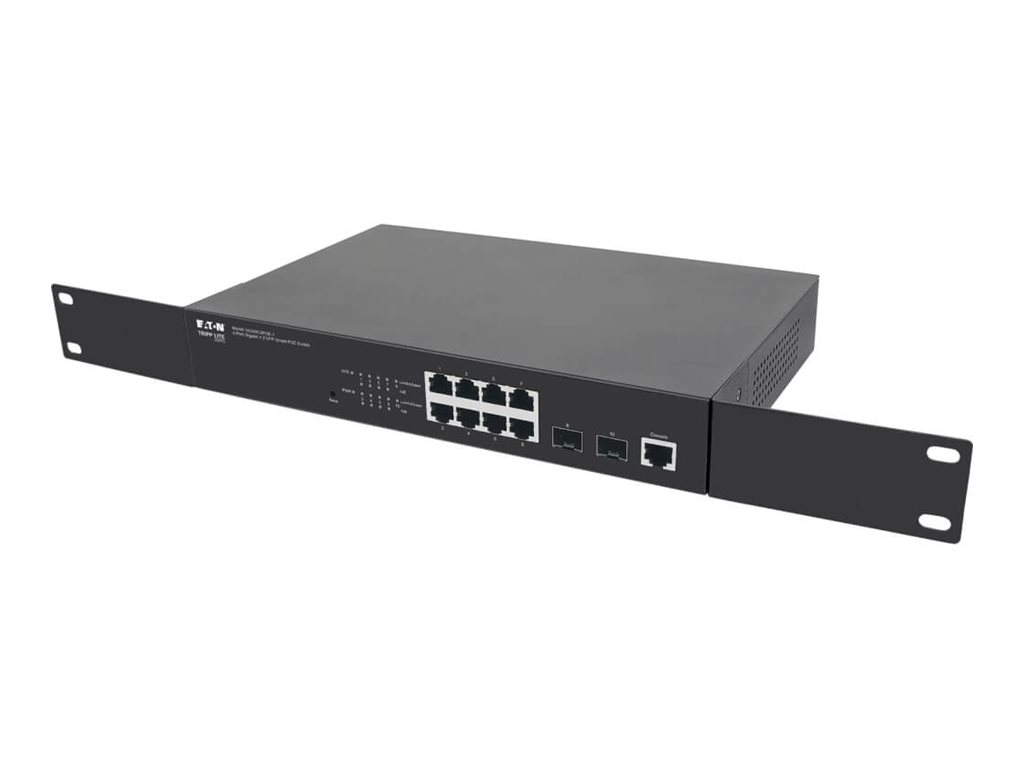

| Rack Mounting Kit | Included |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
