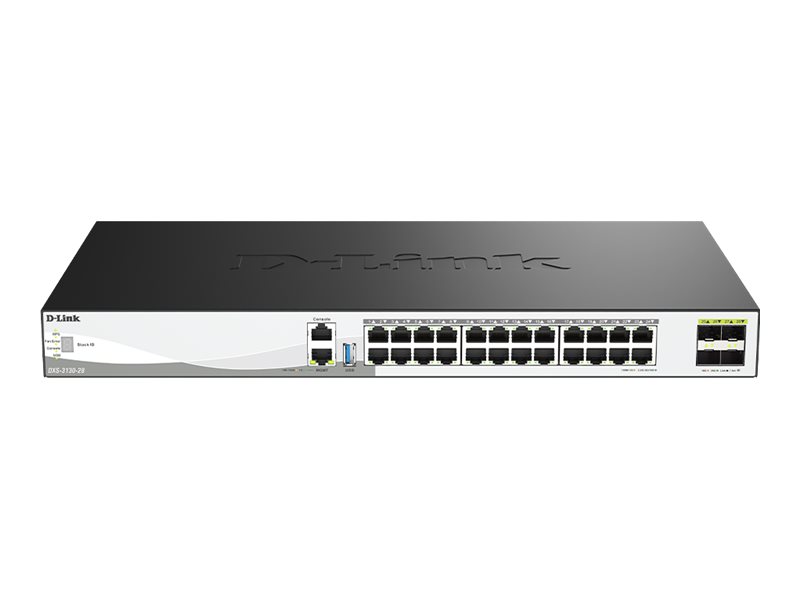

D-Link DXS 3130-28 - Switch

MSRP$3,769.99
$3,646.33
D-Link DXS 3130-28 - Switch
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • L3
  • managed
  • 24 x 100/1000/2.5G/5G/10GBase-T + 4 x 10 Gigabit / 25 Gigabit SFP28
  • rack-mountable
  • for D-Link DEM-CB700, DPS-PWR1200; DEM 410, 431, 432, 433, 436, S2801, S2810
Contracts
   DIR-CPO-5094
D-Link DXS 3130-28 - Switch
  • L3
  • managed
  • 24 x 100/1000/2.5G/5G/10GBase-T + 4 x 10 Gigabit / 25 Gigabit SFP28
  • rack-mountable
  • for D-Link DEM-CB700, DPS-PWR1200; DEM 410, 431, 432, 433, 436, S2801, S2810
  Additional Details
Price: $3,646.33
MSRP: $3,769.99
Mfr Part #: DXS-3130-28
SHI Part #: 50538104
Category: Network switches
UNSPSC: 43222612
Manufacturer: D-Link
Product Type: Hardware
General Information
CategoryNetwork switches
DescriptionD-Link DXS 3130-28 - Switch - L3 - managed - 24 x 100/1000/2.5G/5G/10GBase-T + 4 x 10 Gigabit / 25 Gigabit SFP28 - rack-mountable - for D-Link DEM-CB700, DPS-PWR1200; DEM 410, 431, 432, 433, 436, S2801, S2810
ManufacturerD-Link
MSRP$3,769.99
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth25 cm
Dimensions & Weight / Height4.4 cm
Dimensions & Weight / Weight3.525 kg
Dimensions & Weight / Width44 cm
Header / BrandD-Link
Miscellaneous / Product Color
  • Black
  • Gray
Networking / Form FactorRack-mountable
Networking / Ports Qty28
Networking / TypeSwitch
Packaged Quantity1
Service & Support / TypeLimited lifetime warranty
Compatibility Information
Designed For
  • D-Link DEM-CB700S, DPS-PWR1200AC
  • D-Link DEM 410T, 431XT, 432XT, 433XT, 436XT-BXD, 436XT-BXU, S2801SR, S2810LR
Dimensions & Weight
Depth25 cm
Height4.4 cm
Weight3.525 kg
Width44 cm
Environmental Parameters
Humidity Range Operating10 - 90% RH
Humidity Range Storage5 - 90% RH
Max Operating Temperature50 °C
Max Storage Temperature70 °C
Min Operating Temperature0 °C
Min Storage Temperature-40 °C
Expansion / Connectivity
Interfaces
  • 24 x 10GBase-T RJ-45
  • 4 x 10/25Gbit LAN SFP28 uplink
  • 1 x 10/100/1000Base-T RJ-45 console
  • 1 x 10/100/1000Base-T RJ-45 management
  • 1 x USB 2.0 Type A
General
Authentication MethodRADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Built-in Devices3 x smart fans
Capacity
  • VLAN IDs: 4094
  • IPv4 routes (ARP entries): 4096
  • Static ARP entries: 256
  • IPv6 routes (ARP entries): 1024
  • Static ARP entries: 128
  • IP interfaces: 128
  • Units per virtual stack: 32
  • IGMP groups: 1024
  • MLD groups: 1024
  • Packet buffer size: 4 MB
Compliant StandardsIEEE 802.1ag, IEEE 802.1x, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ah, ITU-T Y.1731, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1v, IEEE 802.1p
Device TypeSwitch - 28 ports - L3 - managed - stackable
Enclosure TypeRack-mountable 1U
Encryption AlgorithmSSL, TLS 1.0, TLS 1.1, TLS 1.2
Features6KV Surge protection, Green Technology, QoS, ERPS, loopback detection, Broadcast Storm Control, ACL support, IPMB, DHCP snooping, flow control, BPDU Filter, Root Guard, Loop Guard, port mirroring, flow mirroring, VLAN mirroring, RSPAN, ERPS v2, IGMP snooping, GVRP, WRR, WDRR, WRED, Guest VLAN, AAA, DAI, DAD, DoS attack prevention, WAC, EEE, DULD, DDM, sFlow, LLDP-MED, system log, IP source guard, Safeguard Engine, Multicast Storm Control, Unicast Storm Control, MLD snooping, bandwidth control
Jumbo Frame Support12KB
MAC Address Table Size32K entries
Max Units In A Stack9
Performance
  • Switching capacity: 680 Gbps
  • Stacking bandwidth: 200 Gbps
  • Packet forwarding rate: 505.92 Mpps
  • Forwarding rate (64-byte packets): 298 Mpps
Ports24 x 100/1000/2.5G/5G/10GBase-T + 4 x 10 Gigabit / 25 Gigabit SFP28
Remote Management ProtocolHTTP, HTTPS, DHCP, TFTP, Telnet, DNS, SNMP 1, SNMP 2c, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9, CLI, BOOTP
Routing ProtocolStatic IPv4 routing, static IPv6 routing, RIPng, OSPFv2, OSPFv3, IGMP, MLD, STP, RSTP, MSTP, IGMPv2, IGMPv3, MLDv2, PIM-SM, PPPoE, NTPv3, NTPv4, VRRPv2, VRRPv3, ECMP, RIP-1, RIP-2
Status IndicatorsPower, console, management, RPS (Redundant Power Supply), fan failure, USB, link/activity/speed, stack ID
Subtype10 Gigabit Ethernet
Manufacturer Warranty
Service & SupportLimited warranty - lifetime
Miscellaneous
Cables Included1 x RJ-45 to RS-232 cable
Compliant StandardsIEC 61000-4-5, FCC Class A certified, VCCI Class A, IC, RCM, BSMI, CB, cUL
MTBF317,350.54 hours
Rack Mounting KitIncluded
Power
Max Supported Qty2
Power Consumption Stand by32.857 Watt
Power DeviceInternal power supply
Power RedundancyOptional
Voltage RequiredAC 100-240 V (50/60 Hz)
